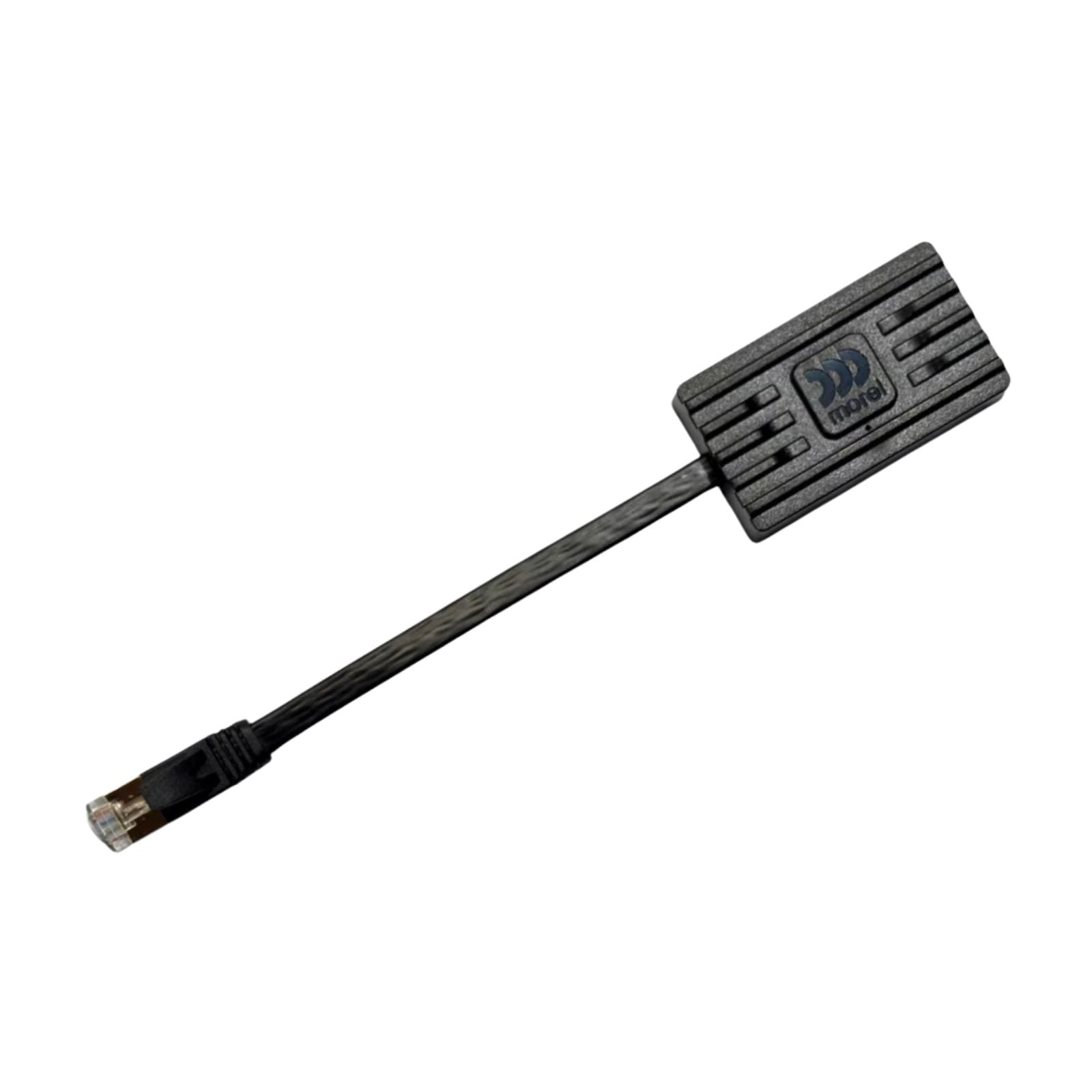

Morel MDSP-BT Bluetooth Expansion Module for MDSP Amps

The Morel MDSP-BT is a plug-in Bluetooth module for Morel MDSP amplifiers that adds wireless audio streaming and wireless DSP tuning through the Morel Tuning app.

Designed for the Morel MDSP amplifier range, including the MDSP 6/4A, MDSP 8/4A and MDSP 8/6A.

Key specifications

• Compatibility: Morel MDSP DSP amplifiers
• Bluetooth audio streaming: yes
• Wireless tuning: Morel Tuning app (EQ, crossover, time alignment)
• Installation: plug-in module, no additional wiring
• Dimensions: 120 x 5 x 25mm
• Weight: 0.05kg

Morel MDSP-BT Bluetooth module for MDSP amplifiers

The Morel MDSP-BT is a dedicated Bluetooth expansion module engineered to extend the functionality of Morel's MDSP range of processed amplifiers. Connecting directly to the MDSP DSP amplifier, the MDSP-BT adds two key capabilities in a single compact module: wireless Bluetooth audio streaming and wireless access to the Morel Tuning app for full DSP parameter adjustment.

For installers and enthusiasts running Morel MDSP amplifiers, the MDSP-BT removes the need for wired connections when tuning the DSP, allowing real-time adjustments to be made from a smartphone while seated in the vehicle's listening position. This is a significant practical advantage during commissioning and fine-tuning, enabling accurate EQ, crossover, and time alignment adjustments from the actual listening seat without reaching behind panels or running a laptop cable to the amplifier.

The Bluetooth audio streaming capability also enables the MDSP amplifier to receive audio wirelessly from a paired device, expanding the system's source flexibility beyond the primary head unit input.

At 120mm x 5mm x 25mm, the MDSP-BT is designed for discreet installation alongside the MDSP amplifier without occupying meaningful additional space in the vehicle.

• Bluetooth Audio Streaming - adds wireless audio input to the Morel MDSP DSP amplifier, enabling Bluetooth source playback without additional hardware
• Morel Tuning App Support - enables full DSP tuning via the Morel Tuning app over Bluetooth, allowing real-time EQ, crossover, and time alignment adjustments from the listening position
• Direct MDSP Integration - plug-in module designed specifically for the Morel MDSP DSP amplifier range for straightforward installation without additional wiring
• Compact Form Factor - slim 120mm x 5mm x 25mm profile fits discreetly alongside the MDSP amplifier without consuming significant installation space
• Wireless Tuning Convenience - eliminates the need for wired laptop or device connections during DSP commissioning and fine-tuning sessions
