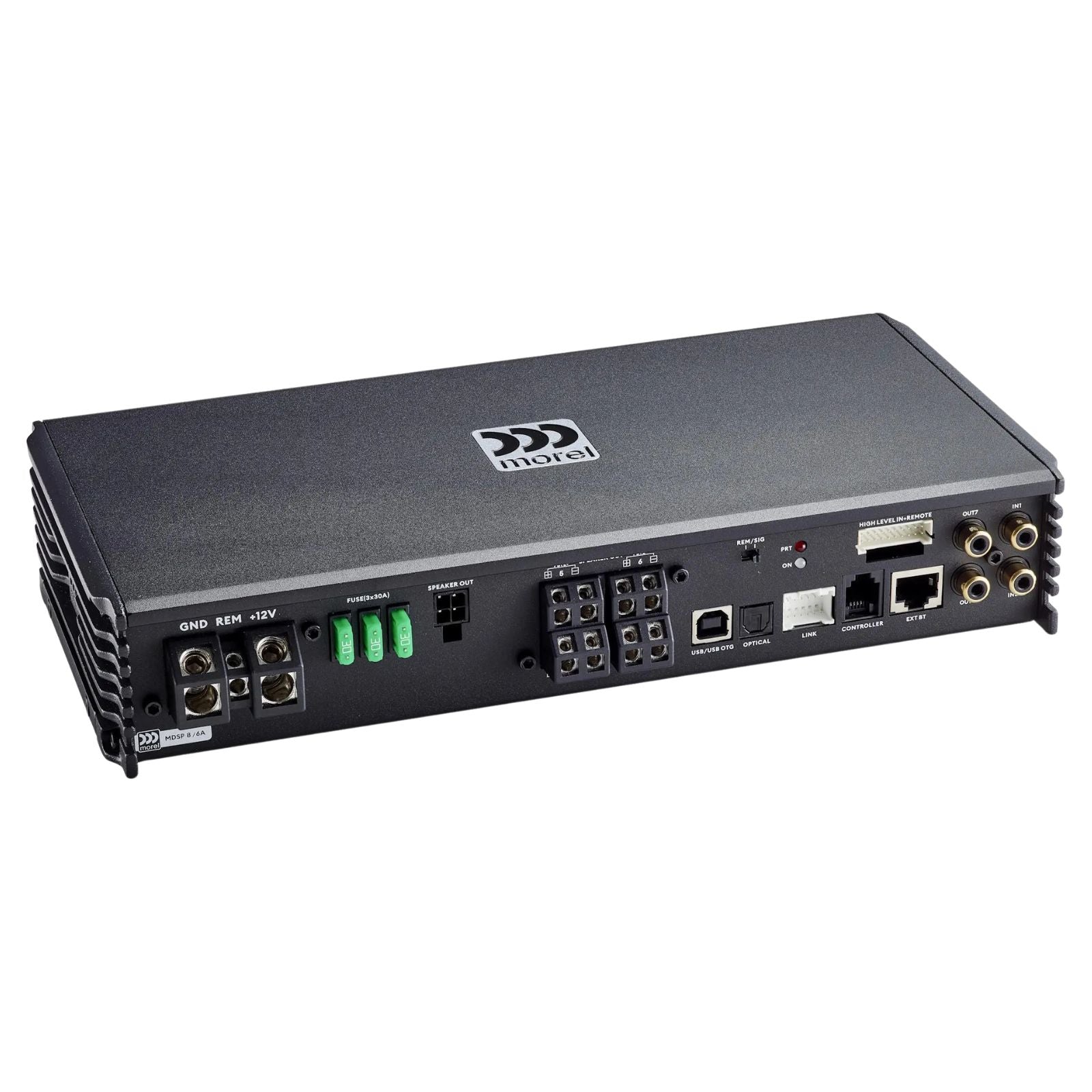

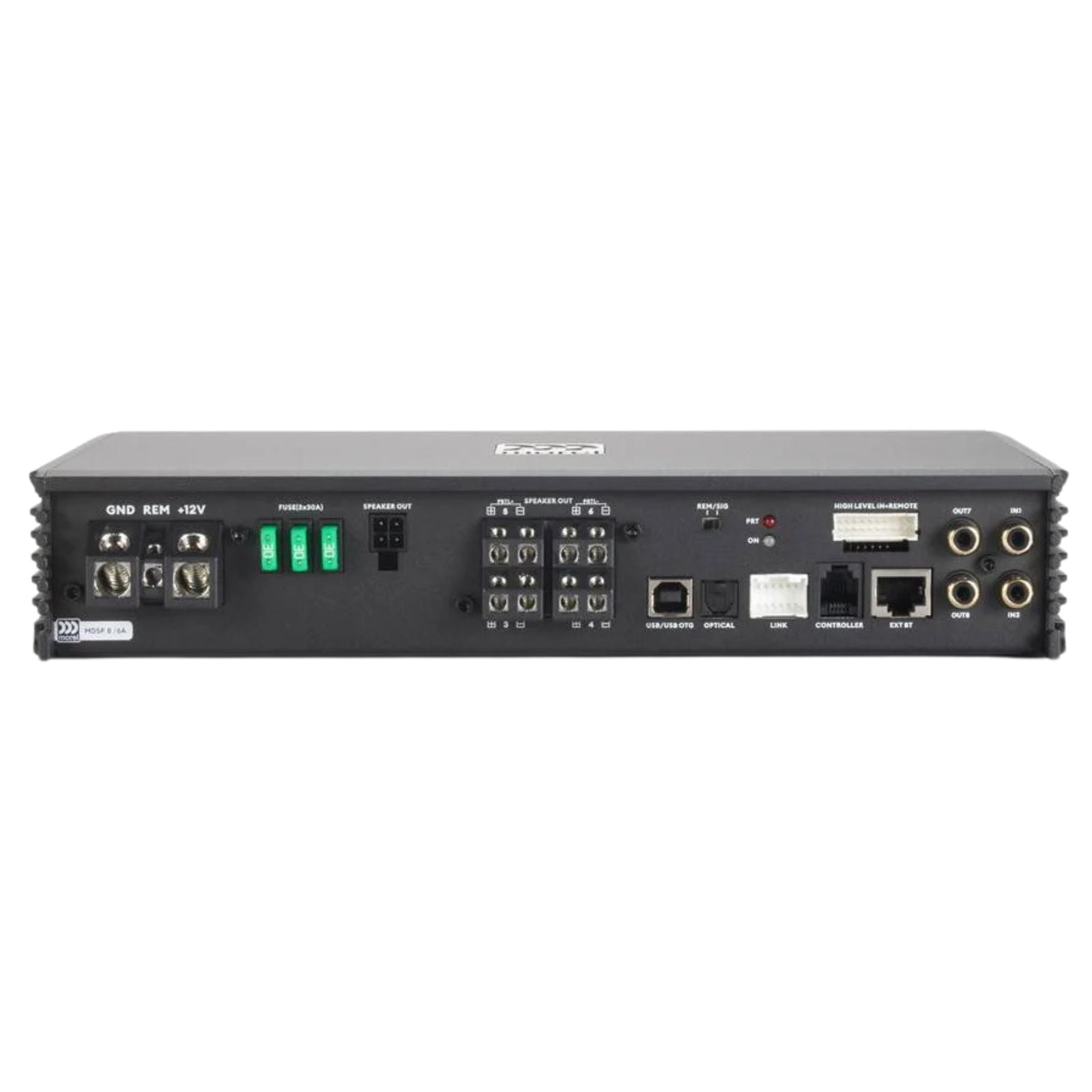

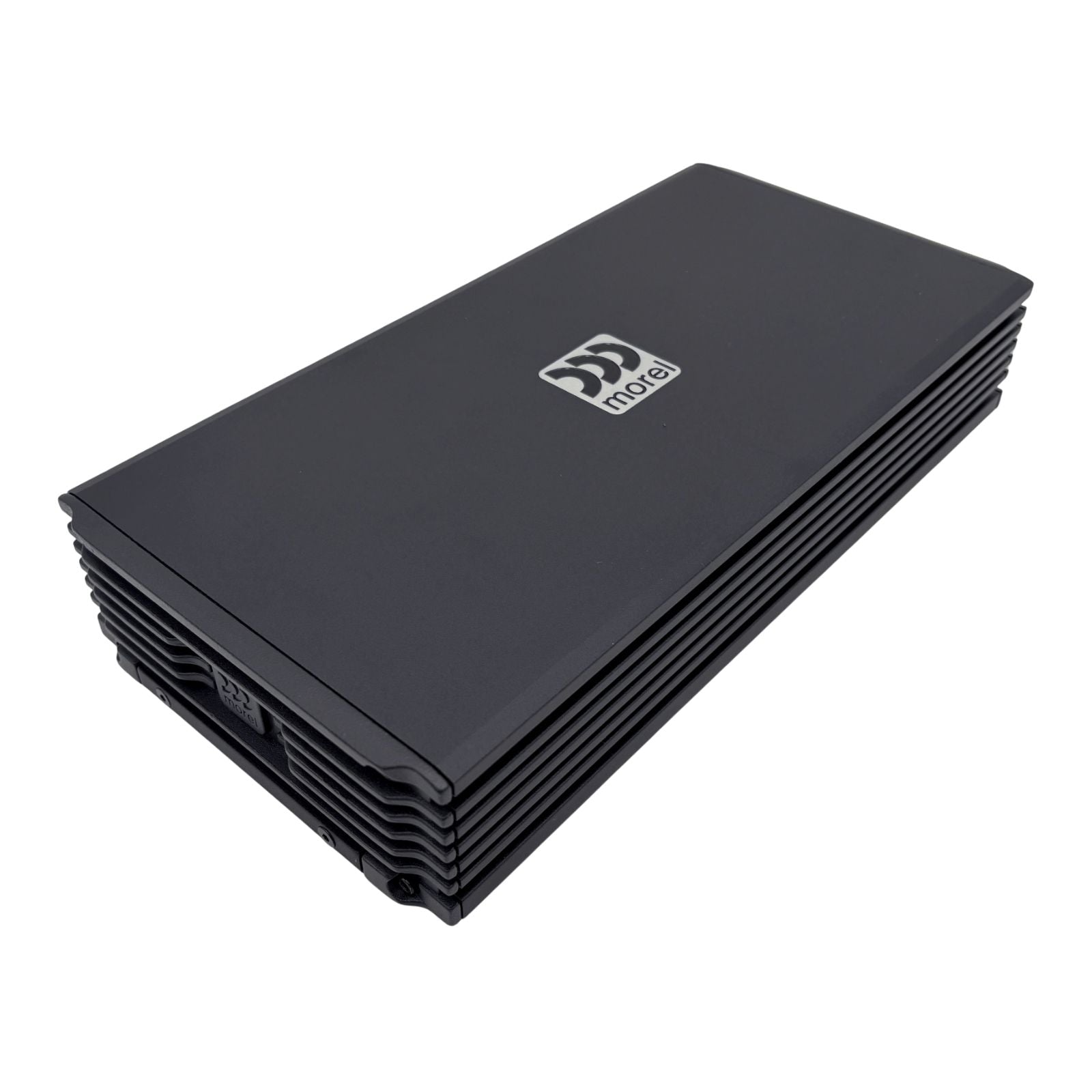

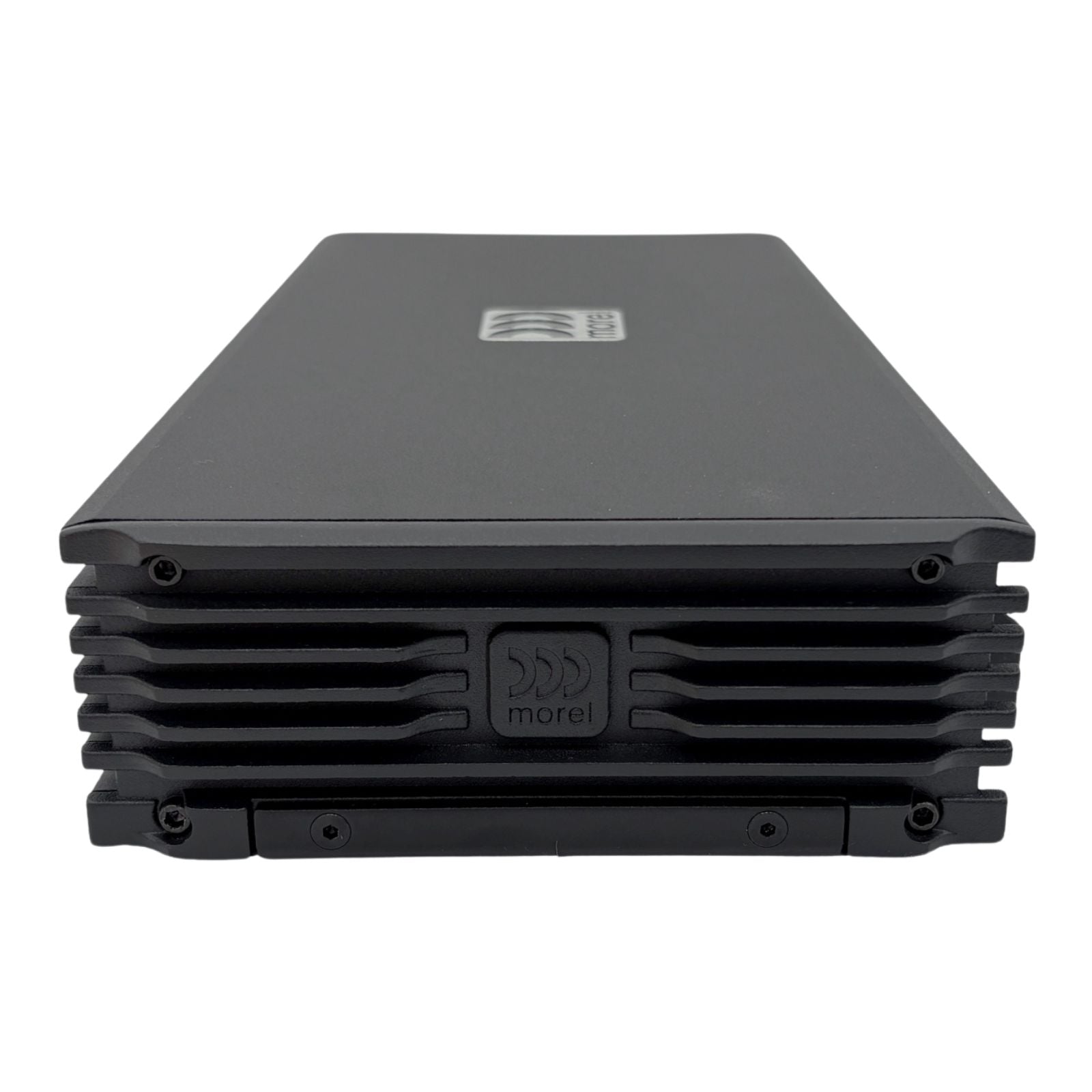

Morel MDSP 8/6A Class D 8 Channel DSP Amplifier 640w RMS
Couldn't Load Pickup availability
The Morel MDSP 8/6A is a Class D 8-channel DSP amplifier rated at 640W RMS (80W RMS x 4 on CH1–4, 160W RMS x 4 on CH5–8), part of Morel's MDSP amplifier range.
Part of the Morel MDSP range alongside the MDSP 6/4A and MDSP 8/4A. Optional accessories include the MDSP Control remote, the MDSP-BT Bluetooth module and the MDSP-TL TuneLink cable for linking two MDSP amplifiers.
Key specifications
- Output power CH1 to CH4: 80W RMS x 4 at 4 ohms
- Output power CH5 to CH8: 160W RMS x 4 at 4 or 2 ohms
- Bridged CH5 to CH8: 2 x 320W RMS at 2 ohms
- Speaker-level inputs: up to 8 channels, up to 30V
- Other inputs: RCA, optical, Bluetooth and USB-DAC with automatic source switching
- Outputs: up to 10 DSP-controlled channels including 2V RCA
- DSP: 96kHz/24-bit, input, output and global EQ
- Fuse: 3 x 30A Mini ATC
- Dimensions: 275 x 136 x 50mm
MDSP Amplifiers: Precision, Power and Performance in One Compact Design
The MDSP series is designed for modern vehicle integration, offering performance, flexibility and sound quality in a compact form. Whether upgrading an OEM system or building a high-end custom install, MDSP amplifiers have the tools and power to get the job done.
Authentic Sound with Advanced MDSP Control
Every MDSP amplifier is built around Morel's commitment to accurate, musical sound. The MDSP 8/6A delivers 80W x 4 + 160W x 4 RMS of clean output, paired with high-resolution 96kHz/24-bit DSP, parametric EQ, and fully adjustable crossovers with per-channel input and output EQ. High-voltage speaker-level inputs, signal summing and Morel's Speaker Load Assurance Module (SLAM) make OEM integration straightforward, keeping factory amplifiers stable throughout.
Installer-Focused Features, Listener-Focused Sound
Start/stop compatibility, automatic source switching and TuneLink for multi-amp tuning from a single device keep setup efficient. Bluetooth streaming and DRC compatibility give users direct control. Compact and capable, the MDSP 8/6A pairs well with speakers such as the Morel Maximo Ultra 602 MKII for a complete Morel system.
Features
- 80W x 4 + 160W x 4 RMS output power
- Premium internal components including WIMA and other high-grade parts
- Up to 8 channels of speaker-level input (up to 30V) for seamless OEM integration
- Up to 10 DSP-controlled output channels including 2V RCA low-level outputs
- SLAM (Speaker Load Assurance Module) preserves OEM amplifier functionality during integration
- Input EQ, Output EQ and Global EQ for precise system-wide tuning
- Speaker-level, RCA, optical, Bluetooth and USB-DAC inputs with automatic source switching
Explore the full range in Morel Amplifiers & Accessories.
Specification
| Dynamic Range | ≥100dB |
|---|---|
| S/N (RCA) | ≥98dB |
| T.H.D | ≤0.03% |
| Frequency Response | 20Hz ~ 20kHz |
| Input Sensitivity | 16V / 30V RMS (High-Level) 0.1 - 2V RMS (Low-Level) |
| Input Impedance | High-Level: 4.7Ω RCA: 10kΩ |
| Output Impedance (RCA) | 51Ω |
| Load Impedance (RCA) | CH1~CH4: 4Ω CH5~CH8: 2Ω |
| Output Power @ 4Ω | CH1~CH4: 80W (RMS) / 160W (PEAK) CH5~CH8: 160W (RMS) / 320W (PEAK) |
| Output Power @ 2Ω | CH1~CH4: N/A CH5~CH8: 160W (RMS) / 320W (PEAK) |
| Bridged Output @ 2Ω (PBTL) | CH5~CH8: 2x320W (RMS) / 2x640W (PEAK) |
| Voltage (DC) | 9~17V |
| Idle Current | ≤0.1W |
| REM Input | High-Level Start (H1+/H1-) or ACC Start is Optional |
| REM Output | 12V (200mA) |
| Outboard Fuse (Mini ATC) | 30A x 3 |
| Signal Output (RCA) | 2V (RMS) |
| System Sampling Rate | 96kHz/24bit |
| Crossover | Full / High-Pass / Low-Pass / Band-Pass |
| Crossover Type | Bessel / Butterworth / Linkwitz-Riley |
| Crossover Slope | 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB |
| Crossover Frequency | 20Hz~20kHz @ 1Hz Step |
| Polarity Inversion | 0º/180º |
| Output Equalizer | 10-Band Parametric Equalizer ± 12dB per Channel 10-Band |
| Output Equalizer Q Value | 0.404 - 28.852 |
| Output Equalizer Resolution | 0.1dB per Step |
| All-Pass Filtering | Input (Per Channel); Output (Per Channel) |
| Delay Distance | 0 - 692 cm; 0 - 273 inch |
| Delay | 0 - 20 ms |
| Delay Step | 0.01 ms |
| Presets | 6 |
| Net Weight (kg) | 0.41 |
| Dimensions | 275mm x 136mm x 50mm |
More specs
| |
What's Included
- Morel MDSP 8/6A
Morel
About the Morel MDSP 8/6A
From our tech experts at CEN
An 8-channel amplifier, Class D, with a digital sound processor built in, so amplification and tuning arrive in one chassis, rated at 640w RMS.
Who it suits
Drivers who want processed, properly tuned sound without finding space for a separate DSP and amplifier. In cars where space is tight, and in any vehicle keeping its factory head unit, this is the tidy answer.
Our tech experts advise
The processing is only worth what the tuning puts into it: measurements in the car, delays set for the driving seat, crossovers chosen for your drivers. That is the work, and we do it at our Beeston workshop. It also needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing

Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Frequently Asked Questions
Q: How much power does the Morel MDSP 8/6A deliver?
A: Channels 1 to 4 deliver 80W RMS each into 4 ohms and channels 5 to 8 deliver 160W RMS each into 4 or 2 ohms. Channels 5 to 8 can also be bridged for 2 x 320W RMS into 2 ohms.
Q: What inputs does the MDSP 8/6A have?
A: It accepts up to 8 channels of speaker-level input (up to 30V), plus RCA, optical, Bluetooth (streaming-capable) and USB-DAC inputs with automatic source switching.
Q: Can the MDSP 8/6A keep my factory amplifier working?
A: Yes. Its SLAM (Speaker Load Assurance Module) engages the OEM amplifier to preserve factory audio functionality.
