Morel MDSP 6/4A Class AB 4 Channel DSP Amplifier 100w RMS

£299.00 Out of stock
Out of Stock
SKU: 93379MPN: MDSP 6/4A
Part of the range · 19 productsPart of the Morel Amplifiers & Accessories range · 19 products See the range →

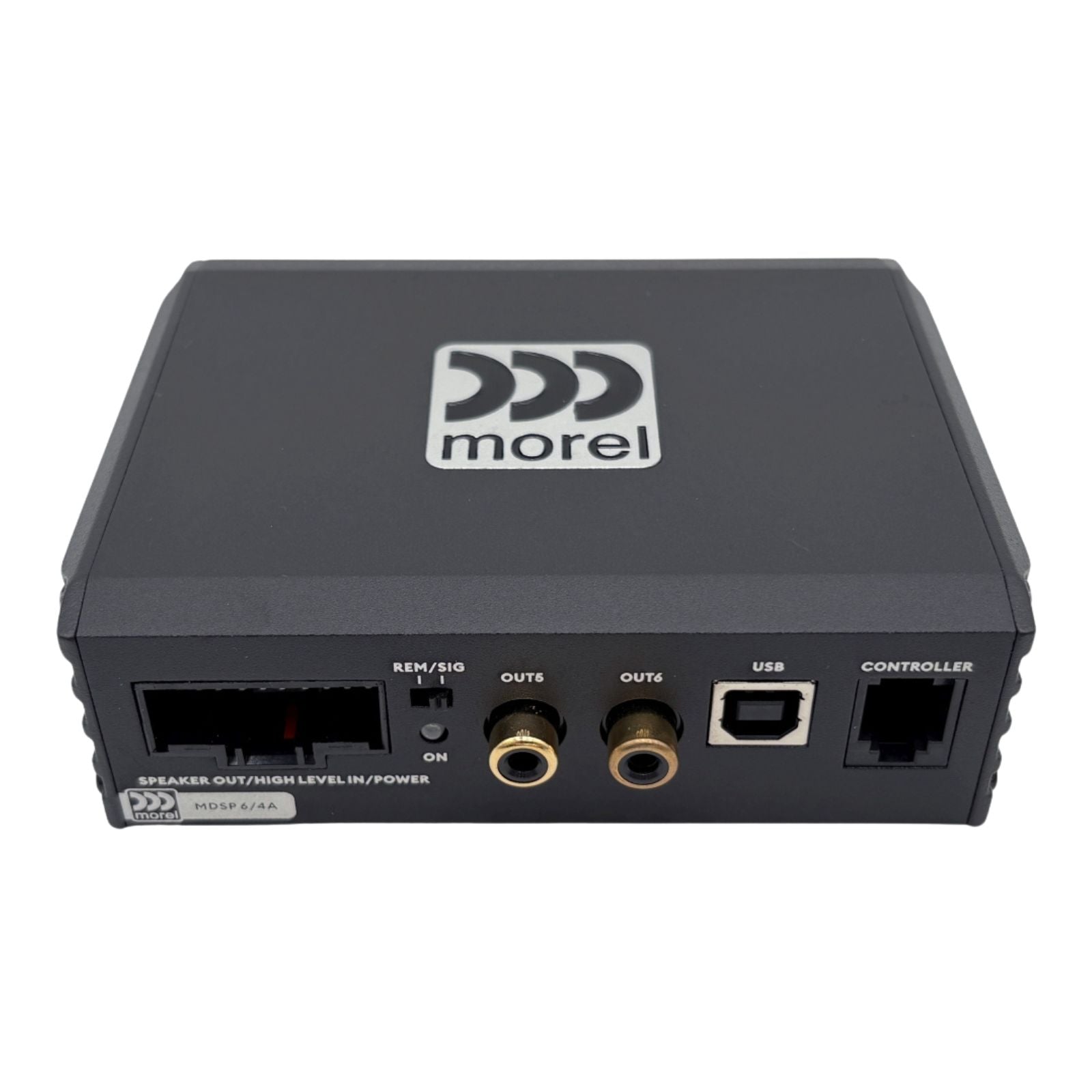

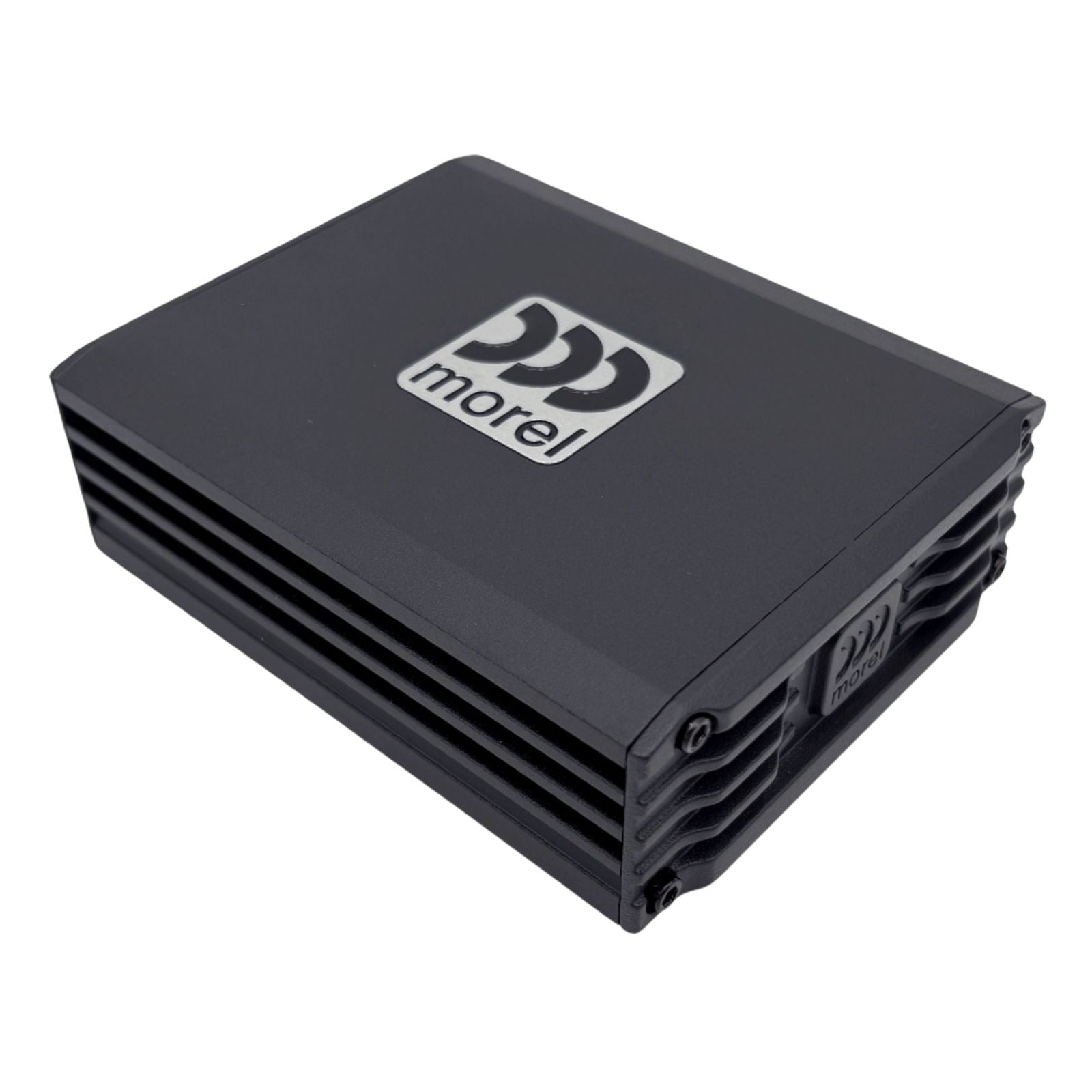

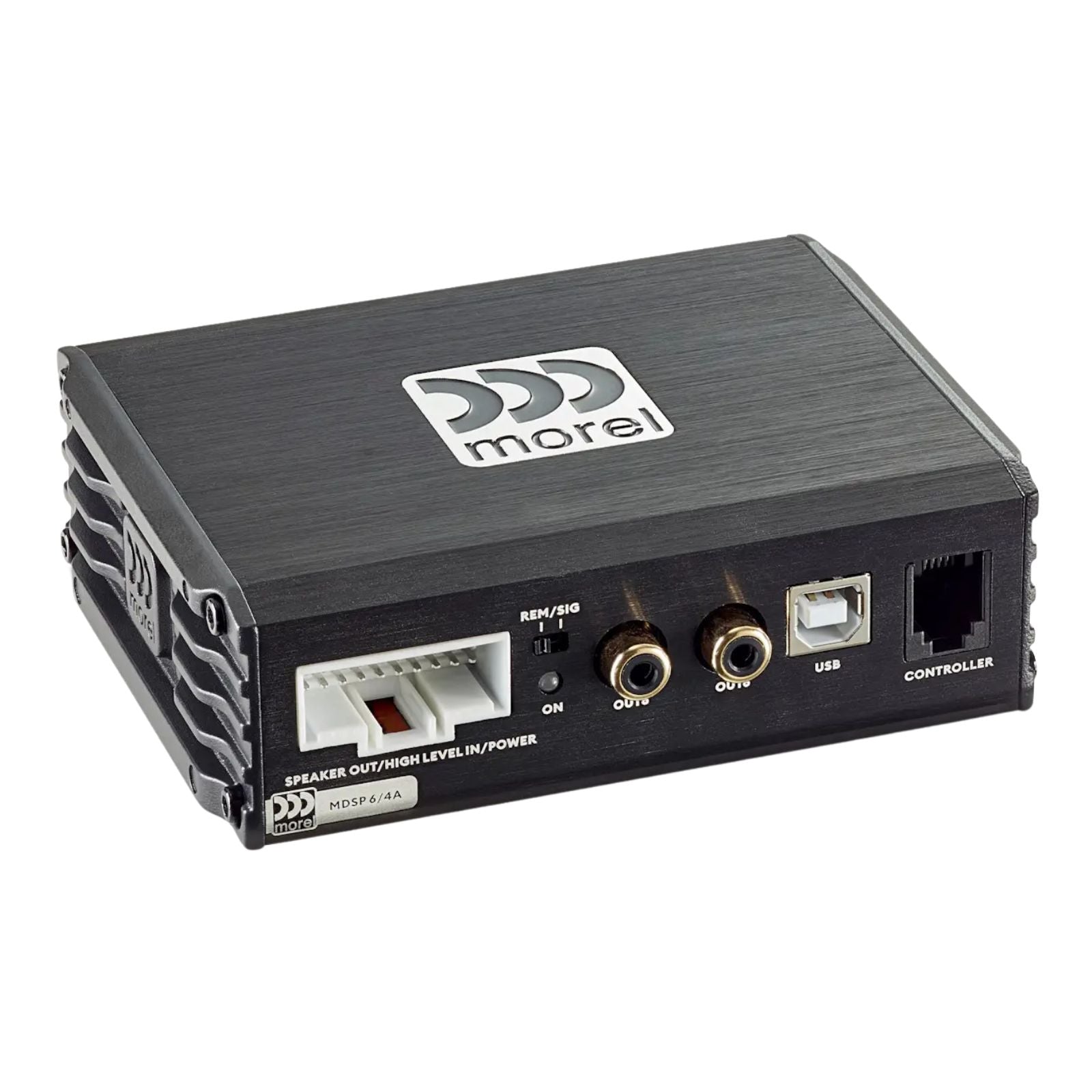

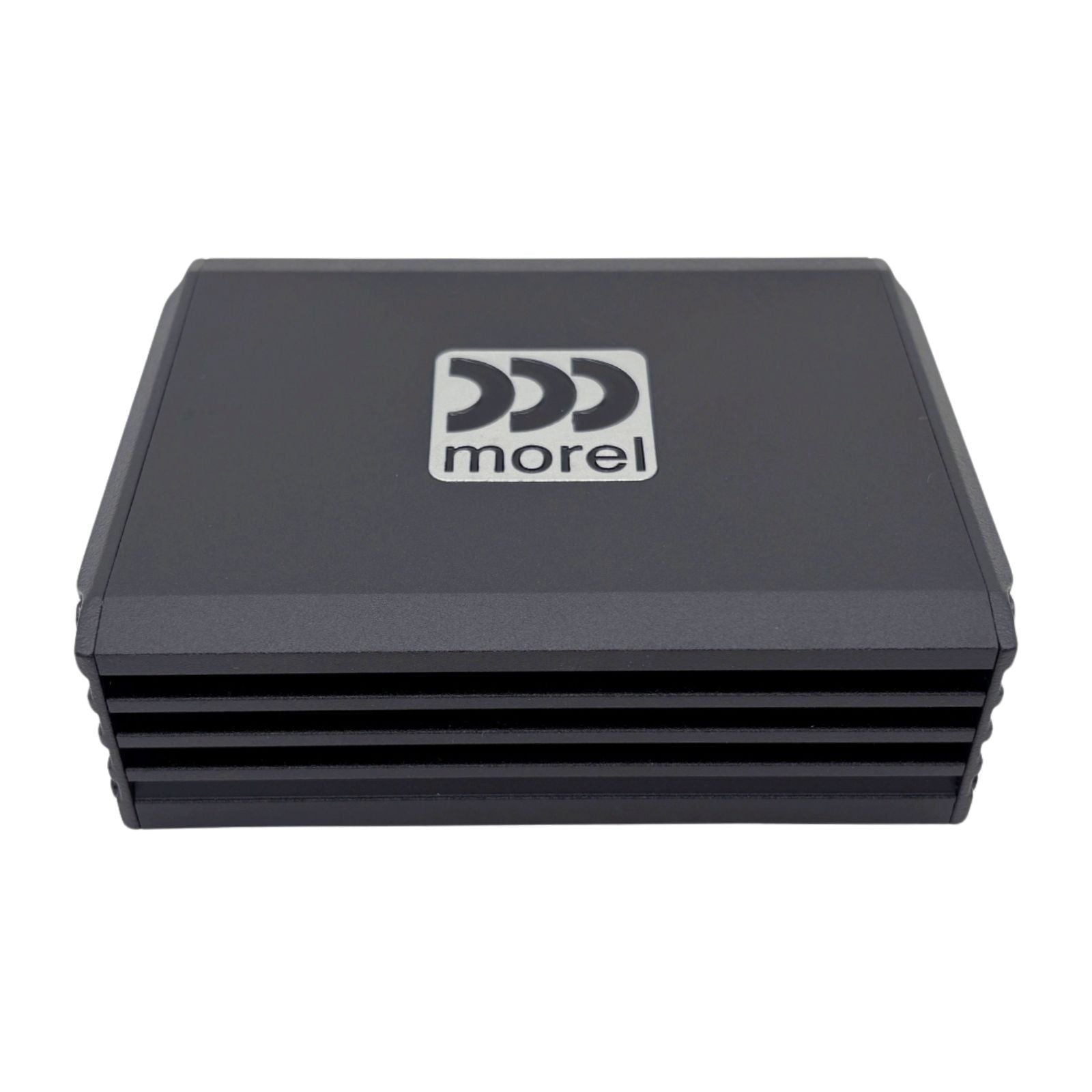

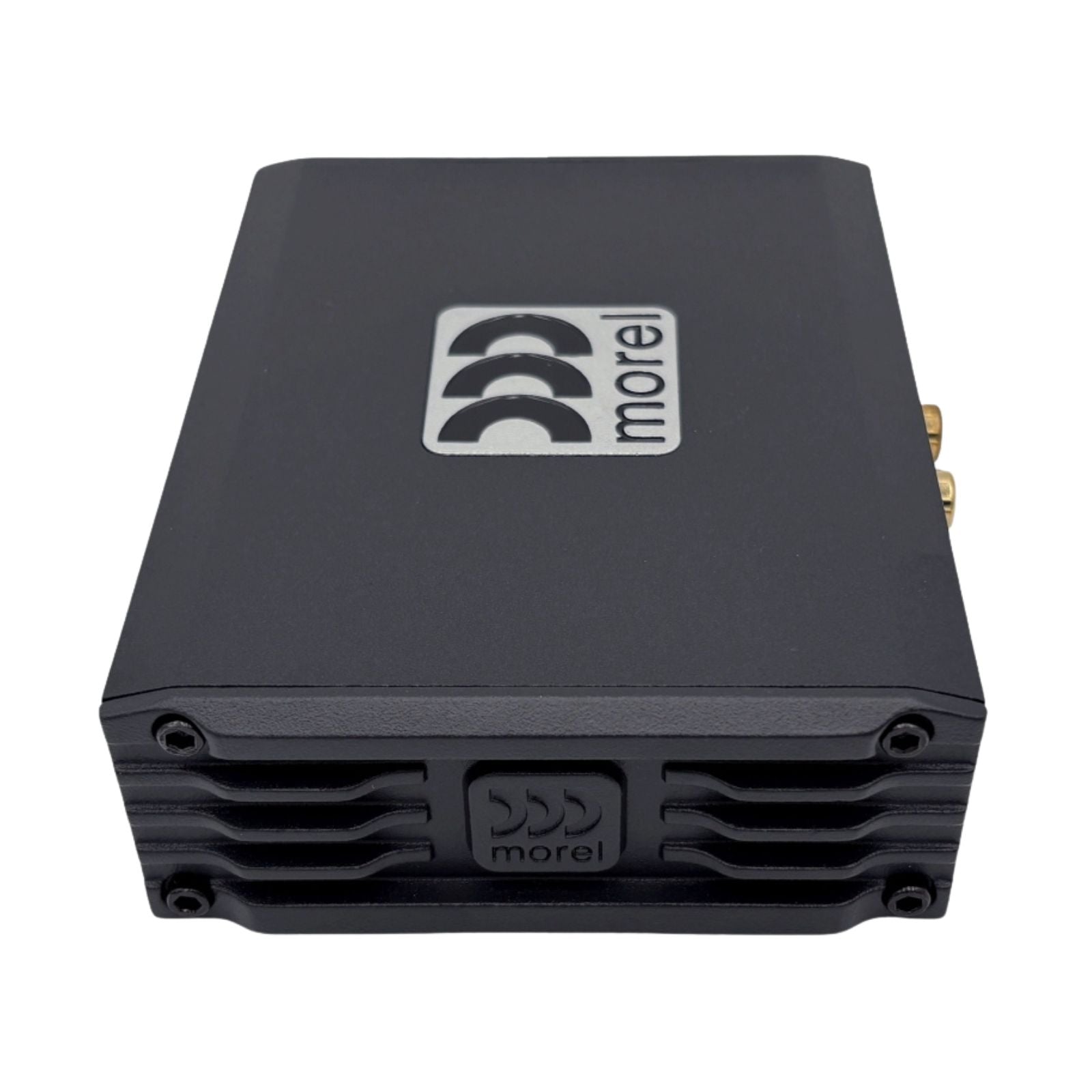

The Morel MDSP 6/4A is a compact 4-channel Class AB DSP amplifier rated at 25W x 4 (100W total RMS), with a built-in 96kHz/24-bit DSP processor. It is part of the Morel MDSP amplifier range.

Part of the Morel MDSP range alongside the MDSP 8/4A and MDSP 8/6A. Optional accessories include the MDSP Control remote, the MDSP-BT Bluetooth module, and the MDSP-TL TuneLink cable for linking two MDSP amplifiers.

Key specifications

  • Channels: 4
  • Amplifier class: Class AB
  • Rated power: 25W x 4 (100W total); 19W RMS per channel at 1% THD
  • DSP: 96kHz/24-bit
  • Output EQ: 31-band parametric, ±12dB per channel
  • Crossover: 20Hz to 20kHz in 1Hz steps, 6 to 48dB slopes
  • Time alignment: 0 to 20ms in 0.01ms steps
  • High-level input: 5 to 9.9V RMS
  • Presets: 6
  • Fuse: 15A Mini ATC
  • Dimensions: 116 x 90 x 35mm

MDSP Amplifiers: Precision, Power, and Performance in One Compact Design

The MDSP amplifier series is designed for modern vehicle integration, delivering performance, flexibility and sound quality in a compact form. Suitable for upgrading an OEM system or building a high-end custom install, MDSP amplifiers provide the tools and power to get the job done.

Authentic Sound with Advanced MDSP Control

Every MDSP amplifier is built around Morel's approach to authentic, musical sound. The range offers high-resolution DSP with parametric EQ, fully adjustable crossovers, and input/output EQ per channel for precise, system-wide tuning. High-voltage speaker-level inputs, signal summing, and Morel's Speaker Load Assurance Module (SLAM) keep factory amplifiers stable during OEM integration.

Installer-Focused Features, Listener-Focused Sound

Start/stop compatibility, automatic source switching, and TuneLink for multi-amp tuning from a single device make setup straightforward. Bluetooth streaming and DRC compatibility give users full control. The MDSP 6/4A pairs well with Morel's own speaker range — such as the Morel Maximo Ultra 602 MKII — for a complete Morel system.

Specification
Dynamic Range≥100dB
S/N (RCA)≥96dB
T.H.D≤0.03%
Frequency Response20Hz ~ 20kHz
Input Sensitivity5 - 9.9 V RMS (High-Level)
Input Impedance4.7Ω (High-Level)
Output Impedance (RCA)51Ω
Output Power @ 4ΩCH1~CH4: 19W (RMS @ 1% THD)
Voltage (DC)9~17V
Idle Current≤0.1W
REM InputHigh-Level Start (H1+/H1-) or ACC Start is Optional
REM Output12V (200mA)
Outboard Fuse (Mini ATC)15A
System Sampling Rate96kHz/24bit
CrossoverFull / High-Pass / Low-Pass / Band-Pass
Crossover TypeBessel / Butterworth / Linkwitz-Riley
Crossover Slope6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
Crossover Frequency20Hz~20kHz @ 1Hz Step
Polarity Inversion0º/180º
Output Equalizer31-Band Parametric Equalizer ± 12dB per Channel
Output Equalizer Q Value0.404 - 28.852
Output Equalizer Resolution0.1dB per Step
Delay Distance0 - 692 cm; 0 - 273 inch
Delay0 - 20 ms
Delay Step0.01 ms
Presets6
Dimensions116mm x 90mm x 35mm
More specs
  • Signal Output (RCA)
  • Net Weight (kg) 0.41
What's Included
  • Morel MDSP 6/4A
Product information

Morel

About the Morel MDSP 6/4A

From our tech experts at CEN

A 4-channel amplifier, Class AB, with a digital sound processor built in, so amplification and tuning arrive in one chassis, rated at 100w RMS.

Who it suits

Drivers who want processed, properly tuned sound without finding space for a separate DSP and amplifier. In cars where space is tight, and in any vehicle keeping its factory head unit, this is the tidy answer.

Our tech experts advise

The processing is only worth what the tuning puts into it: measurements in the car, delays set for the driving seat, crossovers chosen for your drivers. That is the work, and we do it at our Beeston workshop. It also needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

Frequently Asked Questions

Q: How many channels does the Morel MDSP 6/4A have?

A: The MDSP 6/4A has 4 amplified channels plus an RCA signal output.

Q: Can the MDSP 6/4A connect to a factory head unit?

A: Yes. It has high-level (speaker-level) inputs accepting 5 to 9.9V RMS, and the MDSP range uses Morel's Speaker Load Assurance Module (SLAM) to keep factory amplifiers stable when integrating with OEM systems.

Q: How many tuning presets can be stored?

A: The MDSP 6/4A stores 6 presets, and each output channel has a 31-band parametric EQ.
