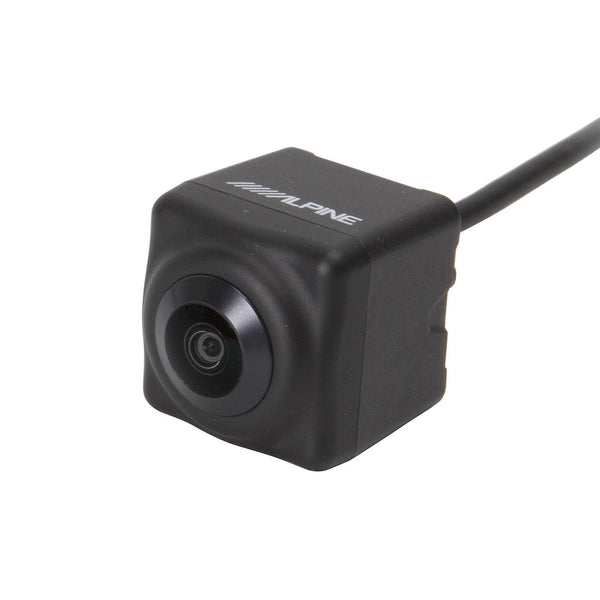

Alpine HCE-C2100RD Multi View Rear Camera HDR Direct Connection for ILX & Halo
Couldn't Load Pickup availability
The Alpine HCE-C2100RD is an HDR multi-view reversing camera with a 1/4" CMOS sensor (1280 x 960, approx. 1.2 MP) and 180° horizontal field of view. It connects directly to compatible Alpine ILX and Halo touchscreen head units, offering four selectable views for safer parking and manoeuvring.
Designed for Alpine touchscreen monitors. For use without a touchscreen display, the separate HDR Multi View Front Camera (HCE-C2600FD) is also required. Compatible head units include the Alpine ILX-F905D Halo 9 and the Alpine ILX-705D.
Key specifications
- Image sensor: 1/4" colour CMOS, approx. 1.2 megapixels (1280 x 960)
- Views: Rear, Panorama, Corner and Top (ground) view
- Angle of field: 180° horizontal, 125° vertical
- Lens: f=1.27mm, F1.8
- Illumination range: Approx. 1.5 lx to 100 klx
- Camera size: 23.6 x 23.6 x 25.8 mm
- Operating temperature: -30°C to +70°C
HCE-C2100RD: High Dynamic Range (HDR) multi-view rear camera
HDR technology delivers improved picture quality over standard camera systems, making manoeuvring safer and easier. The camera activates automatically when reversing and mutes audio so parking sensor signals can be heard clearly. A trailer hitch guideline can also be activated.
All-new Alpine HDR cameras
Alpine's HDR cameras include several technologies designed to make driving and parking safer.
- High-resolution sensor for detailed, clear imagery
- Strong low-light performance for night-time use
- Fast exposure adjustment when moving between dark and bright environments (e.g. tunnels, underground car parks)
- Compact new connectors for straightforward installation

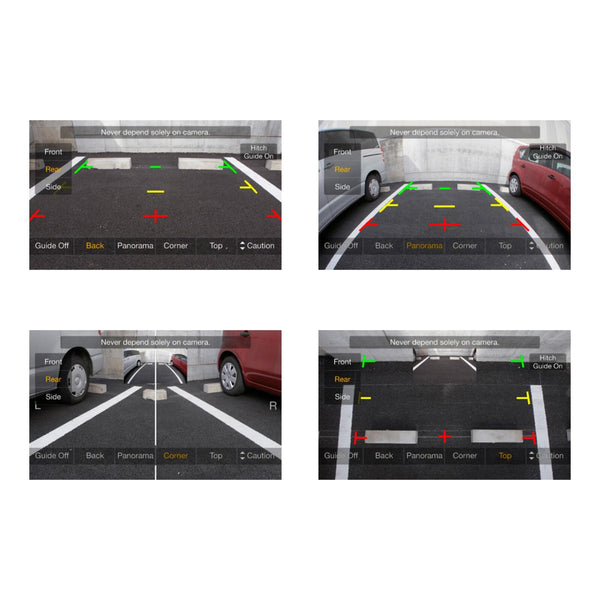

Rear View [Back]
Displays what is directly behind the vehicle. Ideal for reversing into a parking space.
Panorama View [Panorama]
Displays a wider-than-normal view behind the vehicle, useful when greater situational awareness is needed.
Corner View [Corner]
Splits the screen to show both left and right behind the vehicle simultaneously, with a picture-in-picture showing the standard rear view.
Ground View [Top]
Top View aids precise reversing — particularly useful when hitching a trailer. Also includes a picture-in-picture showing the standard rear view.
Explore the full range in Alpine Car Stereos.
Specification
| Multi View Angle Selection | Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner] |
|---|---|
| Camera | 23.6 x 23.6 x 25.8mm (excluding projection on the rear) |
| Camera Cable Length | 0.5m |
| Power Requirement | 6.0V DC (5.0 to 9.0VDC allowable) |
| Ground Type | Negative Ground |
| Max. Power Consumption | 1.2W (6.0V) |
| Output Image | Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen |
| Image Output Impedance | 75 Ohms (1Vp-p) |
| Image Sensor | 1/4" Type Color CMOS Image Sensor, Aspect Ratio 4:3 |
| Effective Number of Pixels | 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels |
| Lens | Focal Length f=1.27mm |
| Lens | Brightness F=1.8 |
| Angle of Field | Horizontal = 180° , Vertical = 125° |
| Resolution (Horizontal. Center Area) | 330 TV Lines |
| Operating Temperature | -30°C - +70°C |
| Illumination Range | Approximately 1.5Lx to 100kLx |
| Weight | 32g (including cable but not including bracket and screw) |
More specs
| |

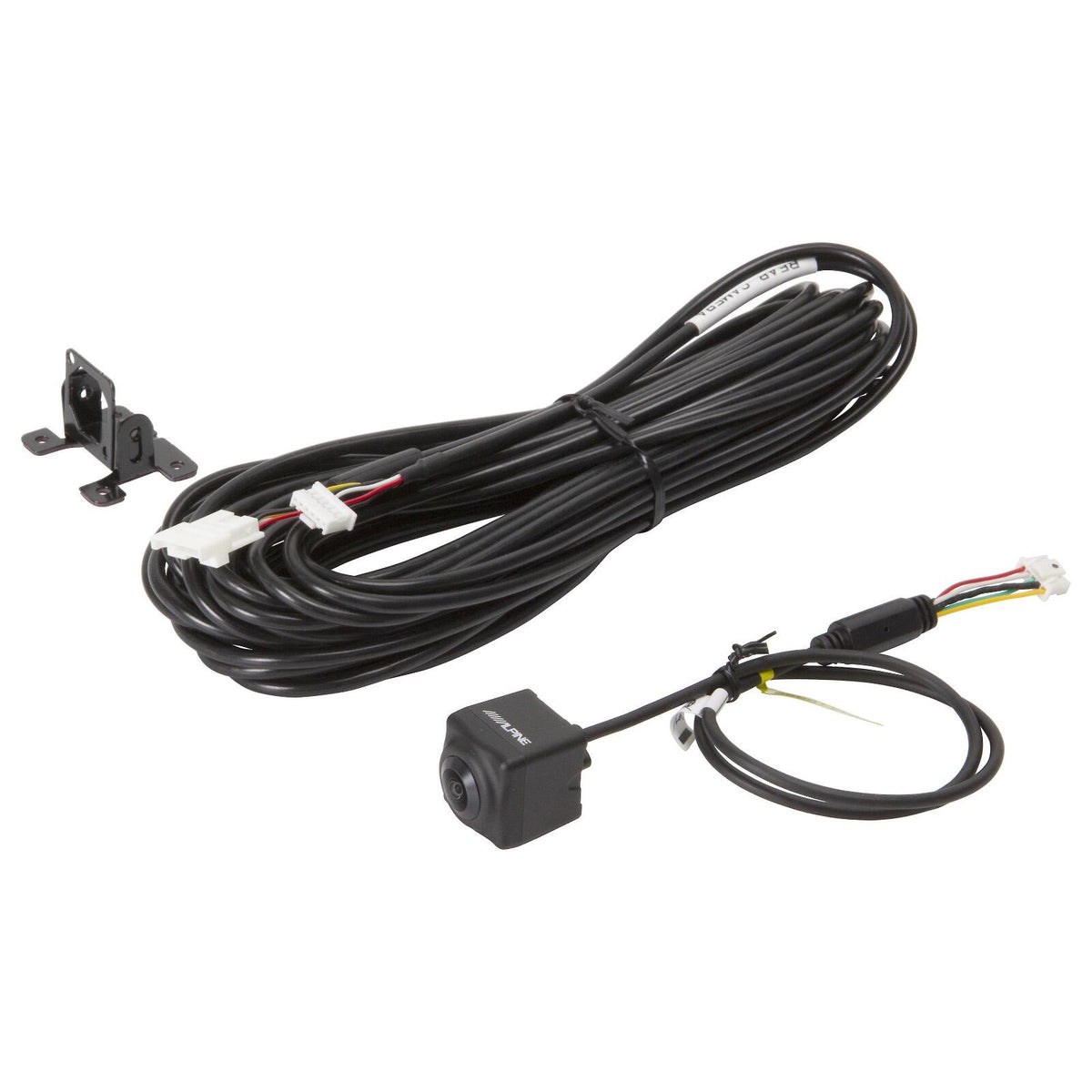

What's Included
- Multi-view camera (attached harness terminated by 5-pin harness)
- Power/Video harness (with female 5-pin connector on one end and a male 6-pin connector on other end)
- 2-Piece mounting bracket
- 4 Machine screws
- 4 Self-tapping screws
- Rubber sleeve
- Rubber wedge
- 3M tape
- 5 Wire-ties
- Owner's Manual
Alpine
About the Alpine HCE-C2100RD
From our tech experts at CEN
The Alpine HCE-C2100RD is an HDR multi-view reversing camera with a 1/4" CMOS sensor producing approximately 1.2 megapixels and a 180° horizontal field of view. It connects directly to compatible Alpine ILX and Halo touchscreen head units, offering four selectable views: Rear, Panorama, Corner, and Ground. The camera activates automatically when reversing and includes a trailer hitch guideline feature.
Who it suits
This camera suits drivers who want more than a basic rear view — ideal for towing, tight parking, and greater situational awareness. For those who only need a standard single-view reversing camera, the Alpine HCE-C1100D is a simpler option.
Our tech experts advise
The included cable is 0.5m; a 10m extension is sold separately for longer runs. View selection requires a compatible Alpine touchscreen head unit. Without a touchscreen display, the Alpine HCE-C2600FD is also required. Installation is priced per vehicle — see our car audio installation page for details.
Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from Alpine Car Stereos
More options from the same range, in stock and ready to go
Staff PickAlpine KIT-HALO-VW303 Installation Kit for Halo Car Stereo Volkswagen Seat Skoda
(1)RRP £249.99Save 12%£219.99
Alpine UTE-204DAB USB Bluetooth Handsfree AUX Spotify FLAC DAB Radio Car Stereo
RRP £159.00Save 6%£149.00
Alpine KIT-F9VW-T61 Installation Kit for VW T6.1, Compatible with Halo 9 or Halo 11
£239.99
Alpine KTX-1DIN Single Din Installation Pocket for Halo Car Stereo & KIT-7VWX300
£25.99
Best SellerAlpine ILX-F905D Halo 9 Apple CarPlay Android Auto DAB Bluetooth 9" Car Stereo
(1)RRP £899.99Save 11%£799.99
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which views does the Alpine HCE-C2100RD offer?
A: It offers four views selected on the touch-screen: Rear View, Panorama View, Corner View and Top (ground) View. Corner and Top views include a picture-in-picture of the regular rear view, and a trailer hitch guideline can be activated.
Q: Does the HCE-C2100RD work without a touch-screen head unit?
A: It is designed for Alpine monitors with touch-screen operation. For use without a touch-screen display, the Alpine HDR Multi View Front Camera (HCE-C2600FD), sold separately, is required.
Q: Is an extension cable included with the HCE-C2100RD?
A: The camera has a 0.5m cable and comes with a power/video harness. Alpine's 10m camera extension cable is an optional accessory sold separately.
