Alpine HCE-C1100D HDR CMOS Rear View Reversing Camera with Direct Connection

RRP £159.99 £149.99 Save 6% Out of stock
Out of Stock
SKU: 90010MPN: HCE-C1100D
Part of the range · 15 productsPart of the Alpine Cameras & Accessories range · 15 products See the range →

The Alpine HCE-C1100D is a compact HDR CMOS rear view reversing camera from Alpine's HCE camera range. It connects directly by cable to Alpine head units with Direct Camera Input — no separate control box required. Key specs include a 1/3.7-inch CMOS sensor, 131° horizontal field of view, and a total cable run of 11 metres.

This camera works with Alpine products featuring Direct Camera Input, such as the Alpine ILX-F905D Halo 9 and the Alpine ILX-705D. Check your head unit has this input before ordering, or contact CEN to confirm.

Key specifications

  • Connection: direct camera connection to Alpine Direct Camera Input head units
  • Image sensor: 1/3.7-inch colour CMOS, approx. 0.3 megapixels (640 x 480)
  • Angle of field: 131° horizontal, 103° vertical
  • Lens: f=1.34 mm, F2.0
  • Camera size: 23.6 x 23.6 x 24.0 mm, 27 g including cable
  • Cable: 0.5 m camera cable plus 10.5 m extension cable
  • Operating temperature: -30°C to +70°C
  • Output: mirror image, triggers with vehicle reverse signal

HCE-C1100D High Dynamic Range (HDR) Rear View Camera with Direct Camera Connection

High Dynamic Range cameras for greater safety

HDR technology delivers significantly better picture quality than standard camera systems, making manoeuvring easier and reversing safer. The camera image activates automatically when you select reverse.

The camera is very small, making installation straightforward without affecting the car's appearance.

All New Alpine HDR Cameras

Alpine's HDR cameras include several technologies designed to make reversing easier and safer.

  • High-resolution sensor for sharp, detailed images
  • Night-view capability in low-light conditions
  • Fast exposure adjustment when moving between dark and bright environments — such as underground car parks or tunnels
  • Small connectors for straightforward camera and cable installation

Distance Guides

The HCE-C1100D includes adjustable distance guides that can be set to match the width of your vehicle, making parking safer and more accurate than a standard rear-view camera.

Works with Alpine products featuring Direct Camera Input

This camera connects via cable directly to the head unit with no black-box, keeping installation clean and simple.

Specification
Camera23.6x 23.6x 24.0mm (excluding projection on the rear)
Camera Cable Length0.5m
Camera Extension Cable Length10.5m
Power Requirement6.0 V.DC
Max. Power Consumption0.5W
WeightCamera 27g (including cable)
Output ImageMirror Image, Composite Video (NTSC Color Signal System)
Image Output1 Vp-p (75 Ohms)
Image Sensor1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
Effective Number of Pixels640 (H) x 480 (V), Approximately 0.3 Mega pixels
LensFocal Length f=1.34mm
LensBrightness F=1:2.0
Angle of FieldHorizontal = 131°, Vertical = 103°
S/N Ratio40.5 dB or more
Resolution (Horizontal. Center Area)330 TV Lines
Operating Temperature-30°C - +70°C
Illumination RangeApproximately 1.5 to 100klx
More specs
  • Rearview Image
  • Direct Camera Connection
  • Vehicle Reverse Signal Synchronization
  • Camera
  • Mirror Image Output
  • Color CMOS Image Sensor
  • Automatic Exposure Adjustment
  • Automatic White Balance Adjustment
  • Internal Synchronization
  • SPECIFICATIONS
  • Dimensions
  • Negative Ground
  • Camera

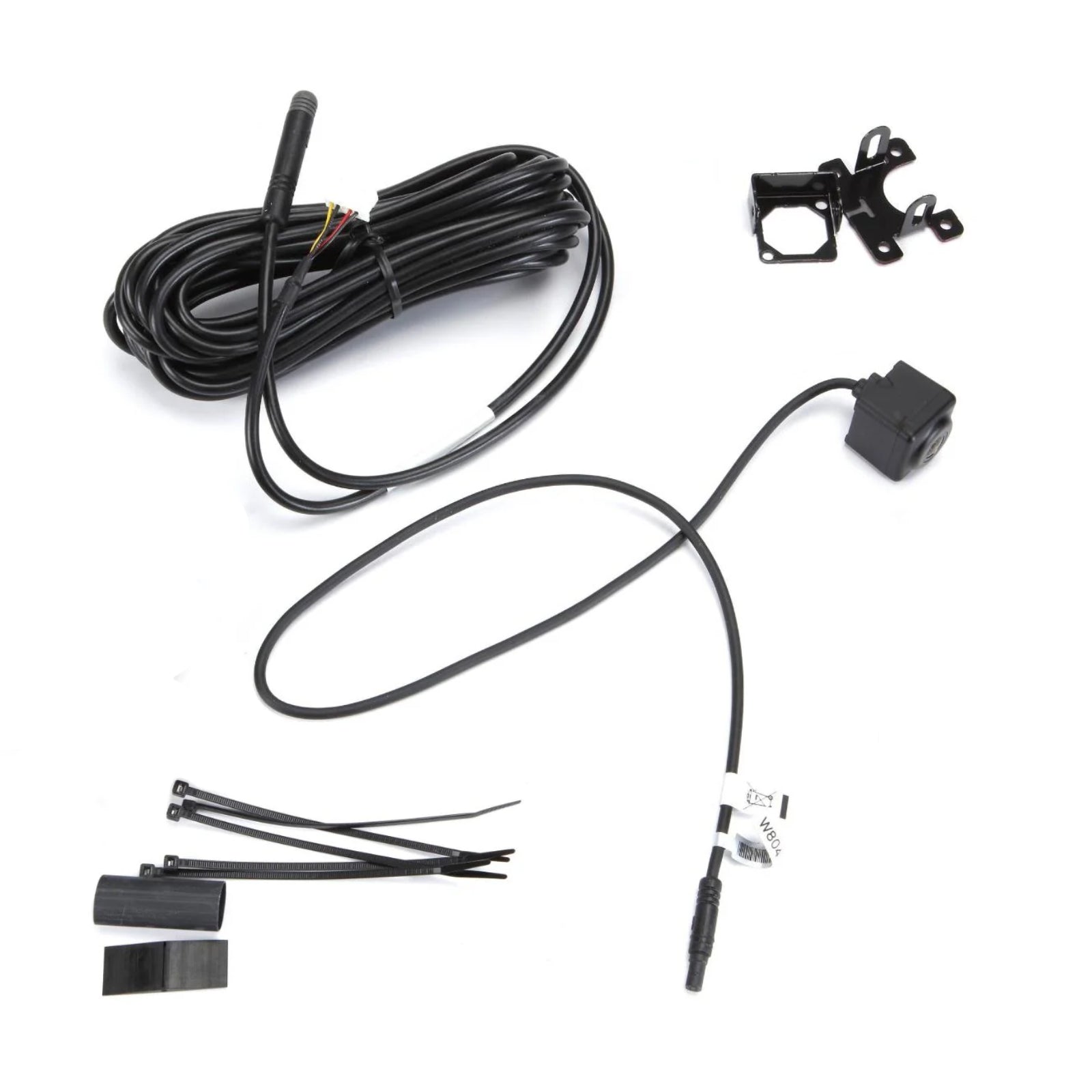

What's Included
  • Rear-view camera
  • Power/Ground/Signal harness
  • Power/Ground/Signal harness
  • 2-Piece mounting bracket
  • 4 Machine screws
  • 4 Self-tapping screws
  • Rubber sleeve
  • Rubber wedge
  • 3M tape
  • 5 Wire-ties
  • Owner's Manual
Product information

Alpine

About the Alpine HCE-C1100D

From our tech experts at CEN

A reversing camera built to work with Alpine head units, using Alpine’s direct connection rather than RCA.

Who it suits

Anyone fitting or already running an Alpine screen who wants the reversing view on the same display rather than a separate monitor stuck to the dash. Vans, campers and anything with poor rear visibility benefit most.

Our tech experts advise

The camera is straightforward; the cable run through the vehicle is the work, and it needs doing properly so it stays hidden and weatherproof at the tailgate. Connection type varies between head units, so get in touch to confirm this camera suits your screen. See car stereo installation.

Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Frequently Asked Questions

Q: Does the camera come on automatically when I reverse?

A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.

Q: Is this camera suitable for a van or motorhome?

A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.

Q: Can CEN install the reversing camera?

A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.

Q: Which head units work with the Alpine HCE-C1100D?

A: The HCE-C1100D is designed for Alpine products featuring Direct Camera Input. It connects by cable directly to the head unit without a separate control box. Contact CEN to confirm your head unit is compatible.

Q: Does the Alpine HCE-C1100D have parking guide lines?

A: Yes. It includes distance guides that can be fully adjusted to match the width of your vehicle.

Q: How long is the cable on the HCE-C1100D?

A: The camera has a 0.5 m cable plus a 10.5 m extension cable.
