Kenwood CMOS-230 Rear View Reversing Camera for DMX DDX DNX Car Stereos
Couldn't Load Pickup availability
The Kenwood CMOS-230 is a compact, waterproof rear-view reversing camera with a 1/3.6-inch colour CMOS sensor, designed to work with Kenwood DMX, DDX and DNX head units.
This listing is the CMOS-230. The Kenwood reversing camera range is also available as the CMOS-320 Multi View and the CMOS-740HD for HD screens.
Key specifications
- Sensor: 1/3.6" colour CMOS, approx. 330,000 pixels
- Field of view: ±128° horizontal, ±103° vertical
- Video output: NTSC (mirror view), 1Vpp 75Ω, RCA
- Connection cable (DC + video): 9 m
- Operating voltage: 14.5V (9 to 16V allowable)
- Dimensions (W x H x D): 23.4 x 23.4 x 23.9 mm
- Weight: 22 g

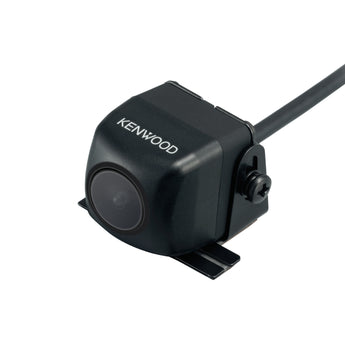

CMOS-230 rear view CMOS camera
A compact, weatherproof reversing camera that connects to Kenwood DMX, DDX and DNX head units via an RCA video output. It activates automatically from the reverse line and uses a 9 m combined DC and video cable to reach the head unit's camera input.
Don't miss a thing in reverse
The CMOS-230's sensitive 1/3.6" CMOS sensor and high-quality lens deliver a clear wide-angle mirror image even in low-light conditions such as car parks at night, making reversing safer without relying on mirrors alone.
- Wide-angle mirror image
- 1/3.6" colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC video signal out (RCA)
Explore the full range in Kenwood Reversing Cameras.
Specification
| Focal length f | 1.12mm, F value 2.2 |
|---|---|
| Dimensions | (WxHxD) 23.4 x 23.4 x 23.9mm |
| Weight | 22 gr. |
| Storage | Temperature Range -40°C ~ 80°C |
More specs
| |
What's Included
- Kenwood CMOS-230
- Mount
Kenwood
About the Kenwood CMOS-230
From our tech experts at CEN
The Kenwood CMOS-230 is a compact, waterproof rear-view reversing camera designed for Kenwood DMX, DDX and DNX head units. Its 1/3.6-inch colour CMOS sensor delivers a wide-angle mirror image across a 128° horizontal field of view. The 9m combined DC and video cable connects via RCA to your head unit's camera input.
Who it suits
This camera suits drivers adding a reversing camera to a compatible Kenwood head unit who need a straightforward, reliable solution. The small 23.4 x 23.4mm body and flexible mount base fit most boot lid or bumper positions. For an HD picture, consider the Kenwood CMOS-740HD.
Our tech experts advise
Confirm your head unit has an NTSC RCA camera input before buying. The camera triggers automatically from the reverse line, so a clean connection to that wire is essential. Its operating range of -30°C to 70°C handles all UK conditions. Installation is priced per vehicle; see our Nottingham fitting service for details.
Explore the full Kenwood range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Kenwood
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
More from Kenwood
More options from the same range, in stock and ready to go

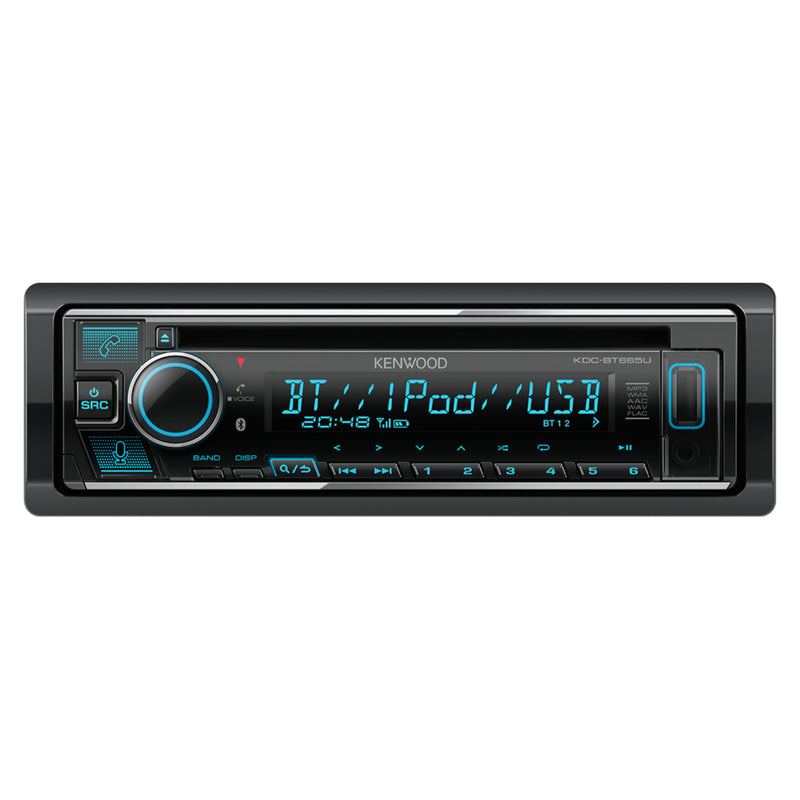

Kenwood KDC-BT665U Car Stereo CD USB Bluetooth Handsfree and Music FM Radio
RRP £149.99Save 20%£119.99

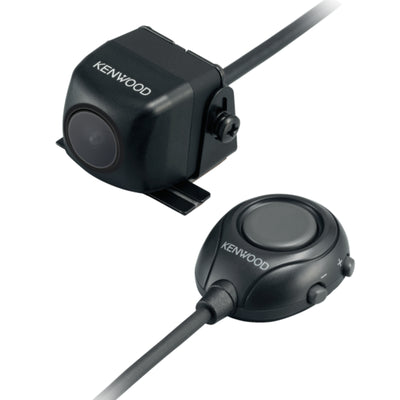

Kenwood CMOS-320 Multi View Reversing Camera Universal DMX DDX DNX Car Stereos
RRP £199.99Save 10%£179.99

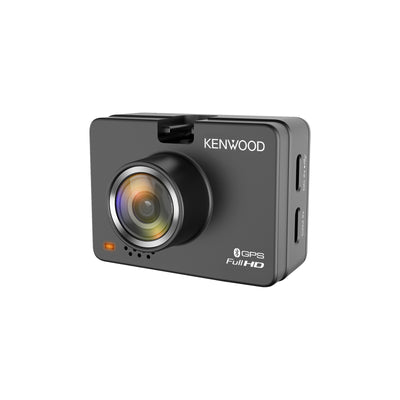

Kenwood DRV-A310W Dash Cam 1080p Full HD Camera GPS 2 Inch Screen 32GB Card
RRP £149.99Save 13%£129.99

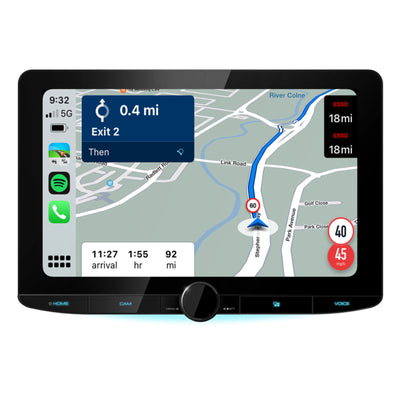

Kenwood DMX9724XDS Wireless Apple CarPlay Android Auto DAB Bluetooth Car Stereo
£1,199.99
Kenwood DMX7525DABS Wireless Apple CarPlay Android Auto DAB Bluetooth Car Stereo
£399.99
Frequently Asked Questions
Q: Will this reversing camera work with my head unit?
A: Any head unit or monitor with a camera input will display a standard reversing camera. If your stereo lacks an input, we can recommend a standalone monitor or mirror option. Contact CEN with your setup and we will confirm.
Q: Does the camera come on automatically when I reverse?
A: Yes, when wired to the reversing light circuit the camera and screen trigger automatically as you select reverse. This is the standard installation method.
Q: Is this camera suitable for a van or motorhome?
A: Check the cable length and mounting style in the Specification tab. CEN stocks cameras suited to cars, vans and motorhomes, and can advise on extension leads for longer vehicles.
Q: Can CEN install the reversing camera?
A: Yes. CEN offers professional reversing camera installation from our Nottingham premises, including wiring to your existing screen where compatible. Contact us to book.
Q: Which head units is the Kenwood CMOS-230 compatible with?
A: It is designed for Kenwood DMX, DDX and DNX head units, and connects via an NTSC RCA video output. Contact CEN if you would like us to confirm compatibility with your stereo.
Q: How long is the CMOS-230 cable?
A: It has a 9 m combined power and video connection cable, which suits most cars.
Q: What viewing angle does the CMOS-230 have?
A: Kenwood specifies a field of view of ±128° horizontally and ±103° vertically, with a wide-angle mirror image.
