Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair
Couldn't Load Pickup availability
The Edge EDBPRO37T-E0 is a pair of 3.7 inch pro audio bullet tweeters rated at 75W RMS each (150W RMS per pair), with 102dB sensitivity. They are part of the Edge DB Series pro audio range.
Key specifications
- Size: 3.7 inch (95mm)
- RMS power: 75W per tweeter (150W per pair)
- Peak power: 150W
- Sensitivity: 102dB
- Frequency response: 2kHz – 20kHz
- Impedance: 4 ohms
- Mounting depth: 28mm
- Suggested amplifier: a 4-channel amplifier such as the Edge DB Series EDB80.4LITE-E2
- Sold as: pair

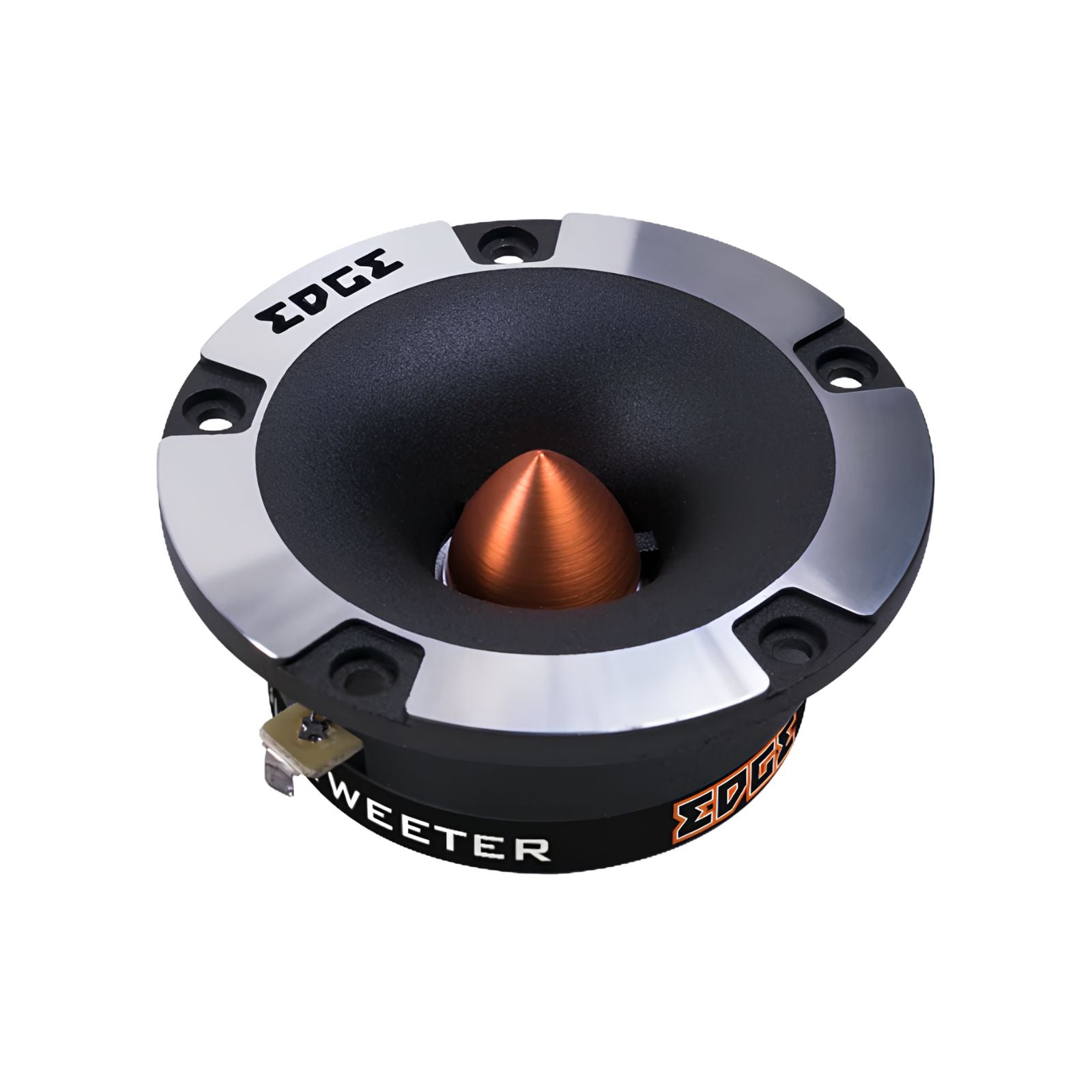

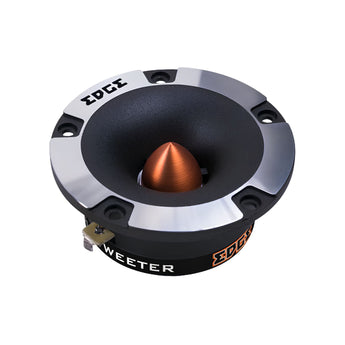

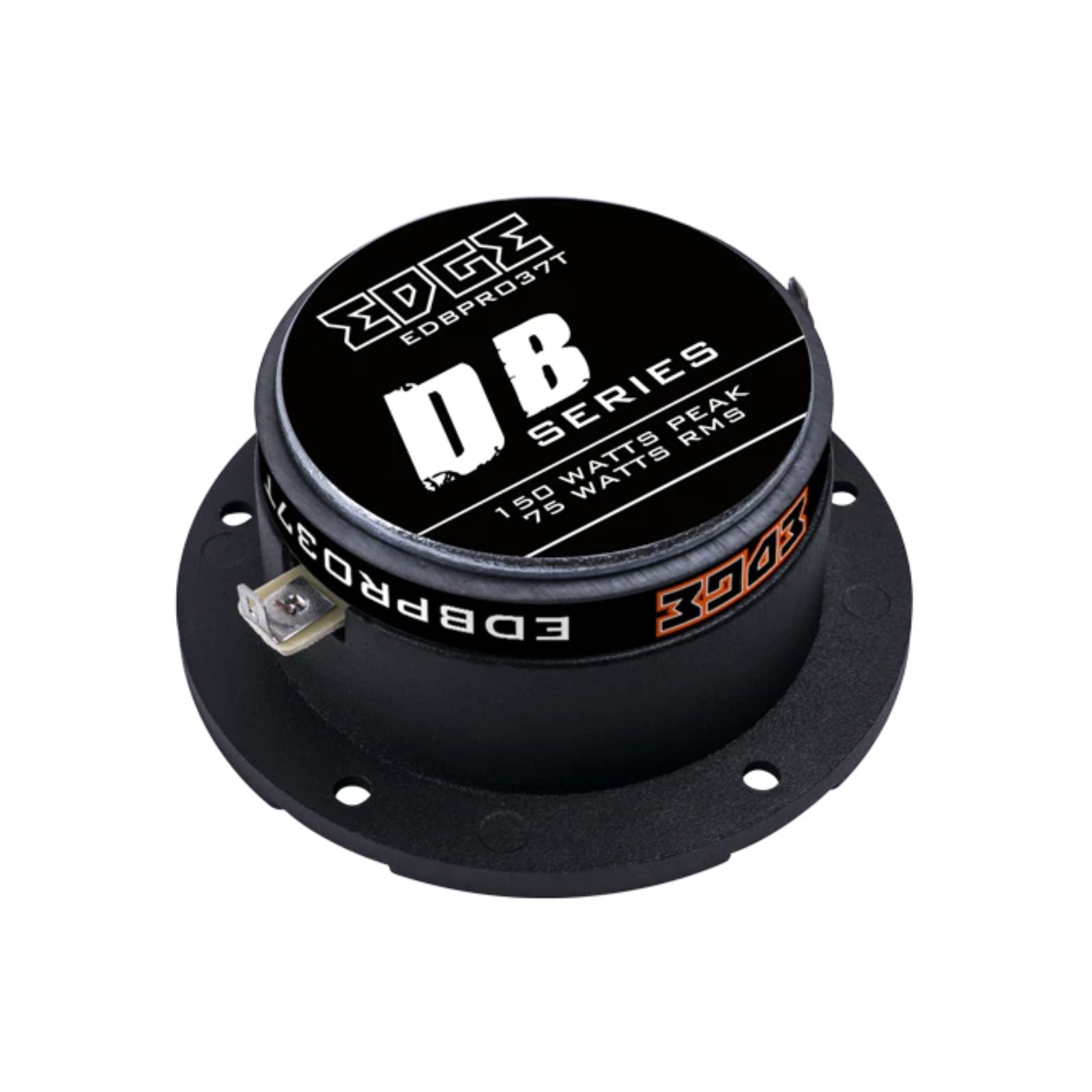

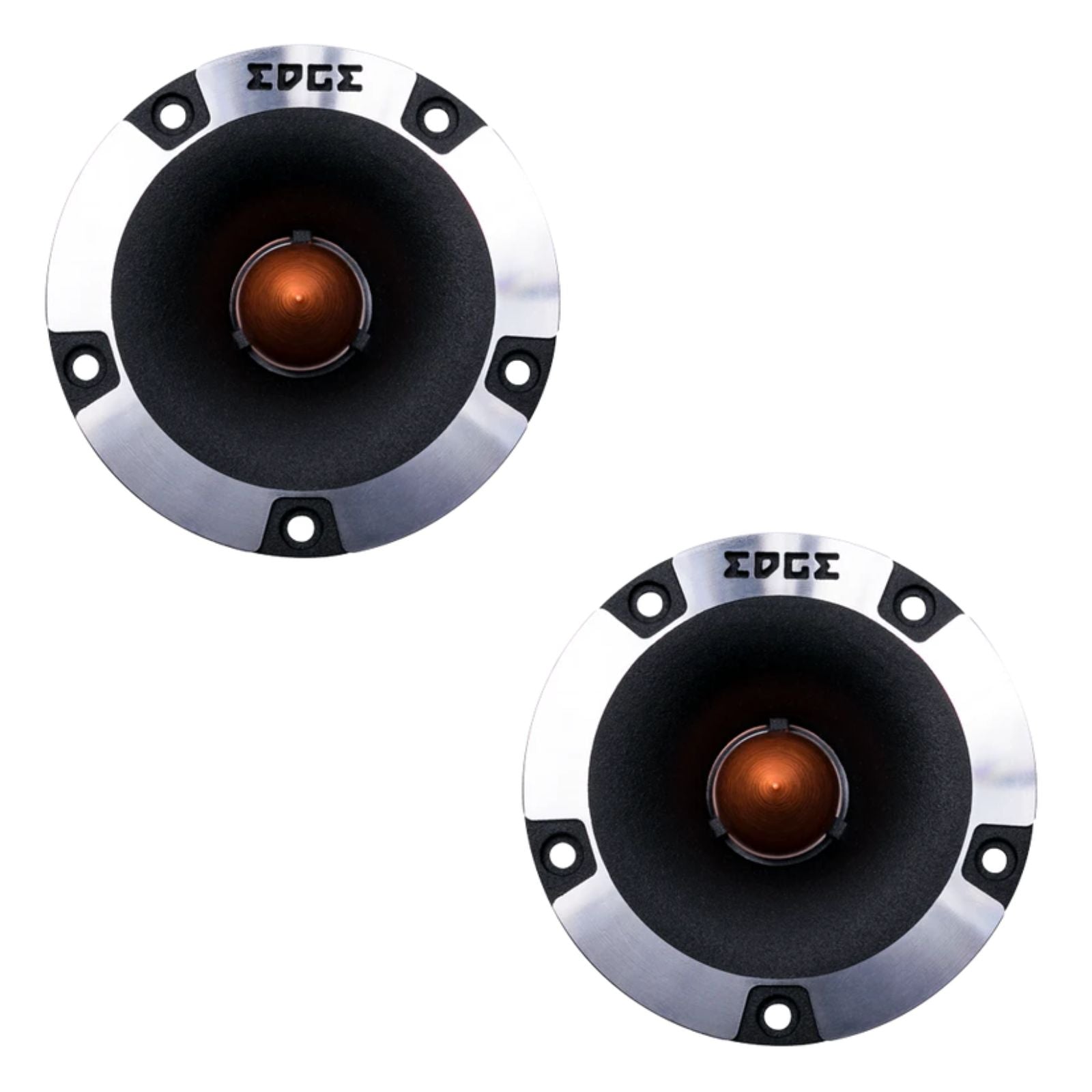

EDBPRO37T-E0 pro audio bullet tweeters
The EDBPRO37T-E0 is a 3.7 inch bullet tweeter with a ferrite magnet and aluminium diaphragm. The asymmetrical horn design delivers non-linear polar dispersion — angle these correctly and you get focused, efficient high-frequency output exactly where you want it. The cast aluminium housing keeps the build rigid and resonance-free, protecting sound clarity at high volumes.
Engineered to pair with the EDGE DB Series pro audio speakers such as the EDBPRO6-E3 6.5 inch pro midrange, and used in the EDBPB6-E5 pro audio enclosure, for a full-range, high-volume setup.
Key features
- 3.7 inch bullet tweeter
- 75W RMS per tweeter, 150W RMS per pair
- 4 ohm impedance
- Ferrite magnet construction
- Aluminium diaphragm
- Asymmetrical horn design for directional dispersion
- Cast aluminium housing reduces resonance
- Sold as a pair
- Part of the Edge DB Series pro audio range
Explore the full range in Edge DB Series.
Specification
| Configuration | 1 way |
|---|---|
| Speaker Size | 3.7" (95mm) |
| RMS Power | 75 watts |
| Peak Power | 150 watts |
| Frequency Response | 2kHz - 20kHz |
| Sensitivity | 102dB |
| Impedance | 4 Ohms |
| Suggested Amplifier | 4-channel, e.g. Edge EDB80.4LITE-E2 |
| Mounting Depth | 1.1" (28mm) |
| Mounting Diameter | 2.9" (73mm) |
What's Included
- EDBPRO37T-E0
Edge
About the Edge EDBPRO37T-E0
From our tech experts at CEN
The Edge EDBPRO37T-E0 is a pair of 3.7 inch (95mm) pro audio bullet tweeters from the DB Series. Each is rated at 75w RMS and 4 ohm, with 102 dB sensitivity, a ferrite magnet and aluminium diaphragm. Mounting depth is 28mm and diameter 73mm.
Who it suits
Budget pro audio builds that want loud treble alongside DB Series pro midranges. It is the compact DB option; the EDBPRO36T-E1 is larger and rated at 80w RMS. The DBX Series EDBXPRO38T-E0 is the same size with 105 dB sensitivity.
Our tech experts advise
Pro audio tweeters must be high-passed so they never see bass, either by the amplifier's crossover or a suitable passive filter. Check the 73mm mounting diameter against your pod or panel before ordering. With 102 dB sensitivity they will match well with efficient pro midranges, but can sound harsh next to standard speakers unless levels are set properly. Installation is priced per vehicle, so get in touch.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DB Series
More options from the same range, in stock and ready to go

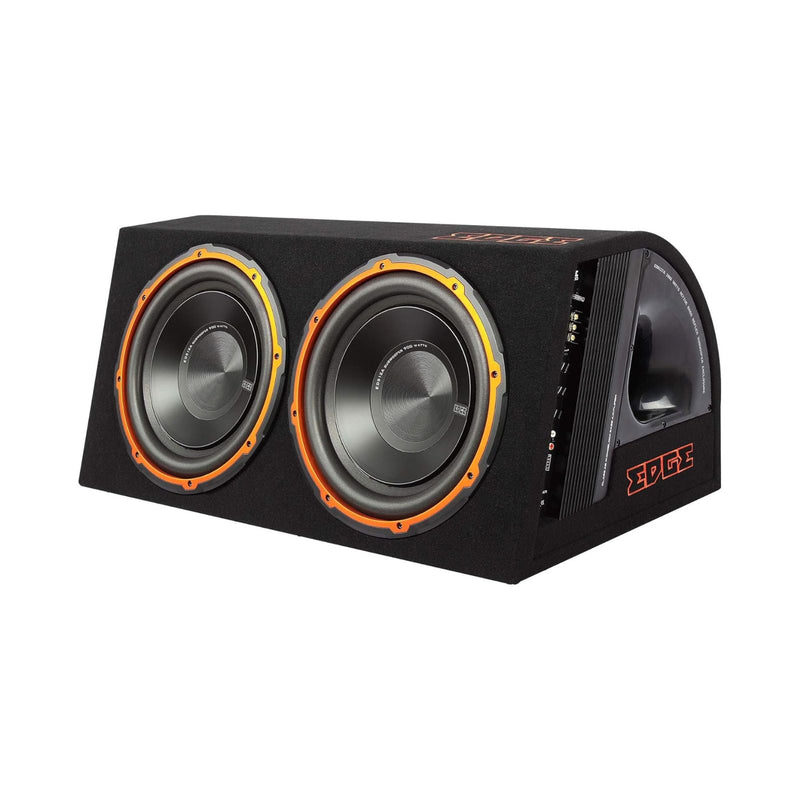

Edge EDB12TA 12 Inch Active Bass Twin Sub Subwoofer Ported Enclosure 600w RMS
£299.99
View product

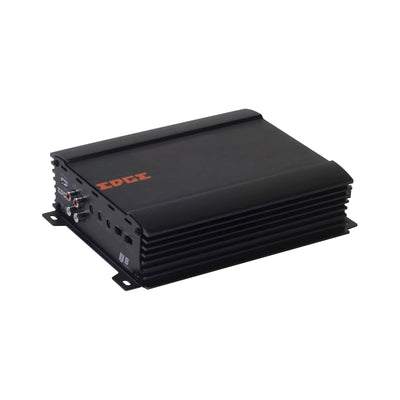

Edge DB Series EDB80.2LITE-E2 Amp Class AB 2 Channel Amplifier 160w RMS
£99.99
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS
£149.99
Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS
RRP £149.00Save 6%£139.00
Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS
£84.99
Frequently Asked Questions
Q: What is the frequency range of the EDBPRO37T-E0?
A: 2kHz to 20kHz. They are high frequency drivers and should be used with a suitable crossover or high pass filter alongside pro midrange speakers.
Q: Which amplifier does EDGE recommend for the EDBPRO37T-E0?
A: EDGE recommends the EDB75.4-E9. Each tweeter handles 75W RMS and 150W peak at 4 ohms.
Q: How deep are the EDBPRO37T-E0 tweeters?
A: The mounting depth is 28mm and the mounting diameter is 73mm.
Q: Can CEN fit these tweeters for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
