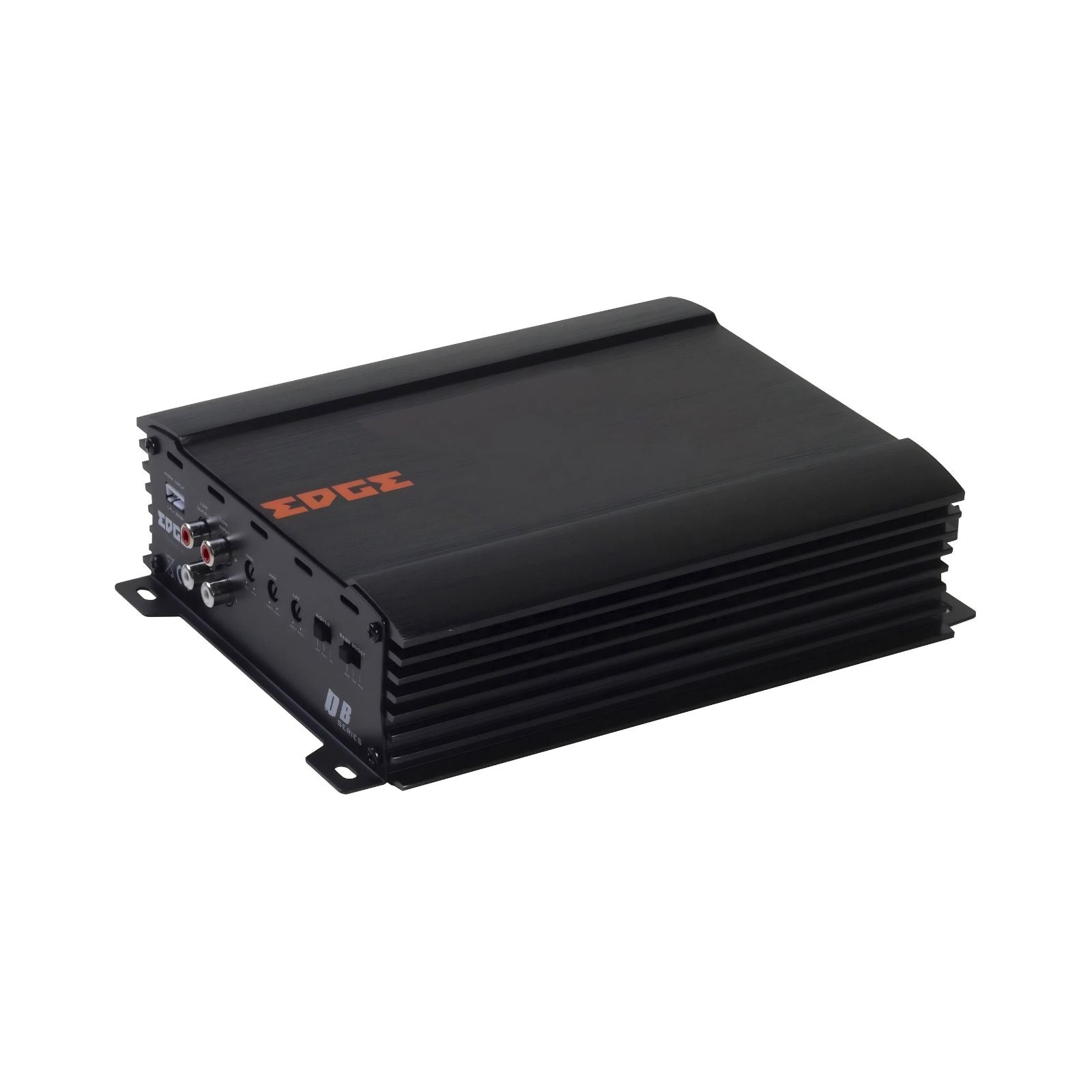

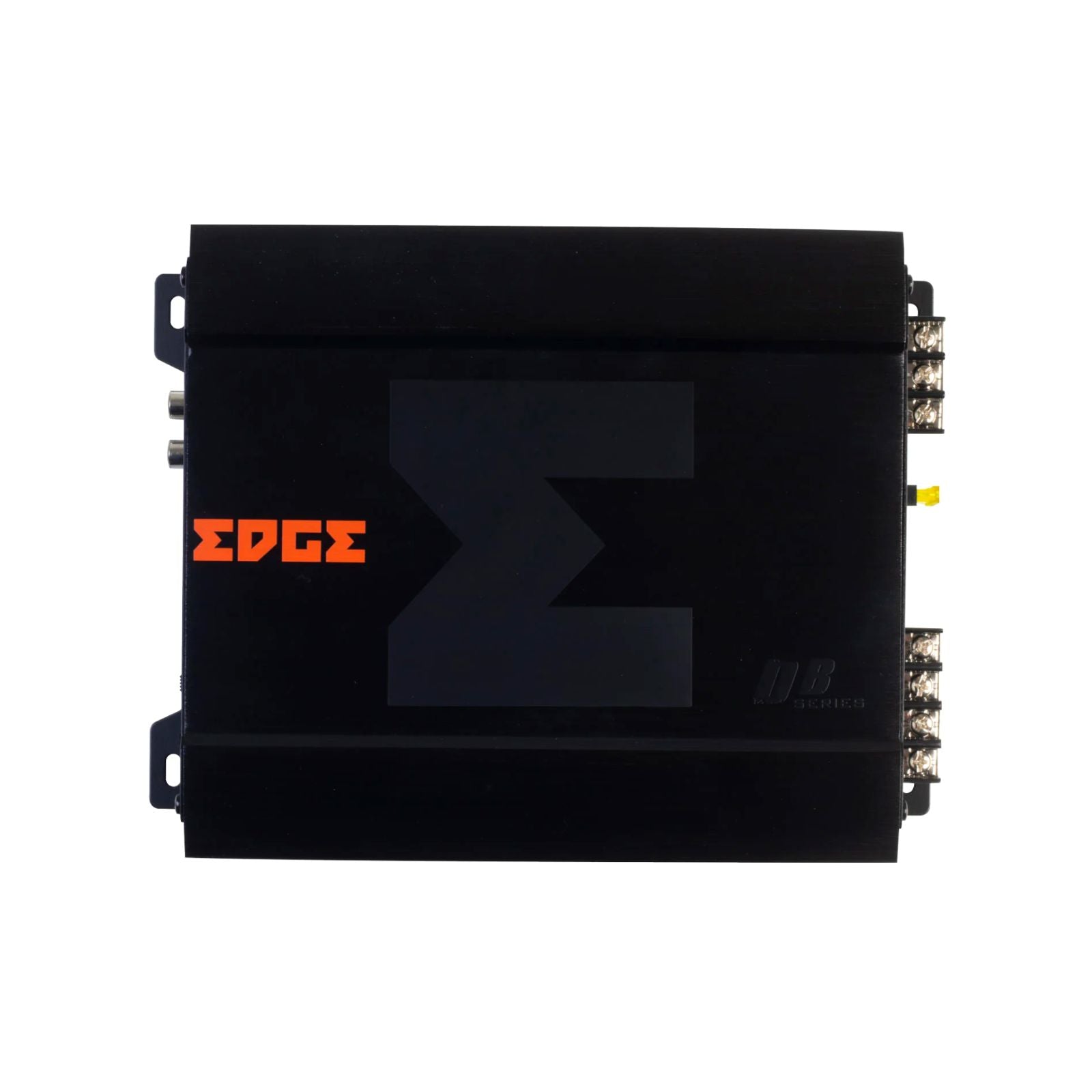

Edge DB Series EDB80.2LITE-E2 Amp Class AB 2 Channel Amplifier 160w RMS
Couldn't Load Pickup availability
The Edge EDB80.2LITE-E2 is a Class AB 2-channel car amplifier from the Edge DB Series, delivering 2 × 80W RMS at 2 ohms, 2 × 60W RMS at 4 ohms, or 160W RMS bridged (320W max).
Key specifications
- Type: 2 channel, Class AB
- RMS @ 4 ohms: 2 × 60W / 1 × 160W bridged
- RMS @ 2 ohms: 2 × 80W
- Maximum power: 320W
- Frequency response: 20 Hz to 20 kHz
- Crossover: HP / LP / flat, 50 Hz to 4 kHz
- Dimensions (H × W × D): 58 × 178 × 230 mm
Edge DB Series 2 channel 320W max amplifier
The DB Series is Edge's entry-level amplifier range, designed to power DB Series speakers and subwoofers. This 2-channel LITE model uses Class AB topology. The range is available in single, two and four channel configurations, with active crossovers, bass boost and remote gain controls for straightforward amp setup. The monoblock DB Series models — such as the Edge EDB500.1-E9 500W monoblock — use Class D topology for a more compact footprint.
Features
- Built-in active crossovers
- Bass boost circuit
- Extruded aluminium heatsink
- Class AB topology
Explore the full range in Edge DB Series.
Specification
| Type | 2 Channel |
|---|---|
| RMS @ 4 Ohms | 2 x 60 watts / 1 x 160 watts |
| RMS @ 2 Ohms | 2 x 80 watts |
| Maximum Power | 320 watts |
| Frequency Response | 20Hz - 20kHz |
| Crossover Type | HP / LP / FLAT |
| Crossover Range | 50Hz - 4kHz |
| Topology | Class AB |
| Dimensions | (H x W X D) 58mm x 178mm x 230mm (2.3" x 7" x 9.1") |
What's Included
- EDB80.2LITE-E2
Edge
About the Edge EDB80.2LITE-E2
From our tech experts at CEN
A 2-channel amplifier from Edge, Class AB, rated at 160w RMS.
Who it suits
Drivers upgrading speakers who have found the head unit cannot drive them, and builds where value per watt matters.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DB Series
More options from the same range, in stock and ready to go

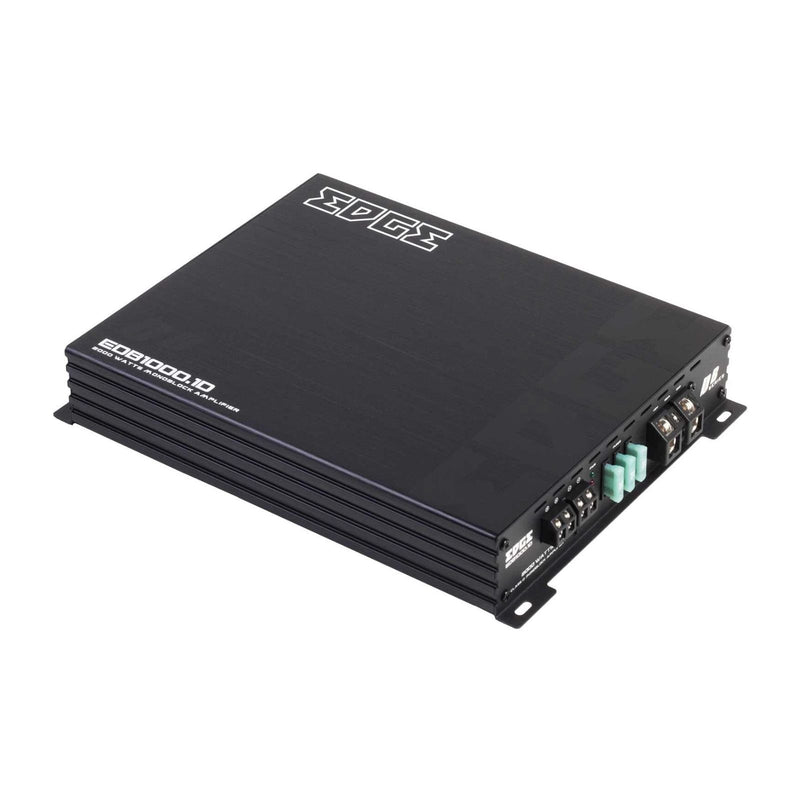

Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS
£149.99
View product

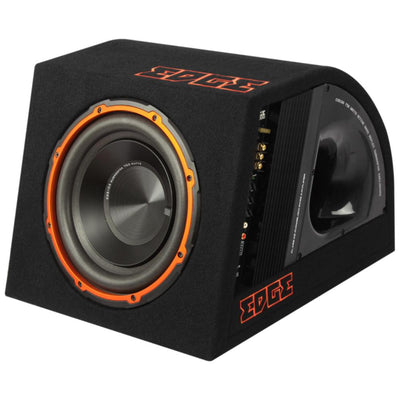

Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS
RRP £149.00Save 6%£139.00

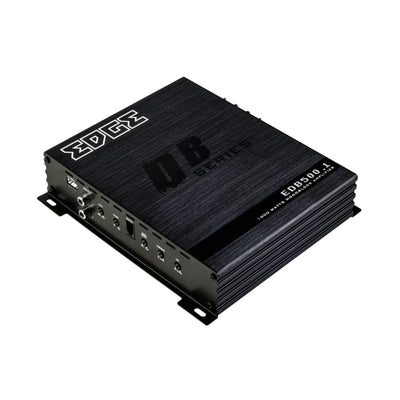

Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS
£84.99

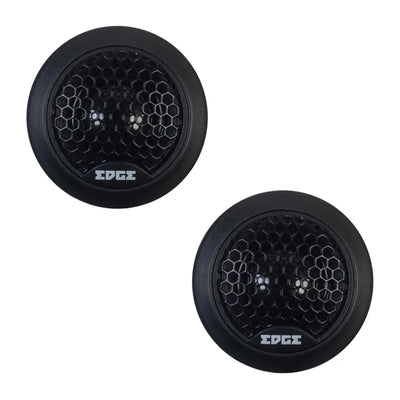

Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair
£19.99

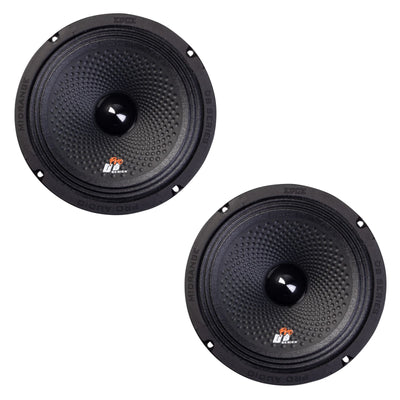

Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair
£64.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?

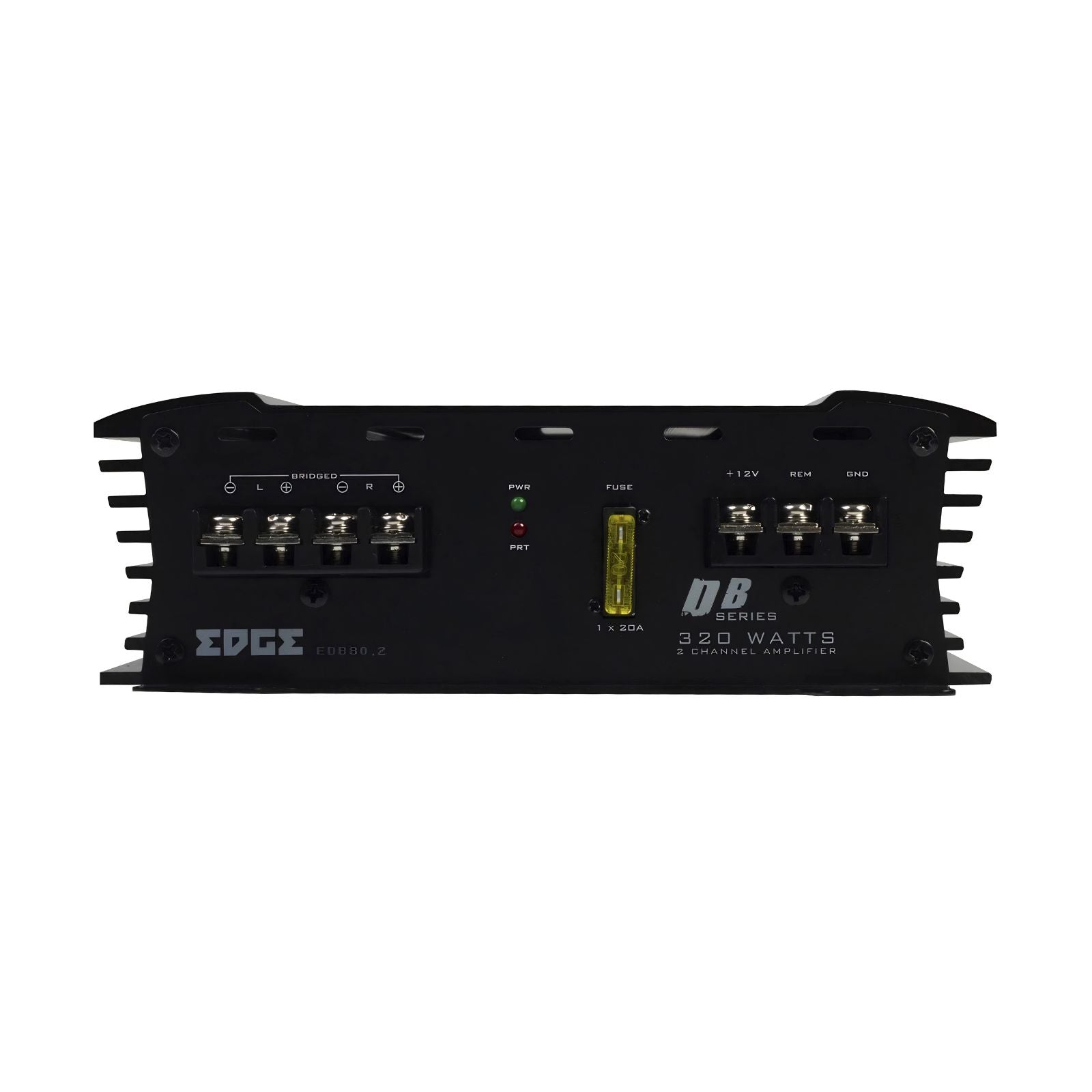

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the EDGE EDB80.2LITE-E2 produce?
A: It delivers 2 x 60W RMS at 4 ohms, 2 x 80W RMS at 2 ohms, or 1 x 160W RMS bridged at 4 ohms, with a maximum power of 320W.
Q: Can the EDB80.2LITE-E2 be bridged?
A: Yes. Bridged into 4 ohms it delivers 1 x 160W RMS, which can drive a single subwoofer.
Q: What crossover does the EDB80.2LITE-E2 have?

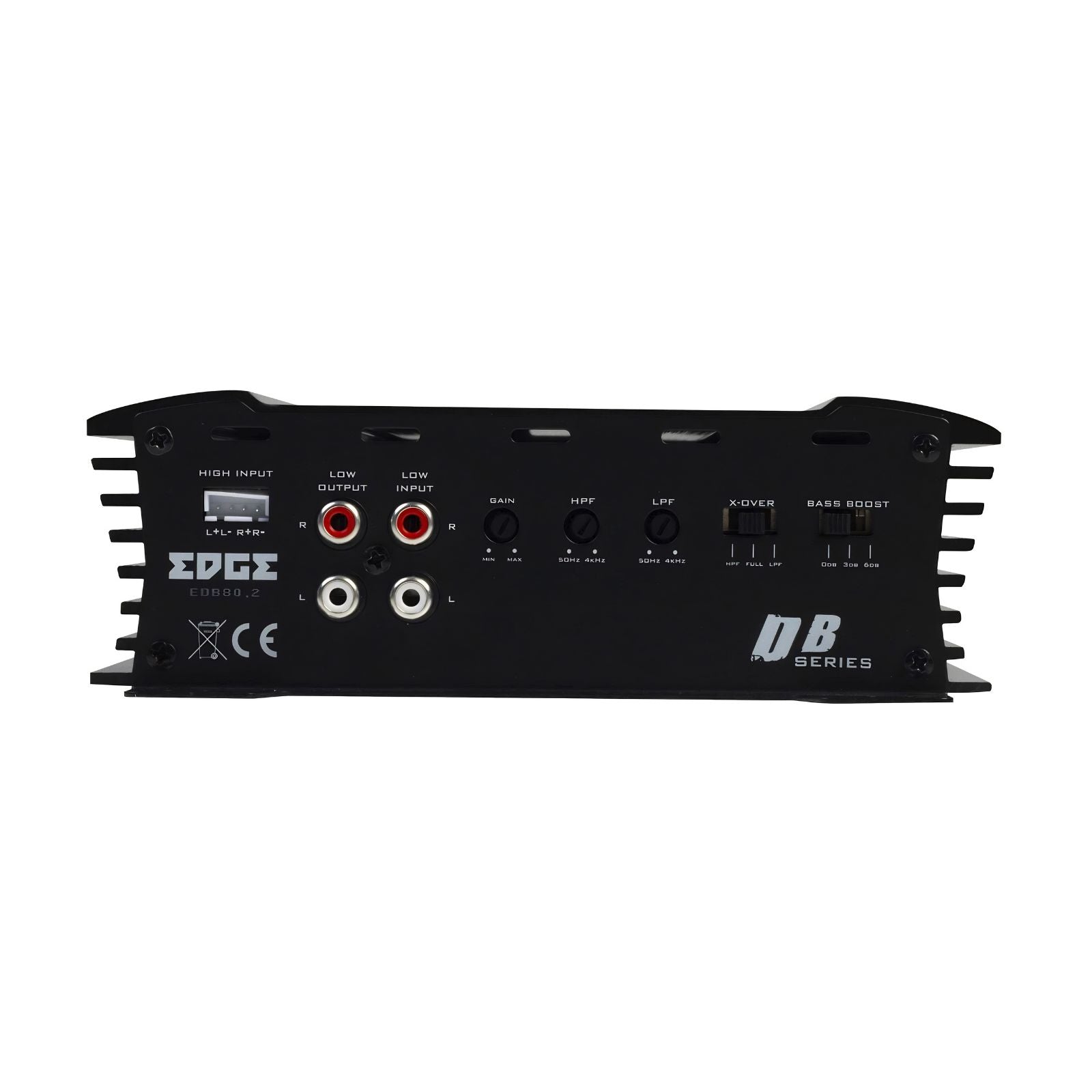

A: It has a built-in high-pass / low-pass / flat crossover adjustable from 50 Hz to 4 kHz, plus a bass boost circuit.
