Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS
Couldn't Load Pickup availability

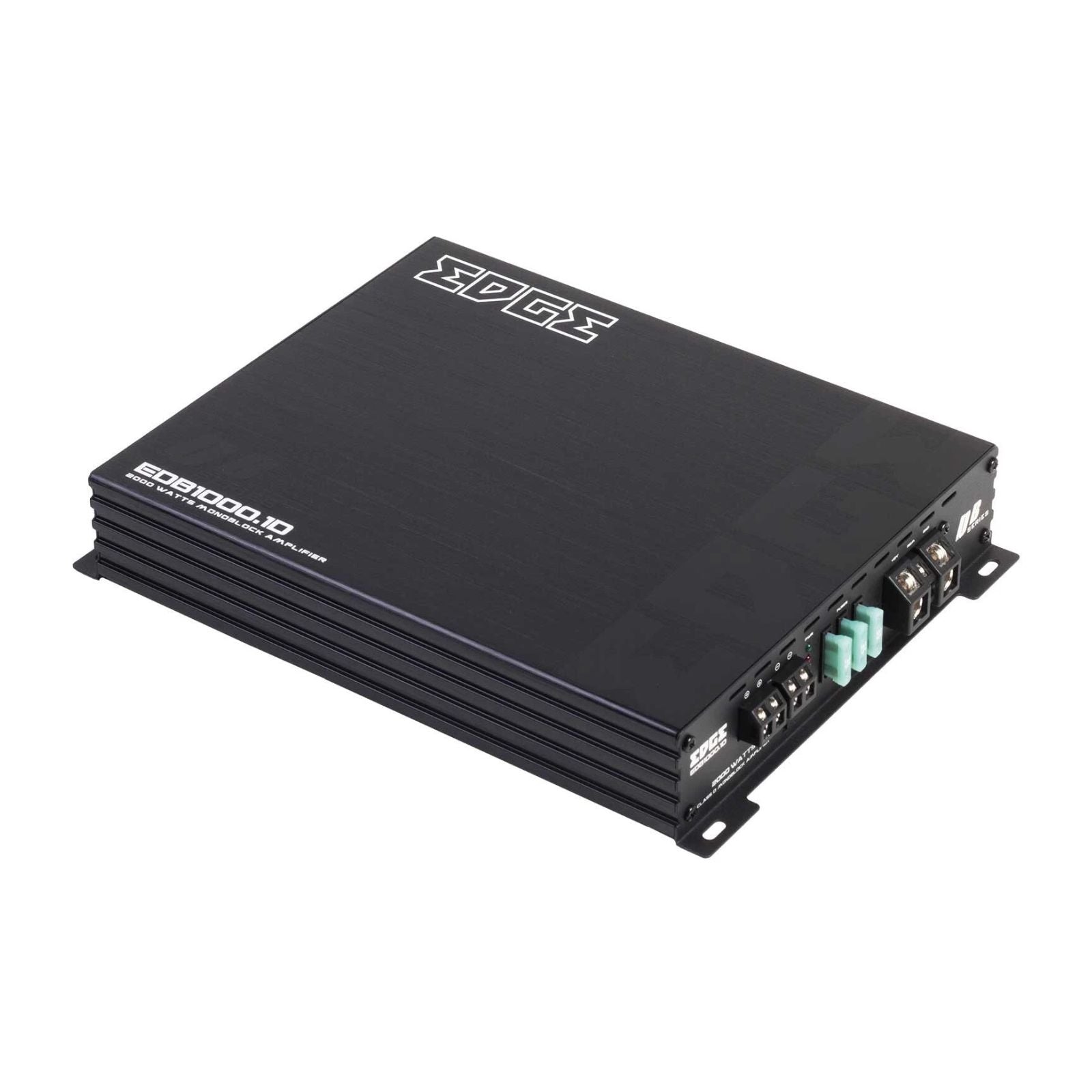

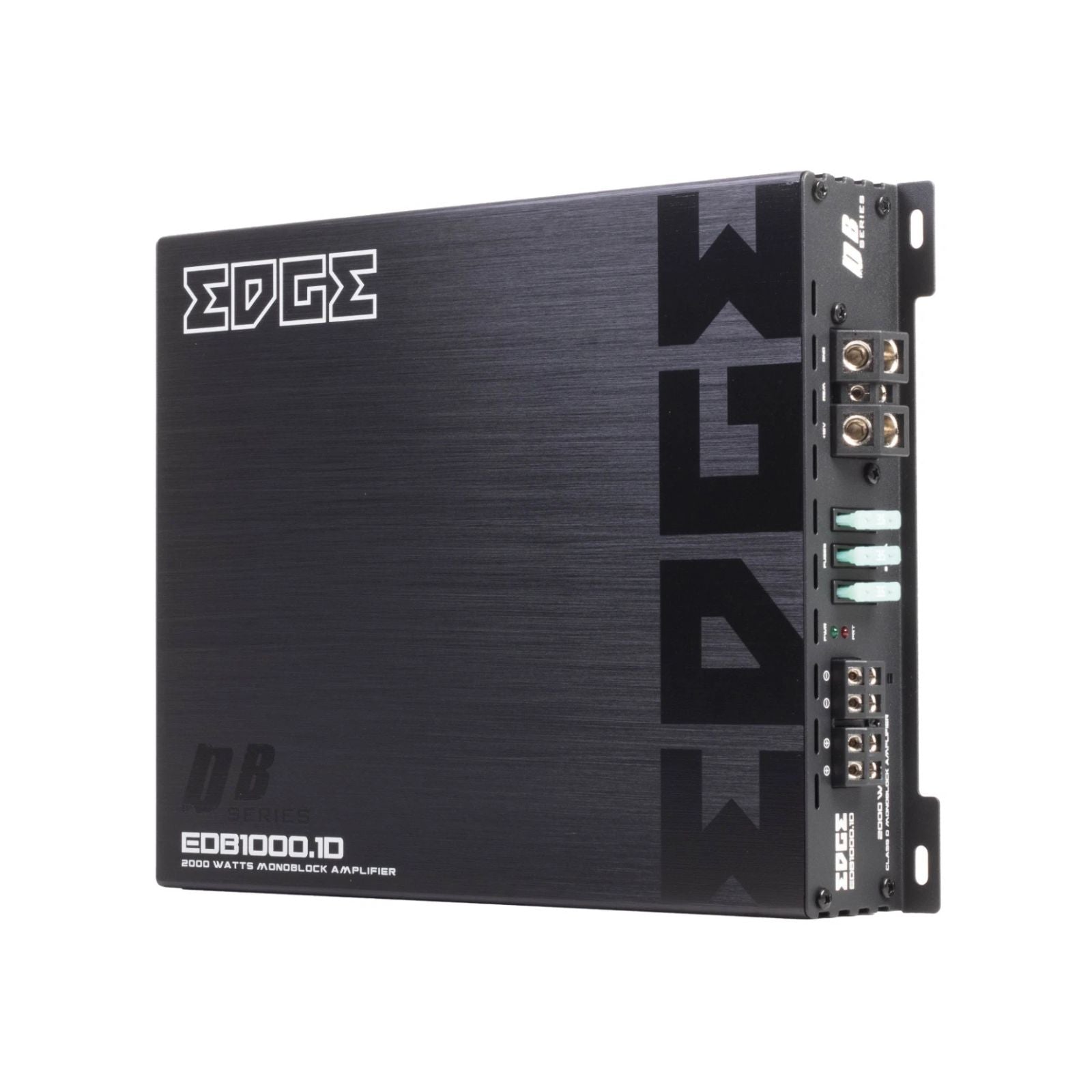

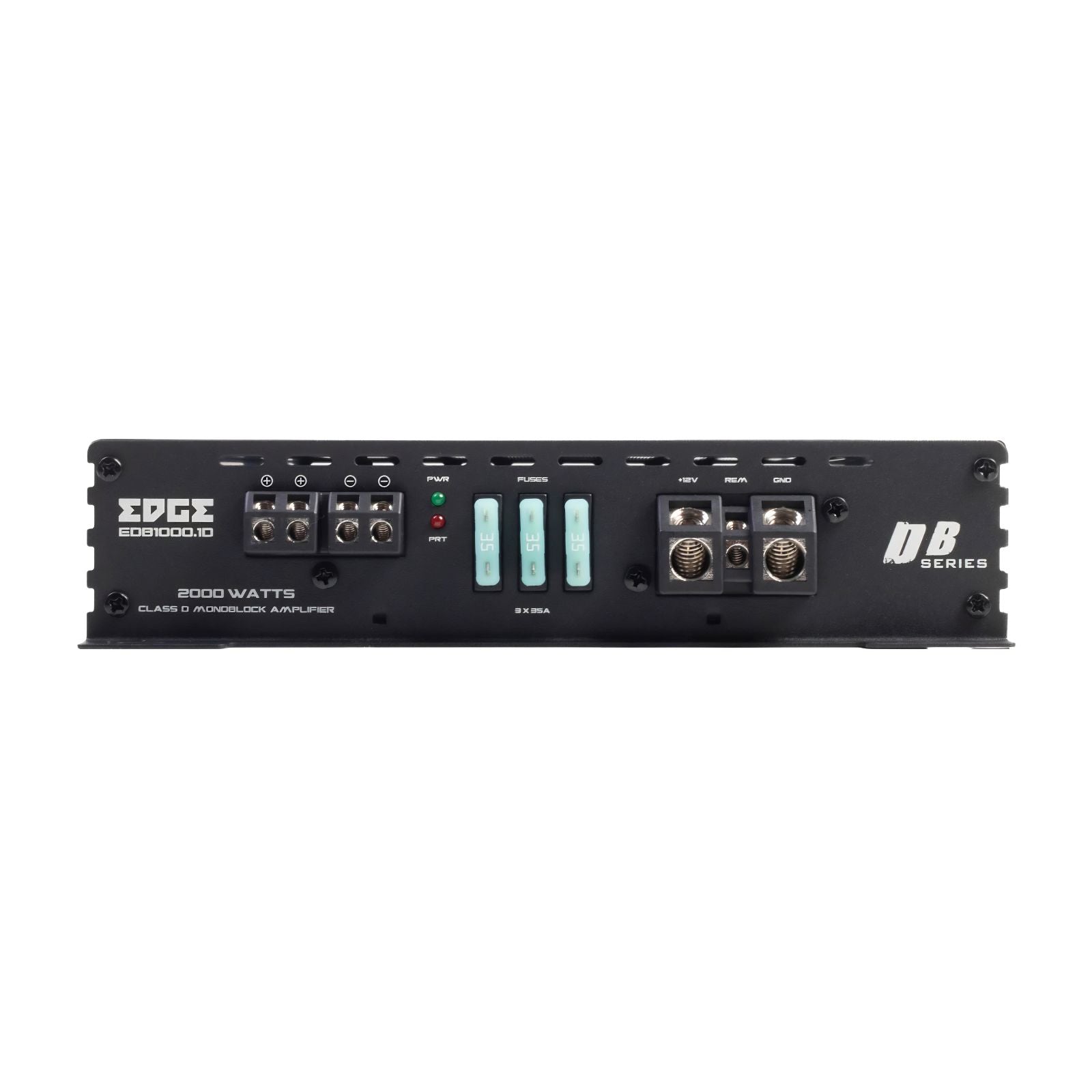

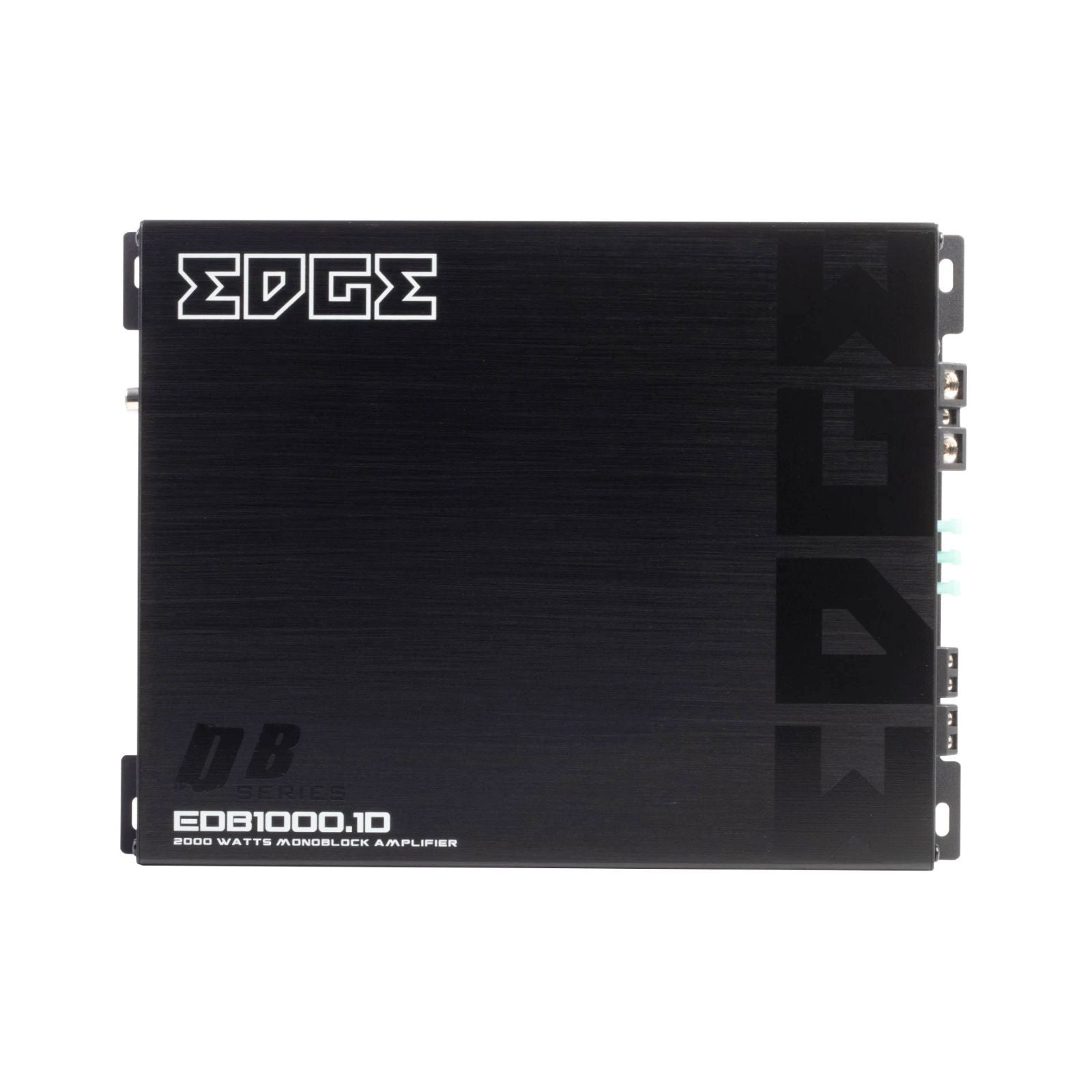

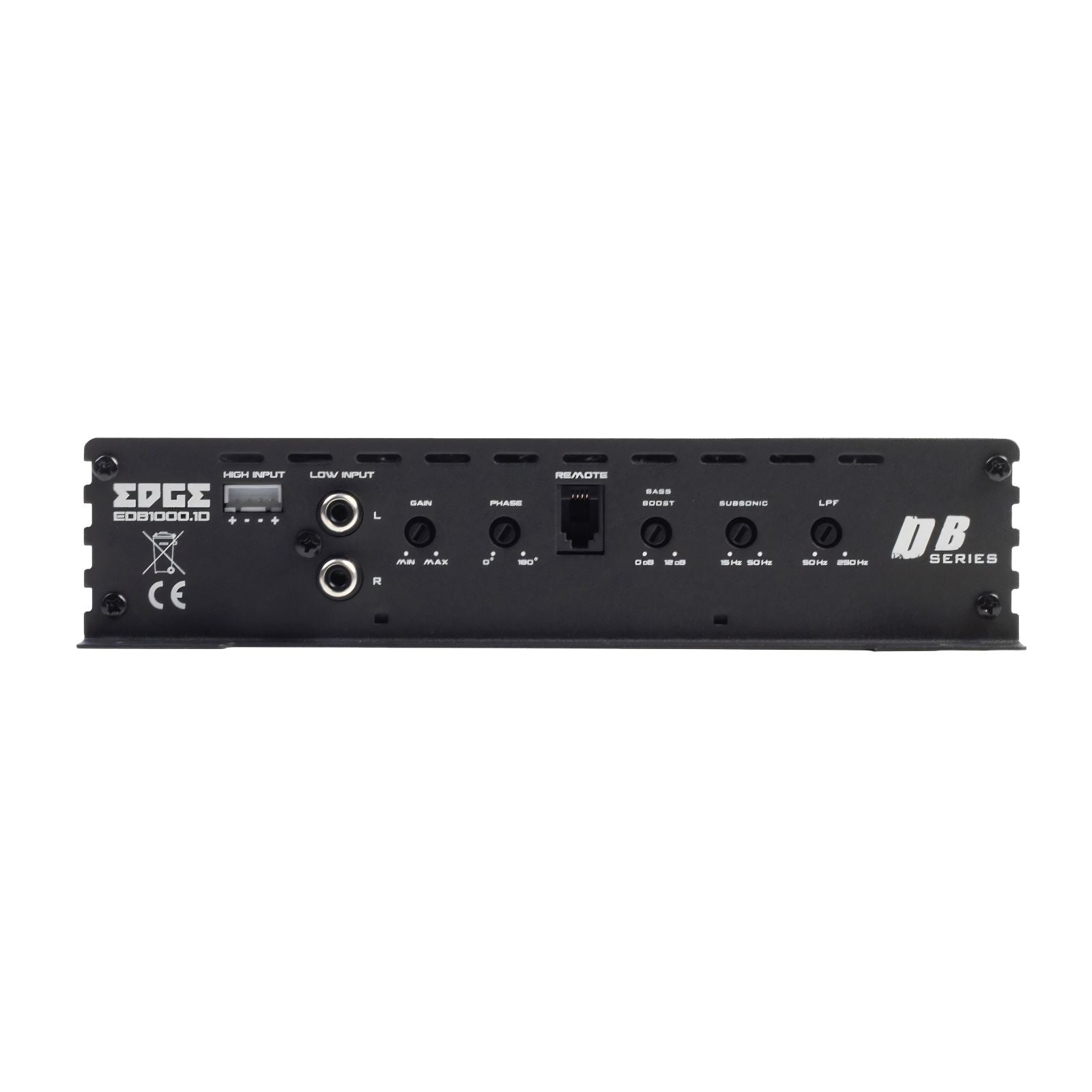

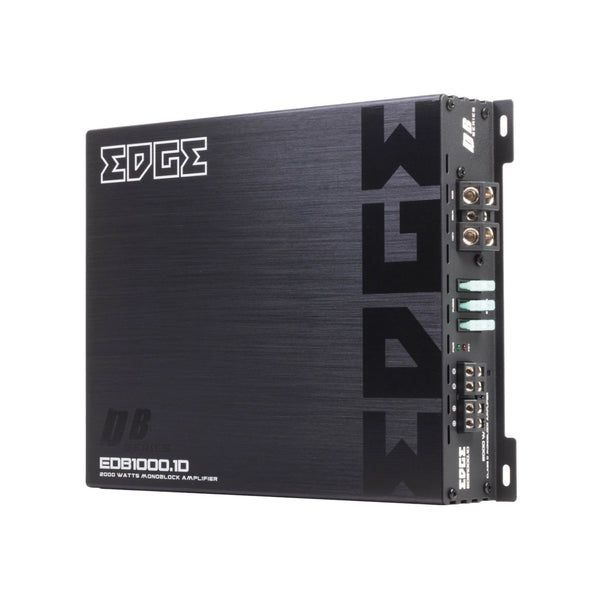

The Edge EDB1000.1D-E4 is a Class D 1-channel monoblock car amplifier from the Edge DB Series, delivering 1000W RMS at 1 ohm (2000W max). It is designed to drive subwoofers, including Edge DB Series subs.
This listing is the 1000W model. The Edge DB Series monoblock amp is also available in 500W RMS (EDB500.1-E9).
Key specifications
- Type: 1-channel monoblock, Class D
- RMS @ 4 ohms: 1 x 400W
- RMS @ 2 ohms: 1 x 650W
- RMS @ 1 ohm: 1 x 1000W
- Maximum power: 2000W
- Frequency response: 15 Hz to 250 Hz
- Crossover: LP / subsonic, 15 Hz to 250 Hz
- Dimensions (H x W x D): 46 x 275 x 205 mm
Edge DB Series 2000W max monoblock amplifier
The DB Series is Edge's entry-level amplifier range, designed to power DB Series speakers and subwoofers. The monoblock models use Class D topology for efficient power delivery and a compact footprint. The range includes single, two and four channel models, all featuring active crossovers, bass boost and remote gain controls for straightforward configuration.
Features
- Built-in active crossovers
- Bass boost circuit
- Extruded aluminium heatsink
- Efficient Class D topology
Explore the full range in Edge DB Series.
Specification
| Type | Monoblock |
|---|---|
| RMS @ 4 Ohms | 1 x 400 watts |
| RMS @ 2 Ohms | 1 x 650 watts |
| RMS @ 1 Ohms | 1 x 1000 watts |
| Maximum Power | 2000 watts |
| Frequency Response | 15Hz - 250Hz |
| Crossover Type | LP / Subsonic |
| Crossover Range | 15Hz - 250Hz |
| Topology | Class D |
| Dimensions | (H x W X D) 46mm x 275mm x 205mm (1.8" x 10.8" x 8.1") |
What's Included
- EDB1000.1D-E4
Edge
About the Edge EDB1000.1D-E4
From our tech experts at CEN
A monoblock subwoofer amplifier from Edge, Class D, rated at 1000w RMS.
Who it suits
Anyone adding a subwoofer who wants solid power without a specialist budget. Edge is built for people who want loud and reliable rather than boutique.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DB Series
More options from the same range, in stock and ready to go

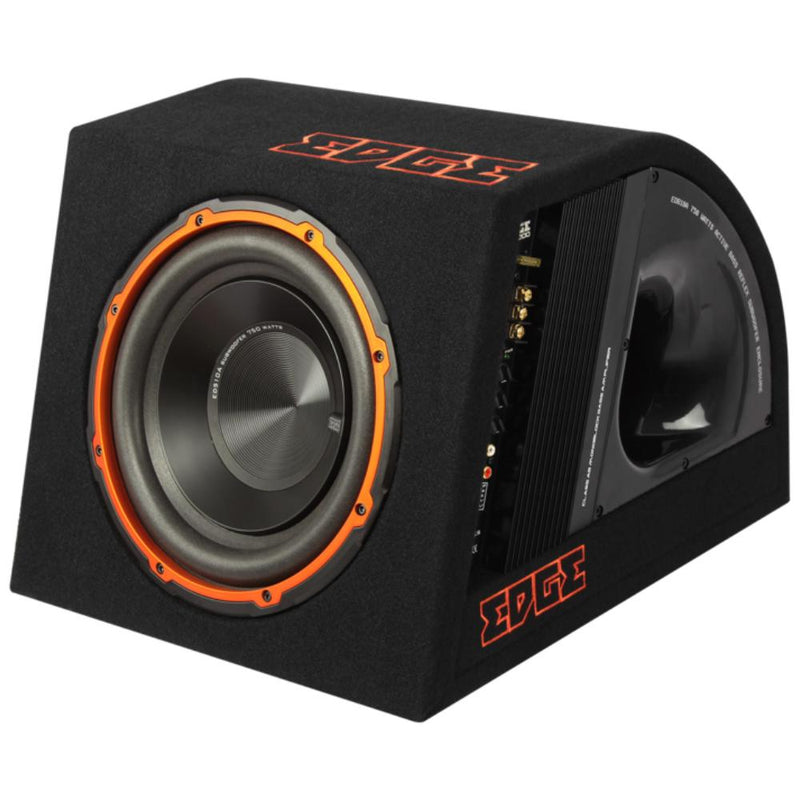

Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS
RRP £149.00Save 6%£139.00
Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS
£84.99
Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair
£19.99
Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair
£64.99

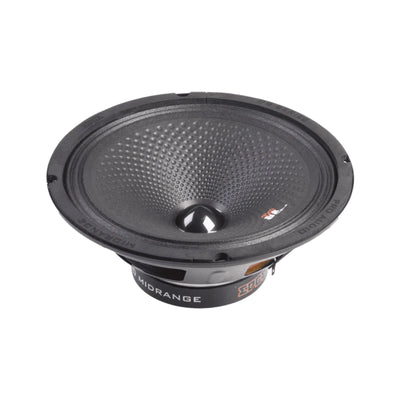

Edge DB Series EDBPRO10-E3 Pro Audio Midrange Speakers 10 Inch 200w RMS Single Speaker
£49.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the EDGE EDB1000.1D-E4 produce?
A: It delivers 1 x 400W RMS at 4 ohms, 1 x 650W RMS at 2 ohms and 1 x 1000W RMS at 1 ohm, with a maximum power of 2000W.
Q: Is the EDB1000.1D-E4 suitable for a subwoofer?
A: Yes. It is a monoblock with a 15 Hz to 250 Hz frequency response and a low-pass and subsonic crossover, designed for subwoofers. The EDGE DB Series subwoofers use dual 2 ohm voice coils.
Q: How big is the EDB1000.1D-E4?
A: It measures 46 mm (H) x 275 mm (W) x 205 mm (D).
