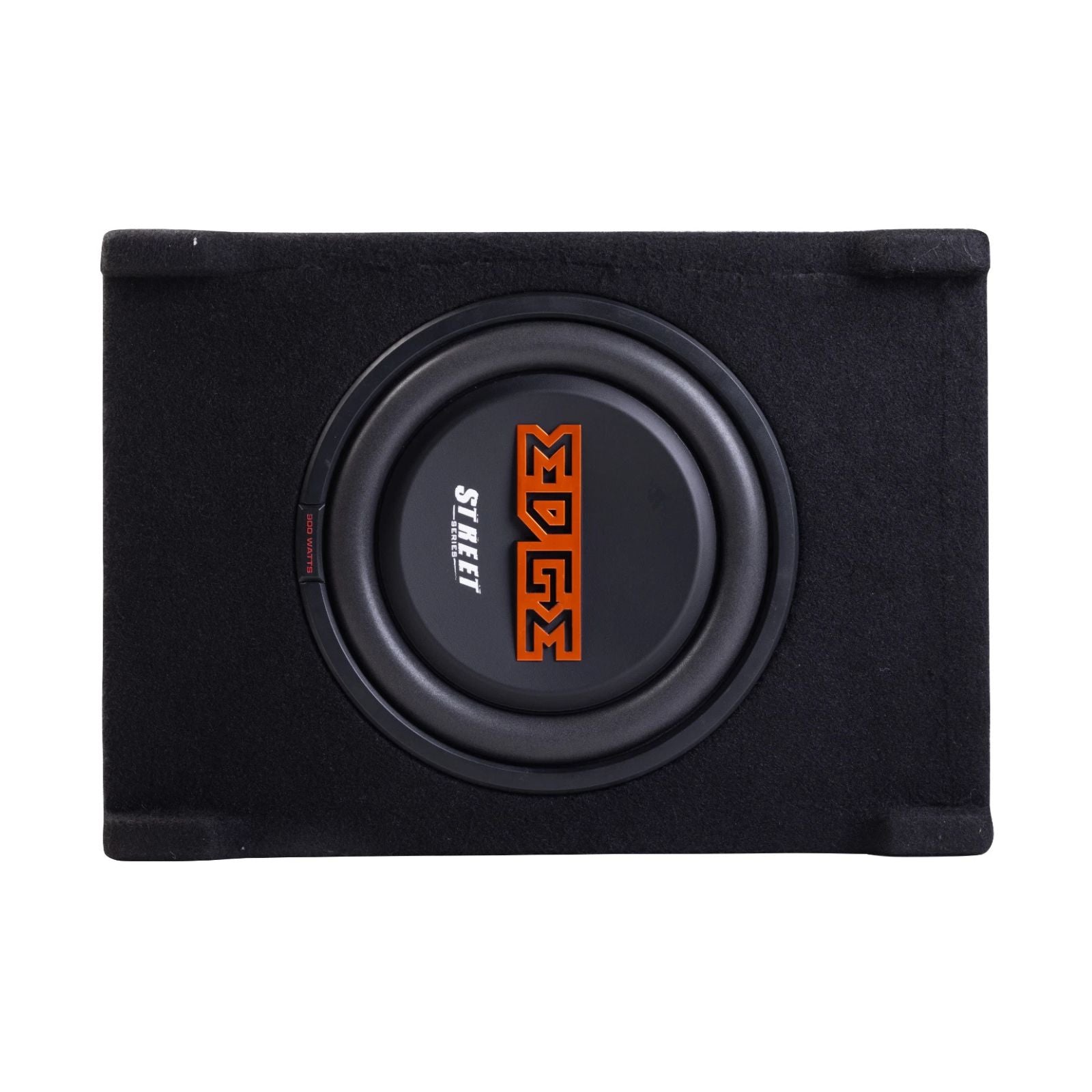

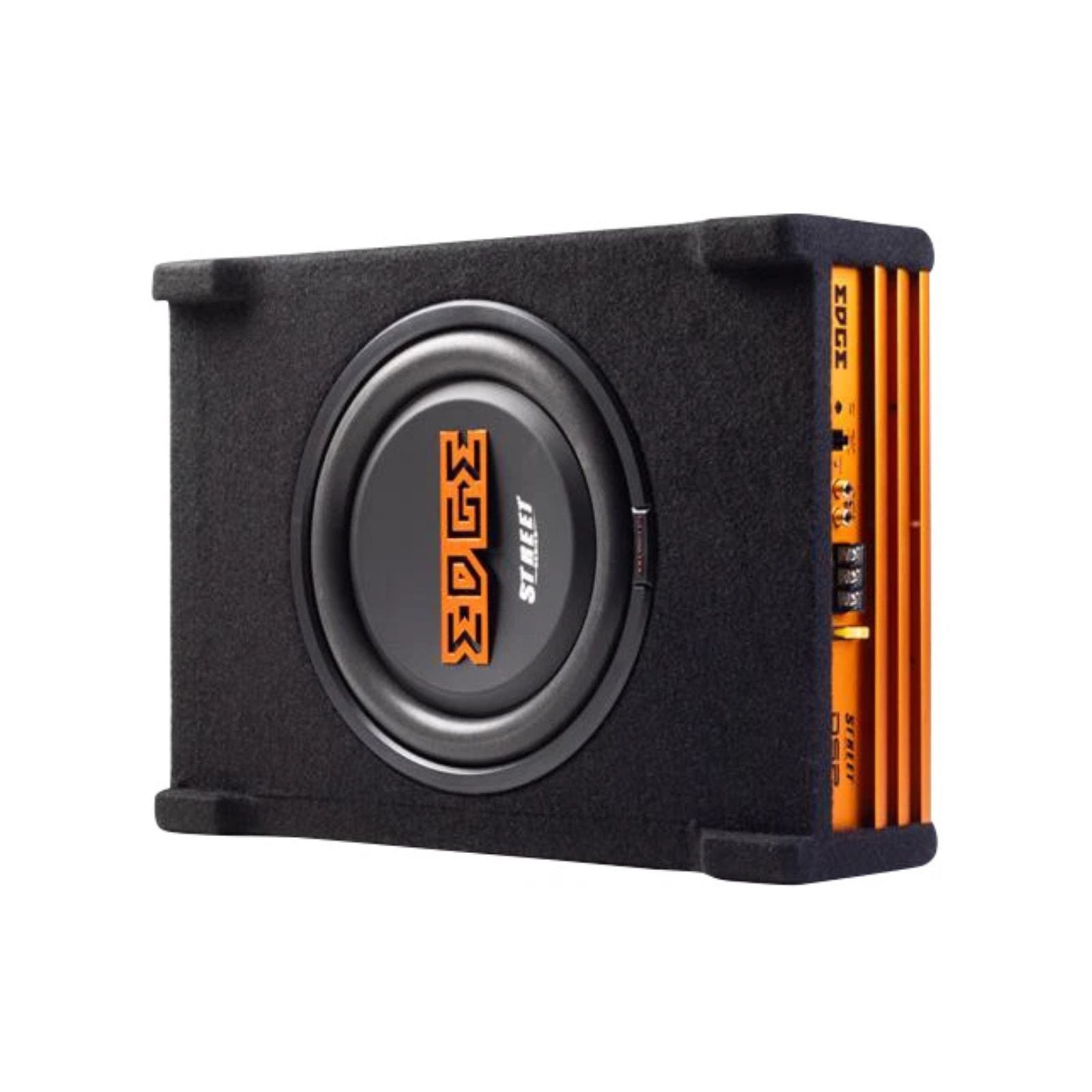

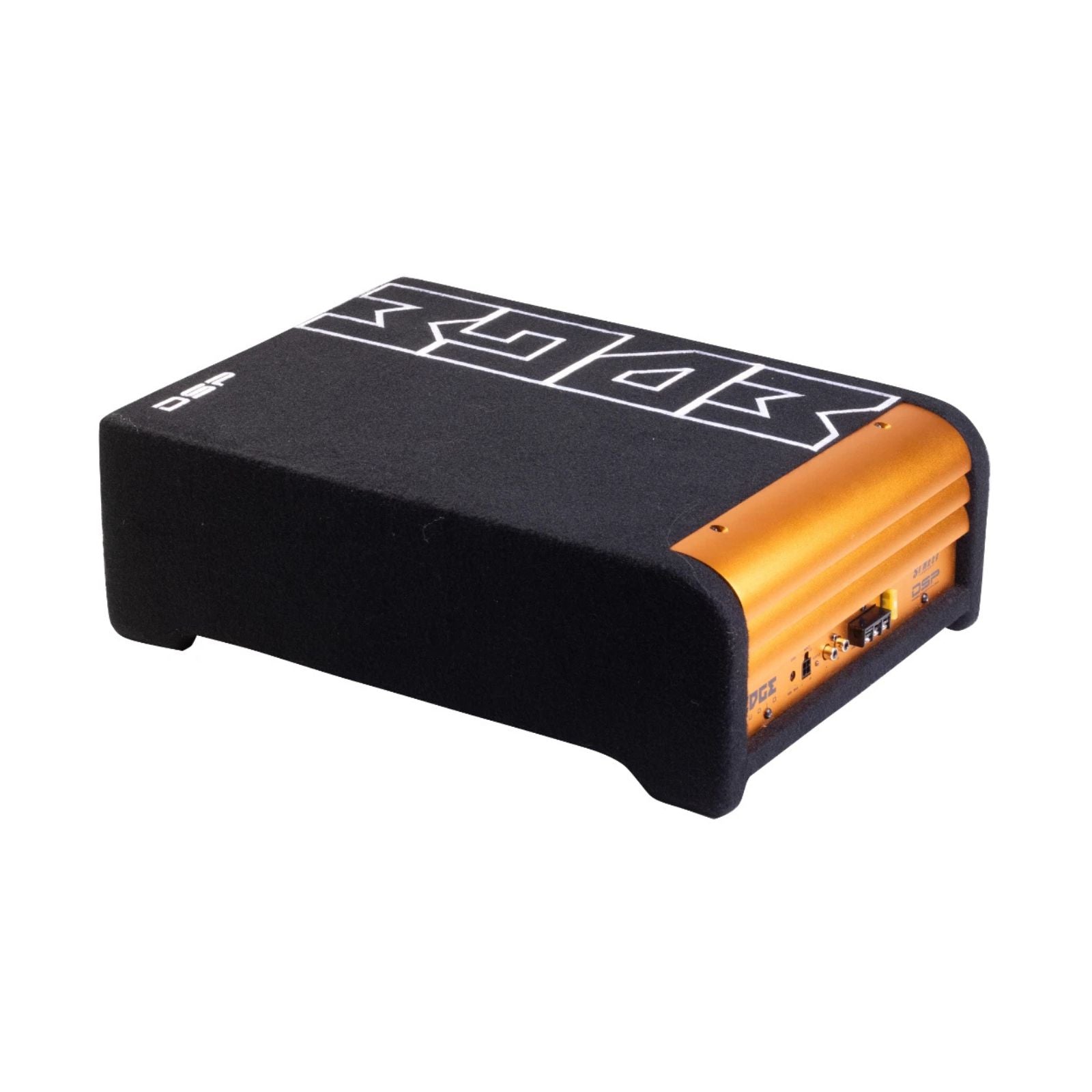

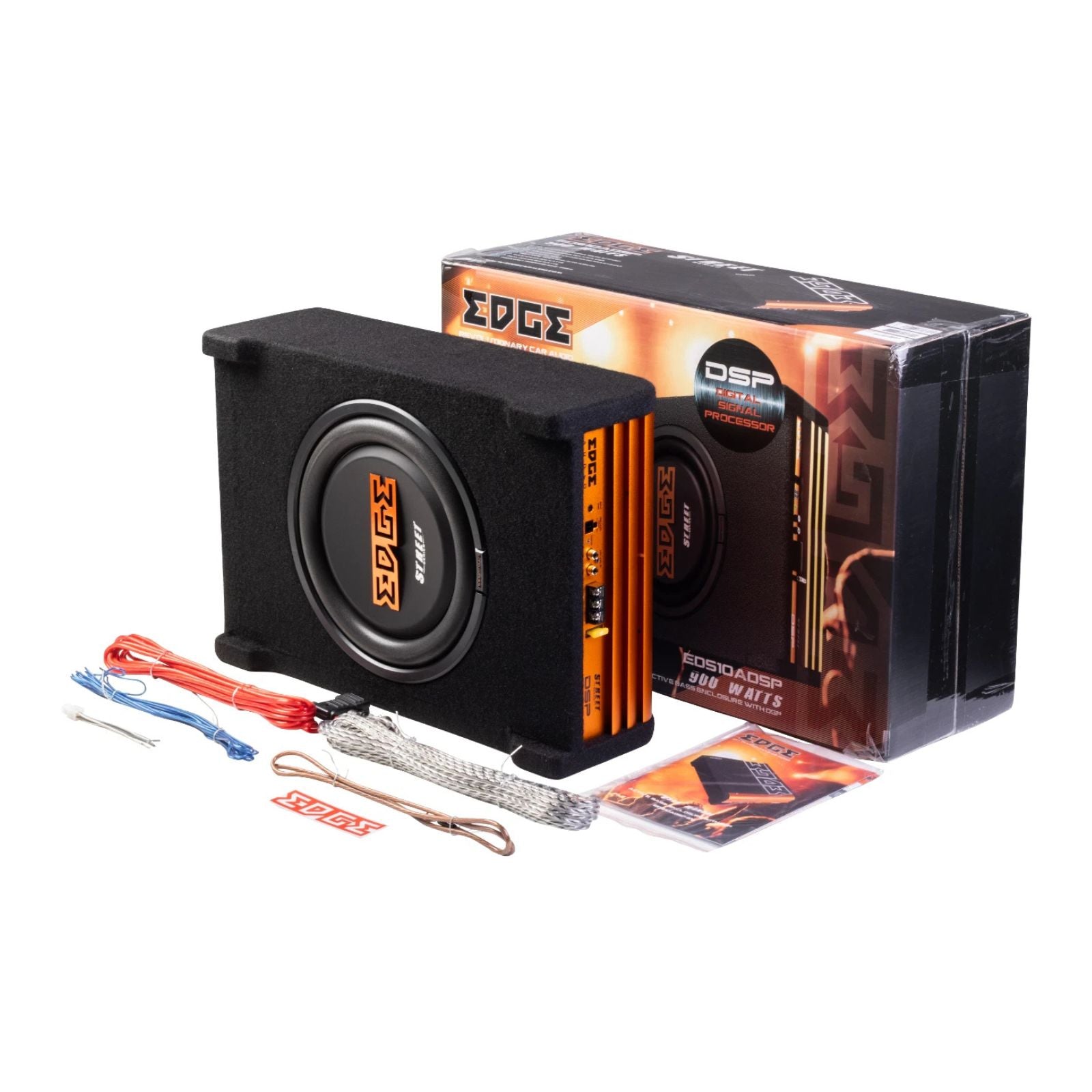

Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS

The Edge Street Series EDS10ADSP-E4 is a compact active bass enclosure featuring a shallow 10-inch subwoofer and a built-in 300W RMS Class D monoblock amplifier with DSP, controlled via a smartphone app. It belongs to Edge's Street Series range and is designed for installations where boot space is limited.

This listing is the 10-inch model. The Edge Street Series active bass enclosure is also available as the Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure with DSP at 400W RMS.

Key specifications

• Driver: shallow 10-inch EDS10D2S
• Power: 300W RMS, 900W peak
• Amplifier: Class D monoblock with DSP
• Inputs: low level and high level, auto turn-on
• Frequency response: 30Hz to 250Hz
• Impedance: 2.2 ohms
• Enclosure: MDF, 2nd order acoustic suspension
• Dimensions (H x W x D): 144 x 320 x 457mm

EDGE Street Series compact 10-inch active bass enclosure with DSP, 900W peak

The Street Series EDS10ADSP-E4 is built to deliver powerful bass in a small footprint. Its shallow 10-inch subwoofer is designed for precise, deep and accurate sound reproduction without demanding excessive boot space.

The Class D amplifier includes a DSP front end giving full control over 4-band parametric EQ, subsonic filter, low pass filter, phase and time delay via the smartphone app — all adjustable from the driver's seat.

Technology: DSP is integrated directly into the active enclosure and controlled through an in-house developed smartphone app.

Design: solid MDF construction with a carefully calculated internal air volume for optimal output in a compact form factor.

Features: the app and DSP provide full control of EQ, phasing, Q factors and slopes for precise bass tuning.

Performance: the built-in amplifier paired with DSP gives this compact enclosure high performance suited to demanding users.

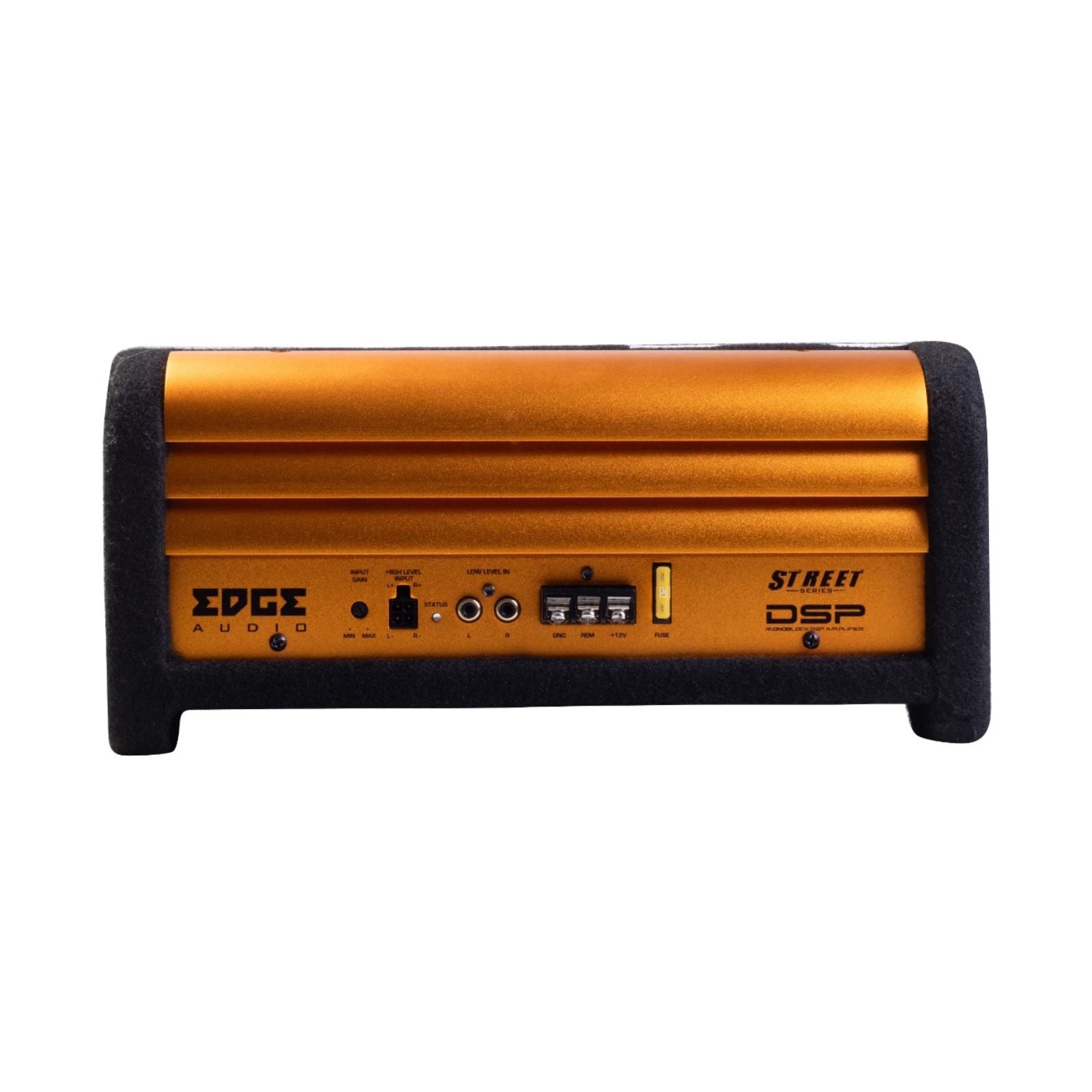

Enclosure features

• 900W peak
• 300W RMS
• Class D monoblock power amplifier with DSP
• Auto turn-on circuit
• Low level input
• High level input

Smartphone app features

• Master volume control
• 4 x user definable presets
• 4-band parametric equaliser
• Bandpass crossover with variable slope
• Phase adjustment
