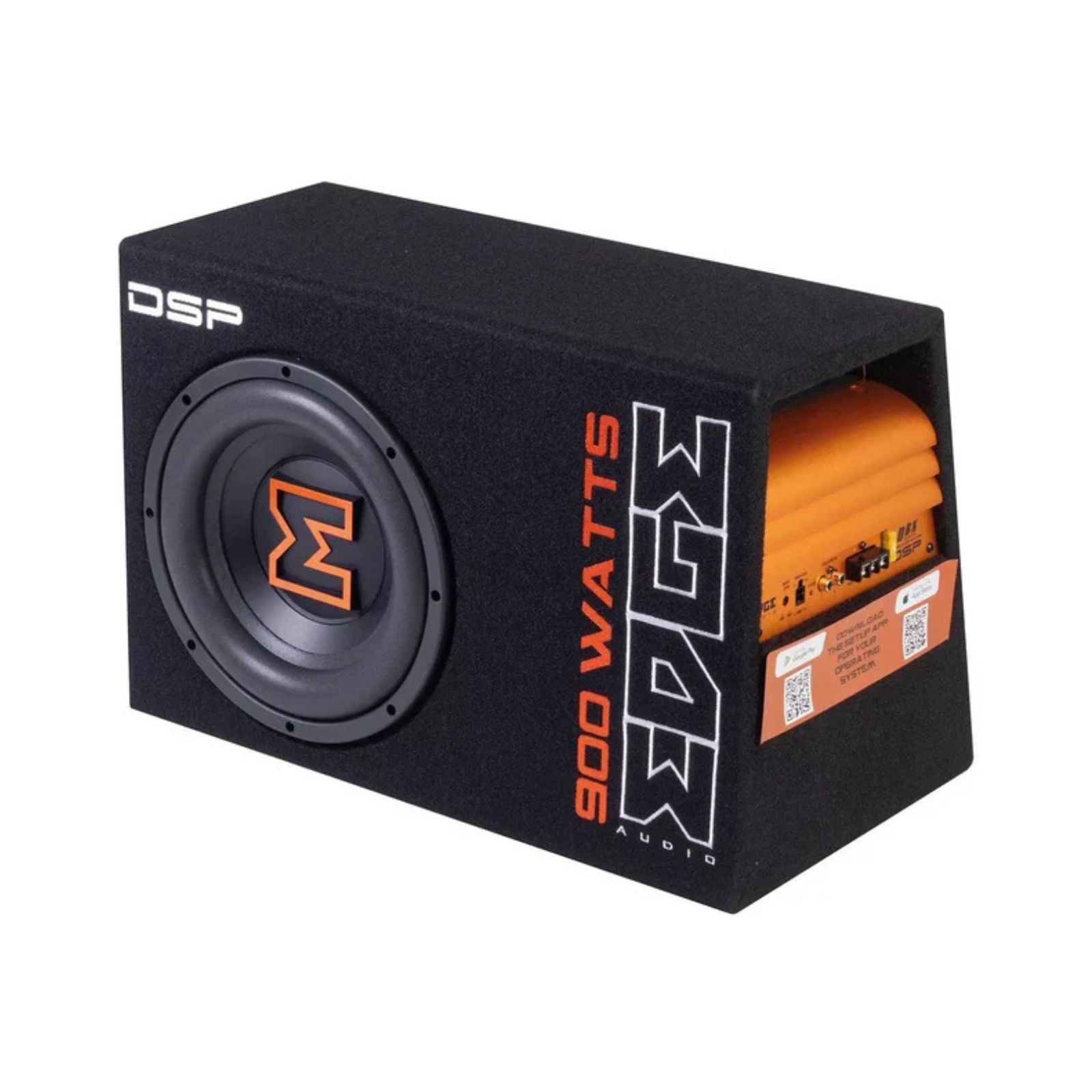

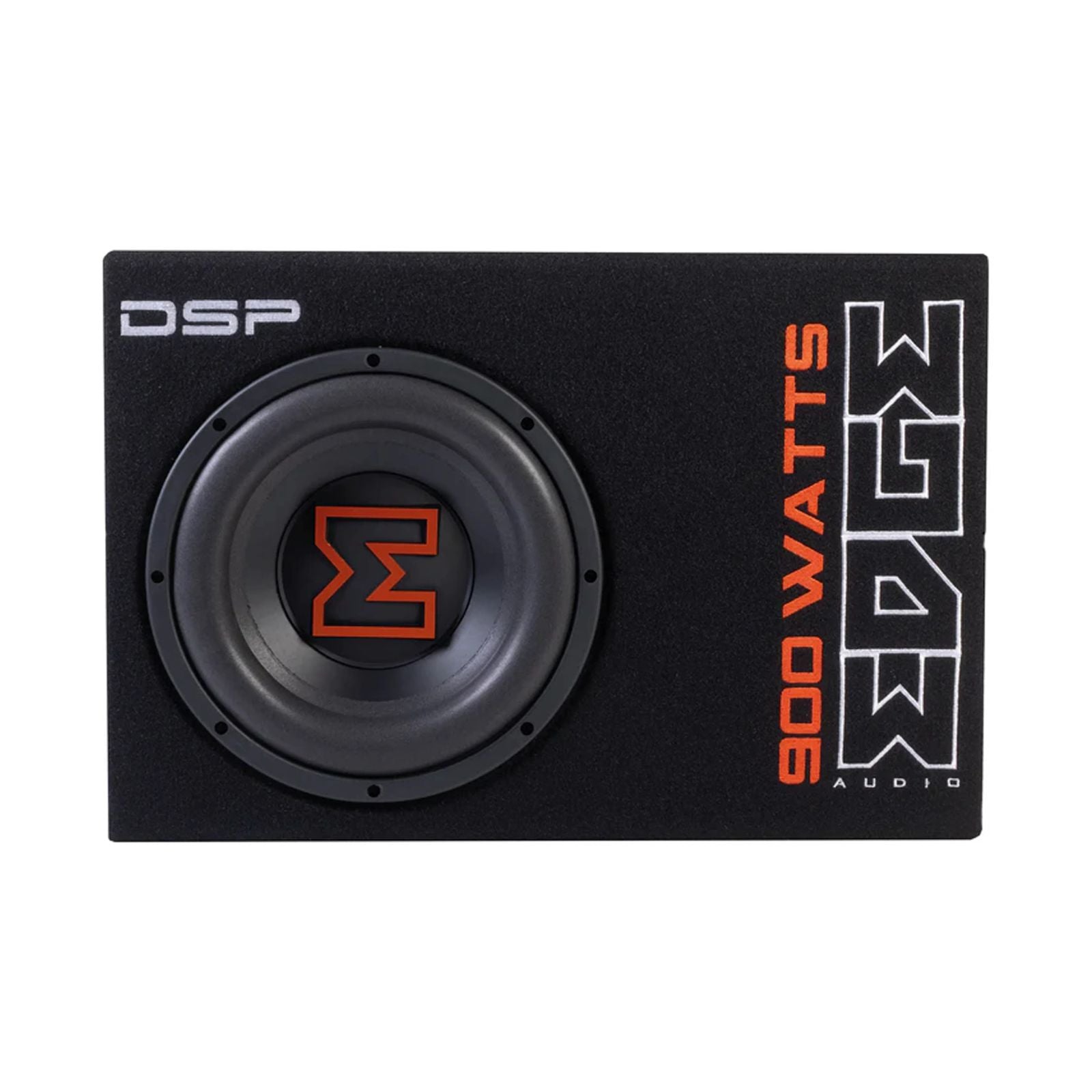

Edge DBX Series EDBX10ADSP-E3 10 Inch Active Bass Enclosure DSP 300w RMS
Couldn't Load Pickup availability
The Edge DBX Series EDBX10ADSP-E3 is a 10 inch active bass enclosure with a built-in Class D monoblock amplifier and DSP, rated at 300W RMS (900W peak). It is part of Edge's DBX Series of powered subwoofer enclosures.
This listing is the 10 inch. The DBX Series active DSP range is also available as the EDBX12ADSP-E3 12 inch and the EDBX12TADSP-E3 twin 12 inch.
Key specifications
- Driver: EDBX10
- Enclosure: MDF slot ported (bass reflex)
- RMS power: 300W
- Peak power: 900W
- Frequency response: 30Hz – 250Hz
- Amplifier: Class D monoblock with DSP
- Inputs: high and low level
EDBX10ADSP-E3 active bass enclosure with DSP

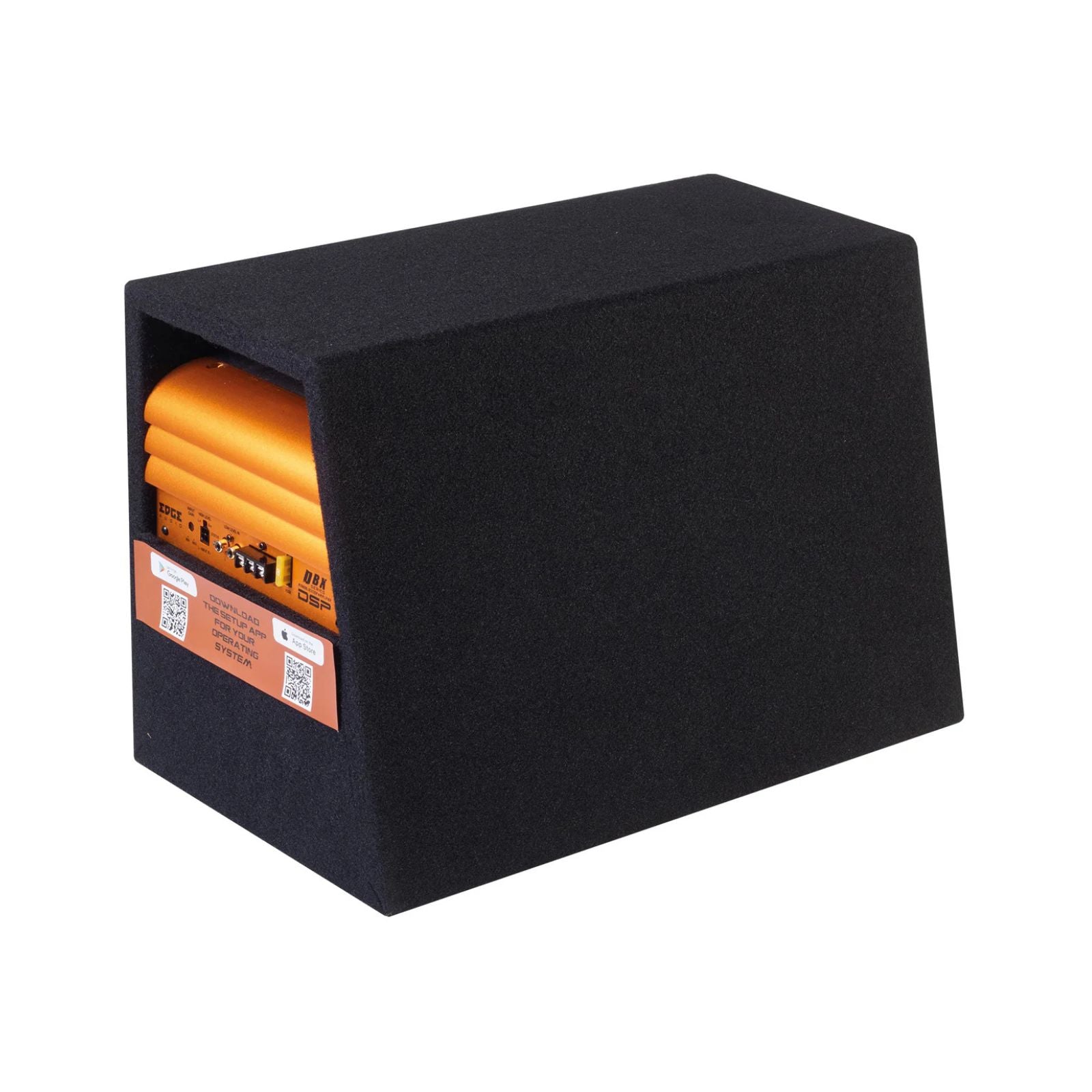

The DBX Series brings a high level of technology to this price point. The MDF slot ported enclosure features a custom-tooled amplifier heatsink designed to smooth airflow, reducing turbulence and port noise.

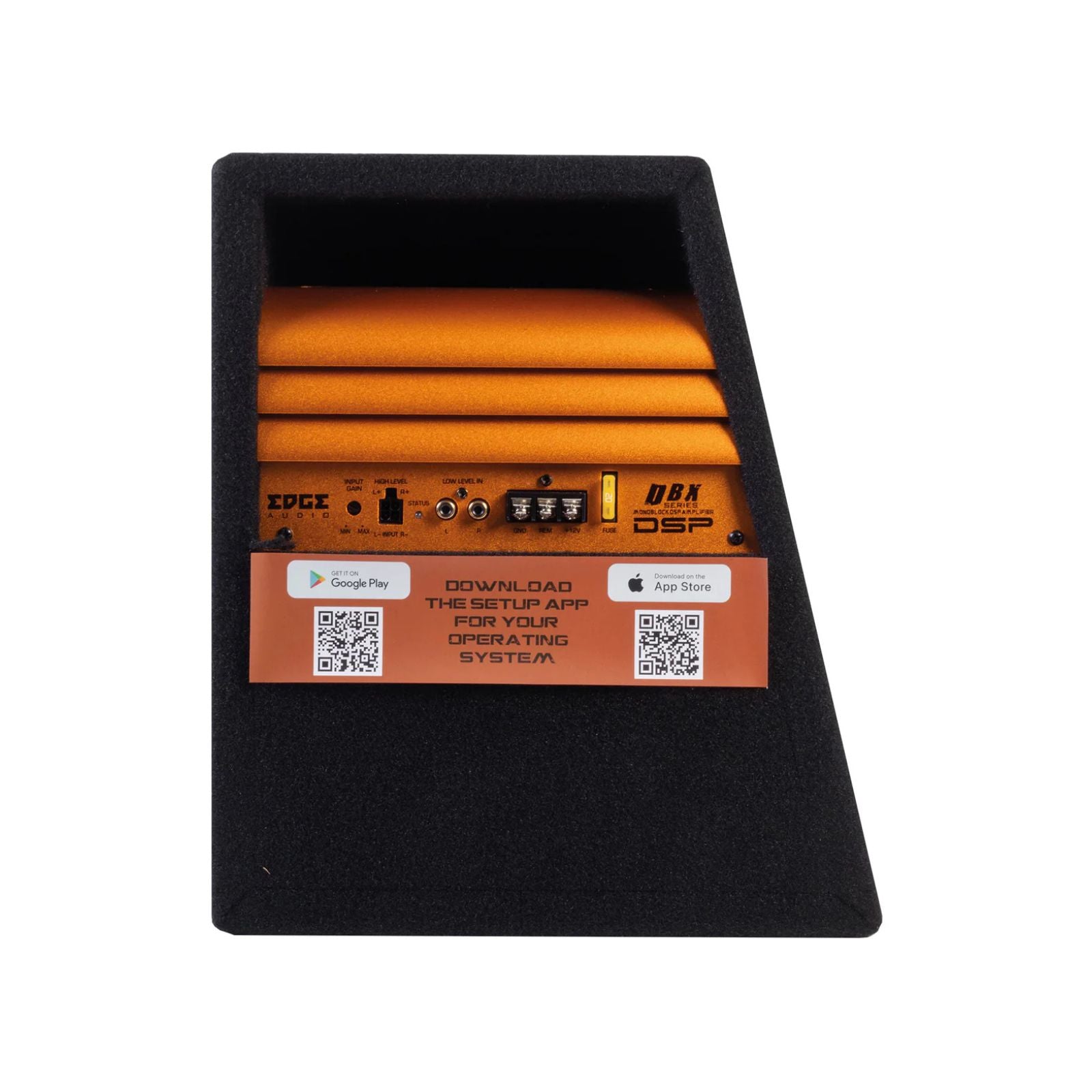

The Class D amplifier's DSP front end gives full control over an 8-band parametric EQ, subsonic filter, low pass filter, phase and time delay — all adjustable via a smartphone app from the driver's seat.
If you want a more compact option, Edge also offers the Street Series EDS10ADSP-E4 10 inch active enclosure at the same 300W RMS rating.
Features
- Class D monoblock power amplifier with DSP
- Auto turn-on circuit
- Low level input
- High level input
- Slot ported MDF enclosure
- Setup via smartphone app
- Remote bass level control
- Phase, LPF, subsonic, time delay and 8-band parametric EQ control
Explore the full range in Edge DBX Series.
Specification
| Driver | EDBX10 |
|---|---|
| Type | Slot ported enclosure |
| RMS Power | 300 watts |
| Peak Power | 900 watts |
| Impedance | 4 Ohms |
| Frequency Response | 30Hz - 250Hz |
| Configuration | Bass reflex |
| Dimensions | (H x W X D) 335mm x 500mm x 288mm (13.2" x 19.7" x 11.3") |
What's Included
- EDBX10ADSP-E3
Edge
About the Edge EDBX10ADSP-E3
From our tech experts at CEN
The Edge DBX Series EDBX10ADSP-E3 is a 10 inch active bass enclosure with a built-in Class D monoblock amplifier and DSP, rated at 300W RMS (900W peak). The MDF slot-ported cabinet covers 30Hz to 250Hz and measures 335mm x 500mm x 288mm. An 8-band parametric EQ, subsonic filter, low-pass filter, phase and time delay are all adjusted via a smartphone app.
Who it suits
This suits drivers who want tuneable, app-controlled bass without a separate amplifier or processor. The onboard DSP makes precise fine-tuning straightforward from the driver's seat. For a shallower fit in tighter boots, the Edge EDBX10A-E0 DBX Series Shallow Active Bass Enclosure is worth considering.
Our tech experts advise
Check your boot dimensions against the 335mm x 500mm x 288mm cabinet before ordering. Both high and low level inputs are included, so it works with factory and aftermarket head units. The auto turn-on circuit removes the need for a remote wire when using the high level input. Installation is priced per vehicle — see our Nottingham fitting page for details.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DBX Series
More options from the same range, in stock and ready to go
Best SellerEdge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS
£199.99
View product
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBX200.4-E1 Amp Class AB 4 Channel Amplifier 800w RMS
£199.99
Edge DBX Series EDBXPRO6W-E0 Pro Audio Midrange Speakers 6 Inch 150w RMS Pair
£59.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: How is the EDBX10ADSP-E3 tuned?
A: Through a smartphone app, which gives control over the 8 band parametric EQ, subsonic filter, low pass filter, phase and time delay. A remote bass level control is also listed in the features.
