Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
Couldn't Load Pickup availability

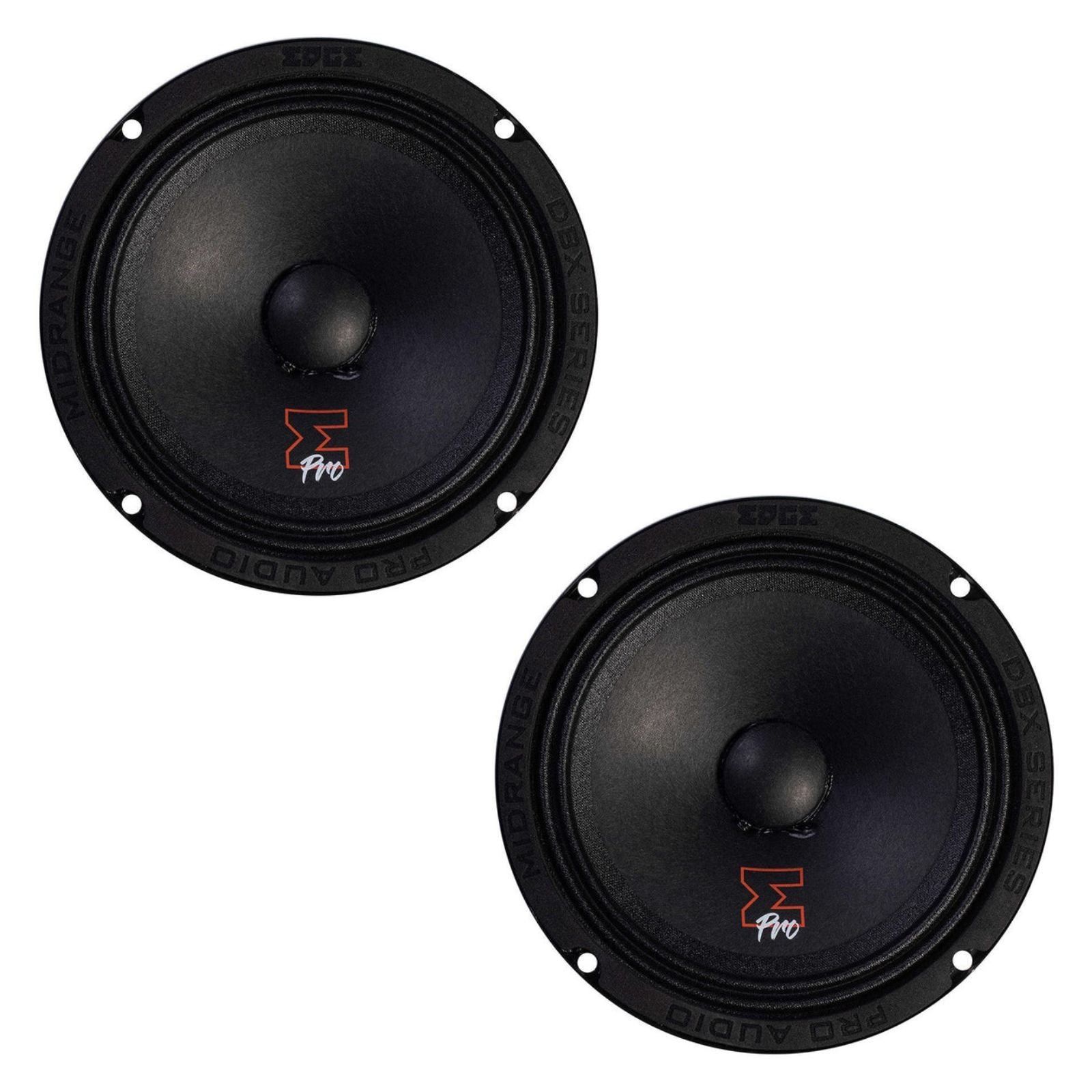

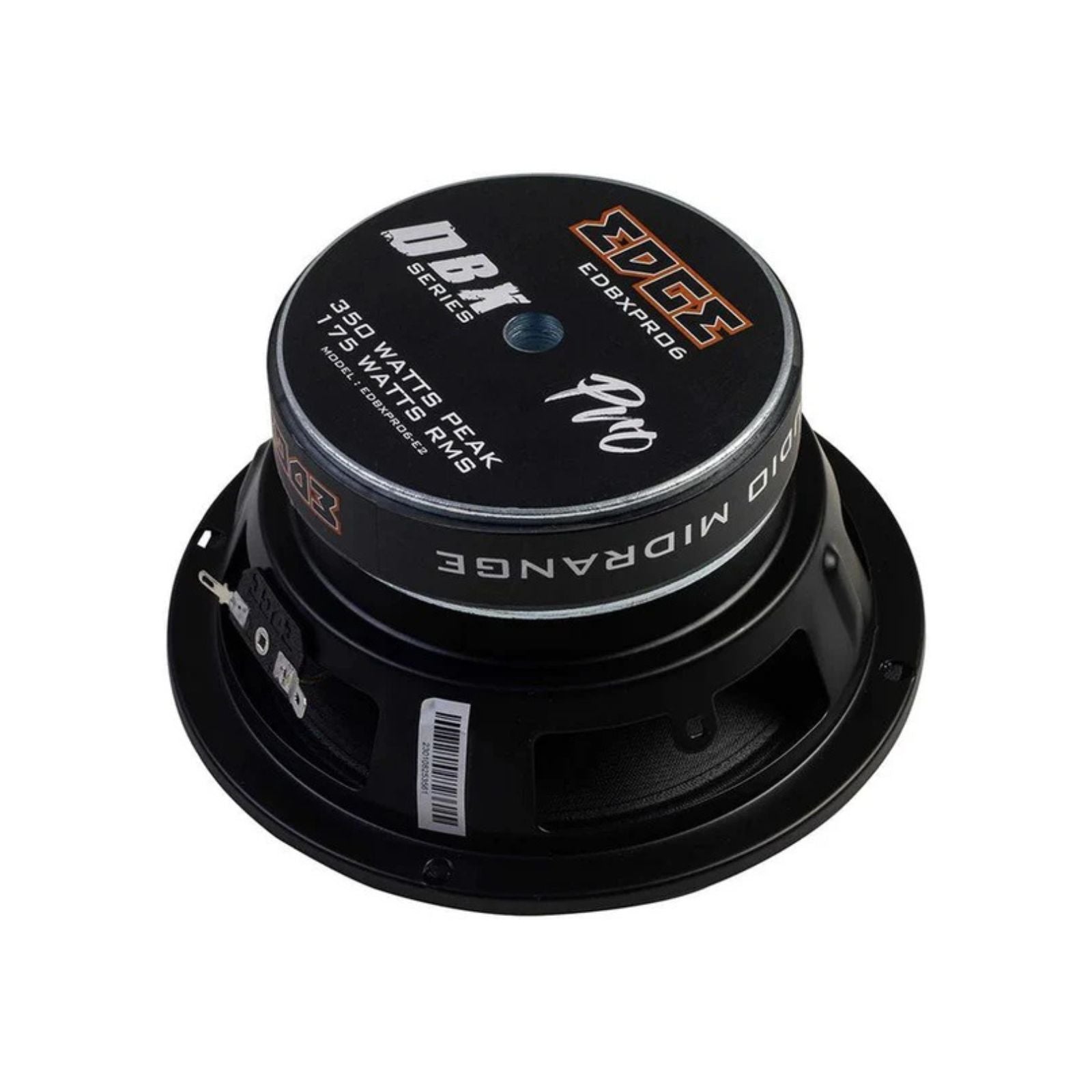

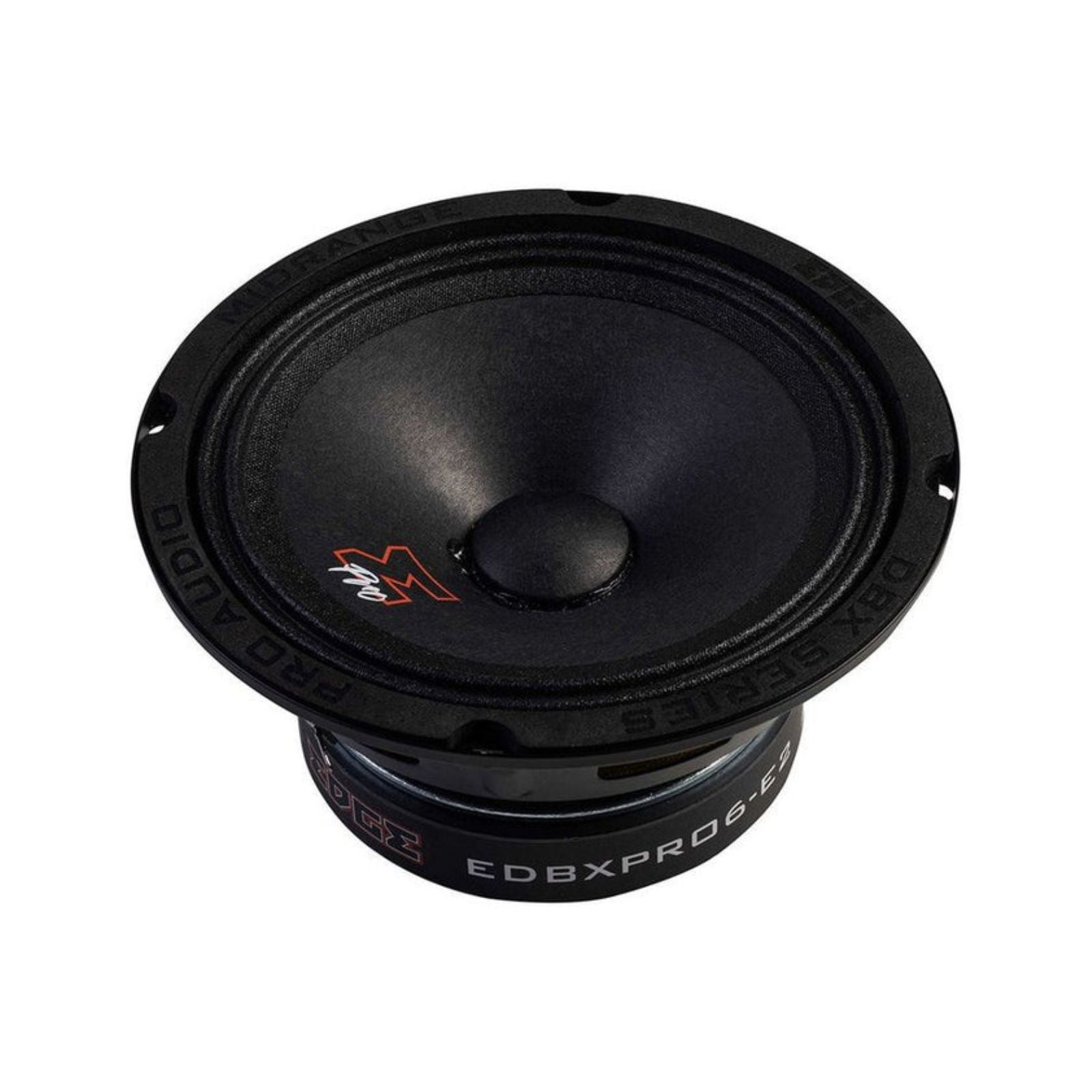

The Edge EDBXPRO6-E2 is a pair of 6.5 inch (165mm) pro audio midrange speakers rated at 175W RMS (350W peak) each, with 95dB sensitivity. They are part of the Edge DBX Series, designed for high-volume car audio builds.
This listing is the 6.5 inch model. The Edge DBX Pro Audio Midrange range is also available as an 8 inch version (EDBPRO8-E3, 175W RMS).
Key specifications
- Model: EDBXPRO6-E2
- Type: 1 way pro audio midrange
- Size: 6.5" (165mm)
- Power: 175W RMS / 350W peak
- Sensitivity: 95dB
- Frequency response: 160Hz – 10kHz
- Impedance: 4 ohms
- Mounting depth: 78mm, mounting diameter: 145mm
- Sold as: pair
Edge DBX Series pro audio midrange speakers
The DBX Series Pro range includes 6.5 inch, 8 inch and 6x9 inch models, all built for high-volume sound reproduction. Built on lessons learned from the DB Series, the DBX Series brings engineering improvements including larger magnets, redeveloped voice coils, precision-designed spiders and updated cones for louder, more efficient output.
The 6.5 inch model features a full-range design, meaning it can be used without a tweeter. For best results, Edge recommends pairing it with DBX Series tweeters and the EDBX350.2-E1 amplifier.
Features
- Non-pressed paper cone
- Dual roll foam surround
- Polycotton spiders
- Spade terminals
- EVA gasket
Explore the full range in Edge DBX Series.
Specification
| Configuration | 1 way |
|---|---|
| Speaker Size | 6.5" (165mm) |
| RMS Power | 175 watts |
| Peak Power | 350 watts |
| Sensitivity | 95dB |
| Frequency Response | 160Hz - 10kHz |
| Impedance | 4 Ohms |
| Recommended Amplifier | EDBX350.2-E1 |
| Mounting Depth | 3.1" (78mm) |
| Mounting Diameter | 5.7" (145mm) |
What's Included
- EDBXPRO6-E2
Edge
About the Edge EDBXPRO6-E2
From our tech experts at CEN
Edge pro audio midrange drivers, 6.5 inch, handling 175w RMS, built for efficiency and output rather than background listening.
Who it suits
Loud builds and show cars, where efficiency is what makes a system go loud without enormous amplifier power.
Our tech experts advise
Pro drivers usually need baffle or pod mounting and a crossover set well clear of their limits; they are not a straight door swap. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DBX Series
More options from the same range, in stock and ready to go
Edge EDBX10A-E0 DBX Series Shallow Active Bass Enclosure 180w RMS
RRP £159.99Save 6%£149.00
Edge DBX Series EDBX2200.1D-E4 Amp Class D 1 Channel Mono Amplifier 2200w RMS
RRP £249.99Save 4%£239.99
Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS
£199.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBX200.4-E1 Amp Class AB 4 Channel Amplifier 800w RMS
£199.99
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: What amplifier does Edge recommend for the EDBXPRO6-E2?
A: Edge recommends the EDBX350.2-E1 amplifier. Each speaker is rated at 175W RMS (350W peak) at 4 ohms, so choose an amplifier channel that delivers around that RMS figure.
Q: What frequency range does the EDBXPRO6-E2 cover?
A: It covers 160Hz to 10kHz, so it is designed as a pro audio midrange. For full range sound it is best paired with a tweeter such as one from the DBX Series and a subwoofer or midbass for the low end.
Q: What is the mounting depth of the EDBXPRO6-E2?
A: The mounting depth is 3.1 inches (78mm) and the mounting diameter is 5.7 inches (145mm).
