Edge DBX Series EDBX12ADSP-E3 12 Inch Active Bass Enclosure DSP 400w RMS
Couldn't Load Pickup availability
The Edge EDBX12ADSP-E3 is a 12 inch active bass enclosure from the Edge DBX Series, fitted with a built-in Class D monoblock amplifier and DSP, rated at 400W RMS (1200W peak).
This listing is the 12 inch single. The DBX Series active DSP range is also available in the 10 inch (EDBX10ADSP-E3) and the twin 12 inch (EDBX12TADSP-E3).
Key specifications
- Driver: EDBX12
- Enclosure: MDF slot ported (bass reflex)
- RMS power: 400W
- Peak power: 1200W
- Frequency response: 25Hz – 250Hz
- Amplifier: Class D monoblock with DSP
- Inputs: high and low level
- Dimensions (H x W x D): 375 x 500 x 298mm

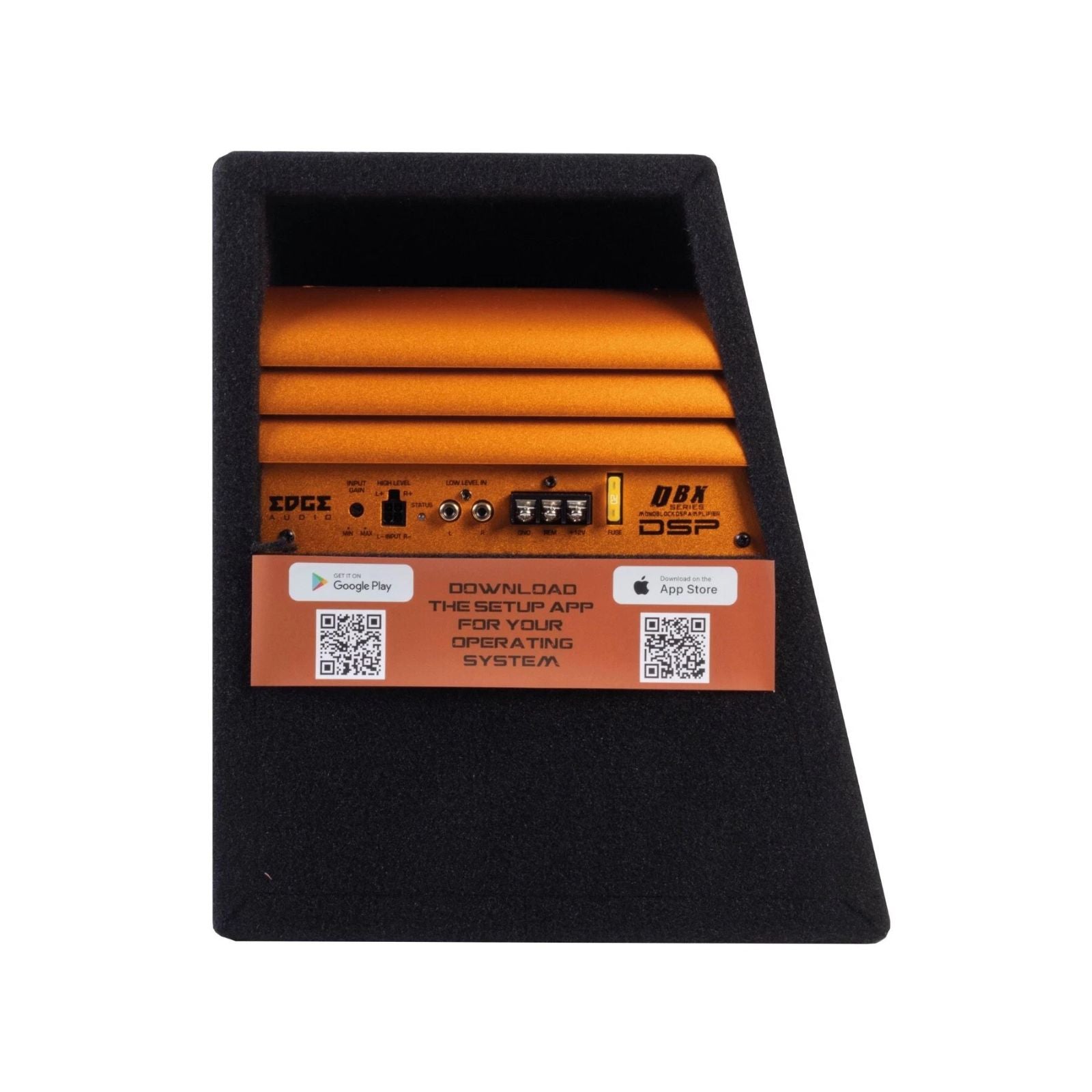

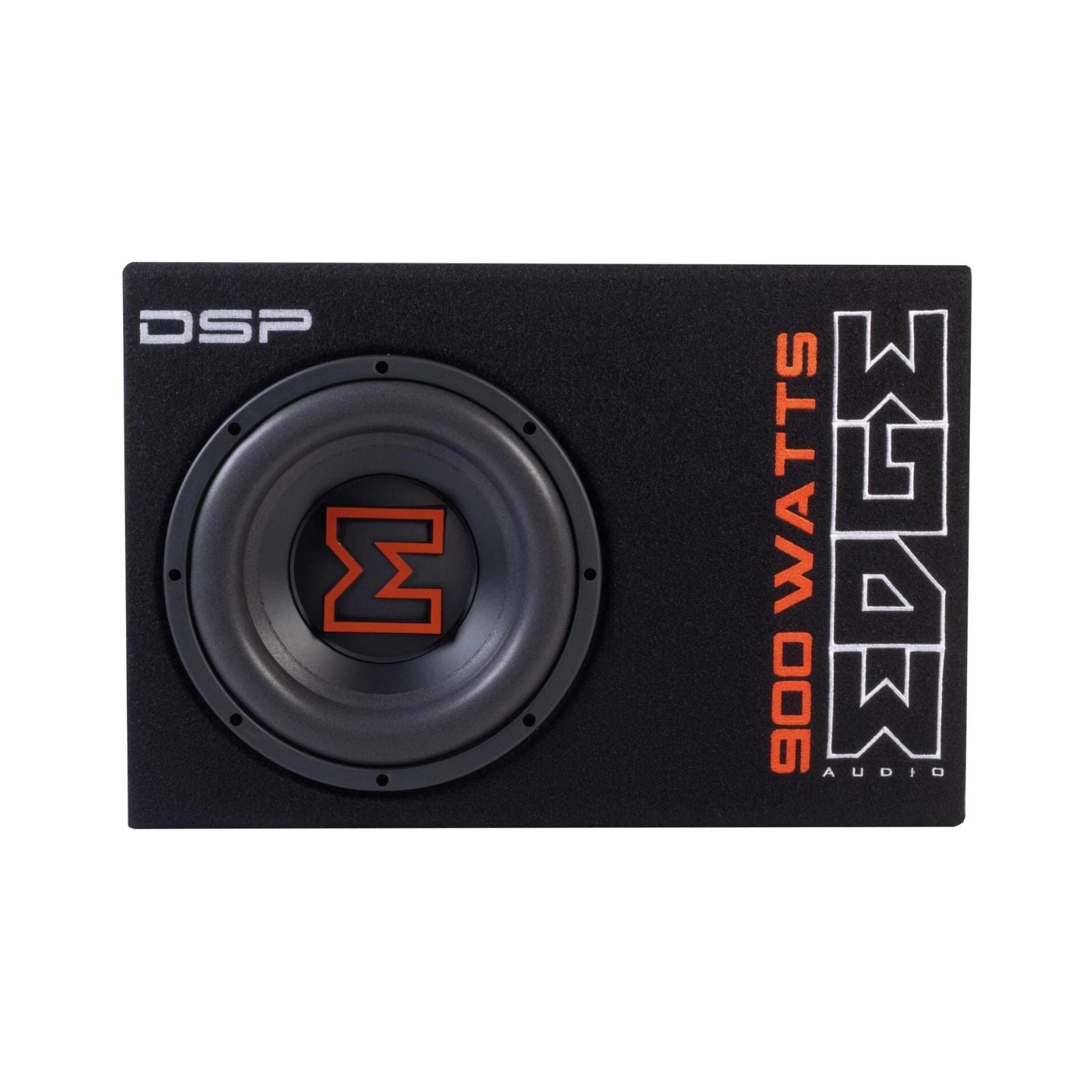

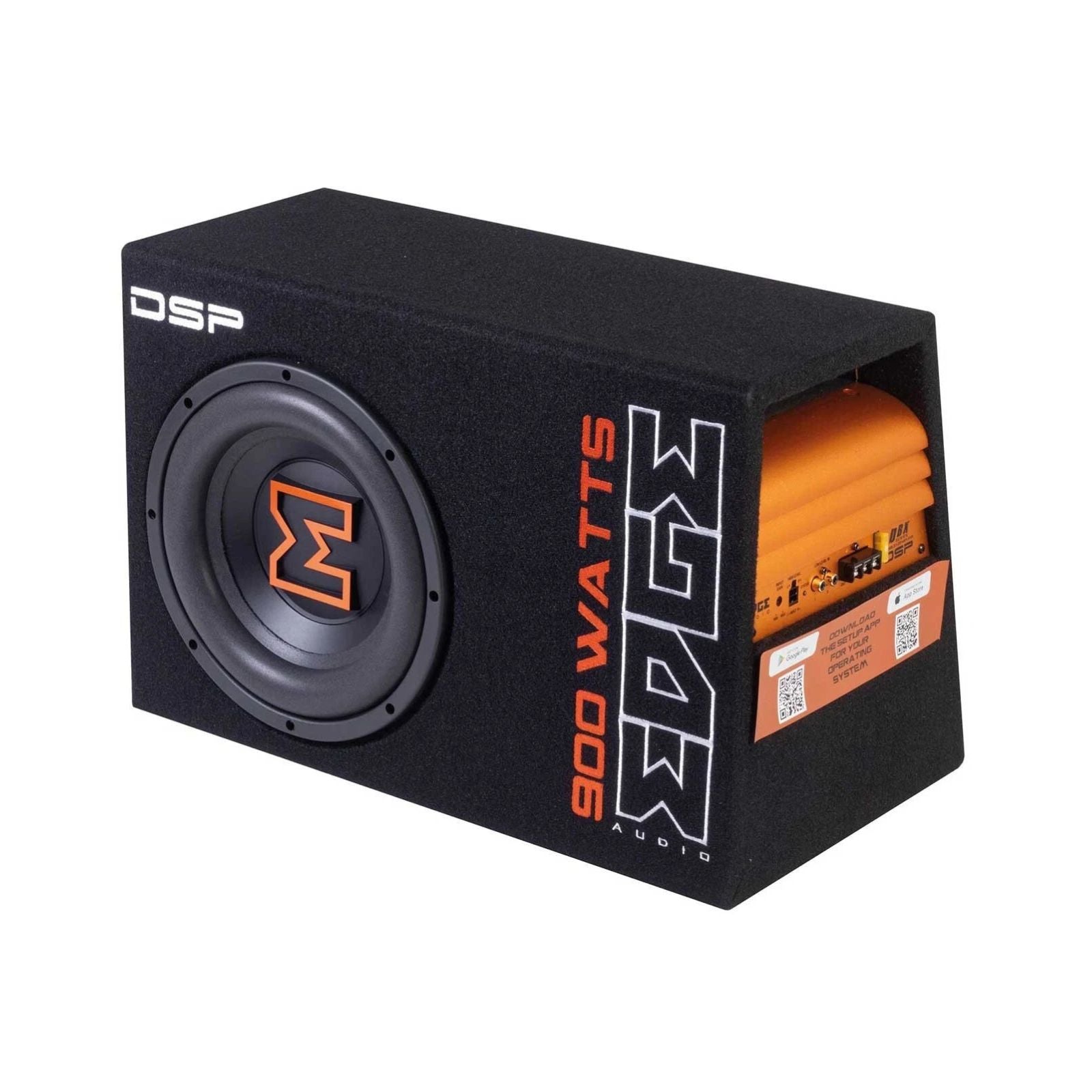

EDBX12ADSP-E3 active bass enclosure with DSP
The DBX Series brings a high level of technology to its price point. The MDF slot ported enclosure uses a custom-tooled amplifier heatsink shaped to smooth airflow, reducing turbulence and port noise.
The Class D amplifier's DSP front end gives full control over 8-band parametric EQ, subsonic filter, low pass filter, phase and time delay — all adjustable via a smartphone app from the driver's seat.
The DBX Series spans three models, from a compact 10 inch to a twin 12 inch, covering most vehicles and performance requirements.
Features
- Class D monoblock power amplifier with DSP
- Auto turn-on circuit
- Low level input
- High level input
- Slot ported enclosure
- Setup via smartphone app
- Remote bass level control
- Phase, LPF, subsonic, time delay and parametric EQ control
Explore the full range in Edge DBX Series.
Specification
| Driver | EDBX12 |
|---|---|
| Type | Slot ported enclosure |
| RMS Power | 400 watts |
| Peak Power | 1200 watts |
| Impedance | 4 Ohms |
| Frequency Response | 25Hz - 250Hz |
| Configuration | Bass reflex |
| Dimensions | (H x W X D) 375mm x 500mm x 298mm (14.8" x 19.7" x 11.7") |
What's Included
- EDBX12ADSP-E3
Edge
About the Edge EDBX12ADSP-E3
From our tech experts at CEN
An Edge 12 inch subwoofer in an active sealed bass box, with the amplifier built in, 400w RMS.
Who it suits
Drivers who want bass without building a system around it. An active box means one unit, one power feed and no separate amplifier to hide.
Our tech experts advise
It still needs a fused feed from the battery and a signal source. Secure the enclosure properly: an unrestrained box is dangerous in a crash. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge DBX Series
More options from the same range, in stock and ready to go

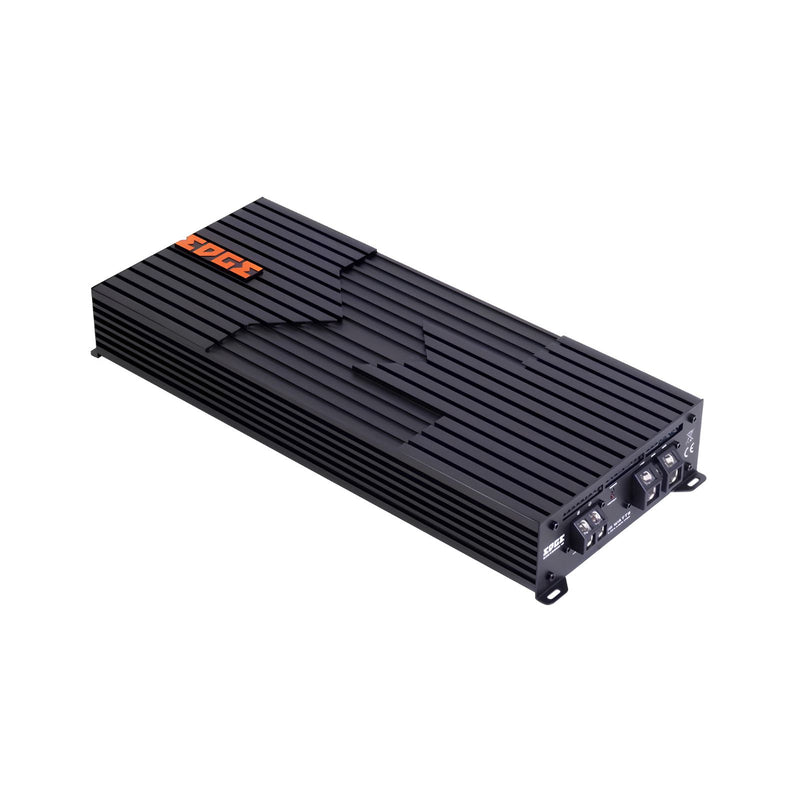

Edge DBX Series EDBX2200.1D-E4 Amp Class D 1 Channel Mono Amplifier 2200w RMS
RRP £249.99Save 4%£239.99

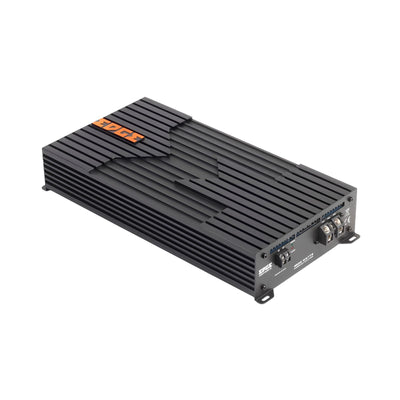

Edge DBX Series EDBX1800.1D-E4 Amp Class D 1 Channel Mono Amplifier 1800w RMS
£199.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99

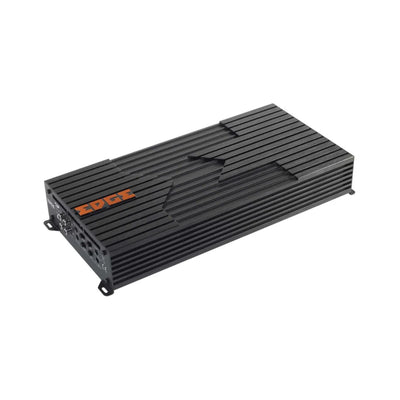

Edge DBX Series EDBX200.4-E1 Amp Class AB 4 Channel Amplifier 800w RMS
£199.99
Edge DBX Series EDBXPRO6W-E0 Pro Audio Midrange Speakers 6 Inch 150w RMS Pair
£59.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: How is the EDBX12ADSP-E3 tuned?
A: Through a smartphone app, which gives control over the 8 band parametric EQ, subsonic filter, low pass filter, phase and time delay. A remote bass level control is also listed in the features.
Q: How big is the EDBX12ADSP-E3?
A: It measures 375 x 500 x 298mm (H x W x D). Check this against your boot space before ordering.
