Edge DB Series EDBPRO36T-E1 Pro Audio Tweeters 3.8 Inch 80w RMS Pair

£39.99 Out of stock
Out of Stock
SKU: 92661MPN: EDBPRO36T-E1
Part of the range · 17 productsPart of the Edge DB Series · 17 products See the range →

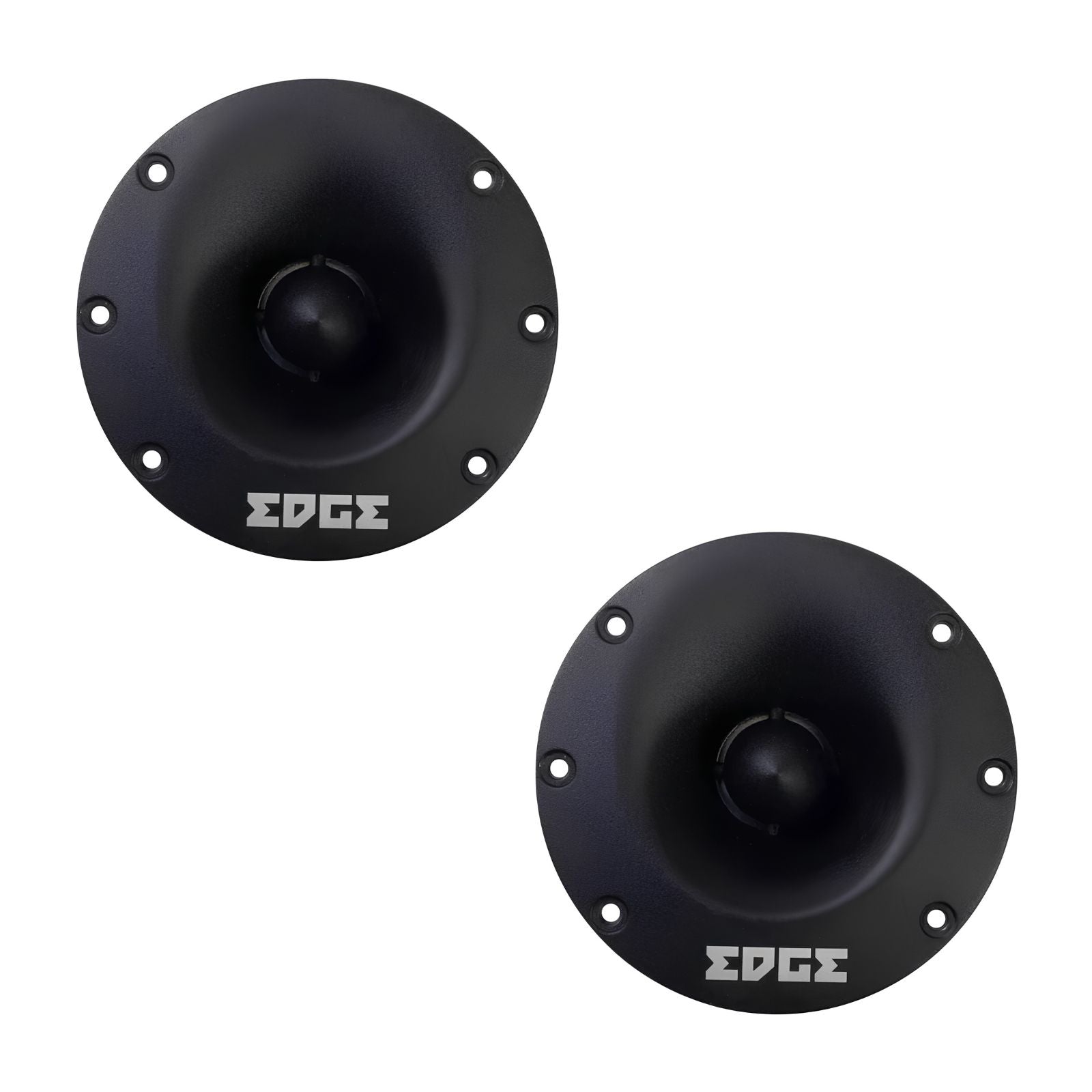

The Edge EDBPRO36T-E1 is a pair of 98mm pro audio bullet tweeters rated at 80W RMS each, from the Edge DB Series.

This listing is the 98mm EDBPRO36T-E1. The DB Series Pro Audio Tweeter range is also available as the EDBPRO37T-E0 3.7 inch 75W RMS pair.

Key specifications

  • Size: 98mm
  • RMS power: 80W
  • Peak power: 160W
  • Sensitivity: 103dB
  • Frequency response: 2kHz – 20kHz
  • Impedance: 4 ohms
  • Mounting depth: 36mm
  • Mounting diameter: 80mm
  • Sold as: pair

EDBPRO36T-E1 pro audio bullet tweeters

The DB Series is Edge's first range of pro audio tweeters, using a bullet tweeter design for high frequencies at high volume.

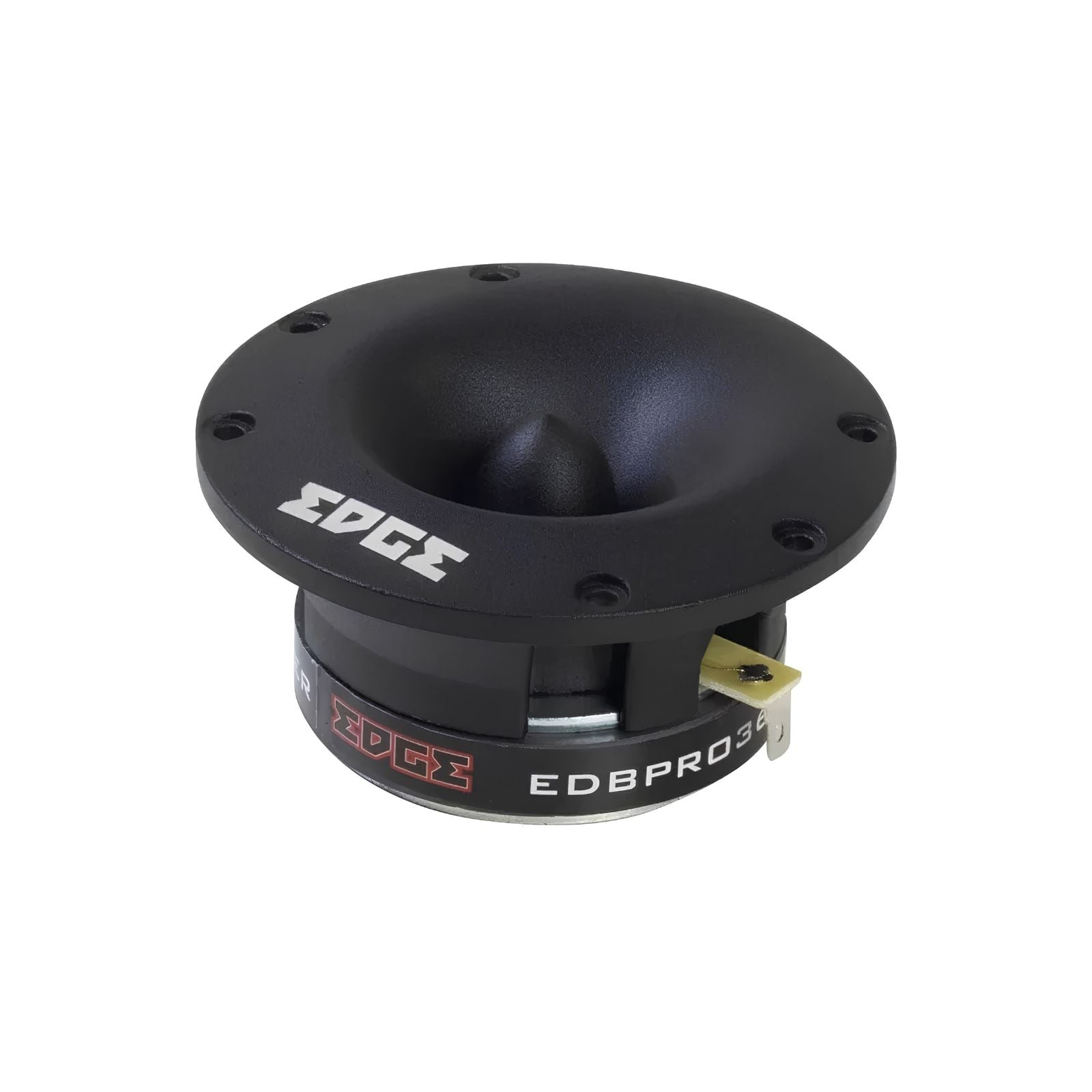

The EDBPRO36T-E1 uses a ferrite magnet driver with an aluminium diaphragm. Its asymmetrical horn design produces a less linear polar dispersion with high efficiency — positioning affects where output is focused. The cast aluminium housing adds rigidity and minimises resonance.

Engineered to match the Edge DB Series pro audio speakers, the EDBPRO36T-E1 delivers a full-range, high-volume pro audio sound when paired with compatible drivers.

Explore the full range in Edge DB Series.

Specification
Configuration1 way
Speaker Size3.8" (98mm)
RMS Power80 watts
Peak Power160 watts
Frequency Response2kHz - 20kHz
Sensitivity103dB
Impedance4 Ohms
Mounting Depth1.5" (36mm)
More specs
  • Mounting Diameter 3.1" (80mm)
What's Included
  • EDBPRO36T-E1
Product information

Edge

About the Edge EDBPRO36T-E1

From our tech experts at CEN

The Edge EDBPRO36T-E1 is a pair of pro audio bullet tweeters from the DB Series, rated at 80w RMS and 4 ohm each, with 103 dB sensitivity. The spec lists the size as 3.8 inch (98mm). They need an 80mm mounting hole and 36mm of depth.

Who it suits

Entry-level pro audio builds that want loud, clear treble alongside DB Series pro midranges such as the EDBPRO6-E3. The EDBPRO37T-E0 is the smaller DB Series option at 75w RMS with a 73mm mounting diameter.

Our tech experts advise

Pro audio tweeters must be high-passed so they never see bass, either by the amplifier's crossover or a suitable passive filter. Their efficiency means they will easily outrun normal door speakers, so balance levels on the amplifier. Mount them high in the door, A-pillar or a pod. Installation is priced per vehicle, so get in touch.

Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair
Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair £19.99
Low stock
Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair
Edge DB Series EDBPRO37T-E0 Pro Audio Tweeters 3.7 Inch 75w RMS Pair £39.99
In stock
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS £149.99
Low stock
Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS
Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS £84.99
In stock
Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair
Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair £64.99
In stock
Edge DB Series EDBPRO10-E3 Pro Audio Midrange Speakers 10 Inch 200w RMS Single Speaker
Edge DB Series EDBPRO10-E3 Pro Audio Midrange Speakers 10 Inch 200w RMS Single Speaker £49.99
Low stock
Edge EDB12TA 12 Inch Active Bass Twin Sub Subwoofer Ported Enclosure 600w RMS
Edge EDB12TA 12 Inch Active Bass Twin Sub Subwoofer Ported Enclosure 600w RMS £299.99
Low stock
Edge DB Series EDB80.2LITE-E2 Amp Class AB 2 Channel Amplifier 160w RMS
Edge DB Series EDB80.2LITE-E2 Amp Class AB 2 Channel Amplifier 160w RMS £99.99
Low stock
Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 - CEN
Staff Pick Edge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3 £179.00
In stock
Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS
Save 33% Best Seller Edge Street Series EDS10ADSP-E4 10 Inch Compact Active Bass Enclosure 300w RMS RRP £299.99 £199.99 Save 33%
In stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Edge DB Series

More options from the same range, in stock and ready to go

View all Edge DB Series ›
Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS

Edge DB Series EDB1000.1D-E4 Amp Class D 1 Channel Monoblock Amplifier 1000w RMS

£149.99

View product
Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS

Edge 10 Inch Active Bass Box Sub Subwoofer Ported Enclosure EDB10A 250w RMS

RRP £149.00Save 6%£139.00

 Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS

Edge DB Series EDB500.1-E9 Amp Class D 1 Channel Monoblock Amplifier 500w RMS

£84.99

 Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair

Edge DB Series EDB1TN-E1 Component Dome Tweeters 1.8 Inch 25w RMS Pair

£19.99

 Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair

Edge DB Series EDBPRO8-E3 Pro Audio Midrange Speakers 8 Inch 175w RMS Pair

£64.99

Frequently Asked Questions

Q: What is the frequency range of the EDBPRO36T-E1?

A: 2kHz to 20kHz. They are high frequency drivers and should be used with a suitable crossover or high pass filter alongside pro midrange speakers.

Q: How sensitive are the EDBPRO36T-E1 tweeters?

A: They are rated at 103dB, so they play very loud from modest amplifier power. Each tweeter handles 80W RMS and 160W peak at 4 ohms.

Q: Do the EDBPRO36T-E1 come as a pair?

A: Yes, the title lists them as a pair. Check the What's Included tab for exact contents.

Q: Can CEN fit these tweeters for me?

A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
