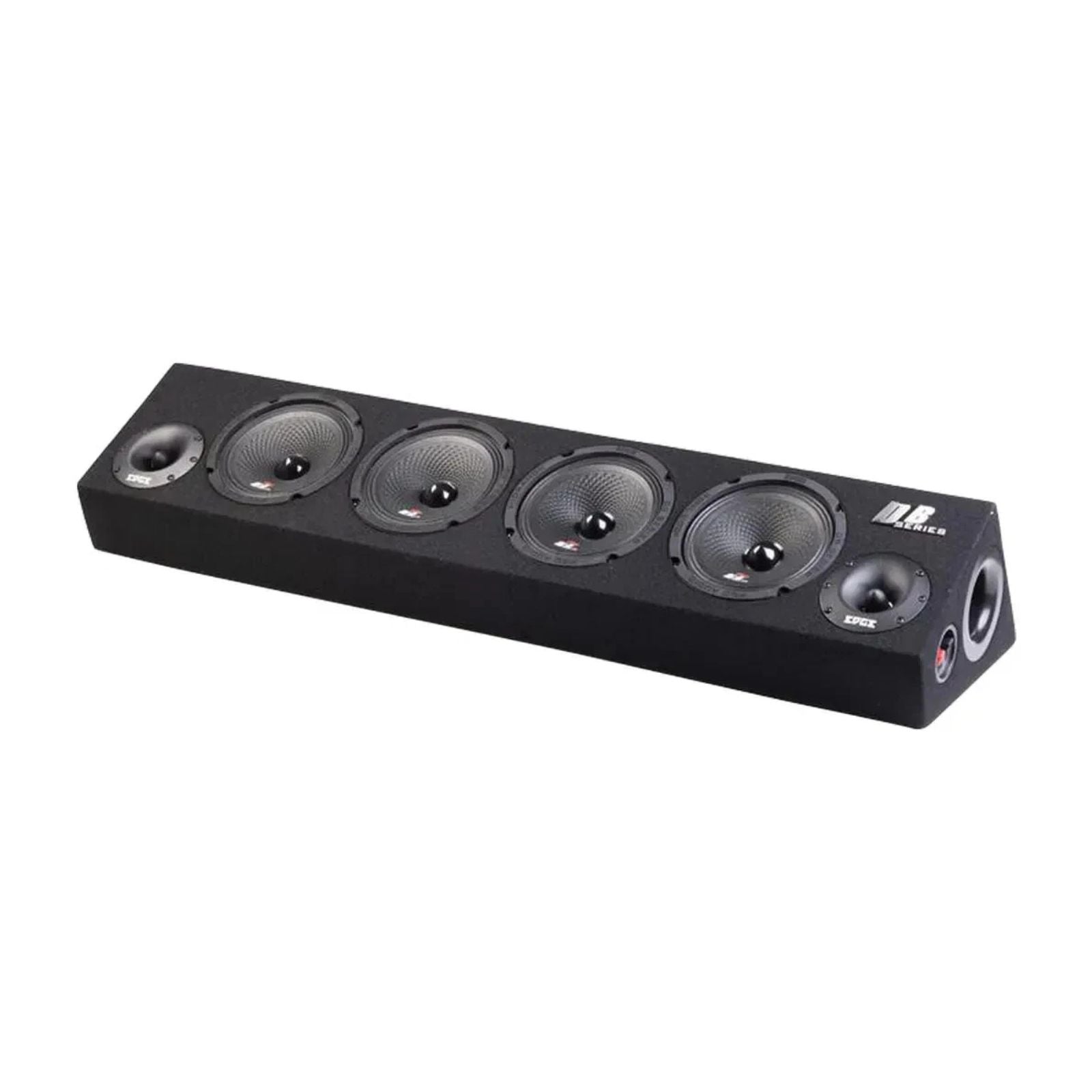

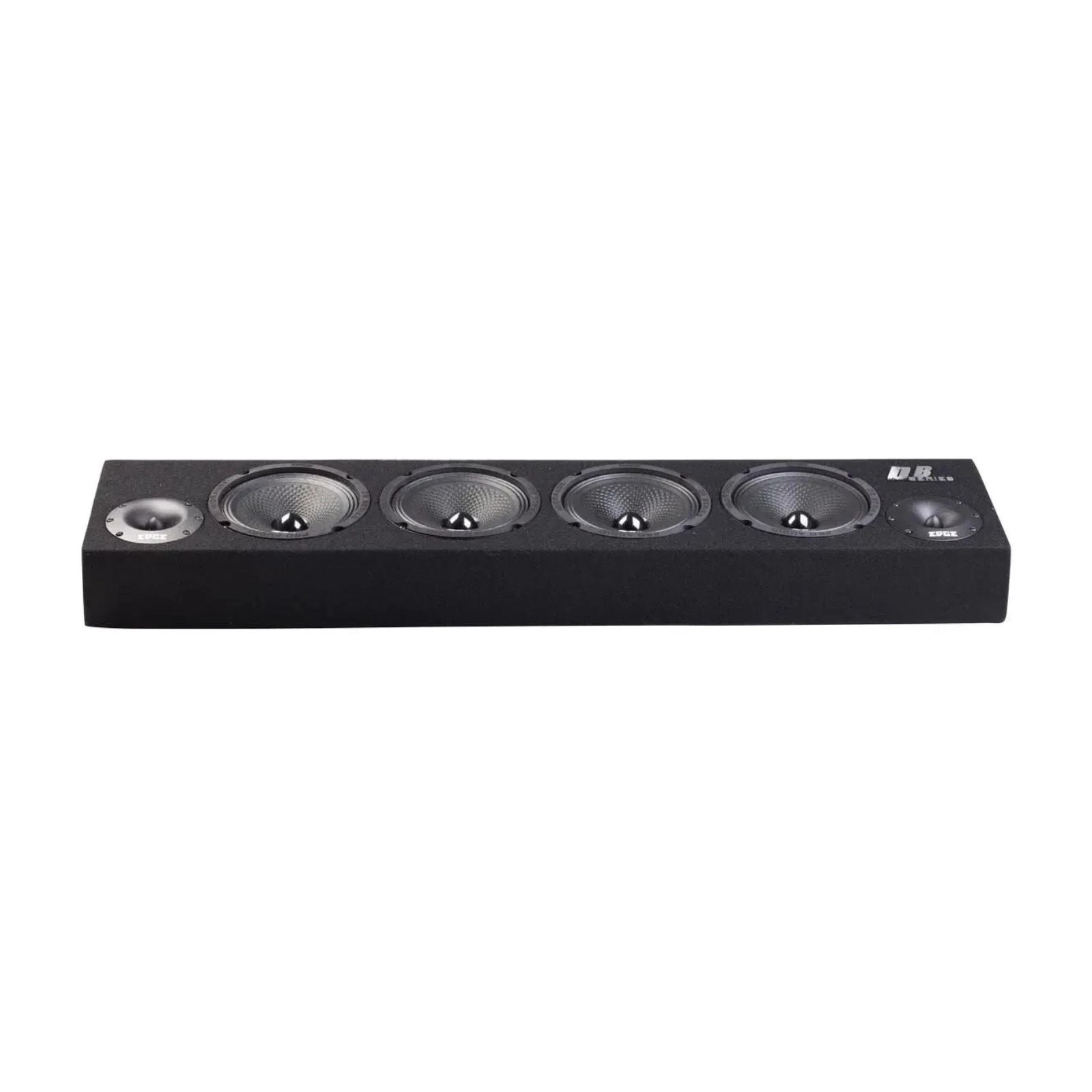

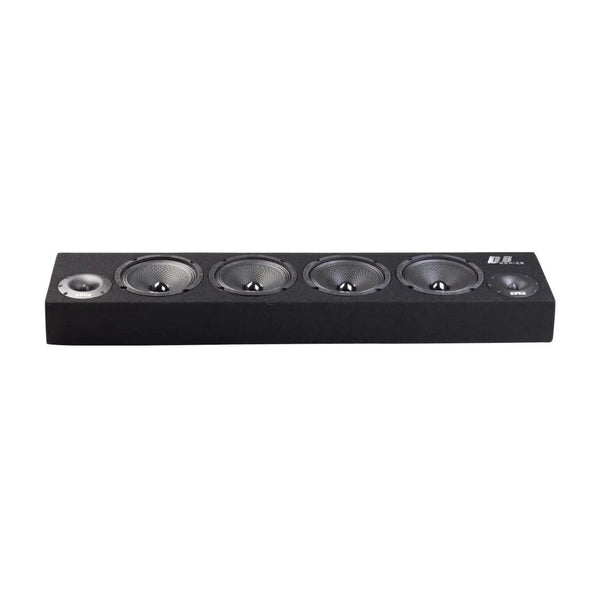

Edge DB Series EDBPB6-E5 6 Inch Full Range Pro Audio Ported Enclosure 760w RMS

The Edge EDBPB6-E5 is a 6 inch full range pro audio ported enclosure from the Edge DB Series, loaded with four EDBPRO6-E3 6.5 inch midrange drivers and two EDBPRO37T-E0 bullet tweeters, rated at 760W RMS.

The drivers are also available separately: the EDBPRO6-E3 6.5 inch pro midrange and the EDBPRO37T-E0 pro tweeters.

Key specifications

• Drivers: 4 x EDBPRO6-E3 6.5 inch midrange, 2 x EDBPRO37T-E0 bullet tweeters
• RMS power: 760W
• Peak power: 1520W
• Impedance: 2 x 2 ohms
• Frequency response: 150Hz – 20kHz
• Dimensions (H x W x D): 185 x 866 x 271mm
• Construction: MDF, ported, centrally braced

EDBPB6-E5 full range pro audio enclosure

The DB Series Pro Box is built for high volume and sound quality in-vehicle, aimed at those chasing ESQL (Extreme Sound Quality Level) performance. It combines four EDBPRO6-E3 component drivers and two pro tweeters in a single stereo enclosure.

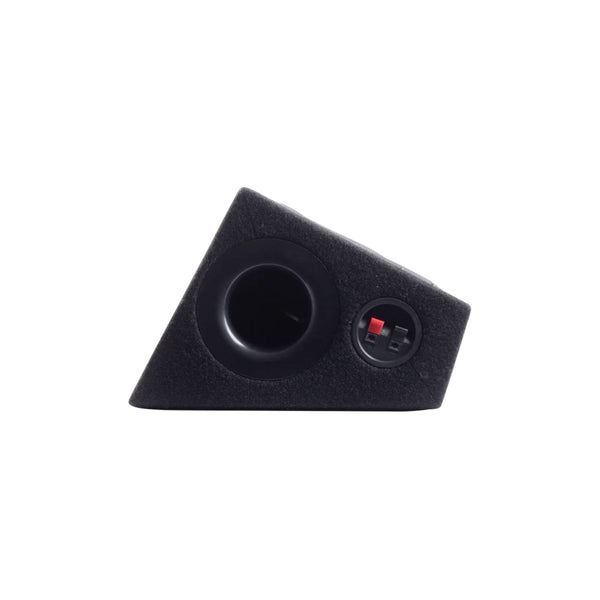

The box is split into left and right sides for stereo sound, both ported, with terminals on each side. The port is calculated to boost mid-bass response for a balanced output. Central MDF bracing reduces resonance and vibration for cleaner playback at high volumes.

• Turbo Port: flared port design increases efficiency and mid-bass response.
• Golf ball cone: the EDBPRO6-E3 drivers use a "golf ball" design cone for increased strength, rigidity and a small gain in cone area.
• High efficiency drivers: the EDBPRO6-E3 units produce high output without requiring excessive power, complemented by high efficiency built-in tweeters.
• Stereo terminals: two sets of 2 x 2 ohm spring terminals allow stereo operation for improved sound staging.
• MDF construction: solid MDF with central bracing minimises unwanted resonance and keeps sound precise at high volumes.
