Morel Hybrid MT300 1.1 Inch Tweeters 130w RMS Pair

£519.00 Out of stock
Out of Stock
SKU: 93398MPN: Hybrid MT300
Part of the range · 14 productsPart of the Morel Hybrid range · 14 products See the range →

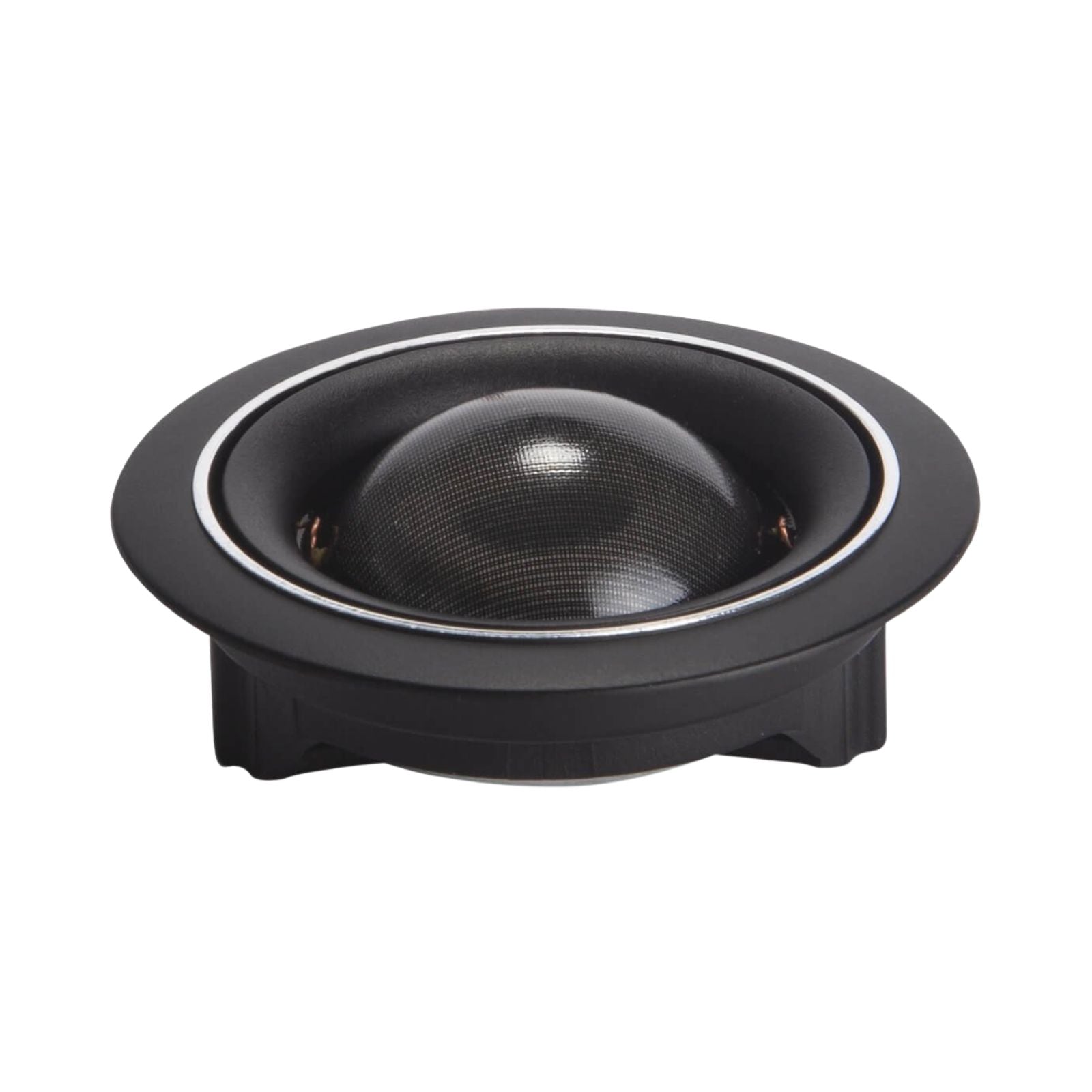

The Morel Hybrid MT300 is a pair of 1.1 inch (28mm) hand-coated Acuflex silk dome tweeters with 130W RMS power handling, from Morel's Hybrid component speaker range.

The MT300 is the tweeter used in Morel's Hybrid component systems, designed to work alongside the Hybrid woofers such as the MW4 MKII, MW5 MKII and MW6 MKII. For a complete set, see the Morel Hybrid 62 component system.

Key specifications

  • Dome: 28mm (1.1") Acuflex hand-coated silk soft dome
  • Impedance: 6 ohms
  • Power handling: 130W RMS, 350W max transient (10ms)
  • Sensitivity: 93 dB (2.83 V/1m)
  • Frequency response: 1,600 – 25,000 Hz
  • Magnet: double neodymium
  • Voice coil: 28mm Hexatech aluminium
  • Unit diameter: 43mm, mounting depth 13.2mm, cutout 47mm

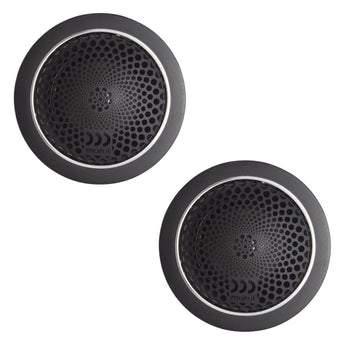

  • Supplied as: pair (2 x MT300)

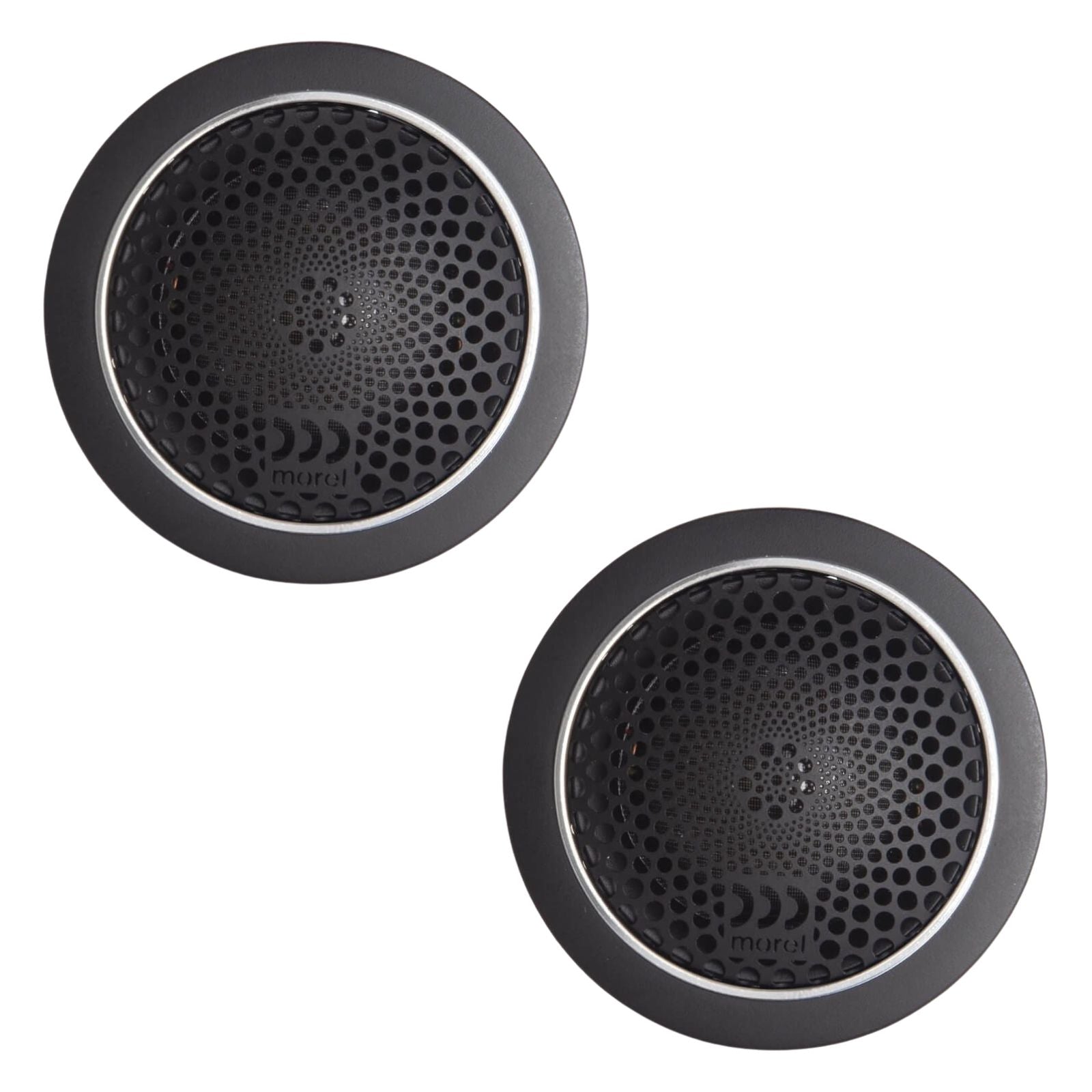

Morel Hybrid MT300 tweeter

The Hybrid MT300 delivers detailed high-frequency performance in a compact design, with high power handling at very low distortion levels.

It combines Morel's Acuflex hand-coated 28mm soft dome, Hexatech aluminium voice coil, and dual neodymium motor technologies.

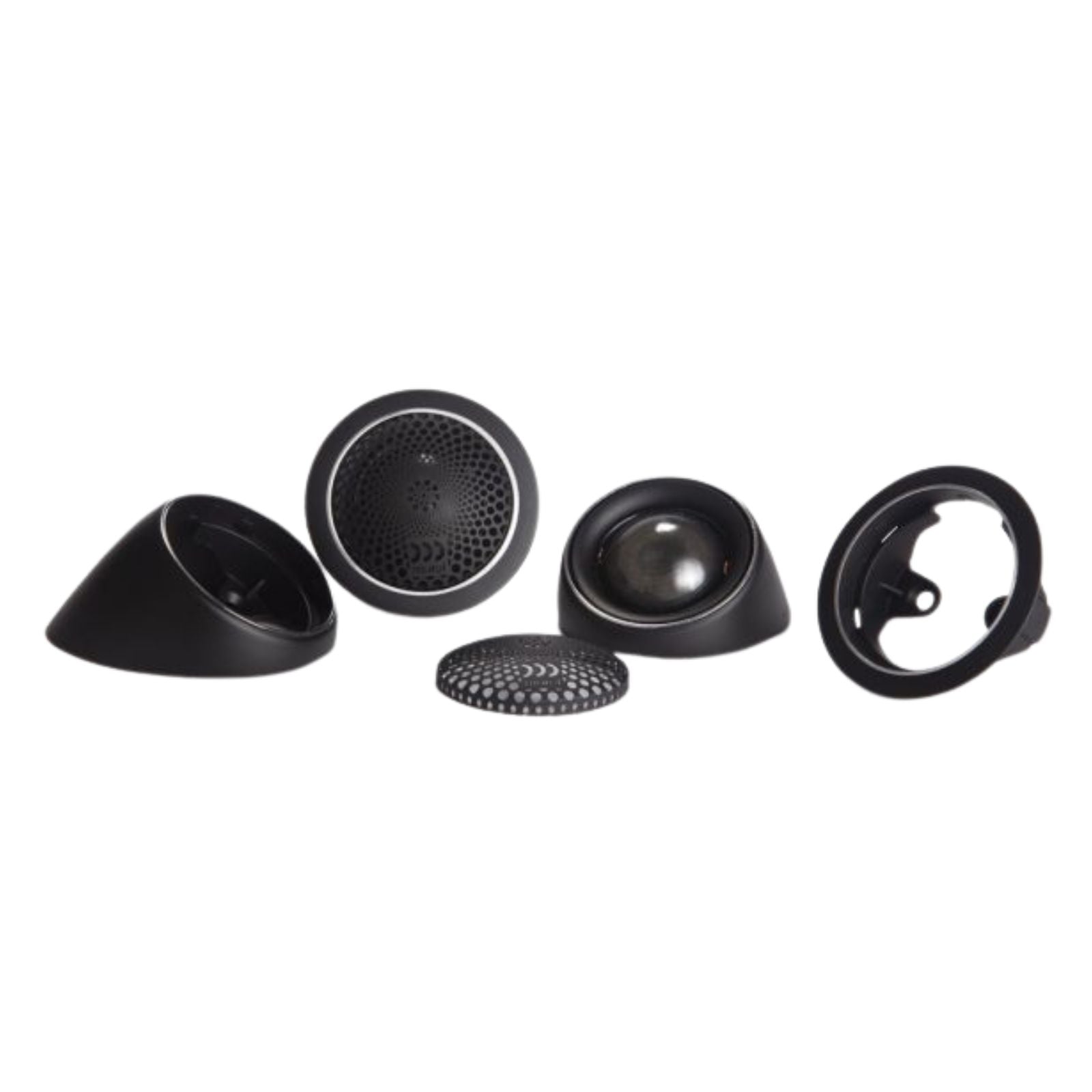

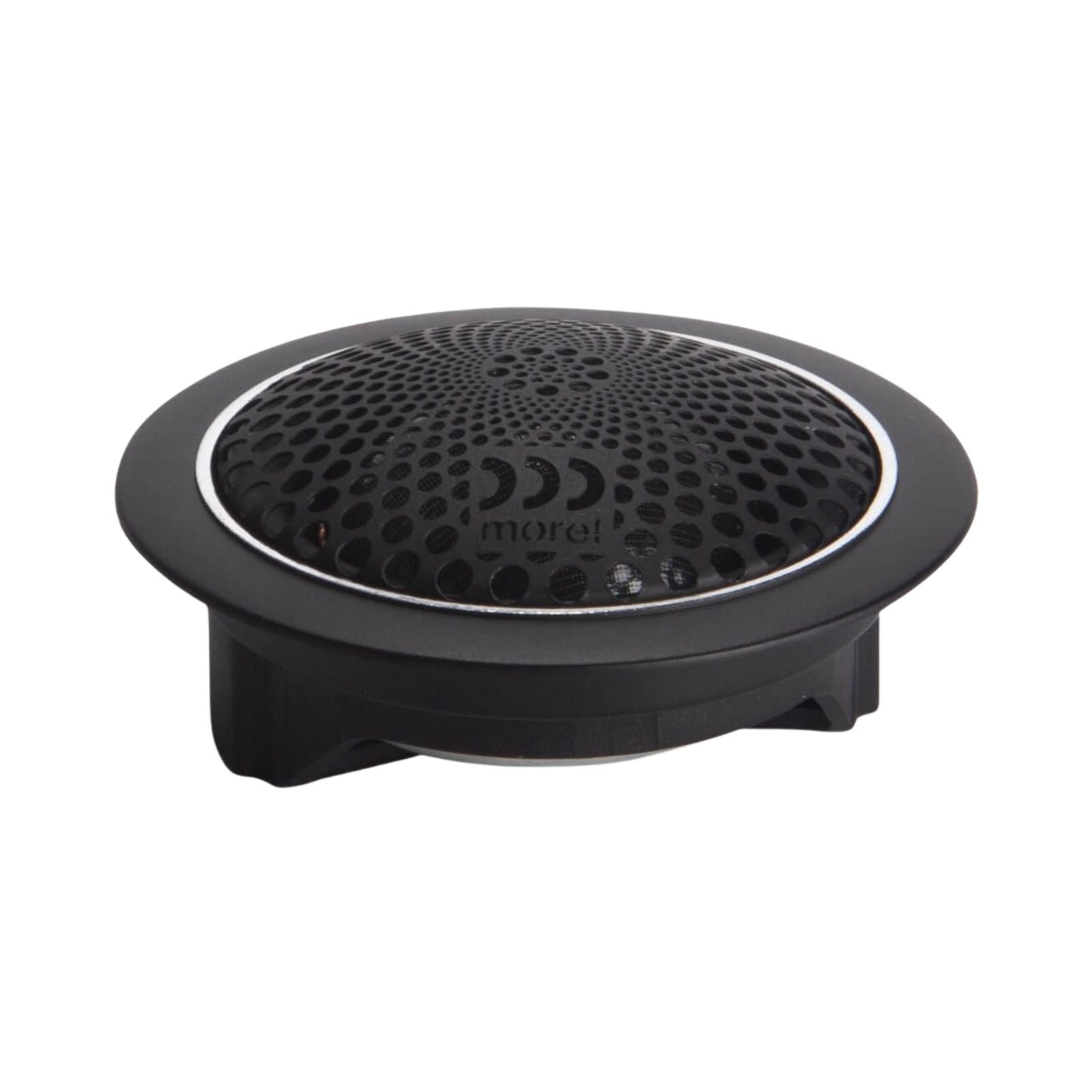

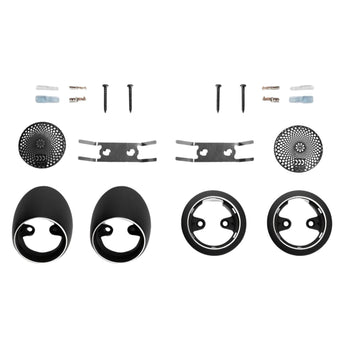

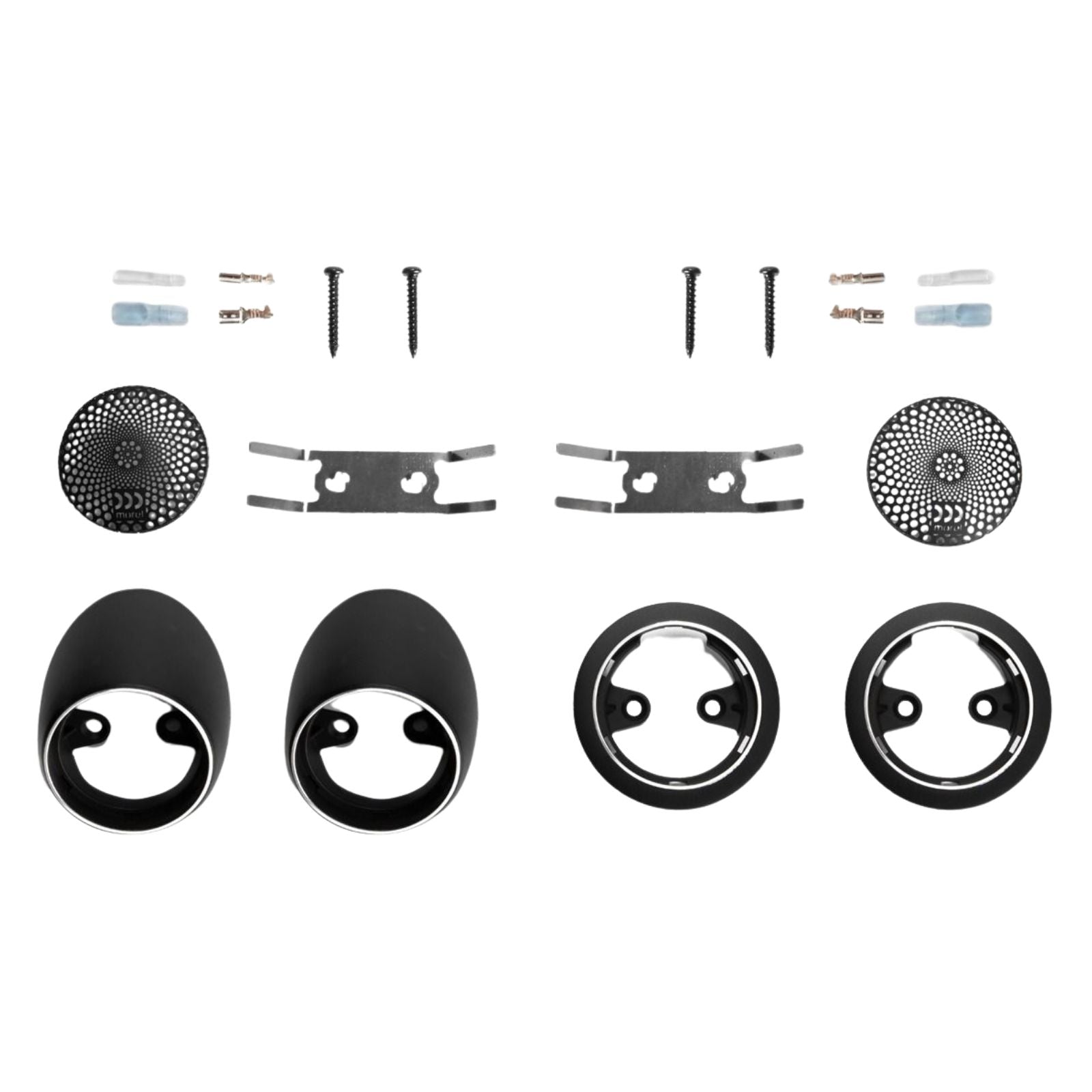

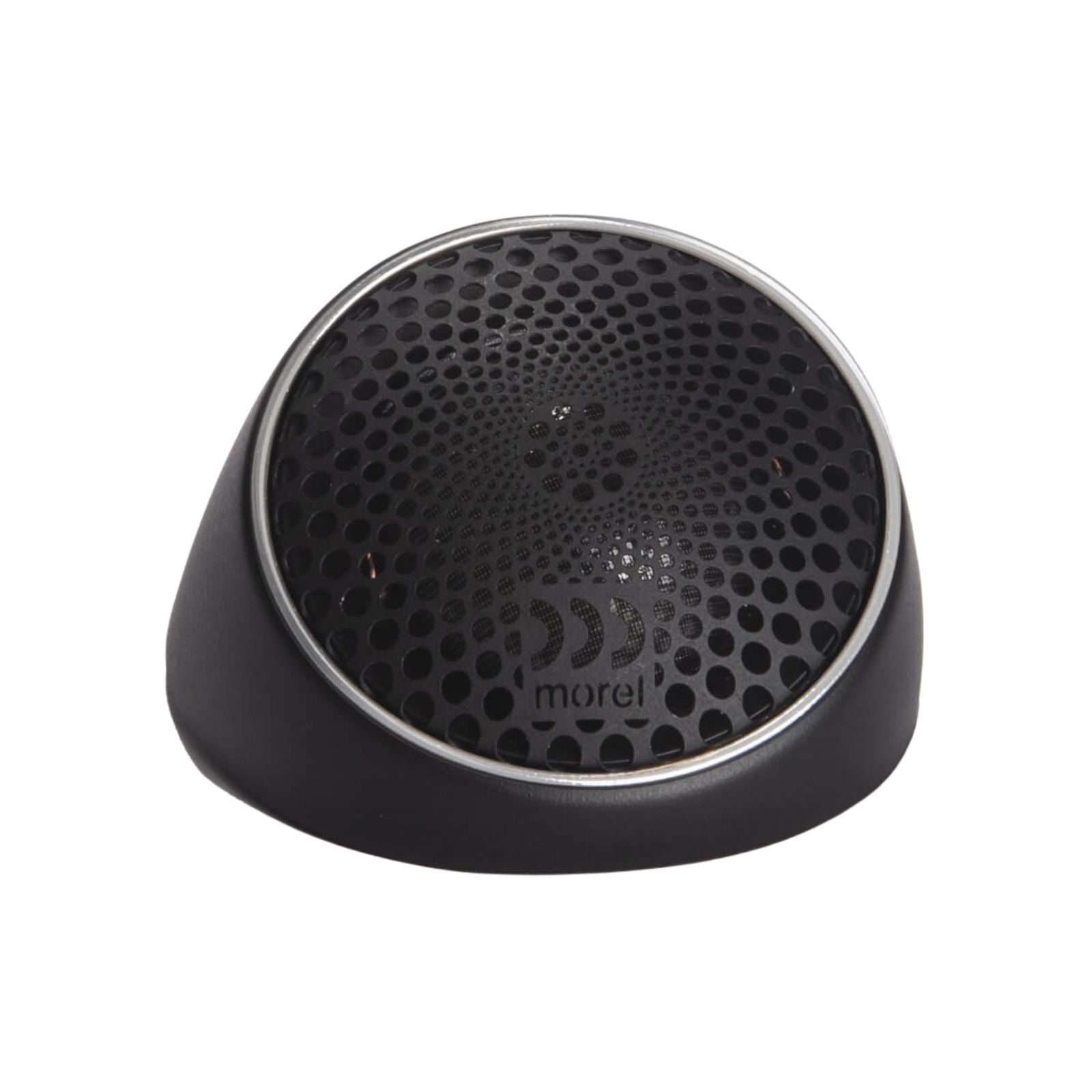

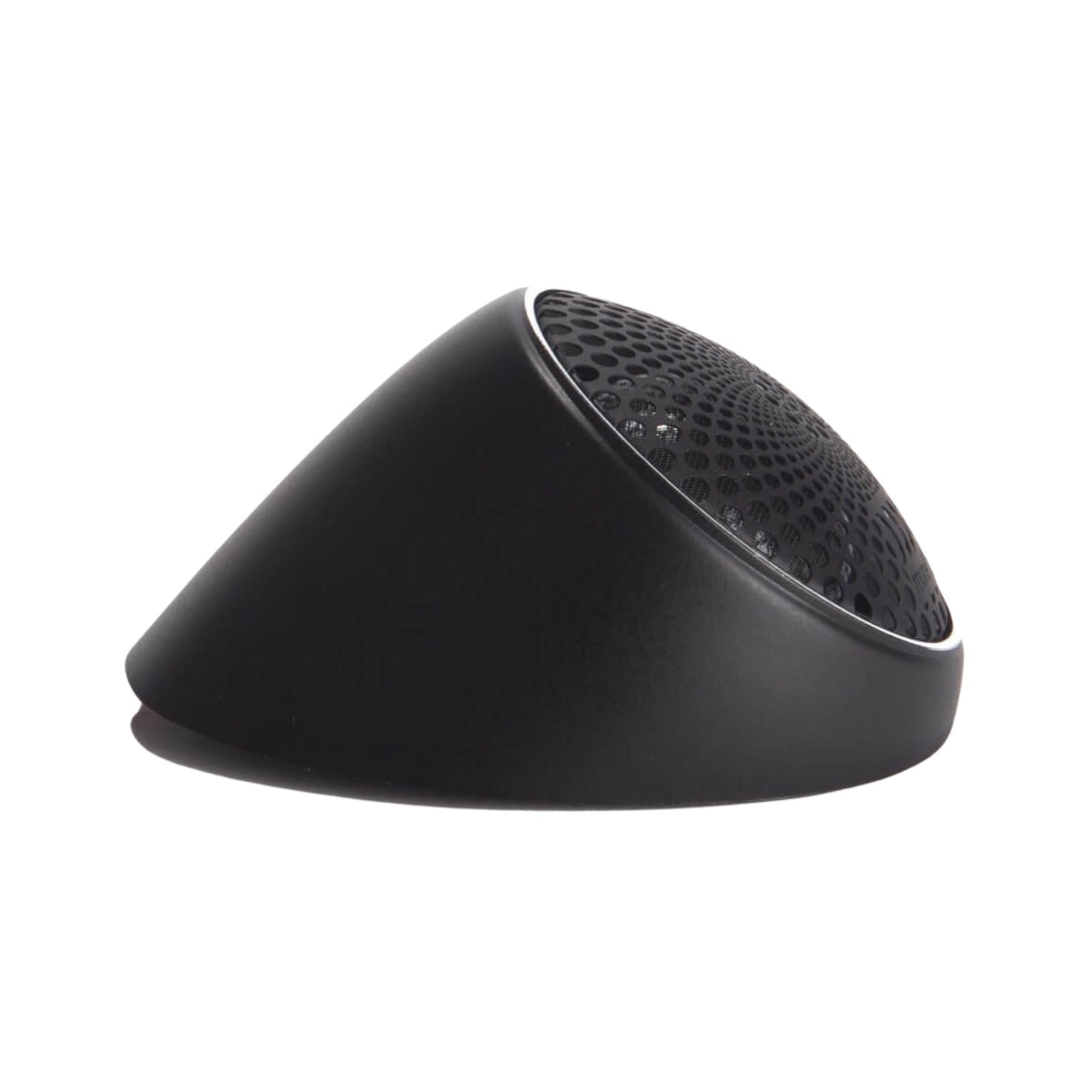

Its compact size fits most factory tweeter locations. Surface and flush mount options are included, along with a lotus grille for a clean finish in modern vehicles.

Features

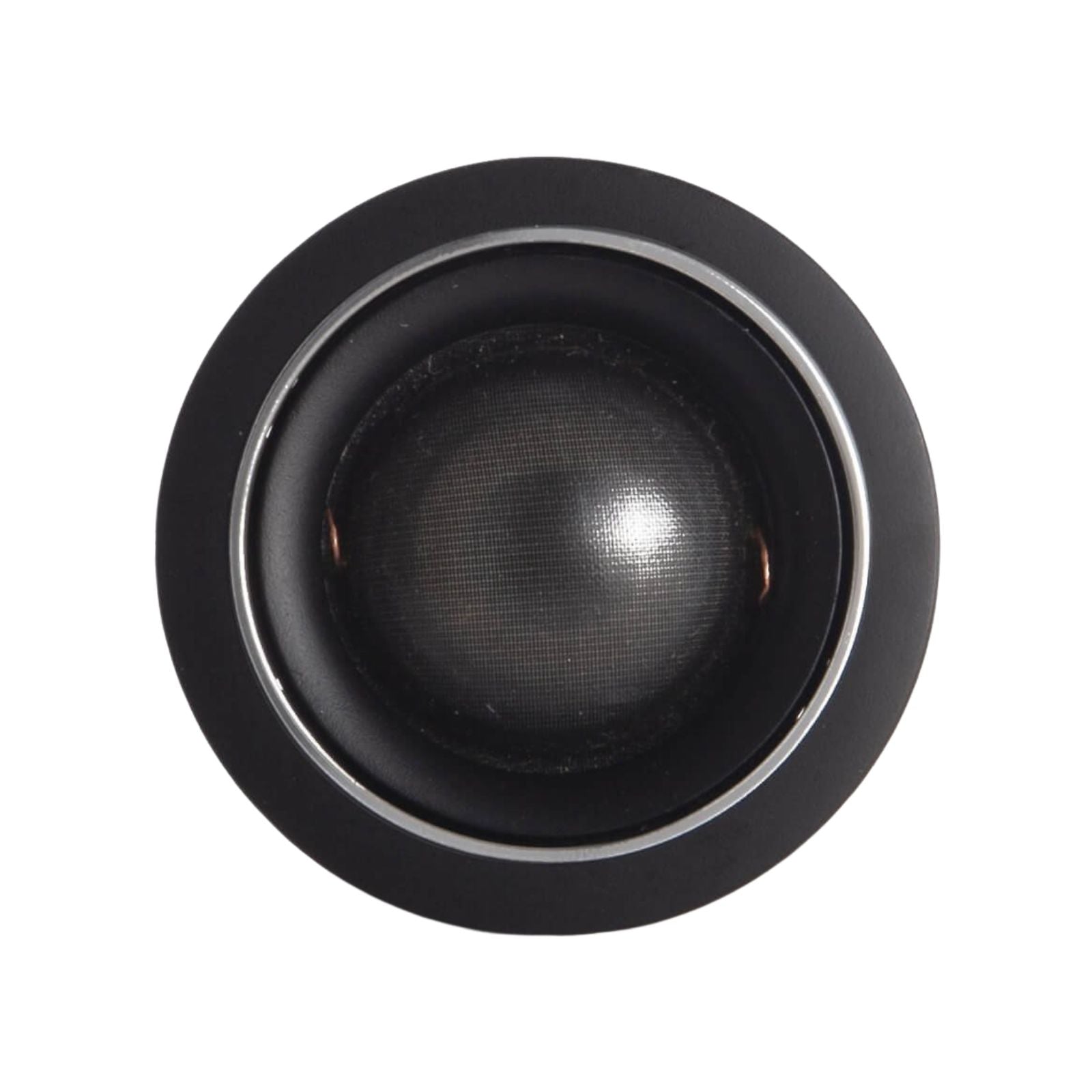

Handcrafted Acuflex Soft Dome

A specially engineered damping compound is hand-applied to the soft dome, adding rigidity and damping to improve clarity and bandwidth. The Acuflex diaphragm uses controlled cancelling break-up — each break-up mode is counteracted by another in the opposite direction — producing a smooth frequency response.

Hexatech Aluminium Voice Coil

Made from 100% aluminium wire wound in a honeycomb shape, the Hexatech voice coil reduces air gaps in the windings, increasing efficiency. Its low mass is a key reason for the fast transient response Morel drive units are known for.

Neodymium Magnet

Double neodymium magnets allow Morel to build physically compact tweeters that fit into tight spaces without compromising sound quality.

Explore the full range in Morel Hybrid.

Specification
Nominal Impedance (ohm)6
Power HandlingWrms 130
Max. Trans. Pwr Handling Wrms (10ms)350
Sensitivity(2.83 V/1M) dB 93
Frequency ResponseHz 1600-25000
FS Hz1000
Voice CoilDiameter mm (inch) 28 (1.125)
Voice CoilFormer Aluminium
Voice CoilWire Hexatech™ aluminium
DC Resistance ohm5.2
MagnetSystem Double Magnet Neodymium
Dome TypeAcuflex™ hand coated soft dome
Dome MaterialSilk
Unit Diameter mm (inch)43.00 (1.69)
Mounting Depthmm (inch) 13.20 (0.52)
Mounting Cutout mm (inch)47.00 (2.00)
Net Weight Kg (lb)0.07 (0.15)
What's Included
  • 2 x Morel Hybrid MT300
Download Installation Guide(PDF)
Product information

Morel

About the Morel Hybrid MT300

From our tech experts at CEN

Morel Hybrid tweeters, 1.1 inch, handling 130w RMS.

Who it suits

Drivers building or repairing a front stage where the tweeter needs mounting higher than the door, and anyone whose system sounds dull at the top.

Our tech experts advise

Placement and aiming change the sound more than the tweeter does, and they must be crossed over properly so they are never asked to play too low. get in touch if you are unsure how they would integrate with your speakers. See car audio installation.

Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Morel Elate Carbon Alto 1.1 Inch 28 mm Component Tweeter Pair 220w RMS - CEN
Morel Elate Carbon Alto 1.1 Inch 28 mm Component Tweeter Pair 220w RMS £1,149.00
In stock
Morel Elate Carbon MM3 3.5 Inch 90mm Component Midrange Pair 120w RMS - CEN
Morel Elate Carbon MM3 3.5 Inch 90mm Component Midrange Pair 120w RMS £1,149.00
In stock
Morel Elate Carbon MW6 6.5 Inch Component Woofers 180w RMS
Morel Elate Carbon MW6 6.5 Inch Component Woofers 180w RMS £1,469.00
Low stock
Morel Elate Carbon Pro 63A 3 Way Component Speaker System
Morel Elate Carbon Pro 63A 3 Way Component Speaker System £3,449.00
In stock
Morel Elate Carbon Pro 63 3 Way Component Speaker System
Morel Elate Carbon Pro 63 3 Way Component Speaker System £3,699.00
In stock
Morel Elate Carbon Pro 62A 6.5 Inch 2 Way Active Component Speakers 180w RMS - CEN
Morel Elate Carbon Pro 62A 6.5 Inch 2 Way Active Component Speakers 180w RMS £2,449.00
In stock
Morel Supremo Piccolo Lotus 1.1 Inch High End Silk Dome Tweeters 220w RMS Pair
Morel Supremo Piccolo Lotus 1.1 Inch High End Silk Dome Tweeters 220w RMS Pair £1,199.00
Low stock
Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS - CEN
Save 30% Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS RRP £4,999.99 £3,499.99 Save 30%
In stock
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w - CEN
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w £329.00
In stock
Morel Virtus Nano Carbon Integra 62 6.5” 2 Way Shallow Mount Speakers 100w RMS - CEN
Morel Virtus Nano Carbon Integra 62 6.5” 2 Way Shallow Mount Speakers 100w RMS £849.00
In stock
Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

  1. 1

    Tell us your vehicle

    Make, model and year, and what you'd like fitted.

  2. 2

    We confirm the parts

    Fascia, wiring and interfaces checked for your car, with a fitted price.

  3. 3

    Fitted at our workshop

    Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Car audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in NottinghamCar audio installation by CEN in Nottingham

More from Morel

More options from the same range, in stock and ready to go

View all Morel ›
Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS

Morel Supremo 38 Anniversary Limited Edition 3 Way Component Speakers 140w RMS

RRP £4,999.99Save 30%£3,499.99

View product
Morel BMW Integration Performance IP-BMW42 2 Way Plug & Play Component Speakers

Morel BMW Integration Performance IP-BMW42 2 Way Plug & Play Component Speakers

£449.00

 Morel Sensus 62 2-Way 6.5 Inch Component Speaker System 120w RMS

Morel Sensus 62 2-Way 6.5 Inch Component Speaker System 120w RMS

£559.00

 Morel MPS 1.1100 Amp Monoblock Class D Mono Subwoofer Amplifier 1100w RMS

Morel MPS 1.1100 Amp Monoblock Class D Mono Subwoofer Amplifier 1100w RMS

£1,099.00

 Morel Virtus 62.2 Reference Series 6.5" 2 Way Component Speaker 120w RMS 2 Ohm

Morel Virtus 62.2 Reference Series 6.5" 2 Way Component Speaker 120w RMS 2 Ohm

£749.00

Frequently Asked Questions

Q: Is the Morel MT300 a 4 ohm or 6 ohm tweeter?

A: The MT300 has a nominal impedance of 6 ohms and a DC resistance of 5.2 ohms.

Q: Will the MT300 fit my car's factory tweeter location?

A: Its compact size (43mm unit diameter, 13.2mm mounting depth) allows it to fit most factory locations, and surface and flush mount options are available.

Q: Are the Morel MT300 tweeters sold as a pair?

A: Yes. The box contains 2 x Morel Hybrid MT300 tweeters.
