Morel Hybrid MW5 MKII 5.25 Inch Component Woofers 120w RMS

The Morel Hybrid MW5 MKII are a pair of 5.25 inch component woofers, rated at 120W RMS, featuring a one-piece DPC cone, 54mm Hexatech aluminium voice coil and hybrid ferrite/neodymium magnet motor. They are part of the Morel Hybrid range, designed for building or upgrading a Hybrid component speaker system.

These are woofers only (no tweeters). Pair them with the Morel Hybrid MT300 tweeters, or choose the complete Morel Hybrid 52 component system.

Key specifications

• Size: 5.25" (135mm unit diameter)
• Impedance: 4 ohms
• Power handling: 120W RMS, 500W max transient
• Sensitivity: 89 dB (2.83 V/1m)
• Frequency response: 45 – 3,000 Hz
• Cone: one-piece DPC (damped polymer)
• Motor: hybrid ferrite and neodymium, rear vented, 54mm (2.1") Hexatech voice coil
• Mounting cutout: 120mm, mounting depth: 60mm

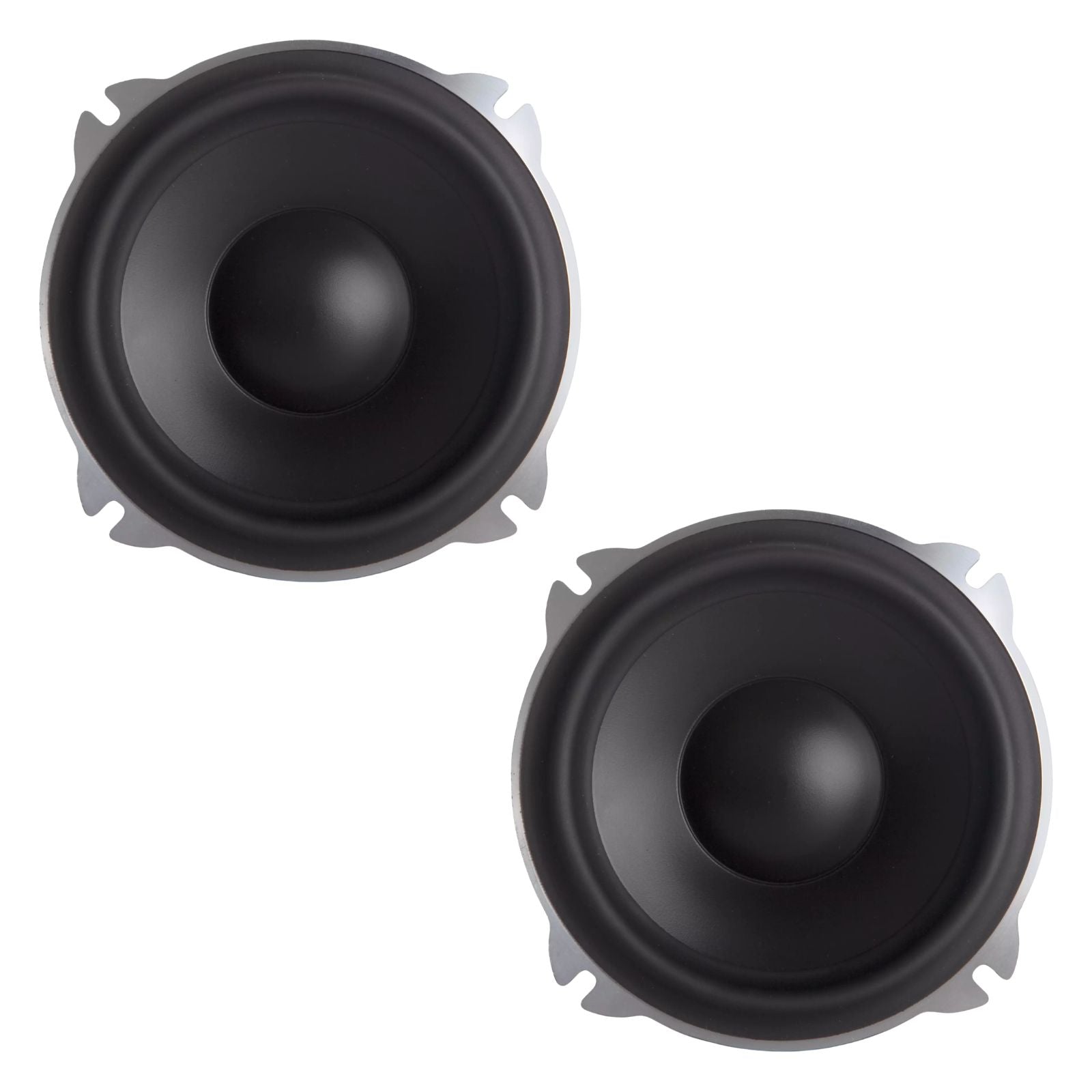

• Supplied as: pair (2 x MW5 MKII)

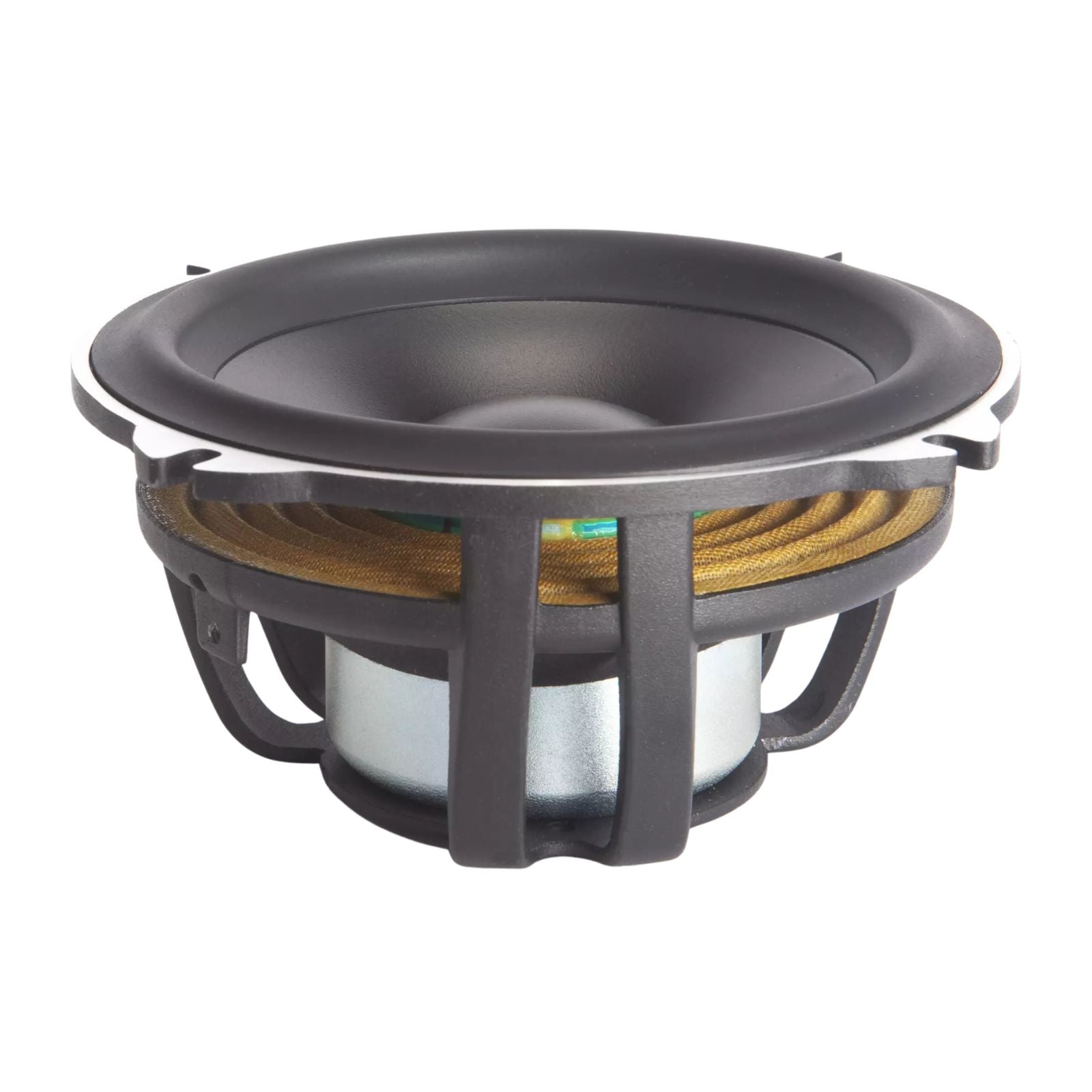

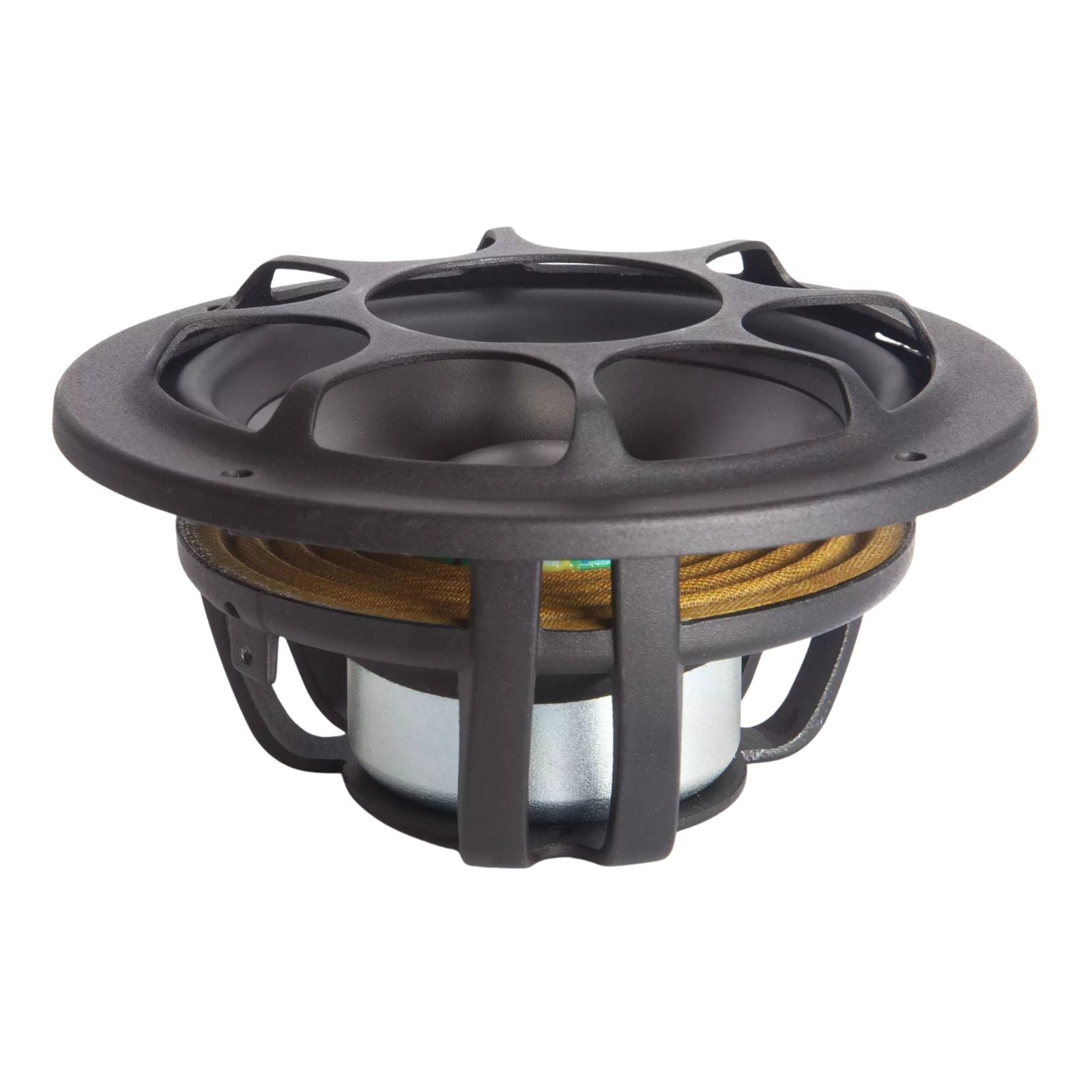

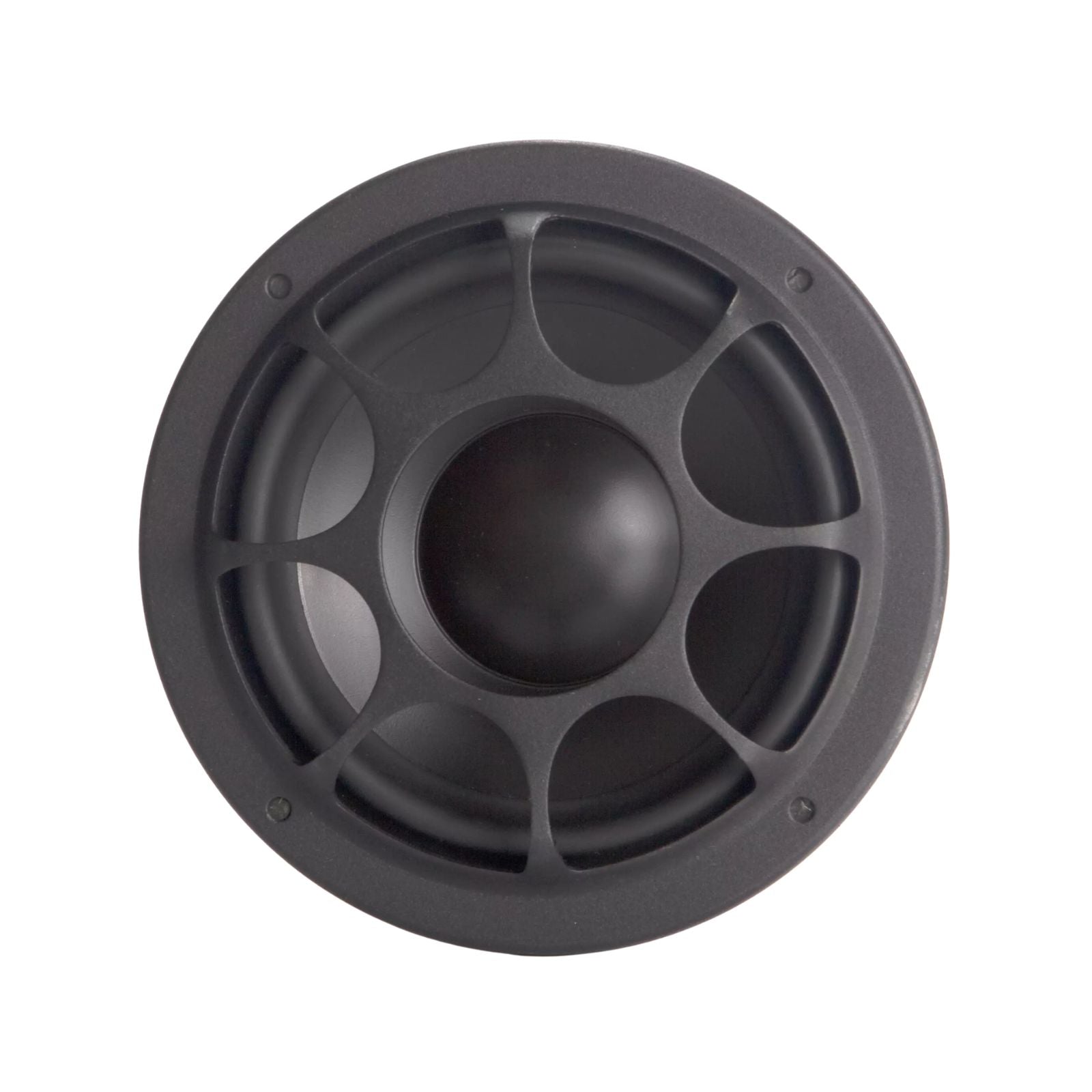

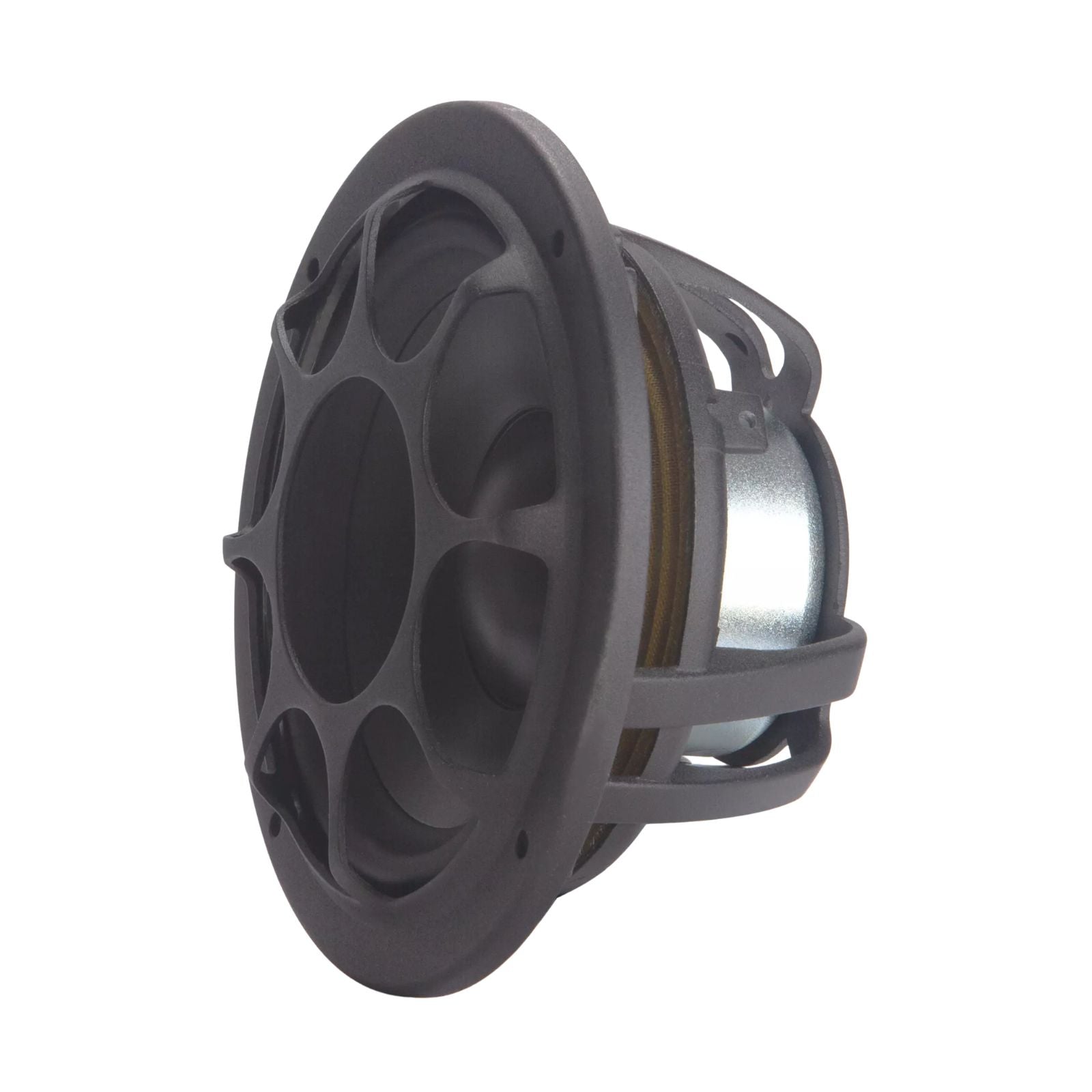

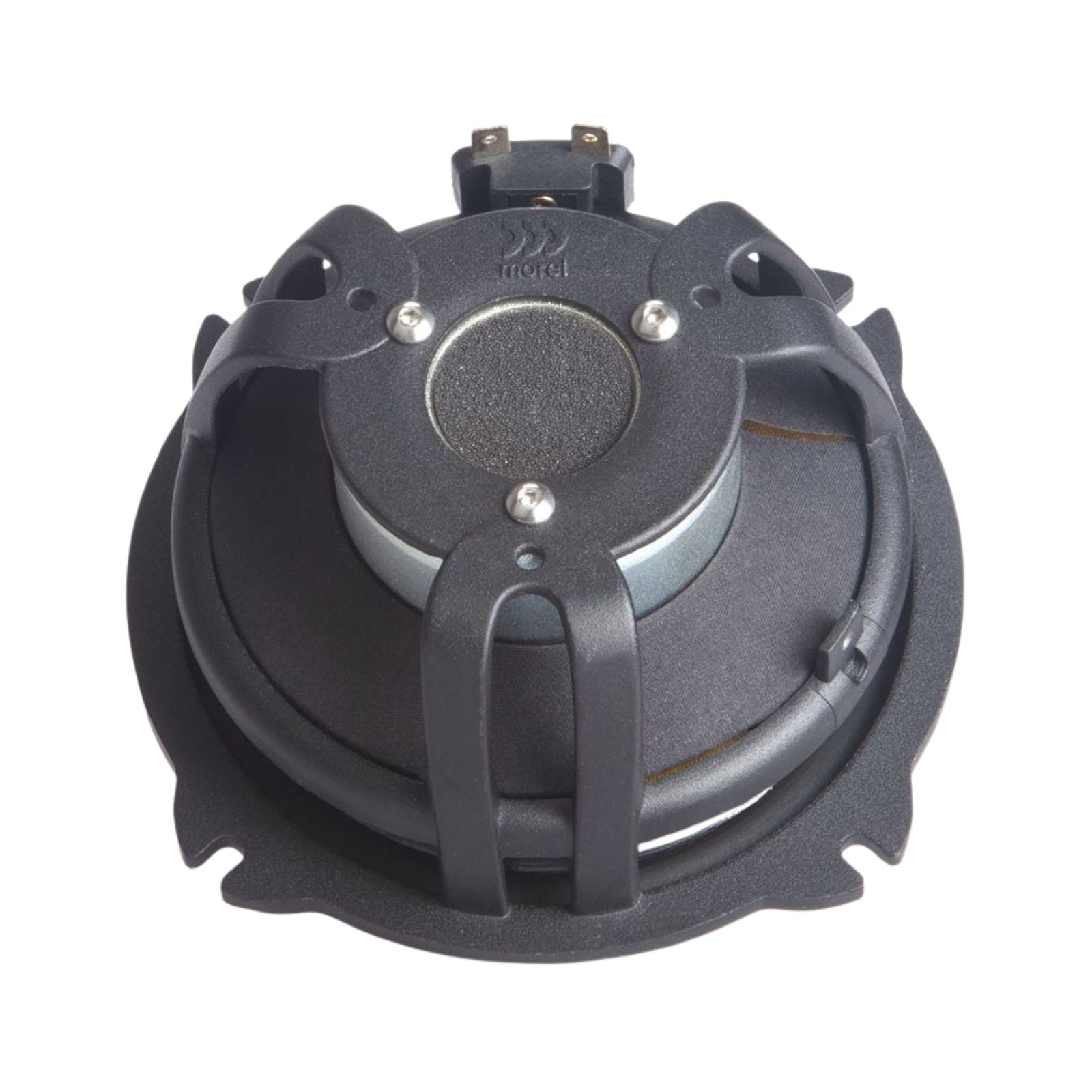

Morel Hybrid MW5 MKII woofer

All Hybrid MW models incorporate Morel's core technologies. A 54mm (2.1") aluminium Hexatech external voice coil, wound on an aluminium former, enables stable, efficient and linear piston-like movement, reducing distortion.

Morel's one-piece DPC cone forms a flat geometric plane that improves sound dispersion and dynamics, producing a realistic three-dimensional sound presentation.

The Hybrid woofer's suspension improves mechanical movement and membrane stability, contributing to very low distortion at high power and better low-frequency dynamic range.

Features

DPC Cone

DPC (Damped Polymer Cone) is a direct derivative of the cones Morel has built its reputation on. High self-damping characteristics deliver exceptional sound quality without colouration or harshness.

Hexatech Aluminium Voice Coil

Made from 100% aluminium wire shaped in a honeycomb formation, the Hexatech™ voice coil reduces air gaps in the coil windings and increases efficiency. Its low mass is a key reason for the fast transient response Morel drive units are known for.

Hybrid Magnet Motor

The Hybrid motor combines a ferrite magnet with a powerful neodymium magnet to create a compact, lightweight and powerful motor system. More amplified power is converted into sonic energy, delivering flawless performance even in a small driver.
