Morel Hybrid 62 2 Way Car Component Speakers MW Woofers MT300 Tweeters 140w RMS

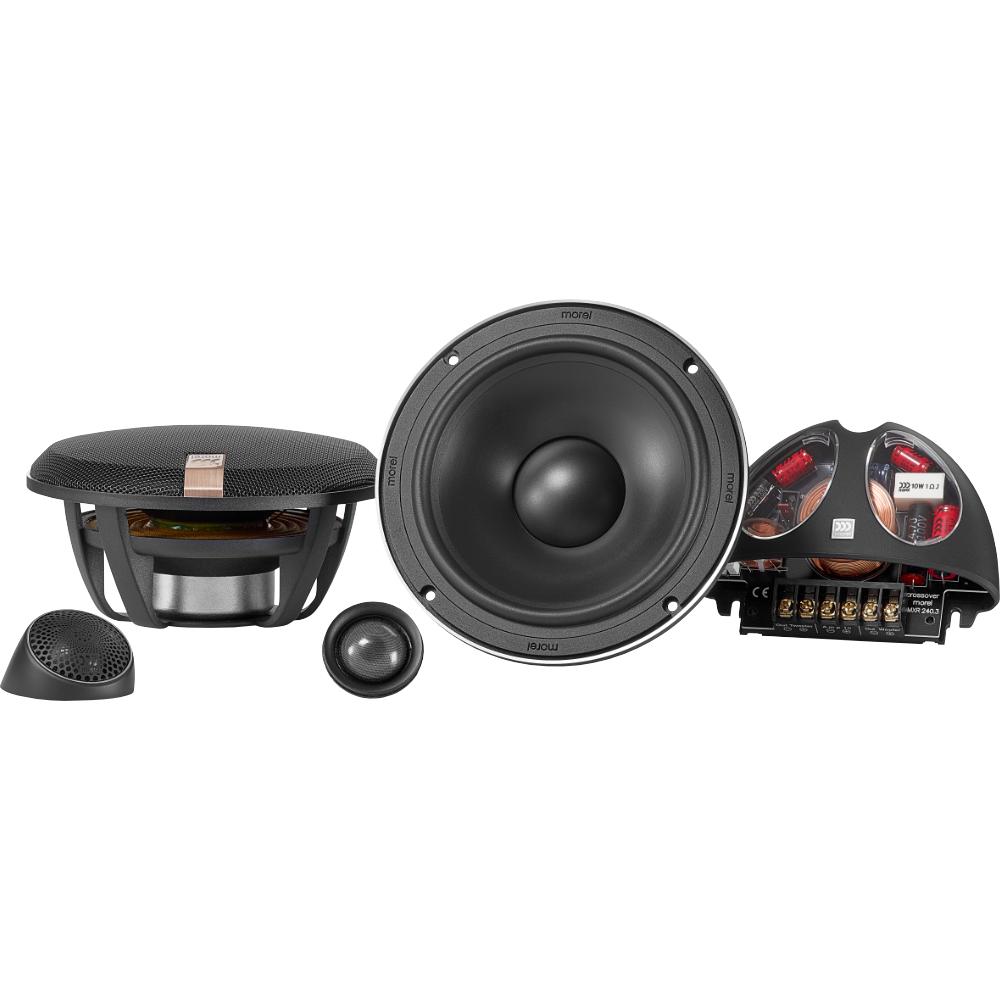

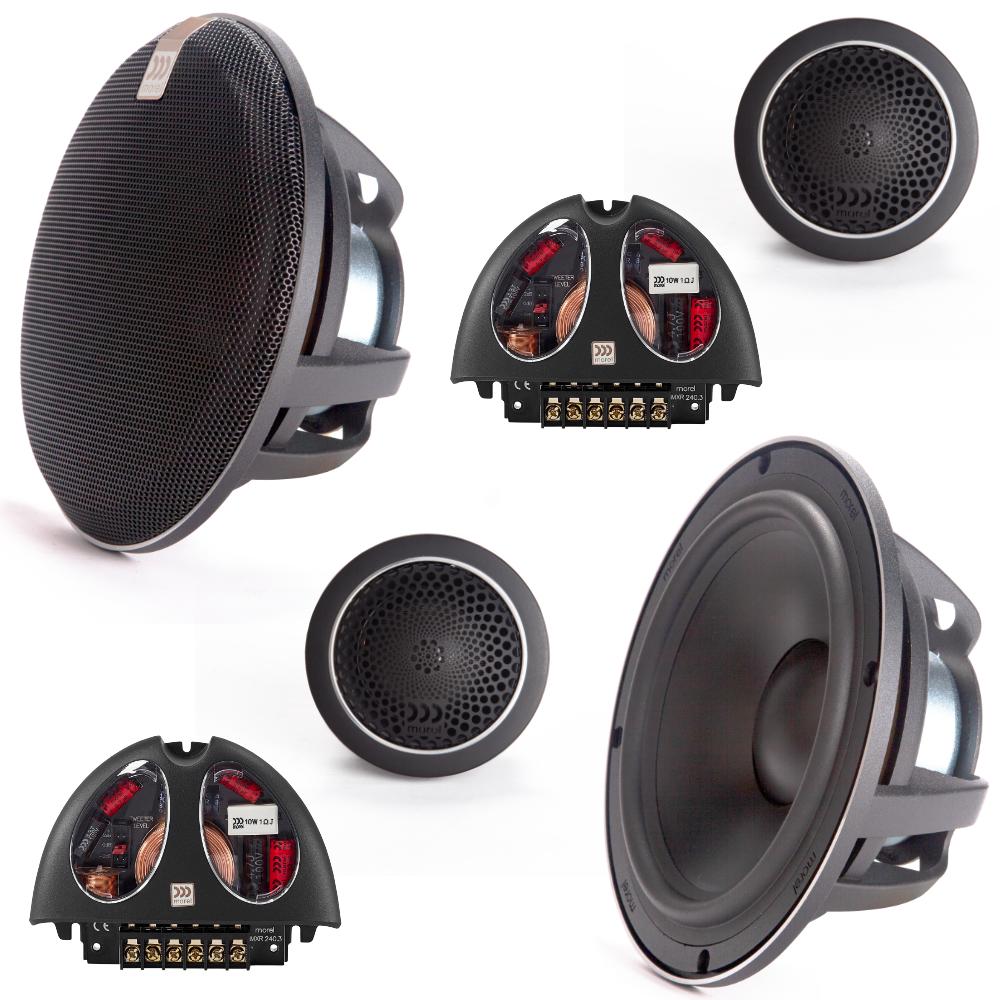

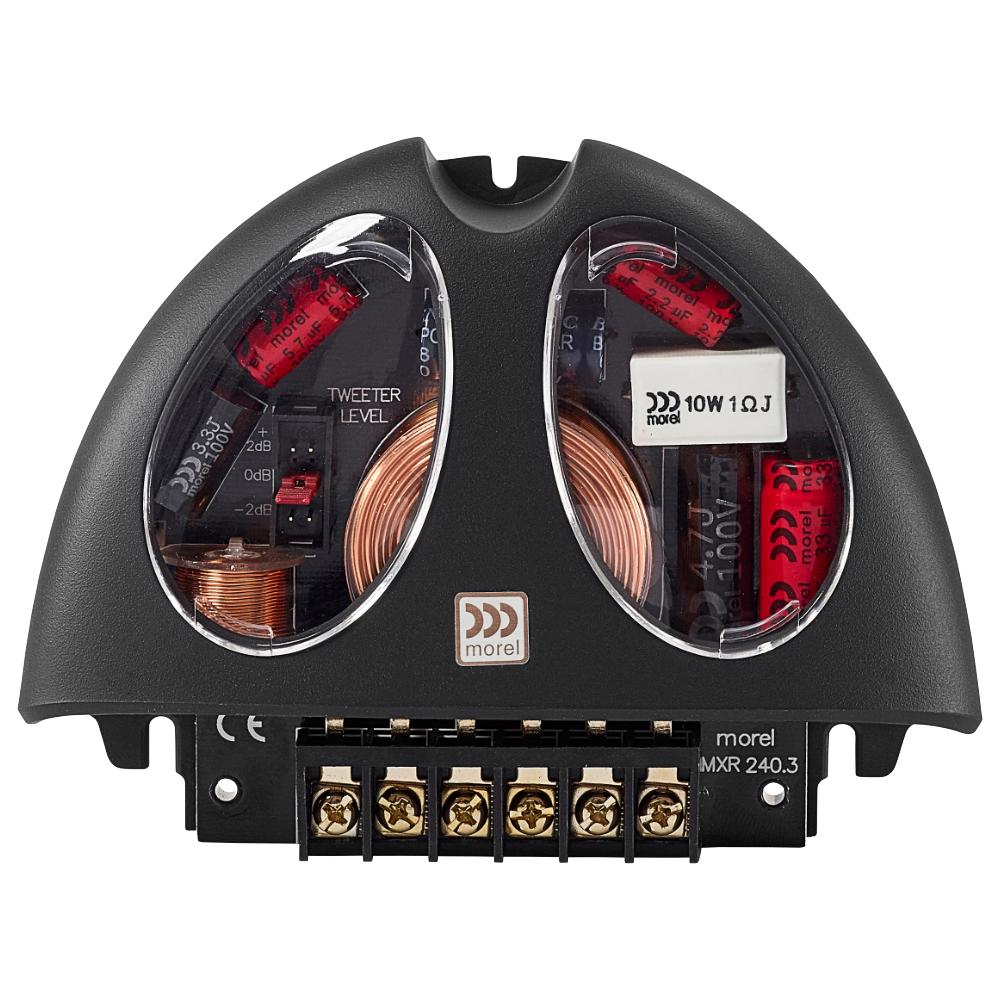

The Morel Hybrid 62 is a 6.5" 2-way component speaker system from Morel's fifth-generation Hybrid range, pairing MW6 Mk2 woofers and MT300 28mm silk dome tweeters with MXR240.4 crossovers, rated at 140W RMS.

For a 3-way setup with CDM700 midranges, see the Morel Hybrid 63. Smaller 2-way sets are the Hybrid 52 and Hybrid 42.

Key specifications

• Size: 6.5"
• Configuration: 2-way component

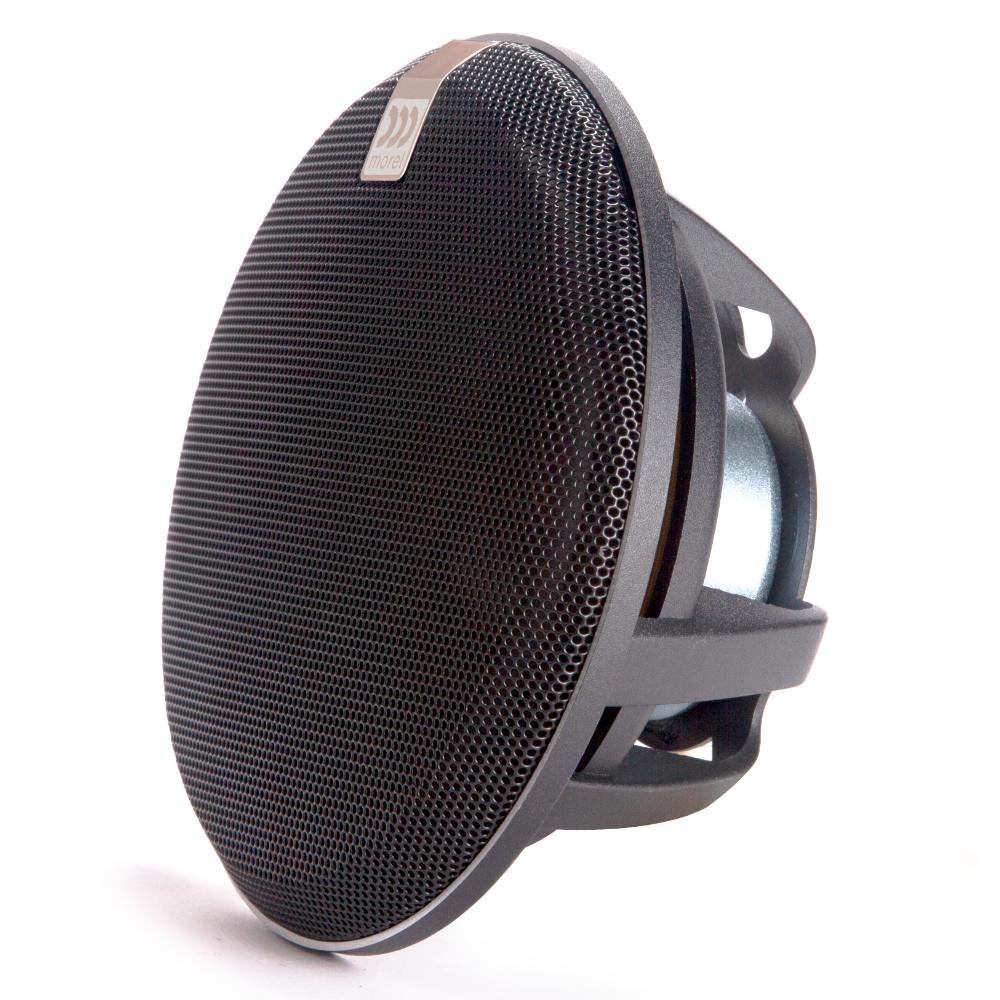

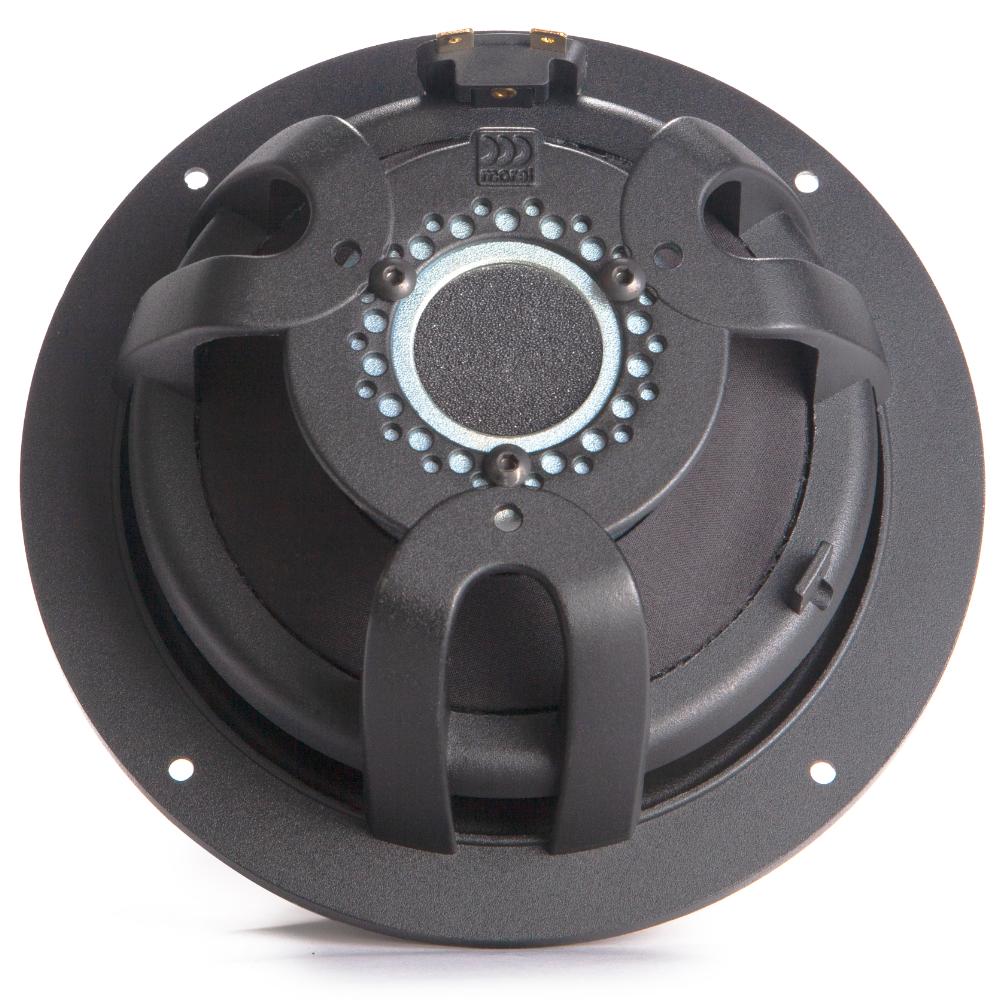

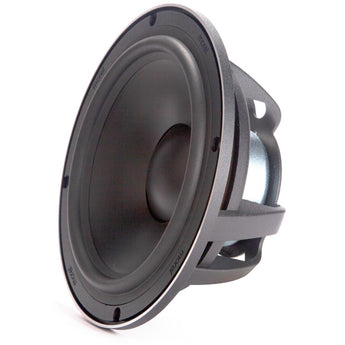

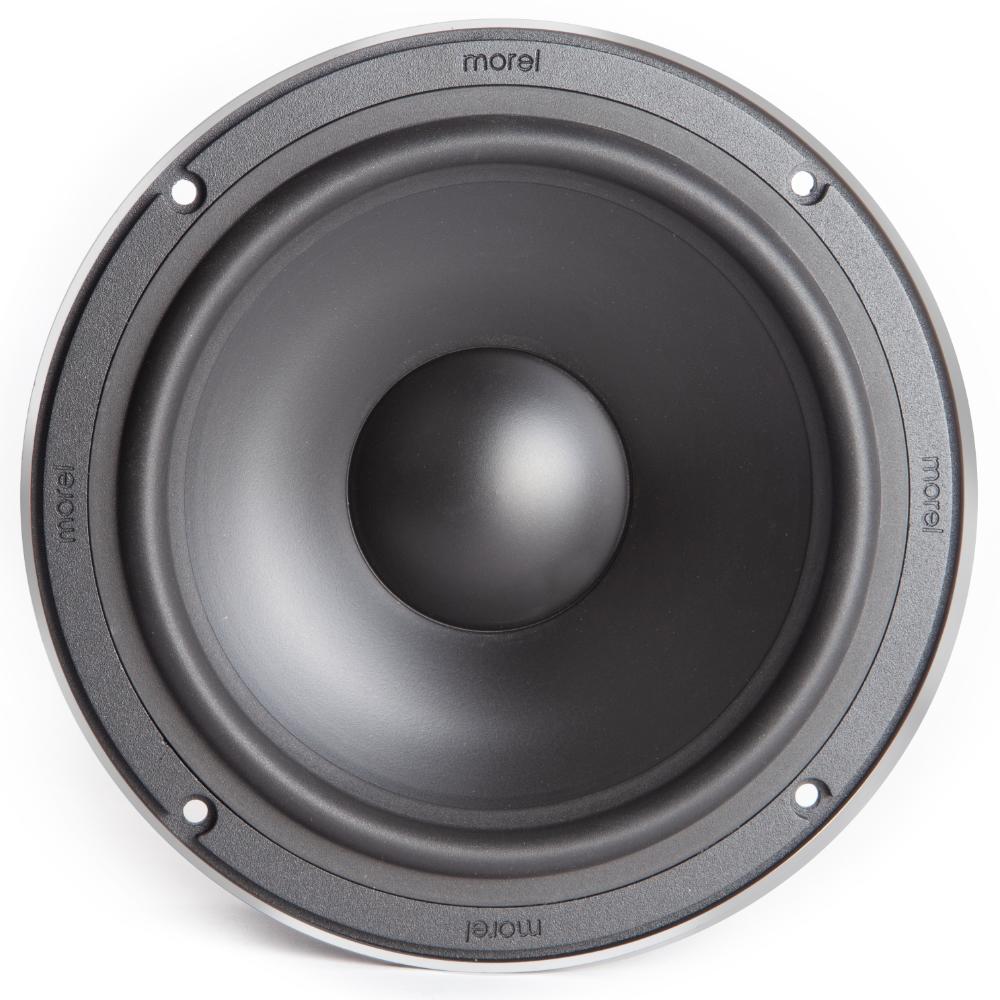

• Woofer: MW6 Mk2, damped polymer cone, rubber surround

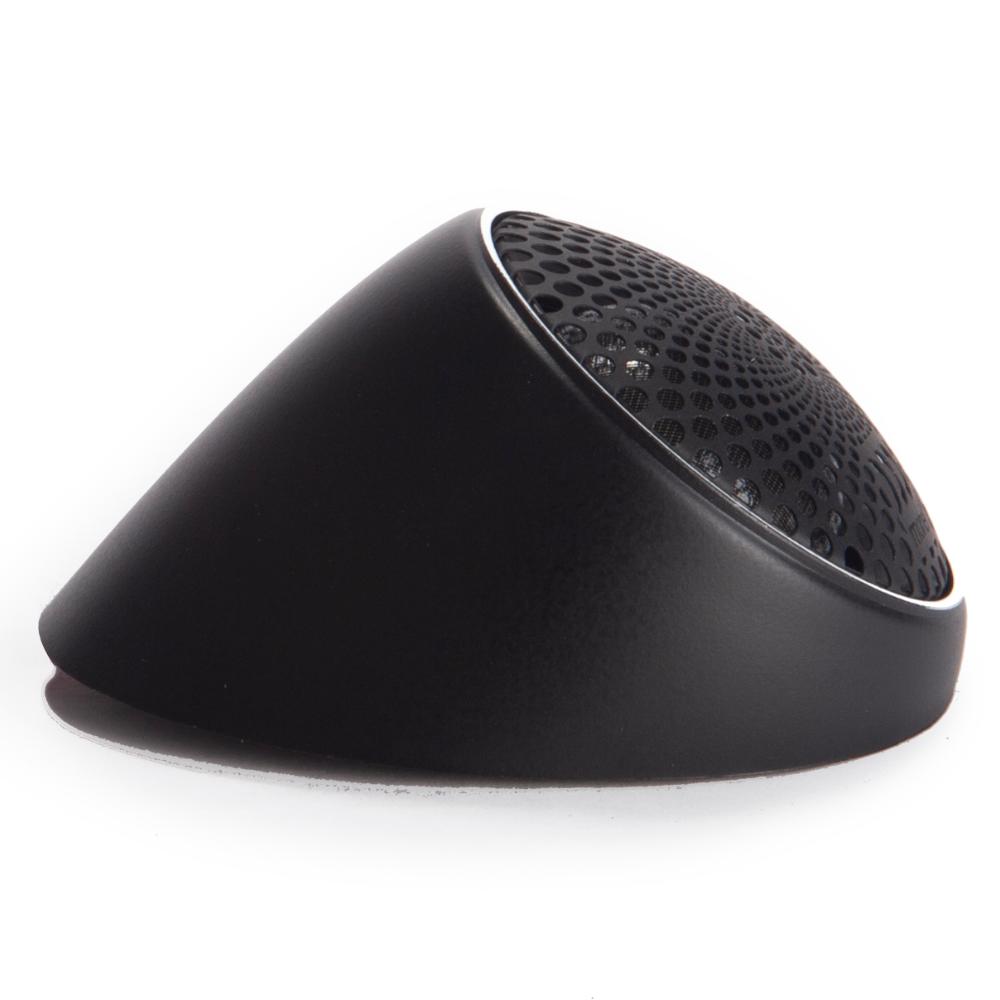

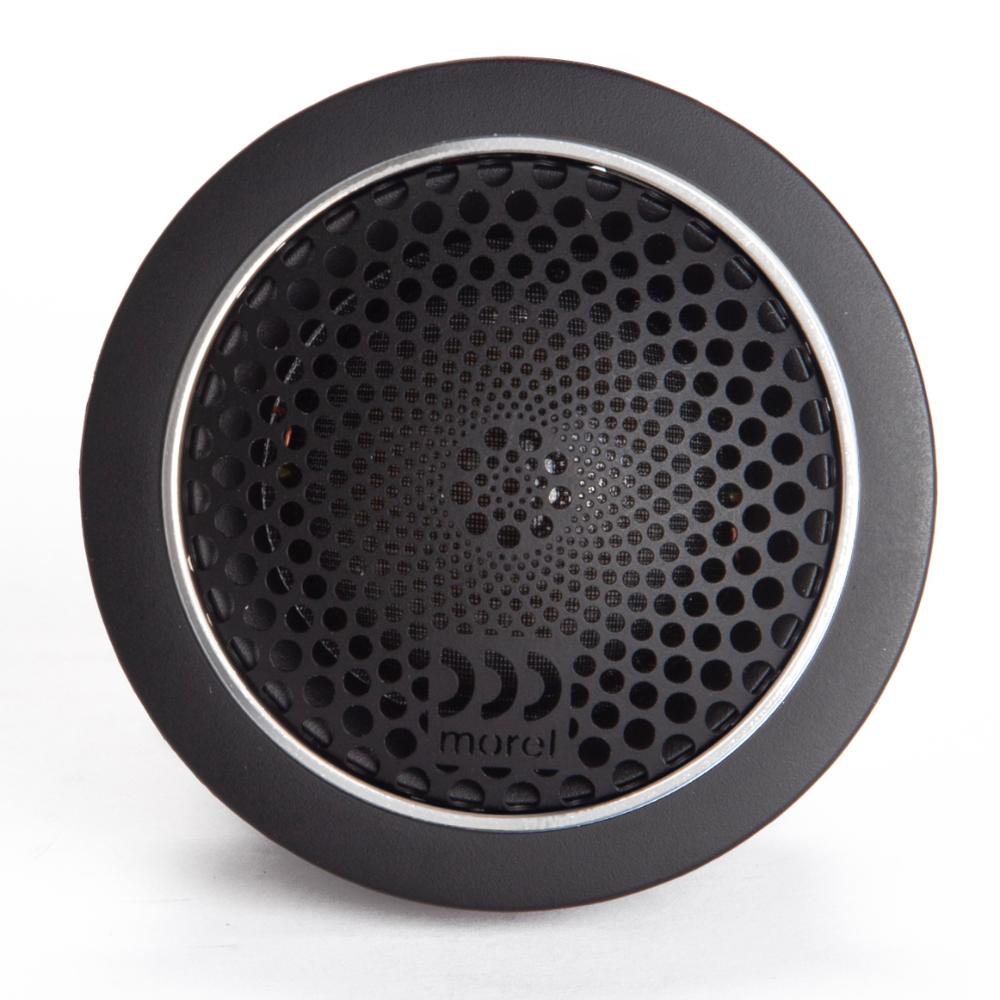

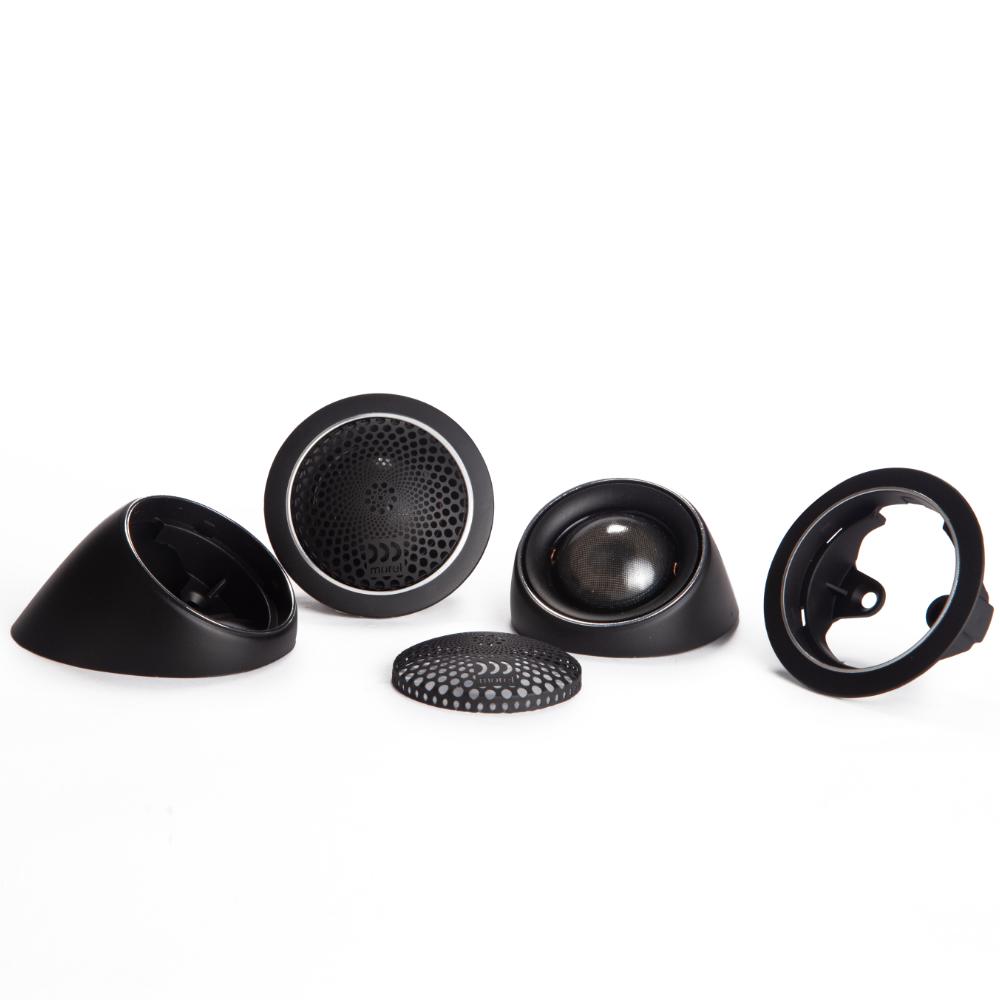

• Tweeter: MT300 28mm silk dome
• Power handling: 140W RMS, 600W peak
• Impedance: 4 ohms
• Sensitivity: 91 dB (2.83V)
• Frequency response: 35 – 25,000 Hz
• Mounting: 5 1/2" cutout, 2 7/16" top-mount depth, 2 11/16" bottom-mount depth

Morel Hybrid 62: Hybrid Series 6.5" Component Speaker System

Now in their fifth generation, the Hybrid series represents Morel's ongoing approach to high-fidelity speaker design. The Hybrid 62 balances resolution, power and efficiency across a wide range of music genres. The Hybrid range is available in 2-way component, Integra point-source coaxial and 3-way configurations.

C.A.R Filter

Controlled Acoustic Resistance (C.A.R. Filter™) addresses the virtual free-air environment typical of door installations. It controls airflow within the driver to mimic cabinet loading, improving power handling by 30% and providing greater control over cone movement for improved bass dynamics.

EVC Motor

EVC™ technology uses large voice coils with the magnetic drive system positioned inside the voice coil. This eliminates stray magnetic flux, directing all magnetic energy to the voice coil. The result is a compact, efficient design with effective heat dissipation and reduced cone breakup for lower distortion.

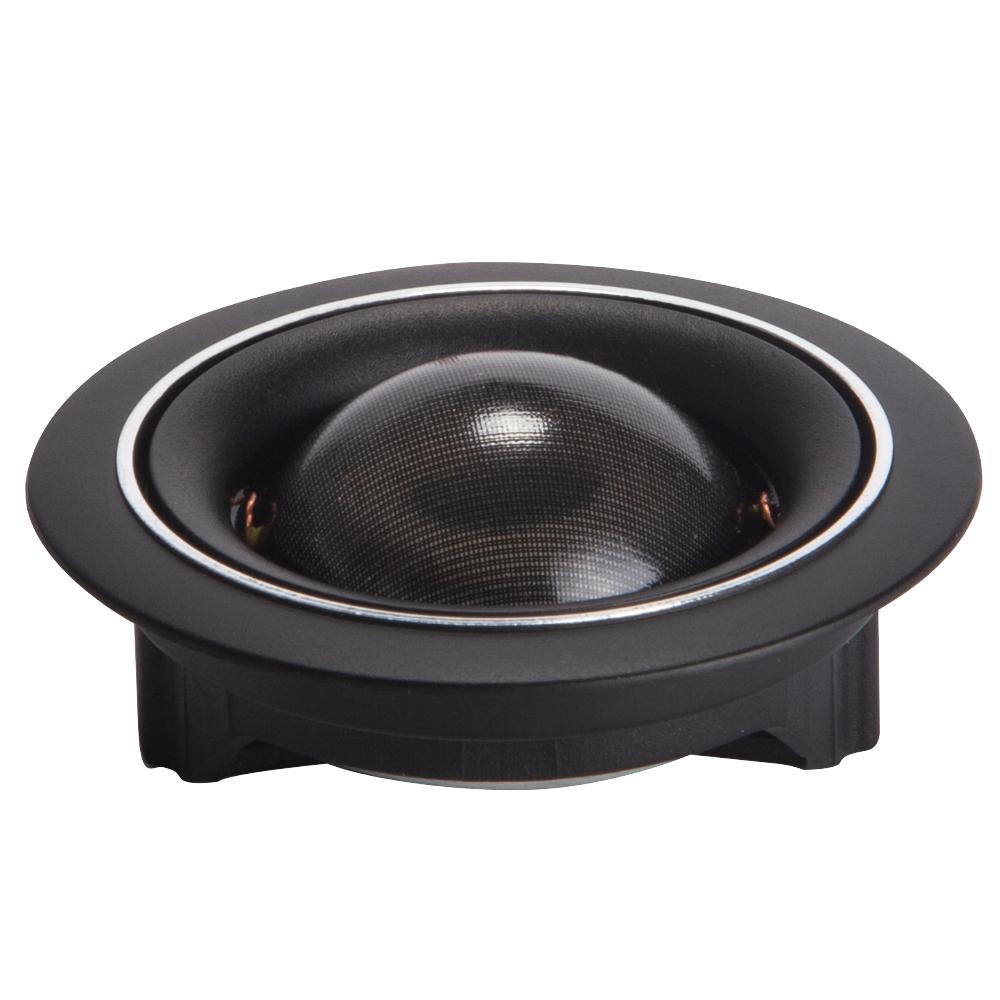

Handcrafted Acuflex Soft Dome

A specially engineered damping compound applied to the soft dome diaphragm creates controlled cancelling breakup (accurate–flexing), where each breakup mode is counteracted by another in the opposite direction. The result is a natural, undistorted sound.

Neodymium Magnet

Neodymium magnets allow Morel to build physically compact tweeters and midrange drivers that fit in tight spaces without compromising sound quality.

Hexatech™ Aluminium Voice Coil

Formed from 100% aluminium wire in a honeycomb shape, the Hexatech™ voice coil reduces air gaps in the coil windings, increasing efficiency by up to 20%. Its low mass contributes to the fast transient response Morel drivers are known for.

Hybrid Magnet Motor

The Hybrid motor combines a ferrite magnet with a high-strength neodymium magnet to create a compact, lightweight and powerful motor system. More amplified power is converted into sonic energy, delivering strong performance even in smaller drivers.

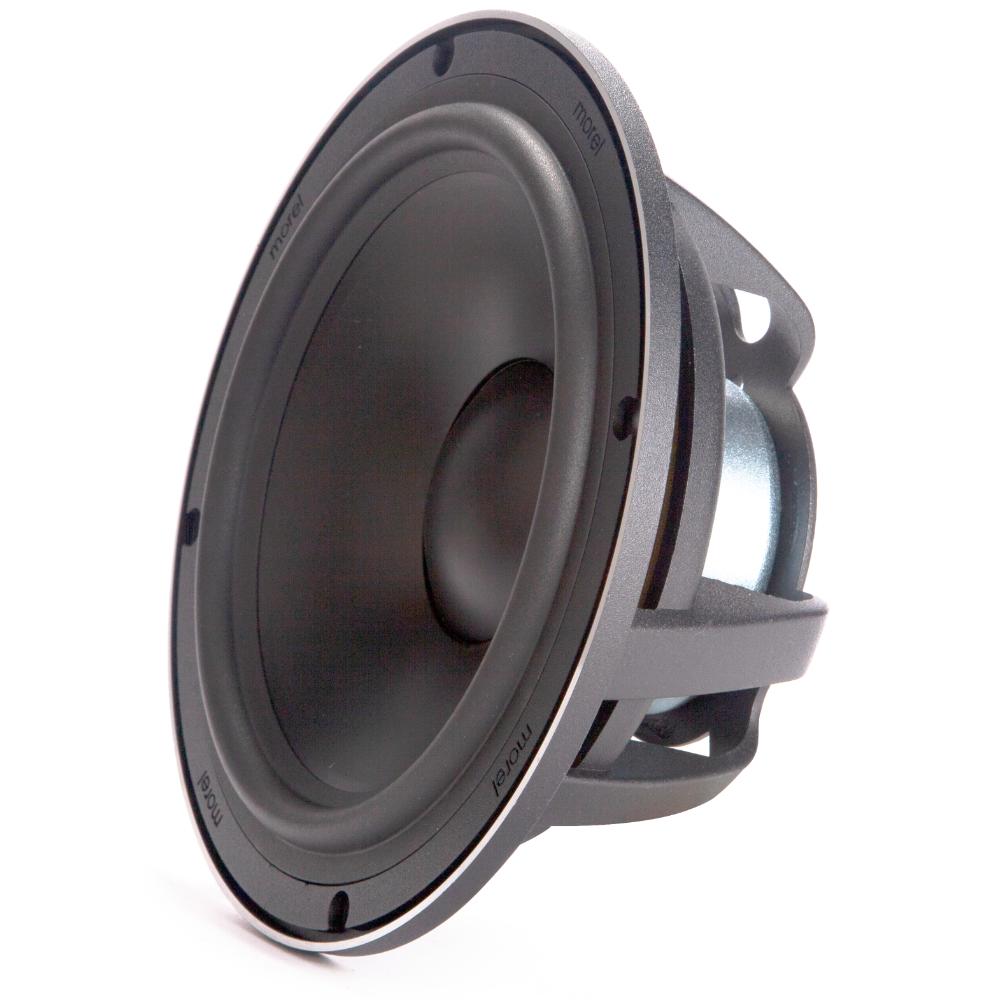

DPC Cone

The Damped Polymer Cone (DPC) uses high self-damping characteristics to deliver clear sound without colouration or harshness.
