Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS

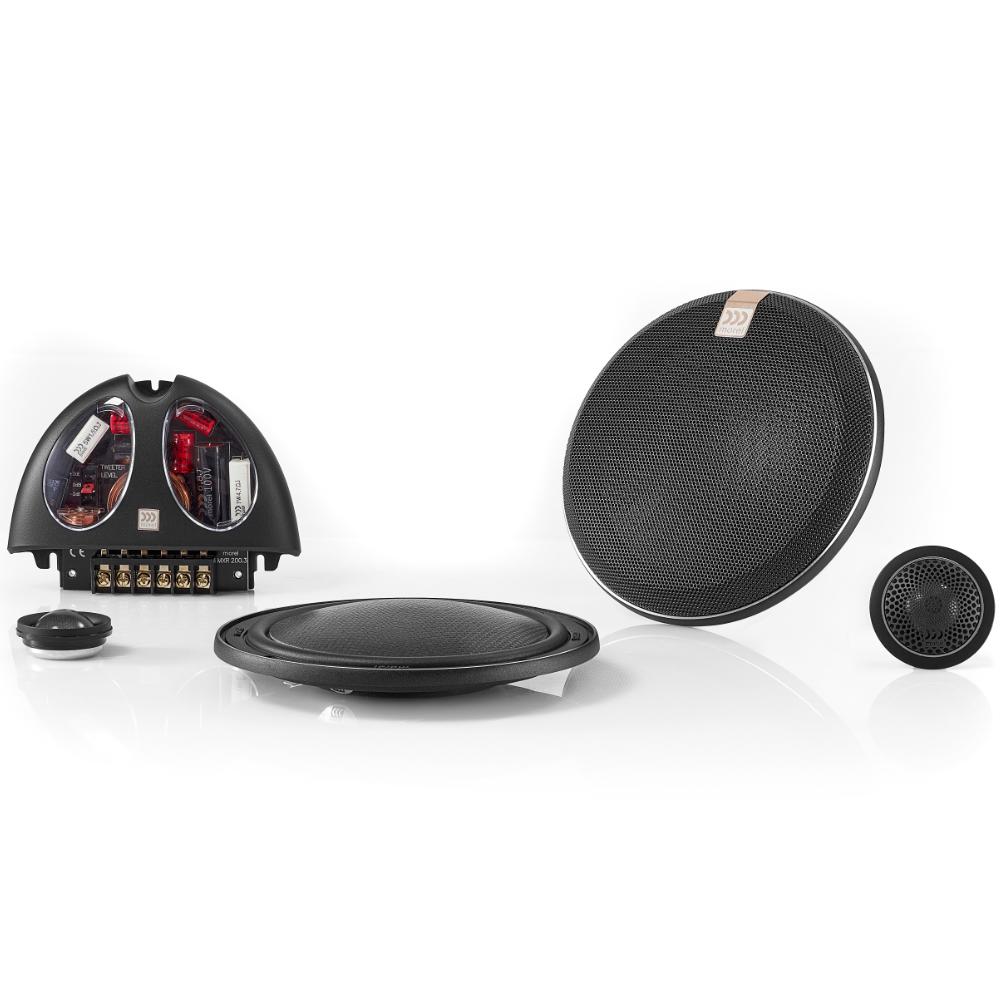

The Morel Virtus Nano Carbon 62 is a 6.5-inch 2-way shallow-mount component speaker system from Morel's Virtus Nano Carbon range, rated at 100 W RMS. The woofer is just 17 mm (0.7 inch) deep, making it suitable for very shallow door and panel locations.

Key specifications

• Size: 6-1/2" 2-way component system
• Power handling: 100 W RMS (300 W peak)
• Impedance: 4 ohm
• Sensitivity: 88 dB at 2.83 V
• Frequency response: 50 – 22,000 Hz
• Top-mount depth: 11/16" (woofer 17 mm deep)
• Cutout diameter: 5-3/8"
• Woofer: carbon/foam core Grand Dome cone, 2.1" Hexatech voice coil

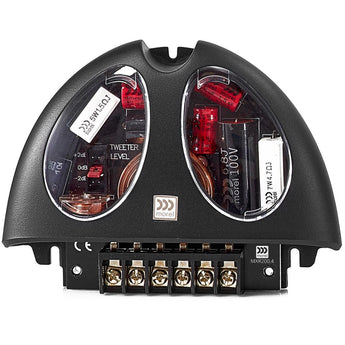

• Tweeter: MT120N silk dome, MXR200.4 crossovers included

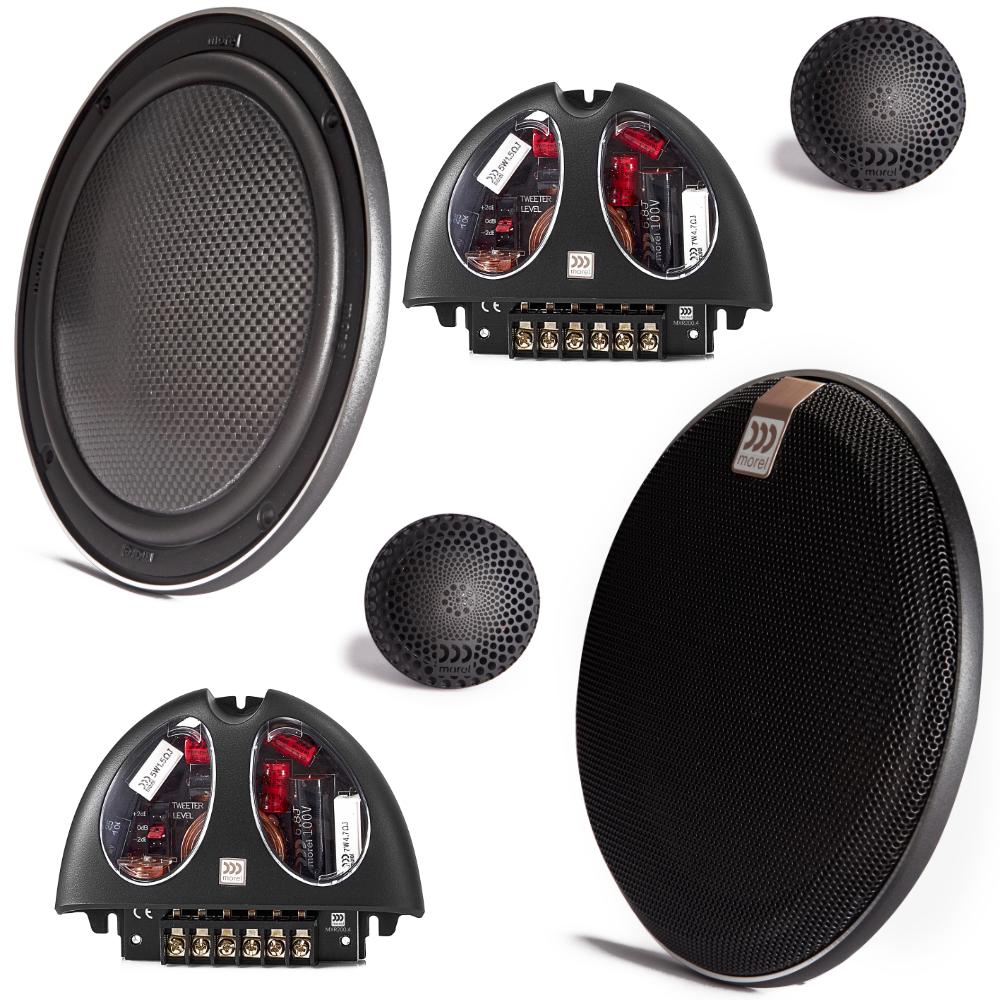

Virtus Nano Carbon Series 6-1/2" 2-way component speaker system

The Virtus Nano Carbon is designed for car audio enthusiasts who need genuine acoustic performance from a very shallow install. It is available in 2-way, 3-way and point source configurations.

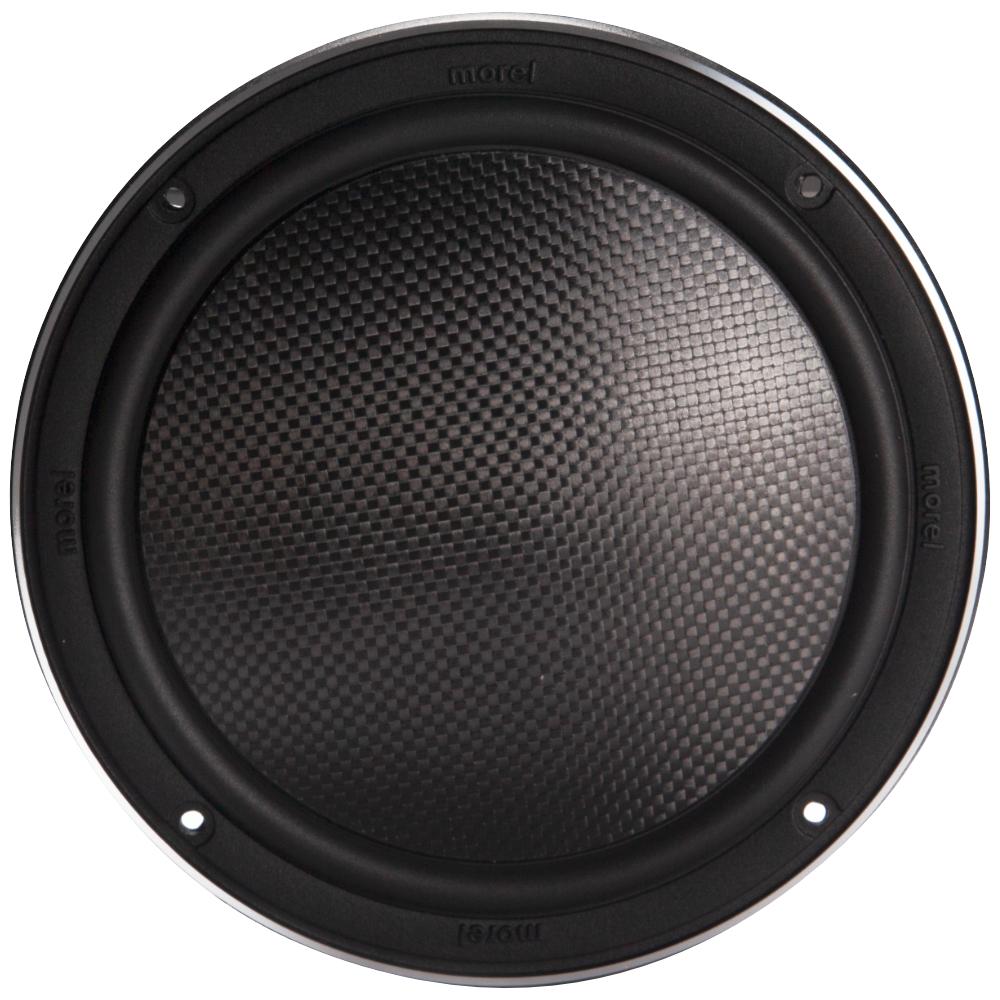

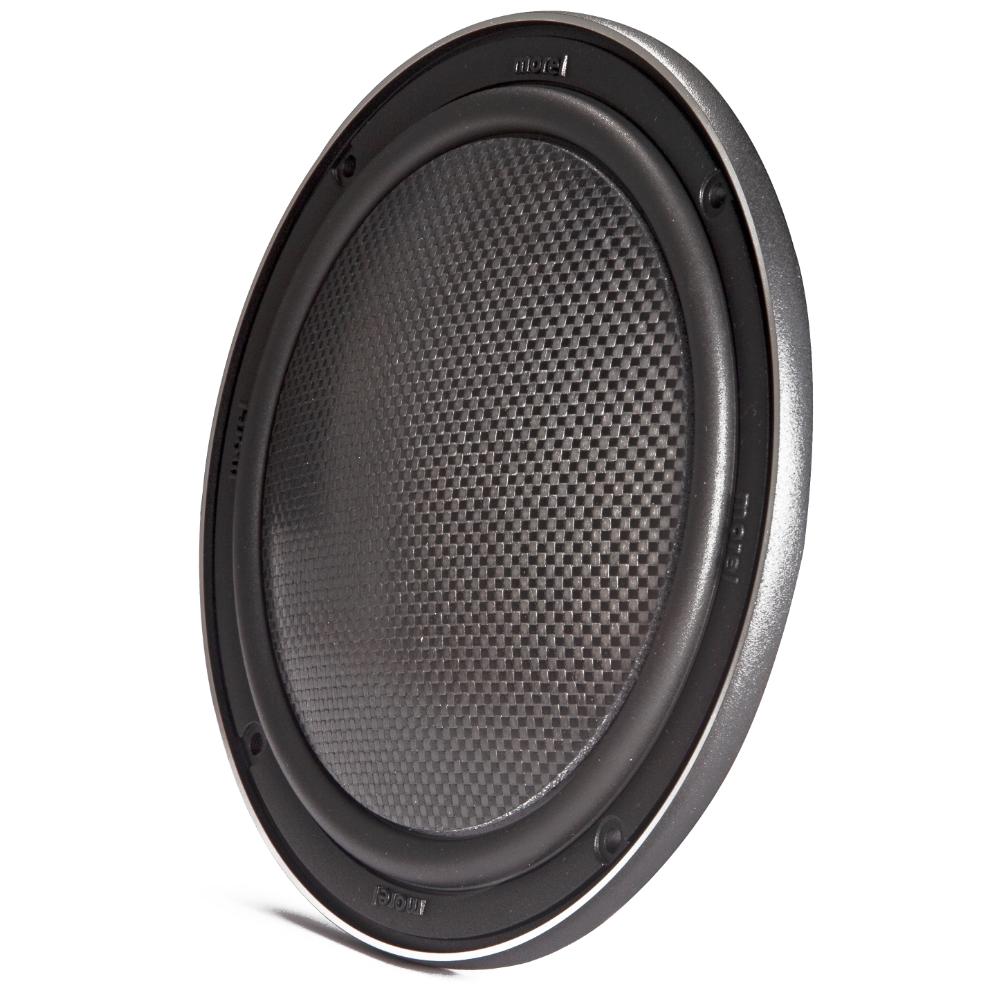

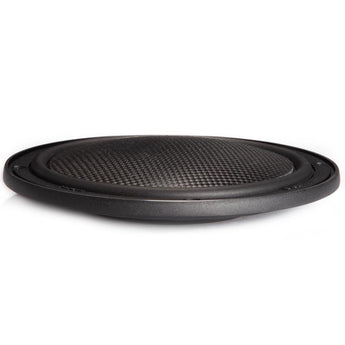

The 6.5-inch woofer measures just 0.7 inches (17 mm) deep, achieved through an innovative suspension design, a high-output neodymium magnet system, a 2.1" Hexatech aluminium voice coil and a Grand Dome carbon fibre sandwich cone.

Despite its slim profile, the Virtus Nano Carbon delivers wide dynamic range and detailed mid-bass without performance compromise.

C.A.R. Filter

Controlled Acoustic Resistance. Most speakers in automotive use are installed in a free-air environment such as a door, which provides little acoustic loading. The C.A.R. Filter™ controls airflow within the driver to mimic cabinet loading, improving power handling by 30% and giving greater control over cone movement for better bass dynamics.

EVC motor

EVC™ (Extended Voice Coil) technology uses a large-diameter voice coil with the magnetic drive system positioned inside it. This eliminates stray magnetic flux, directing all magnetic energy to the voice coil. The result is a compact, efficient design with effective heat dissipation and reduced cone breakup for lower distortion.

Grand Dome geometry

Grand Dome Geometry is a stiff, convex cone design that provides strong off-axis performance, allowing flexibility in speaker placement within the vehicle. The well-damped cone handles mid-bass frequencies effectively.

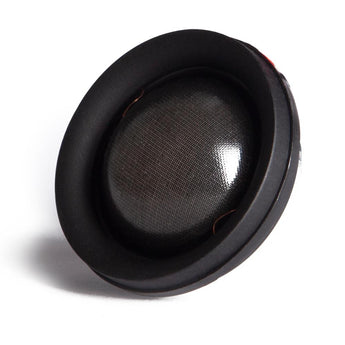

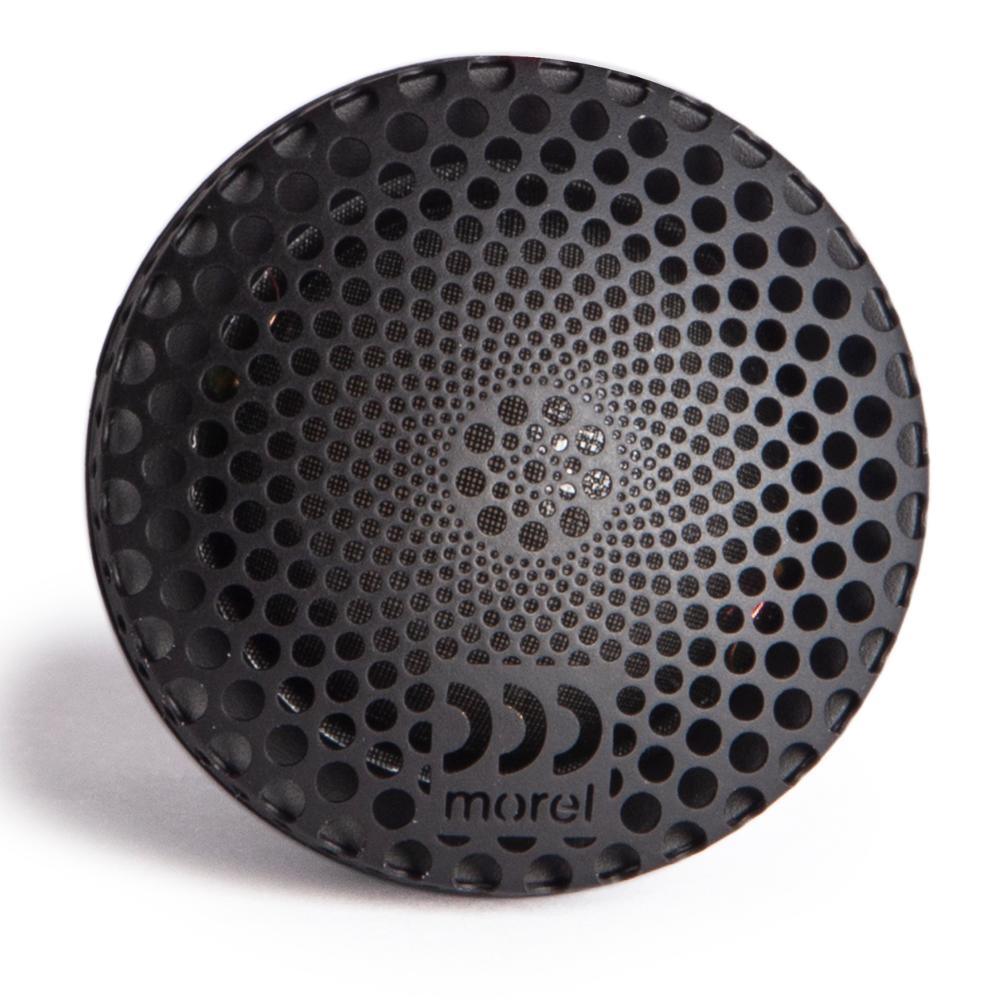

Handcrafted Acuflex soft dome

A specially engineered damping compound is applied to the soft dome diaphragm. It creates controlled, cancelling breakup modes — each breakup mode is counteracted by another in the opposite direction — leaving clean, natural sound that Morel tweeters are known for.

Neodymium magnet

Neodymium is the most powerful magnet material available. It allows Morel to build physically compact drivers — including tweeters and midrange units — that fit into tight spaces without compromising sound quality.
