Morel Virtus Nano Carbon 63 3 Way Shallow Mount Component Speakers 100w RMS

The Morel Virtus Nano Carbon 63 is a 6.5-inch 3-way component speaker system from Morel's Virtus Nano Carbon series, rated at 100 W RMS. The woofers are just 17 mm (0.7 inch) deep, making this system suited to shallow door locations where a full three-way front stage is required.

Key specifications

• Size: 6-1/2" 3-way component system
• Power handling: 100 W RMS (300 W peak)
• Impedance: 4 ohm
• Sensitivity: 88 dB at 2.83 V
• Frequency response: 50–22,000 Hz

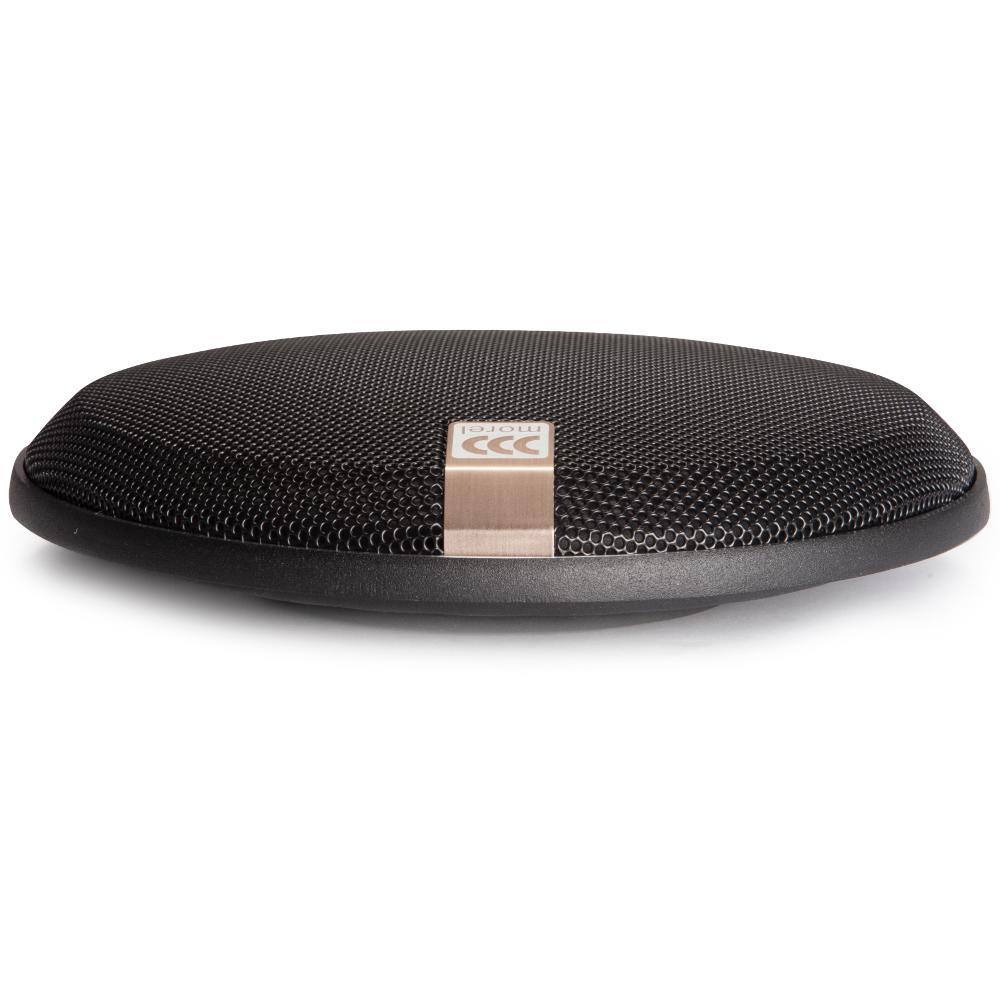

• Top-mount depth: 11/16" (woofer 17 mm deep)
• Cutout diameter: 5-3/8"

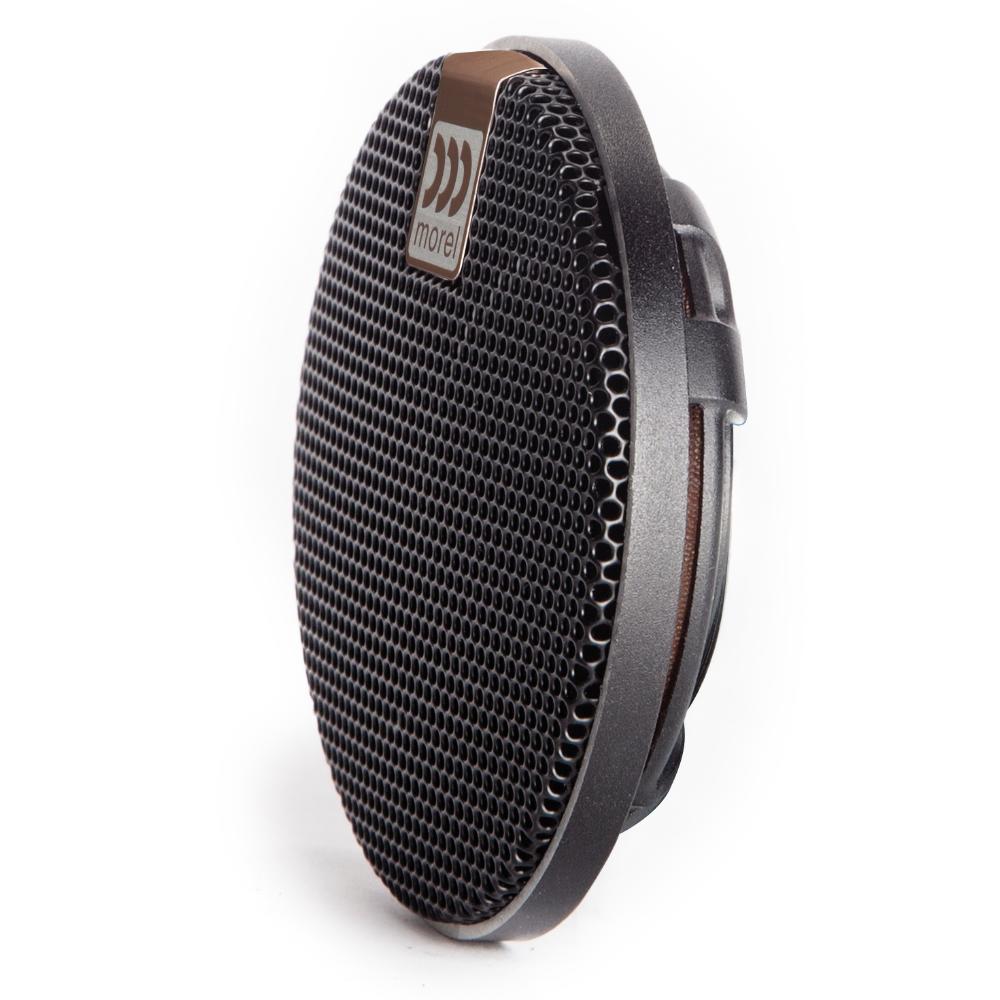

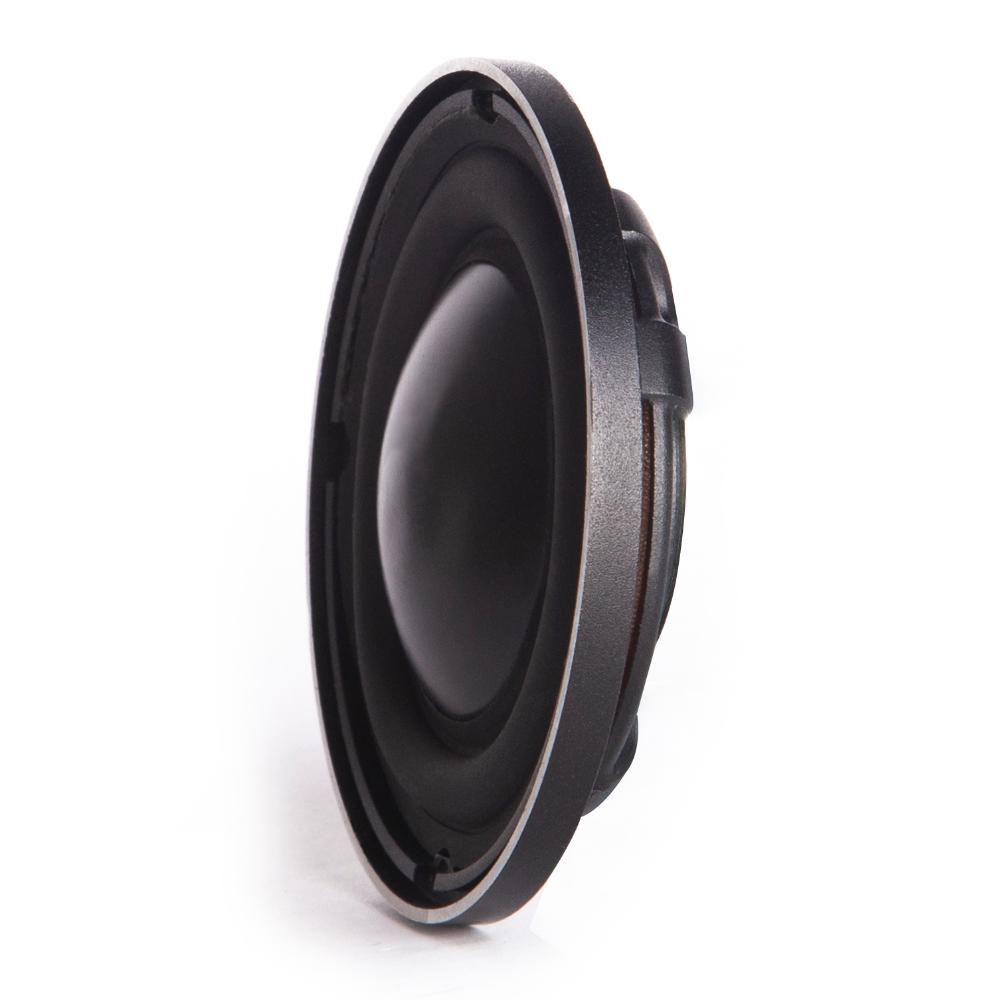

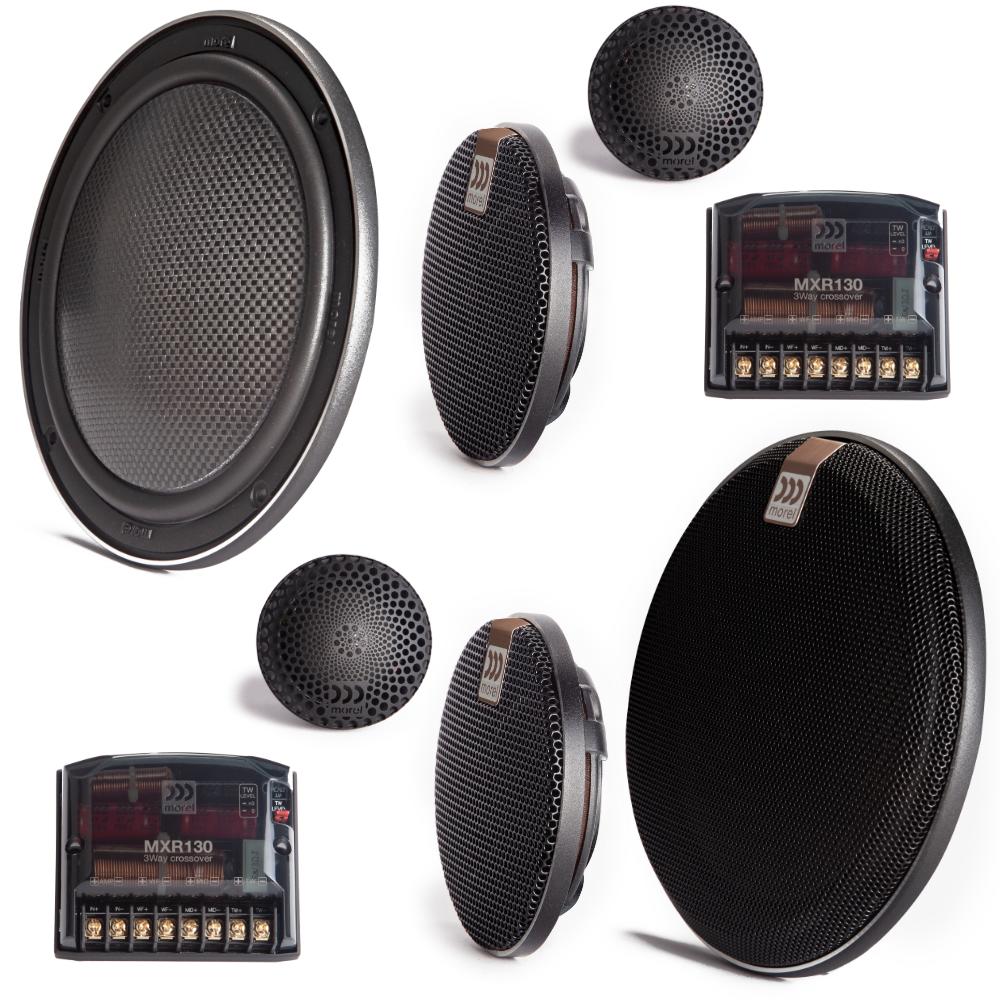

• Drivers: Nano MW6 woofers, MM2 midranges, MT120N silk dome tweeters

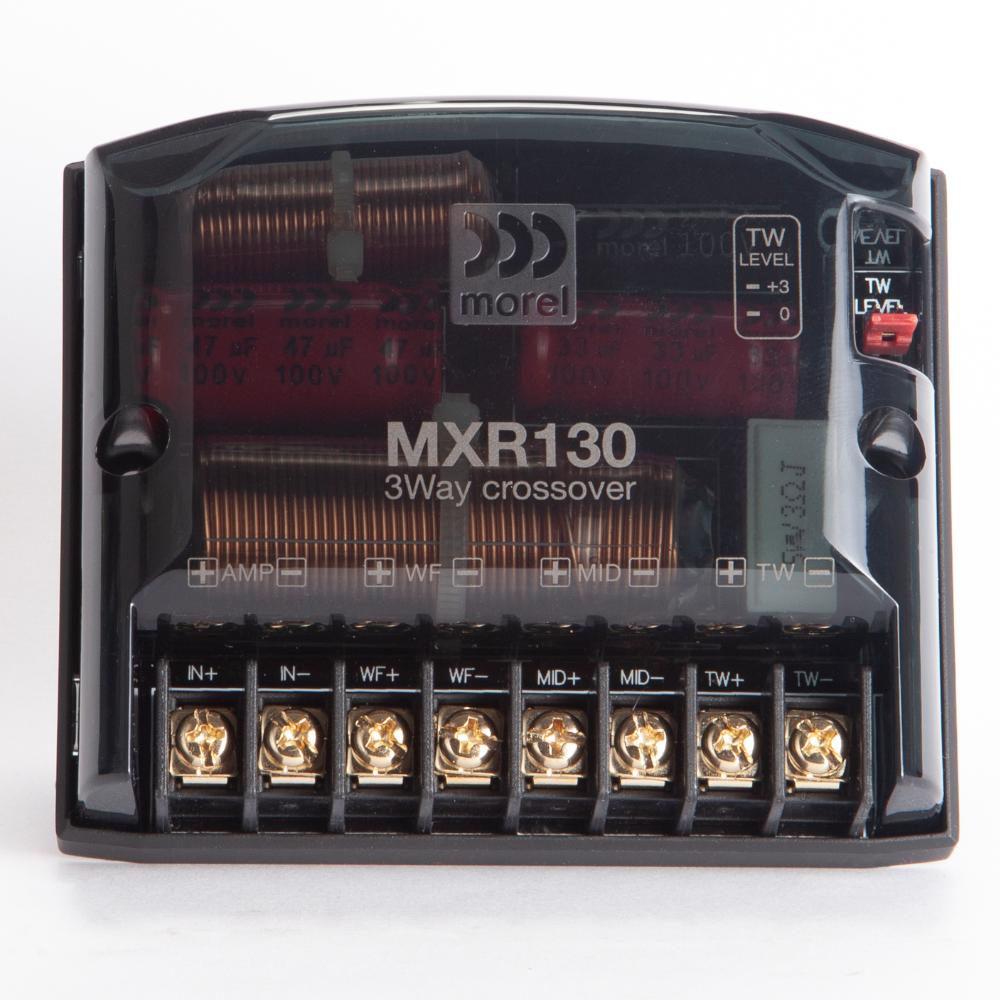

• Crossovers: MXR130

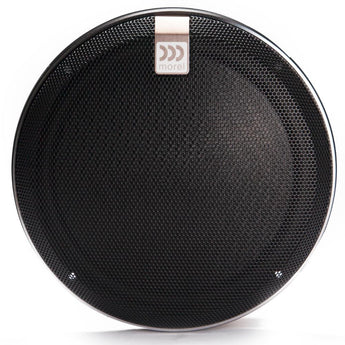

Virtus Nano Carbon 63: 6-1/2" 3-way component speaker system

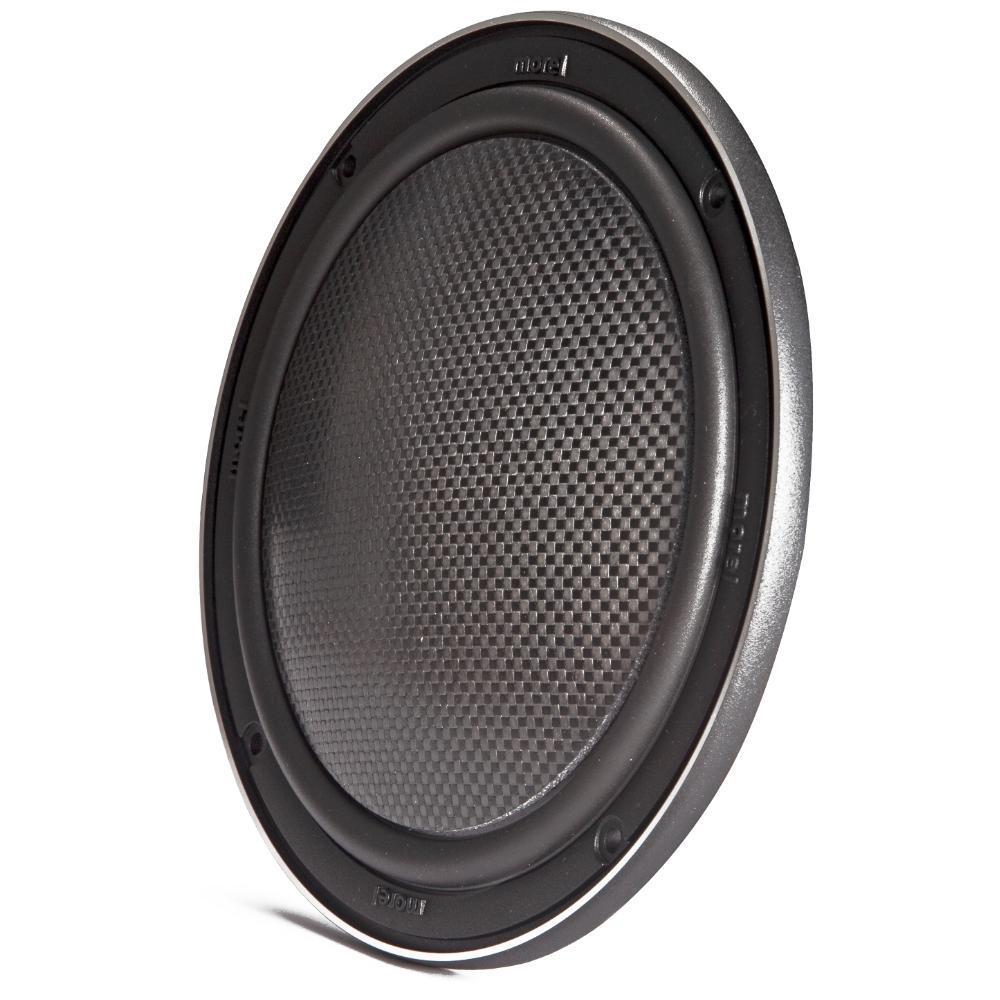

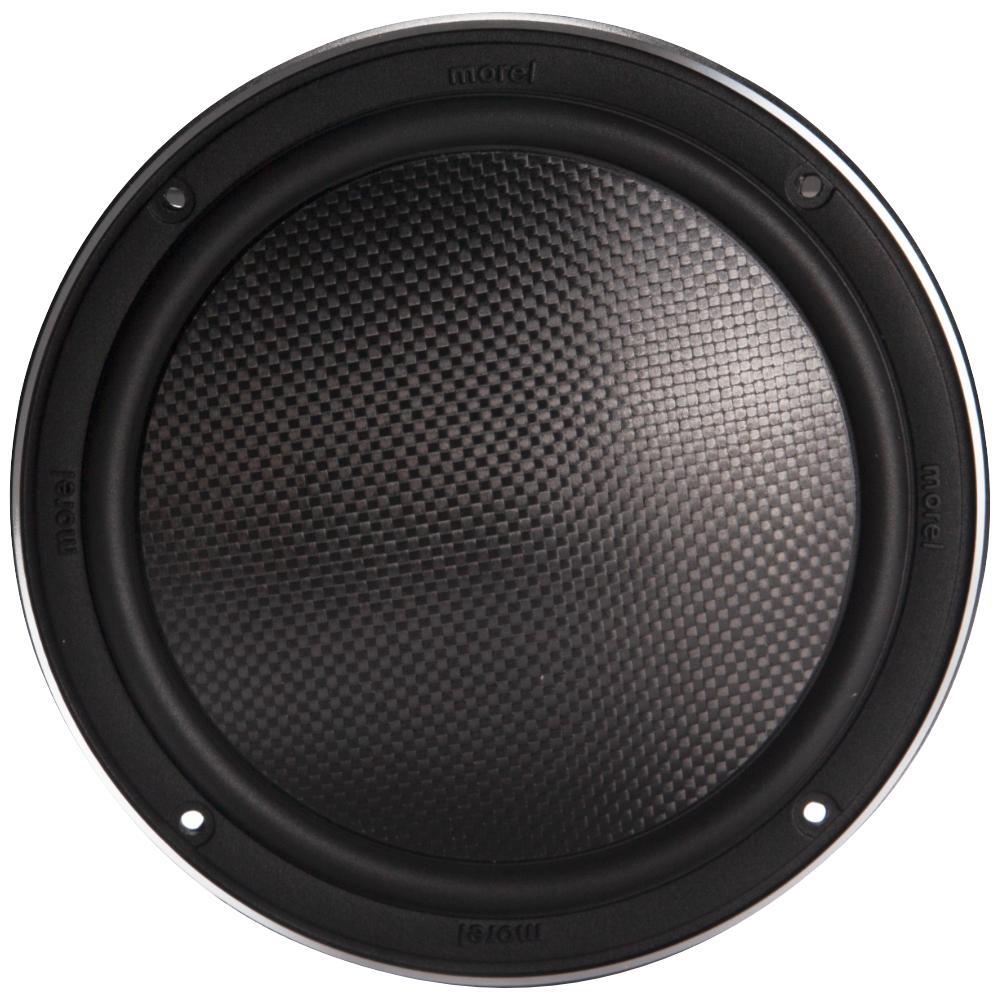

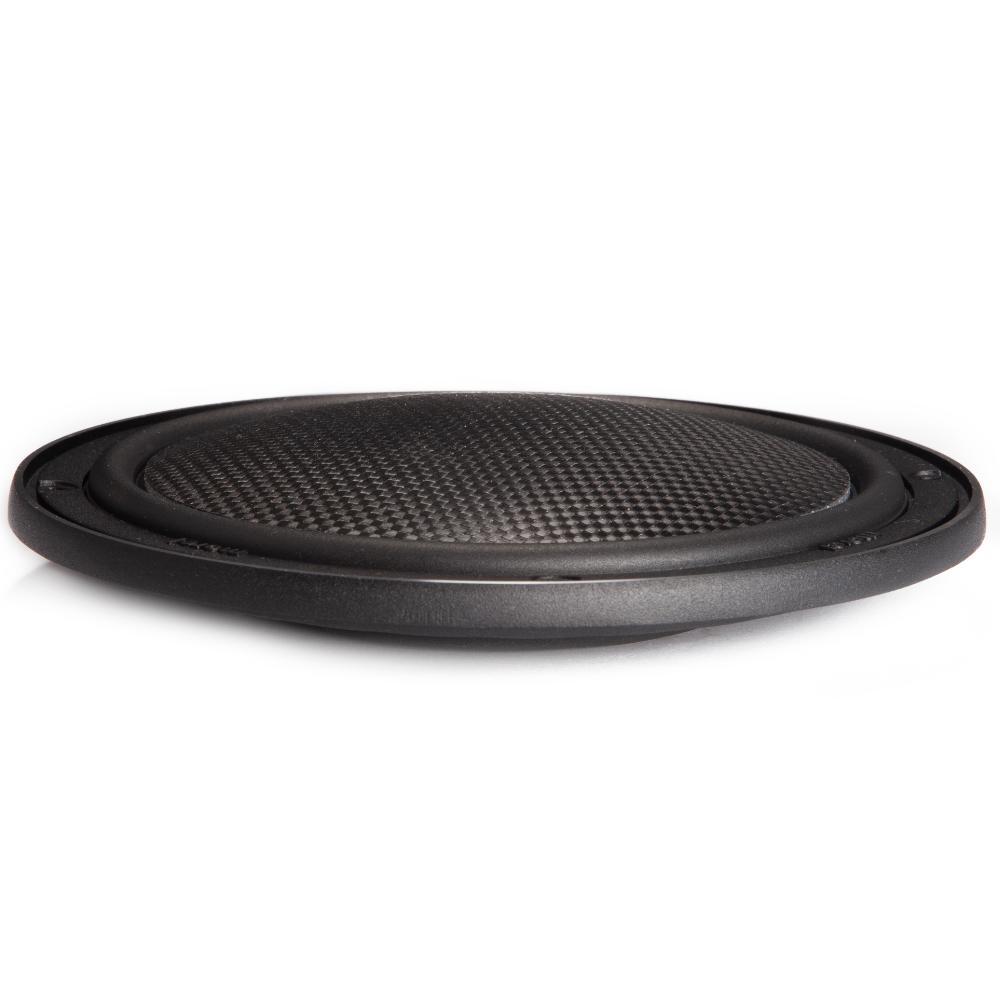

Morel's Virtus Nano Carbon and Virtus Nano Integra Carbon systems use an ultra-slim profile designed for very shallow mounting locations. The 6.5-inch woofers measure just 0.7 inches (17 mm) deep — achieved through an innovative suspension design, a high-powered Neo magnet system, a 2.1-inch Hexatech aluminium voice coil and a Grand Dome carbon fibre sandwich cone.

Despite its shallow depth, the Virtus Nano Carbon doesn't compromise on performance. It delivers wide dynamic range, strong bass and detailed, natural sound reproduction.

C.A.R. Filter

Controlled Acoustic Resistance. In most automotive installations speakers sit in a near free-air environment — such as a door — with minimal acoustic loading. The C.A.R. Filter™ controls airflow within the driver to mimic the effect of a cabinet, improving power handling by 30% and giving greater control over cone movement for better bass dynamics.

EVC motor

EVC™ (Extended Voice Coil) technology uses a very large-diameter voice coil with the magnetic drive system positioned inside it. This eliminates stray magnetic flux, directing all magnetic energy to the voice coil. The result is a compact, efficient design with effective heat dissipation and reduced cone breakup for lower distortion.

Grand Dome geometry

Grand Dome Geometry is a stiff, convex cone design that delivers excellent off-axis performance, allowing flexibility in speaker placement within the vehicle. The well-damped cone handles mid-bass frequencies accurately.

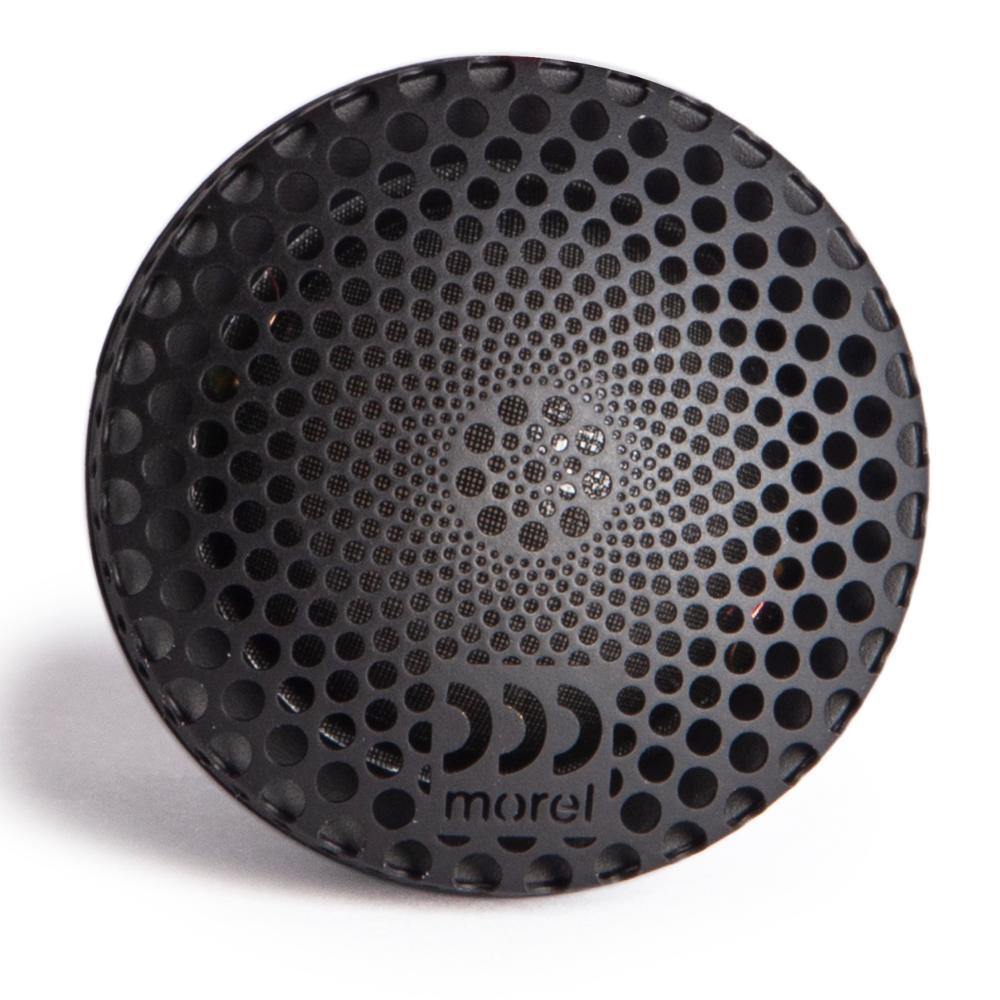

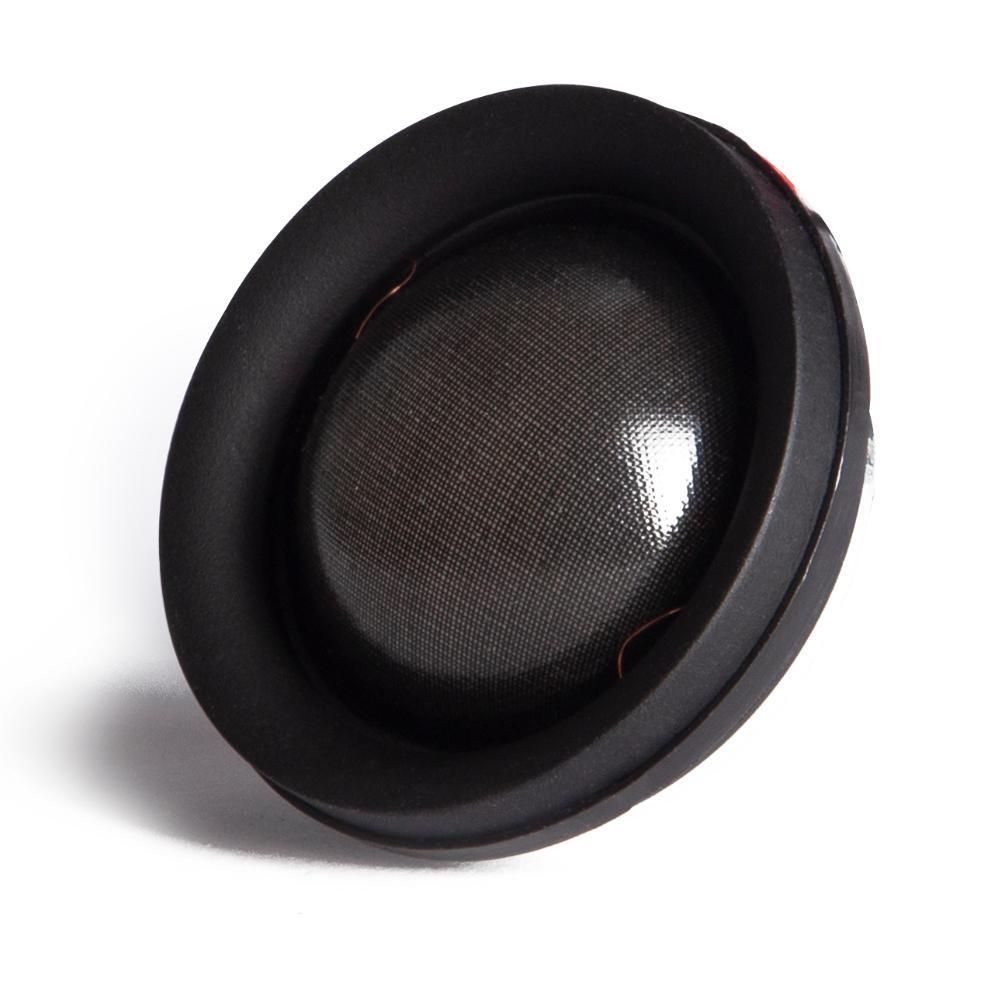

Handcrafted Acuflex soft dome

A specially engineered damping compound applied to the soft domes of Morel tweeters and midranges. The material combination creates controlled cancellation of breakup modes — each mode is counteracted by another in the opposite direction — leaving a pure, natural sound.

Neodymium magnet

Neodymium is the most powerful magnet material available. It allows Morel to build physically compact tweeters and midrange drivers that fit in tight spaces without sacrificing sound quality.
