Morel Sensus 62 2-Way 6.5 Inch Component Speaker System 120w RMS

£559.00
Low stock
SKU: 93107MPN: Sensus 62

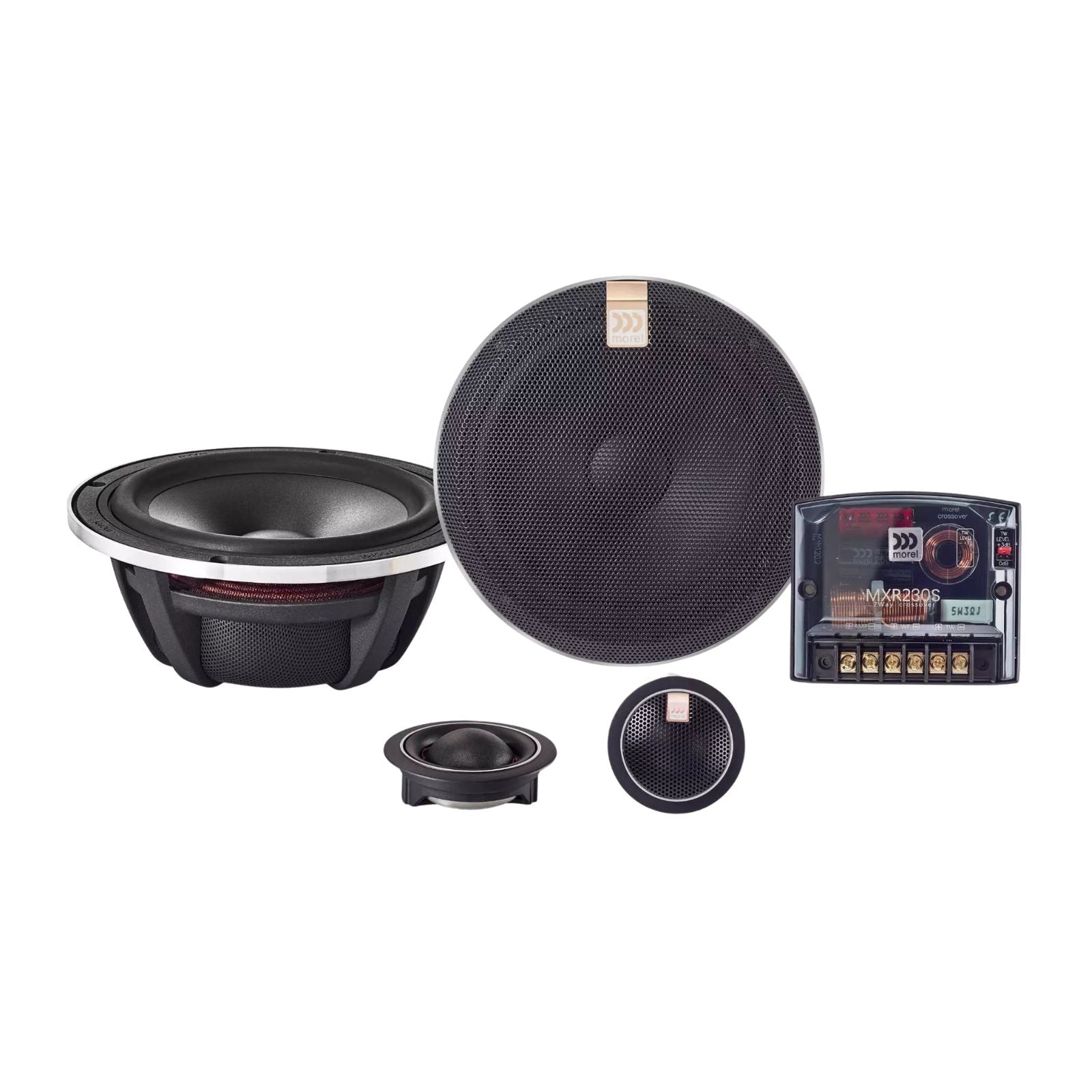

The Morel Sensus 62 is a 6.5-inch (165mm) 2-way component speaker system rated at 120W RMS, part of Morel's Sensus range. It pairs a DPC cone woofer with a 28mm Acuflex™ soft dome tweeter and a passive external crossover.

Key specifications

  • Type: 2-way component set
  • Woofer: 6.5" (165mm)
  • Tweeter: 1.1" (28mm) silk soft dome
  • Woofer cone: DPC (damped polypropylene composite)
  • Power handling: 120W RMS, 300W max
  • Sensitivity: 88dB (2.83V/1m)
  • Frequency response: 40Hz–25kHz
  • Crossover: passive external MXR230S, tweeter level 0/+3dB
  • Impedance: 4 ohms
  • Woofer mounting depth: approx. 64mm
  • Included: woofer grilles and mounting hardware

Morel Sensus 62

The Sensus 62 features a 6.5-inch (165mm) woofer with a one-piece DPC cone and butyl rubber surround for natural, distortion-free low-end response. The 1.1-inch (28mm) Acuflex™ soft dome tweeter integrates smoothly with the woofer, delivering detailed highs and wide dispersion up to 25kHz.

The external MXR230S crossover network divides frequencies accurately between drivers and includes an adjustable tweeter level (0/+3dB) to match cabin acoustics. With 120W RMS power handling and 88dB sensitivity, the Sensus 62 performs reliably in a range of install environments. Want a dedicated midrange driver? The Morel Sensus 63 3-way system adds a 3.5-inch midrange unit to the same 6.5-inch platform.

Features

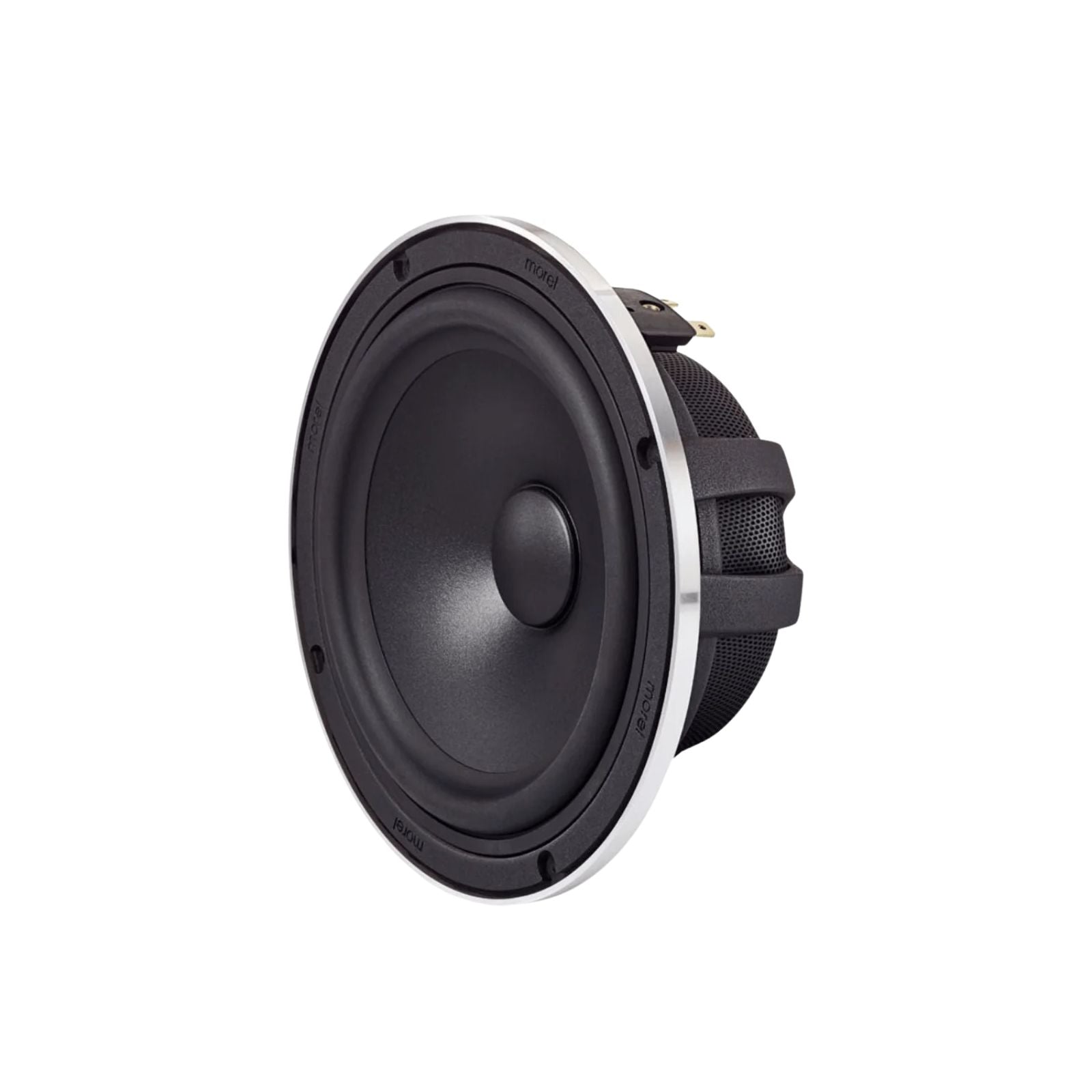

  • 6.5" (165mm) woofer — one-piece DPC (Damped Polypropylene Composite) cone with butyl rubber surround for detailed, distortion-free low-end response.

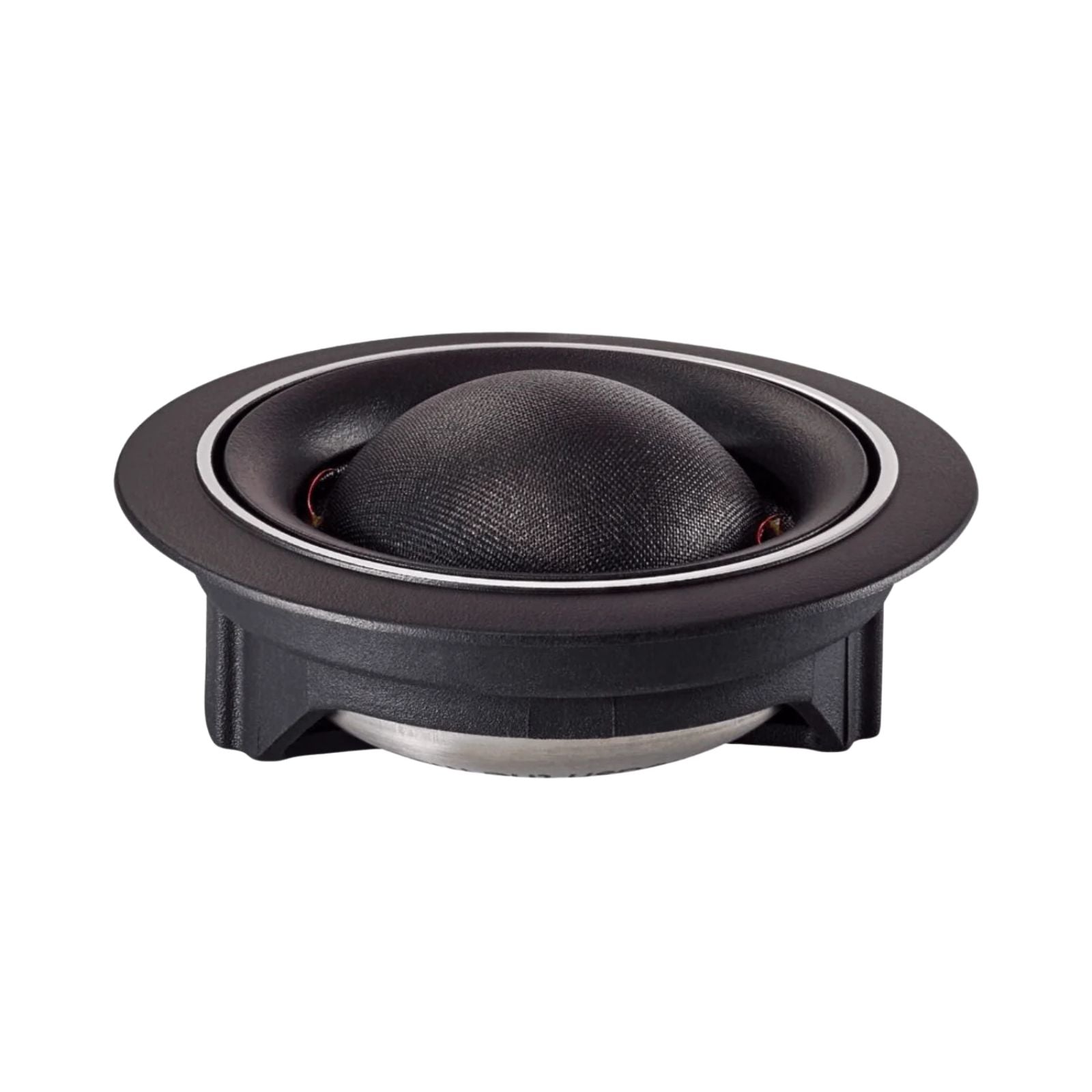

  • 28mm (1.1") Acuflex™ soft dome tweeter — Morel's proprietary damping compound delivers natural highs and smooth, fatigue-free listening up to 25kHz.
  • Passive external crossover (MXR230S) — accurate frequency division with adjustable tweeter level (0/+3dB) to fine-tune output to your cabin.
  • Shallow mounting depth of approx. 64mm for straightforward integration into most vehicle doors.

Explore the full range in 6.5 Inch Component Speakers.

Specification
Woofer6.5” (165mm) DPC (damped polypropylene composite) cone, hybrid magnet motor
Tweeter1.1” (28mm) handcrafted silk soft dome tweeter
Power Handling120W RMS / 300W max
Frequency Response40 Hz – 25,000 Hz
Sensitivity88 dB (2.83V/1M)
Nominal Impedance4 Ohms
Mounting Depth(Woofer) ~64mm
More specs
  • External 2-way MXR230S crossover network, tweeter level 0/+3dB
What's Included
  • 2 × 6.5" Woofers
  • 2 × 28mm Acuflex™ Dome Tweeters
  • 2 × Passive External Crossovers
  • 2 × Protective Grilles for Woofers
  • Full Mounting Hardware
  • User Manual & Installation Guide
Download Installation Guide(PDF)
Product information

Morel

About the Morel Sensus 62

From our tech experts at CEN

The Morel Sensus 62 is a 2-way component speaker set built around a 6.5 inch (165mm) DPC woofer and a 28mm Acuflex™ soft dome tweeter, rated at 120W RMS and 300W peak. It includes the passive external MXR230S crossover, woofer grilles, and full mounting hardware. Impedance is 4 ohms with 88dB sensitivity and a frequency range of 40Hz to 25kHz.

Who it suits

The Sensus 62 suits drivers who want a component speaker upgrade over factory-fit units and plan to position the tweeter separately for better sound staging. Those wanting a simpler coaxial installation may prefer the Morel Maximo Ultra 602 MKII coaxial; for a step up, consider the Morel Tempo Ultra 602 MKII.

Our tech experts advise

The woofer mounting depth is approximately 64mm, so measure your door cavity before ordering. The MXR230S crossover has a tweeter level switch at 0 or +3dB to fine-tune output to your cabin acoustics. Installation is priced per vehicle; see our Nottingham fitting service for details.

Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
