The Morel Sensus 63 is a 6.5-inch 3-way component speaker system from Morel's Sensus range, handling 120W RMS. It includes a 6.5-inch woofer, dedicated 3.5-inch midrange, 28mm Acuflex silk dome tweeter and passive external crossovers.
Key specifications
- Type: 3-way component set
- Woofer: 6.5" (165mm), DPC cone, butyl rubber surround
- Midrange: 3.5" (90mm)
- Tweeter: 28mm (1.1") Acuflex silk dome
- Power handling: 120W RMS, 300W peak
- Frequency response: 40Hz–25kHz
- Sensitivity: 88dB (2.83V/1m)
- Impedance: 4 ohms
- Woofer mounting depth: 61mm, cut-out: 141mm
Morel Sensus 63
The Sensus 63 builds on the Sensus 62 by adding a dedicated 3.5-inch (90mm) midrange driver, widening the frequency response and delivering a more detailed, expansive soundstage.
It shares the same 6.5-inch woofer and 28mm soft dome tweeter as the Sensus 62, but the added midrange excels at reproducing complex musical passages with greater depth and realism. The 3-way passive crossover network aligns all three drivers accurately for a natural, lifelike audio presentation.
With 120W RMS power handling and 88dB sensitivity, the Sensus 63 is built for those who demand the highest performance from their car audio system.
Features
- 6.5" (165mm) woofer — one-piece DPC (Damped Polymer Composite) cone for detailed, distortion-free low-end. Butyl rubber surround for durability and control.

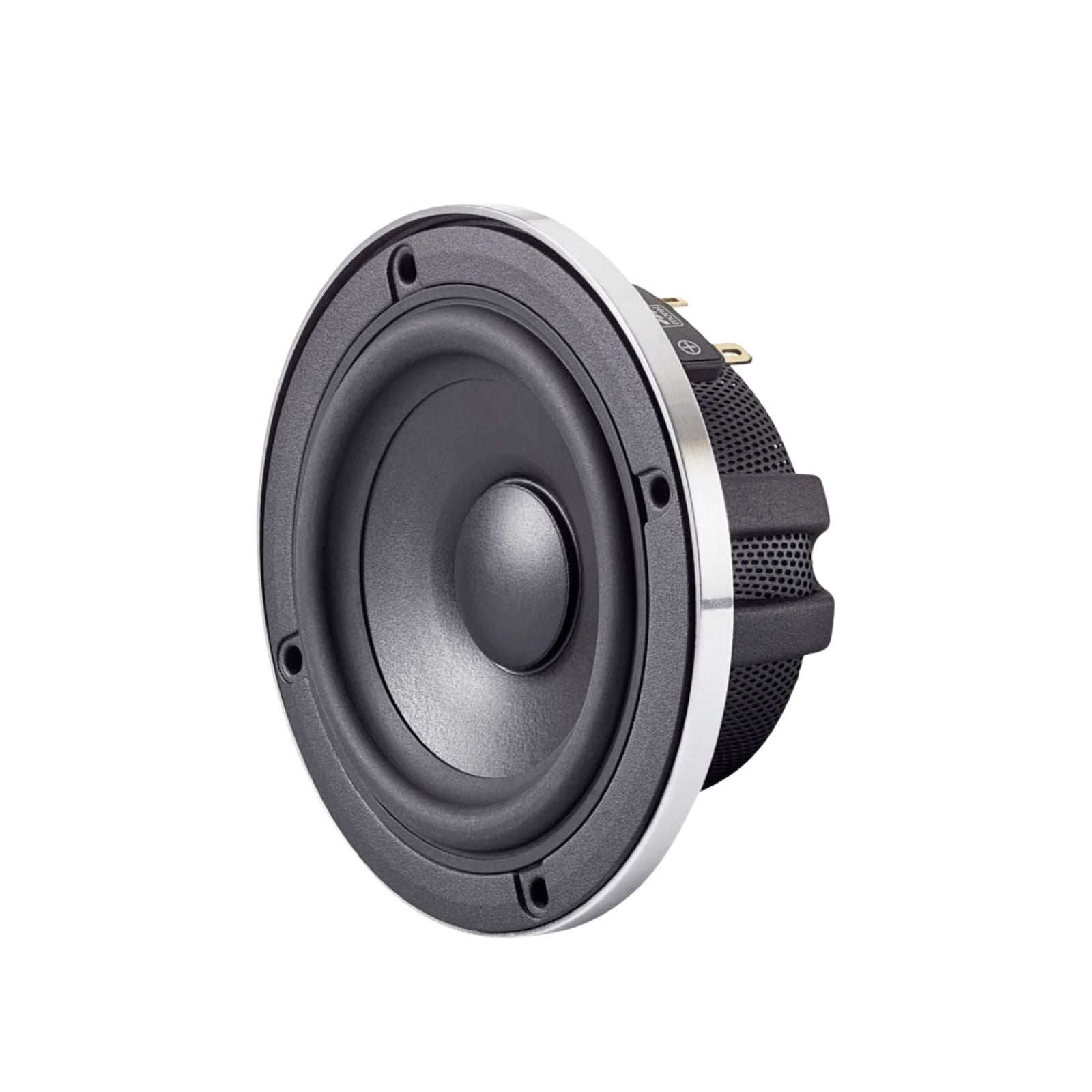

- 3.5" (90mm) midrange driver — dedicated midrange for enhanced vocal and instrumental clarity, bridging lows and highs with smooth tonal transitions.
- 28mm (1.1") Acuflex™ soft dome tweeter — silk dome coated with Morel's proprietary damping compound for natural highs and wide dispersion up to 25kHz.
- Passive external crossovers — accurate frequency division between all three drivers. Adjustable tweeter level (±2dB) to suit cabin acoustics.
- Compact construction — shallow mounting depth and premium materials for straightforward integration into most vehicles.
Explore the full range in 6.5 Inch Component Speakers.
Specification
| System Type | 3-Way Component Speaker Set |
|---|---|
| Woofer Size | 6.5" (165mm) |
| Midrange Size | 3.5" (90mm) |
| Tweeter Size | 28mm (1.1") Soft Dome |
| Power Handling | 120W RMS / 300W Peak |
| Frequency Response | 40Hz – 25kHz |
| Sensitivity | 88 dB (2.83V / 1m) |
| Nominal Impedance | 4 Ohms |
| Mounting Depth | (Woofer) 61mm (2.4") |
| Cutout Diameter (Woofer) | 141mm (5.55") |
| Crossover Slope | Optimized 2nd and 3rd order slopes |
| Magnet | Type Ferrite (woofer), Neodymium (tweeter & midrange) |

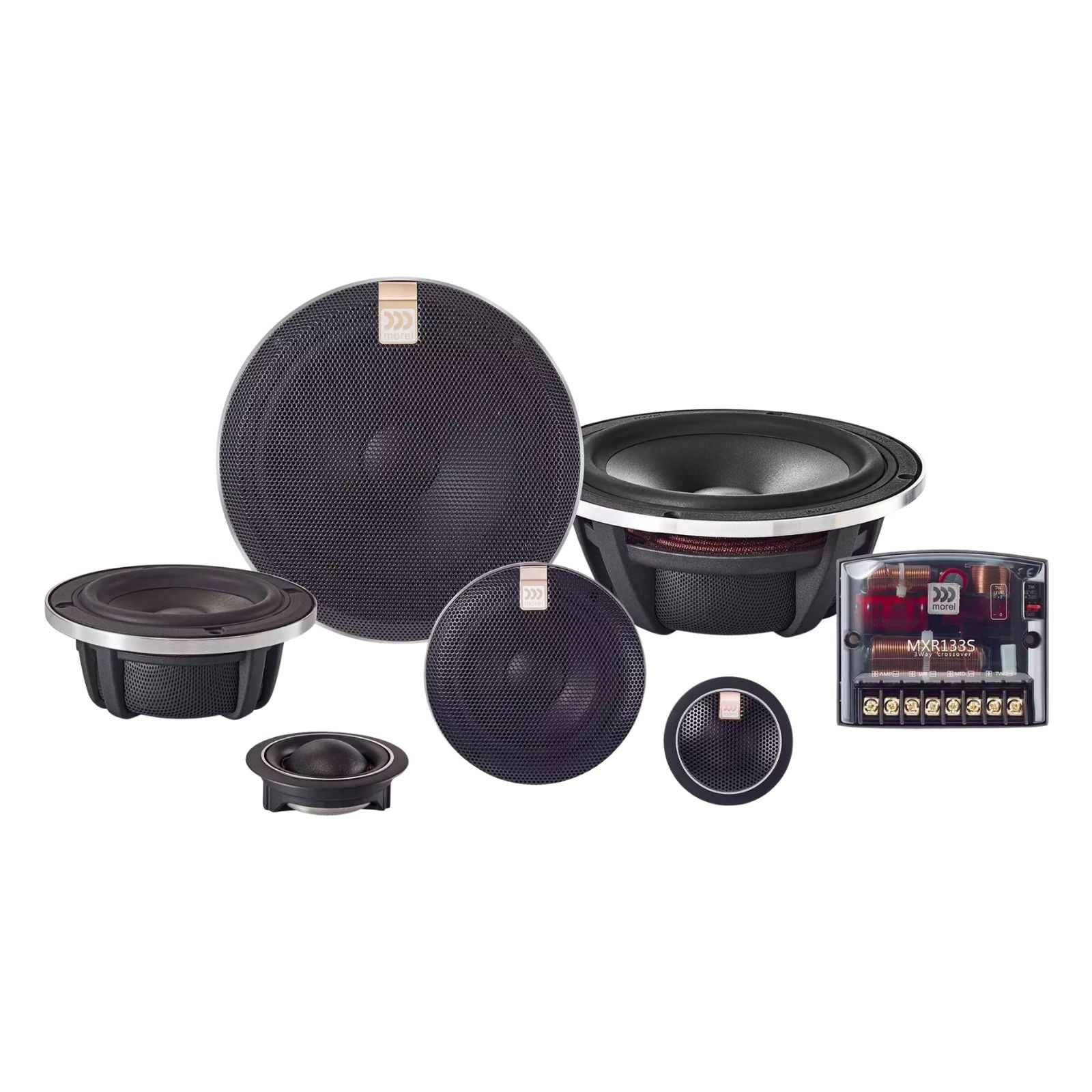

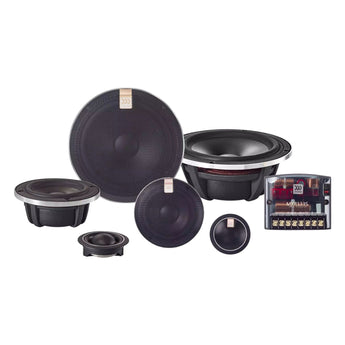

What's Included
- 2 × 6.5" Woofers
- 2 × 3.5" Midrange Drivers
- 2 × 28mm Acuflex™ Dome Tweeters
- 2 × Passive External Crossovers
- 2 × Protective Grilles for Woofers
- Full Mounting Hardware
- User Manual & Installation Guide
Morel
About the Morel Sensus 63
From our tech experts at CEN
The Morel Sensus 63 is a 3-way 6.5 inch component speaker system rated at 120W RMS. It pairs a 6.5 inch DPC cone woofer and 28mm Acuflex silk dome tweeter with a dedicated 3.5 inch midrange driver, covering 40Hz to 25kHz. Passive external crossovers are included in the box.
Who it suits
The Sensus 63 suits listeners who want more midrange clarity and depth than a 2-way set delivers, particularly with vocal-heavy or acoustic music. For a simpler 2-way alternative, the Morel Tempo Ultra 602 MKII is worth considering.
Our tech experts advise
The woofer requires a 141mm cutout and 61mm mounting depth, so measure your door cavity before ordering. At 88dB sensitivity and 4 ohms, a dedicated amplifier is recommended to reach the full 120W RMS rating. The passive crossover offers ±2dB tweeter level adjustment to balance output in your cabin. Installation is priced per vehicle; visit our Nottingham workshop page for details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel
More options from the same range, in stock and ready to go
Morel Maximo Ultra 602 HE MKII 6.5 Inch 2 Way Component Car Door Speakers 90w
£329.00
View product
Morel Virtus Nano Carbon Integra 62 6.5” 2 Way Shallow Mount Speakers 100w RMS
£849.00
Morel Virtus Nano Carbon 62 2 Way Shallow Mount Component Speakers 100w RMS
£899.00
Morel Maximo Ultra 602 MKII 6.5 Inch 2 Way Component Car Door Speakers 100w RMS
£319.00
Morel Tempo Ultra 602 MKII 6.5 Inch 2 Way Component Car Door Speakers 130w RMS
£399.00
Frequently Asked Questions
Q: Will these speakers fit my car?
A: Most car speakers are standard sizes, but mounting depth and fitting rings vary by vehicle. Check the size in the Specification tab against your vehicle, or contact CEN with your registration and we will confirm fitment and any adapters or fitting kits you need.
Q: Do I need an amplifier to run these speakers?
A: Not always. Most speakers will run from a standard head unit, but a dedicated amplifier lets them perform at their best, particularly for component sets and higher power handling models. The RMS figure in the Specification tab is the guide to how much clean power they can use.
Q: What is the difference between coaxial and component speakers?
A: Coaxial speakers combine the tweeter and woofer in one unit for a simple like-for-like upgrade. Component sets separate the tweeter and woofer with a crossover for better imaging and detail, and suit installs where sound quality is the priority.
Q: Do these come as a pair?
A: Unless stated otherwise, car speakers are sold in pairs. Check the product title and What's Included tab, which lists exactly what is in the box.
Q: Can CEN fit these speakers for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
Q: Does the Sensus 63 have a separate midrange?
A: Yes. It adds a dedicated 3.5-inch (90mm) midrange driver between the 6.5-inch woofer and 28mm tweeter, with passive external 3-way crossovers.
Q: What cut-out and depth does the Sensus 63 woofer need?
A: A 141mm (5.55in) cut-out and 61mm (2.4in) mounting depth.
Q: How much power can the Sensus 63 handle?
A: 120W RMS and 300W peak, with 88dB sensitivity (2.83V/1m) and 4 ohm impedance.
