Morel Hybrid MW6 MKII 6.5 Inch Component Woofers 140w RMS

The Morel Hybrid MW6 MKII are a pair of 6.5 inch component woofers rated at 140W RMS, featuring a one-piece DPC cone, 54mm Hexatech aluminium voice coil and hybrid ferrite/neodymium magnet motor. They are part of the Morel Hybrid range, designed for building or upgrading a Morel Hybrid component speaker system.

These are woofers only (no tweeters). Pair them with the Morel Hybrid MT300 tweeters, or choose the complete Morel Hybrid 62 component system.

Key specifications

• Size: 6.5" (165mm unit diameter)
• Impedance: 4 ohms
• Power handling: 140W RMS, 600W max transient
• Sensitivity: 91 dB (2.83 V/1m)
• Frequency response: 35 – 3,000 Hz
• Cone: one-piece DPC (damped polymer)
• Motor: hybrid ferrite and neodymium, rear vented, 54mm (2.1") Hexatech voice coil
• Mounting cutout: 141mm, mounting depth: 61mm

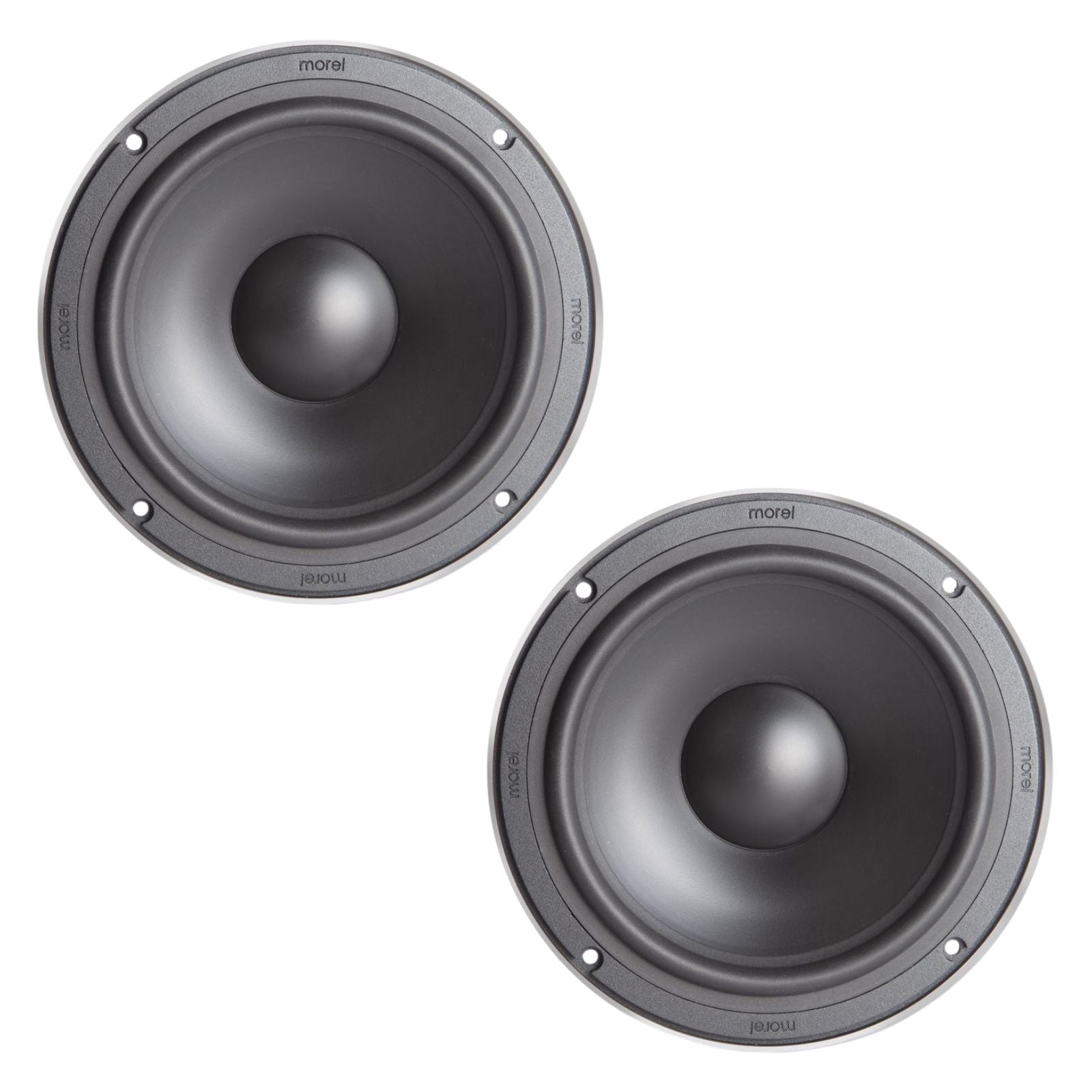

• Supplied as: pair (2 x MW6 MKII)

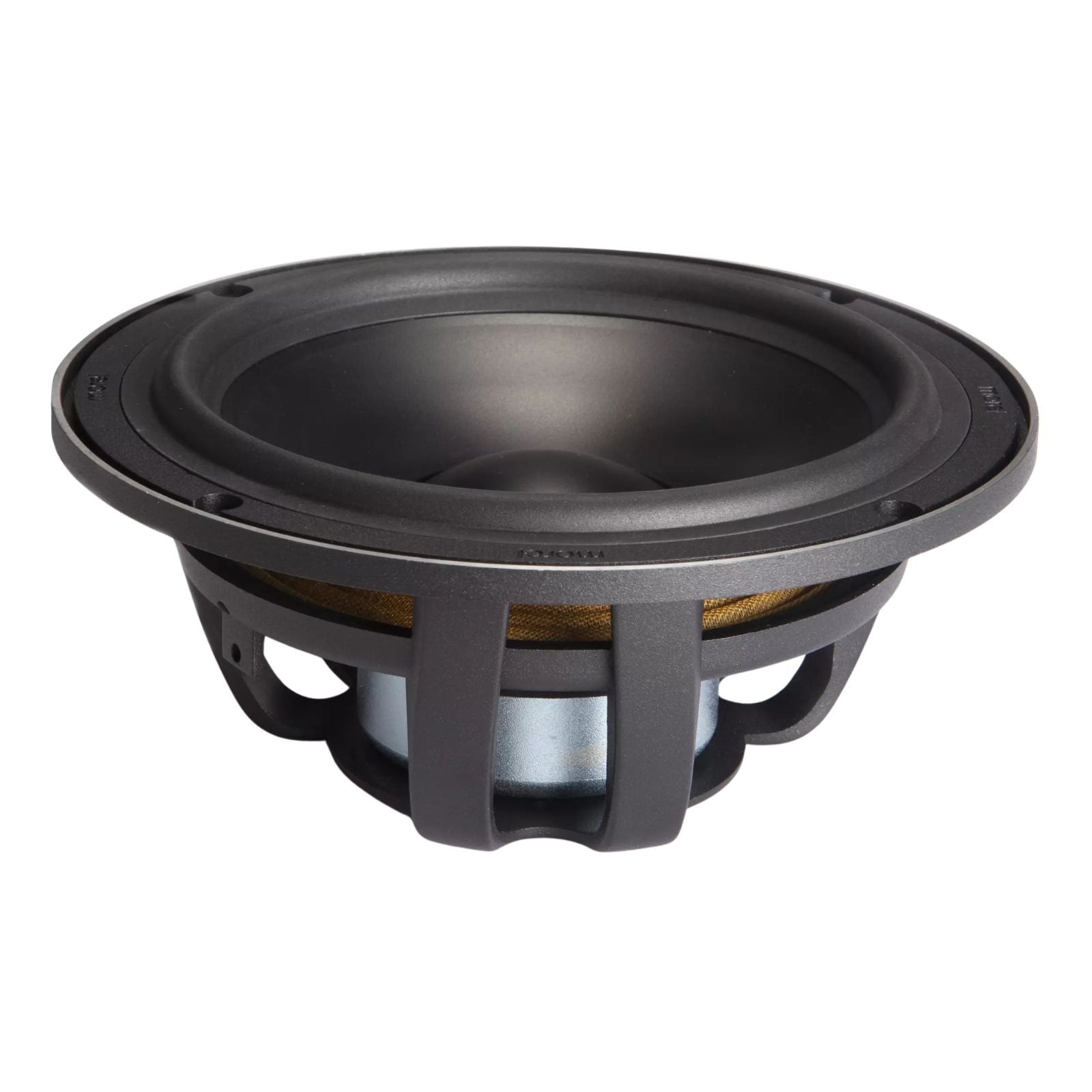

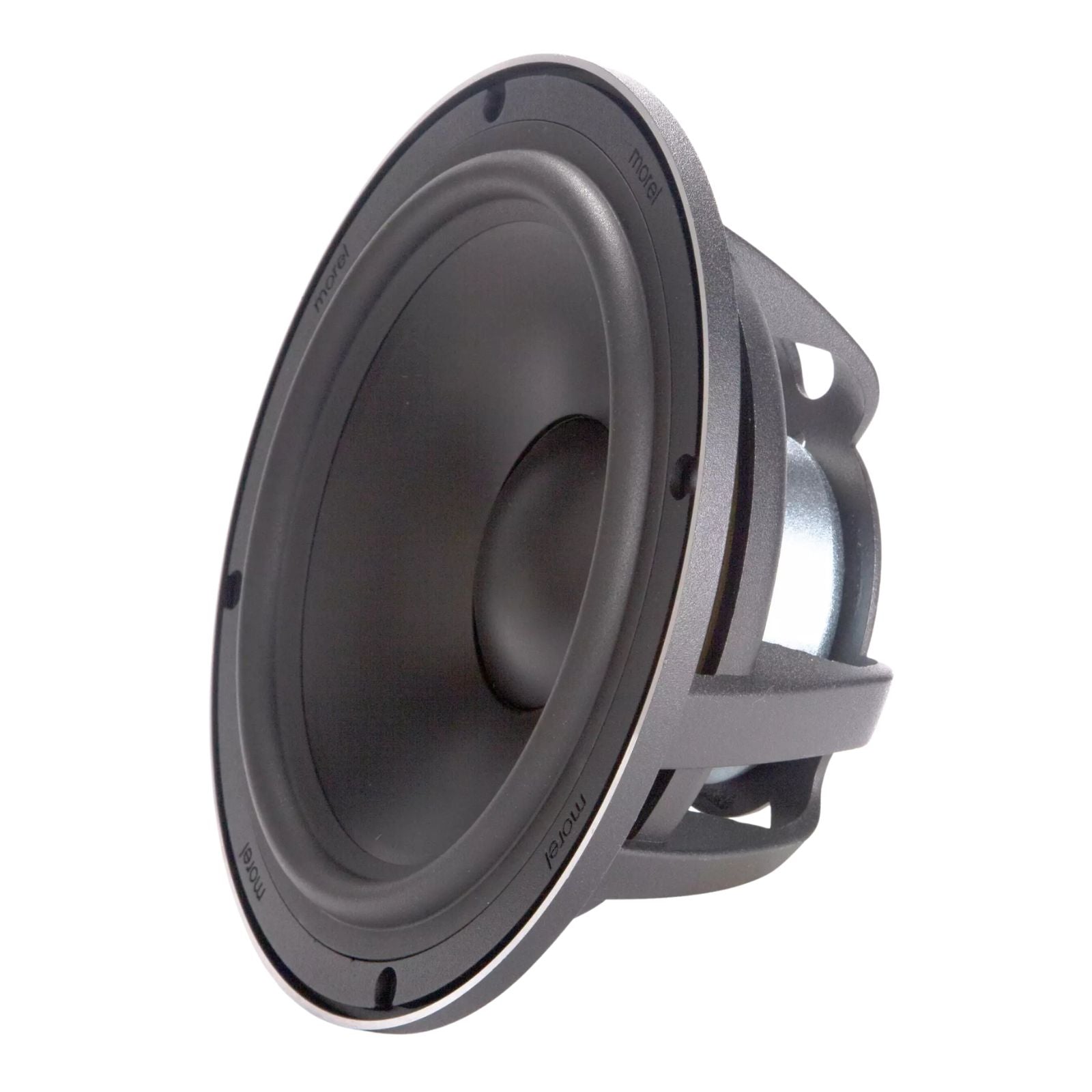

Morel Hybrid MW6 MKII woofer

All Hybrid MW models use Morel's core technologies. The 2.1" (54mm) aluminium Hexatech external voice coil is wound on an aluminium former, enabling stable, efficient and linear piston-like movement that reduces distortion.

Morel's one-piece DPC cone forms a flat geometric plane that improves sound dispersion and dynamics, producing a realistic three-dimensional sound presentation.

The Hybrid MW6 MKII's suspension improves the mechanical movement and stability of the membrane, contributing to low distortion at high power and better low-frequency dynamic range.

Features

DPC Cone

DPC (Damped Polymer Cone) is a direct derivative of the cones Morel has built its reputation on. High self-damping characteristics deliver exceptional sound quality without colouration or harshness.

Hexatech Aluminium Voice Coil

Made from 100% aluminium wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, increasing efficiency. Its low mass is a key reason for the fast transient response Morel drive units are known for.

Hybrid Magnet Motor

The hybrid motor combines a ferrite magnet with a powerful neodymium magnet to create a compact, lightweight and powerful motor system. More amplified power is converted into sonic energy, delivering consistent performance even in a small driver.
