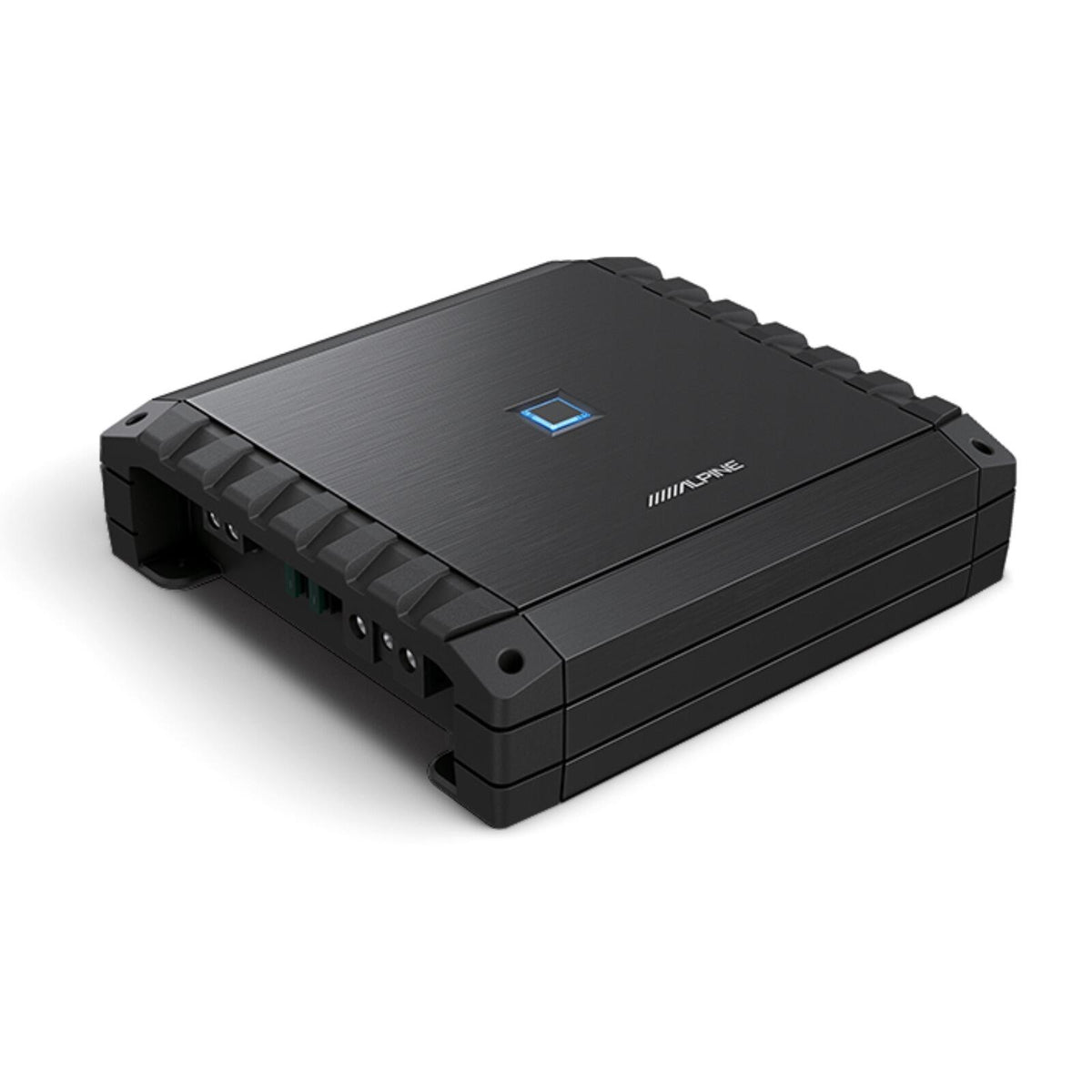

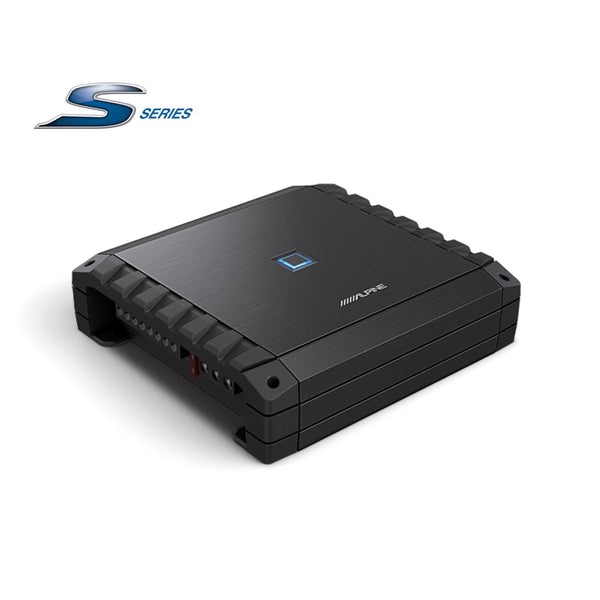

Alpine S2-A60M Amplifier 1 Channel Class D Monoblock Subwoofer Car Amp 600w RMS

RRP £329.99 £259.00 Save 22% Out of stock
Out of Stock
SKU: 90053MPN: S2-A60M

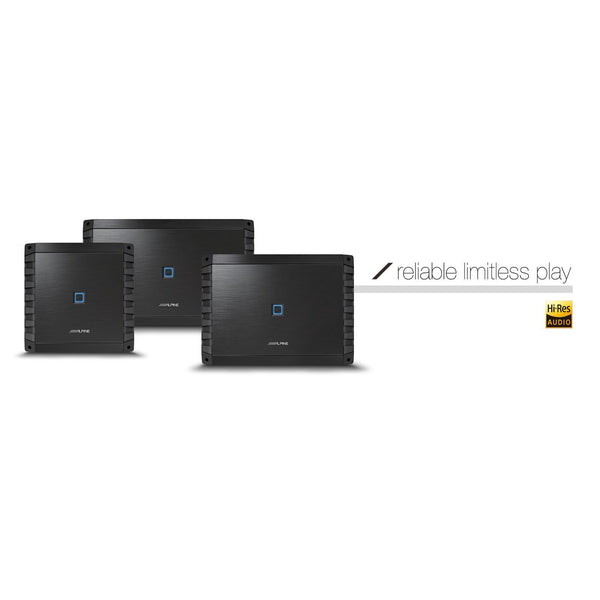

Alpine S-Series: The Music Lovers Starter Pack

S-Series Mono Power Amplifier - RMS Power Ratings 1 x 600W @ 2 Ohms

S2-A60M

The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.

The next generation S-Series S2-A60M mono subwoofer amplifier makes it a lot easier to get great bass in your vehicle, delivering up to 600 Watts RMS power @ 2 Ohms. A variable bass boost allows you to dial in some extra punch and impact for more low-frequency enjoyment. You can even add an optional wired remote to control the level of bass from your front seat.

A built-in low-pass filter puts you in command of the frequency spectrum that reaches your sub. The amp includes pre-amp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.

Unparalleled Power

Alpine's S-Series S2-A60M 600W Mono Amplifier is the perfect solution for unparalleled power and performance on a budget. With a power output of 600W at a 1 Ohm or 2 Ohm drive, this mono amp is capable of driving even the most demanding subwoofers, delivering clean and distortion-free bass for a wide range of applications. Plus, its compact design makes it easy to install in any vehicle.

Flexible Application

The Next-Gen S-Series amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.

Easy Control Access

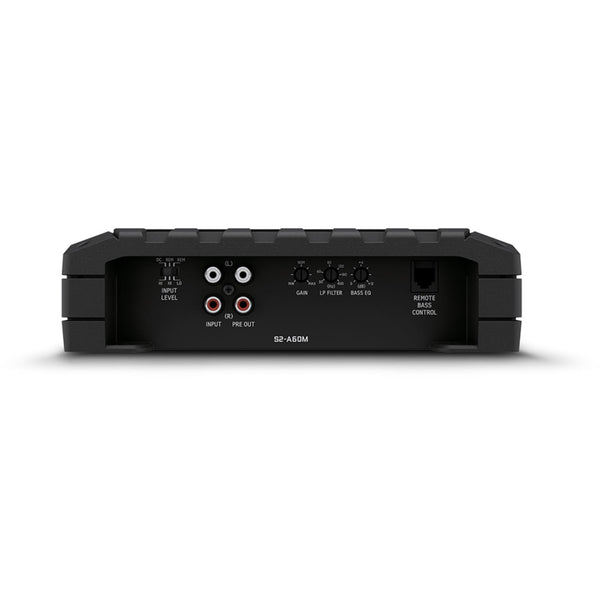

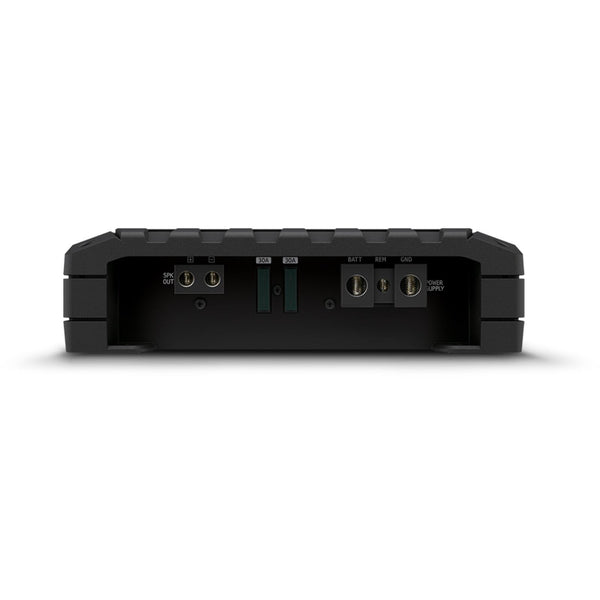

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end-caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.

Specification
Channel DesignMono Channel
CrossoverVariable Low-pass Filter (LPF)
CrossoverVariable LPF: 50-400Hz (-24dB/oct)
Power Requirements14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input)Hi: 0.5V - 10V / Low: 0.2V - 4.0V
Frequency Response(+0, -3dB 1W into 4 ohms): 10Hz – 400Hz
THD+N (@ 10W into 4 Ohms)<0.03%
Damping Factor>1000
Weight2.2kg
Heat Sink (WxHxD) mm220 x 57 x 210
More specs
  • Included terminal covers
  • Screw terminals (for speaker and power cables)
  • Class-D Amplification (Digital)
  • Side panel controls
  • Thermal Management Control
  • Top Mounted LED Power/Status Indicator
  • Speaker Level Input
  • 3 turn-on modes (DC HI, Remote HI, Remote LO)
  • Input Channel Selector Switch for Subwoofer
  • Adjustable Gain Control
  • Bass EQ
  • Remote Bass Control (RUX-KNOB2) Ready
  • Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 600W
  • Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600W
  • Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330W
  • Bass EQ (+12dB)
  • High Level Input with automatic power on
What's Included
  • Alpine S2-A60M Mono subwoofer amplifier (two 30A ATO fuses installed)
  • 2 End caps
  • Four 3/4" screws
  • Four 1/4" screws
  • 2mm Allen key
FAQs
Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
