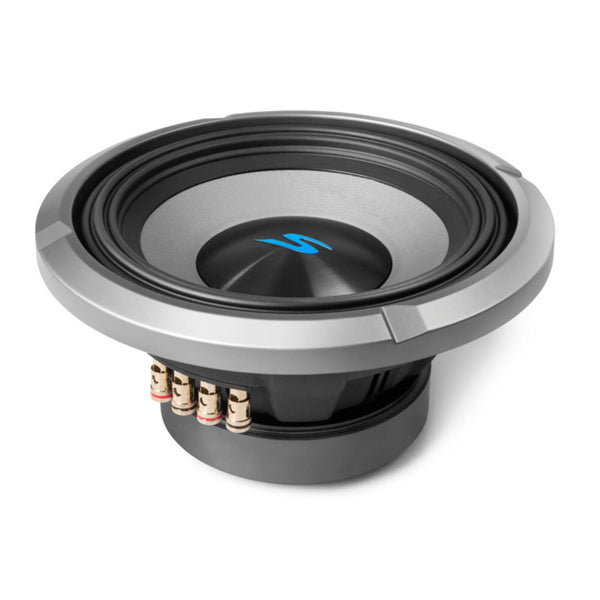

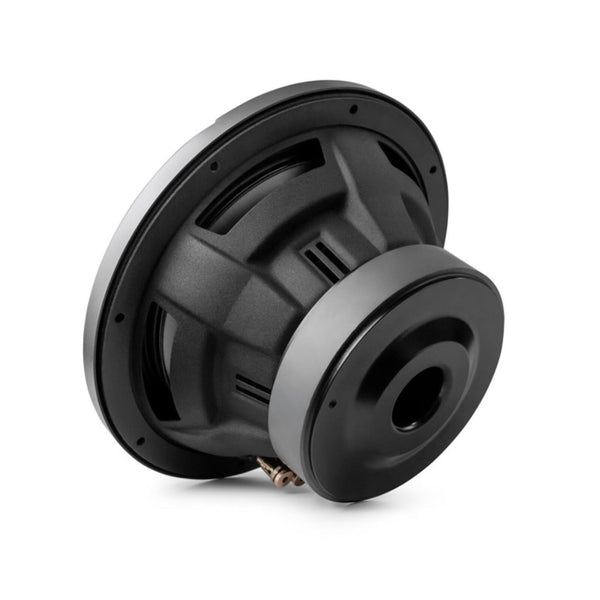

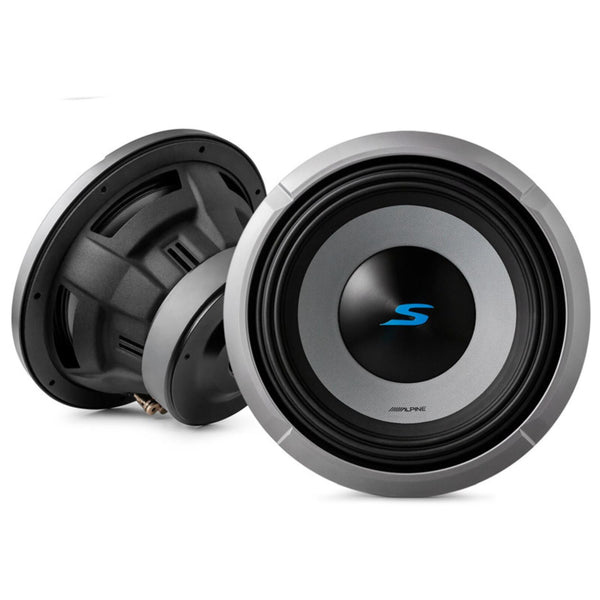

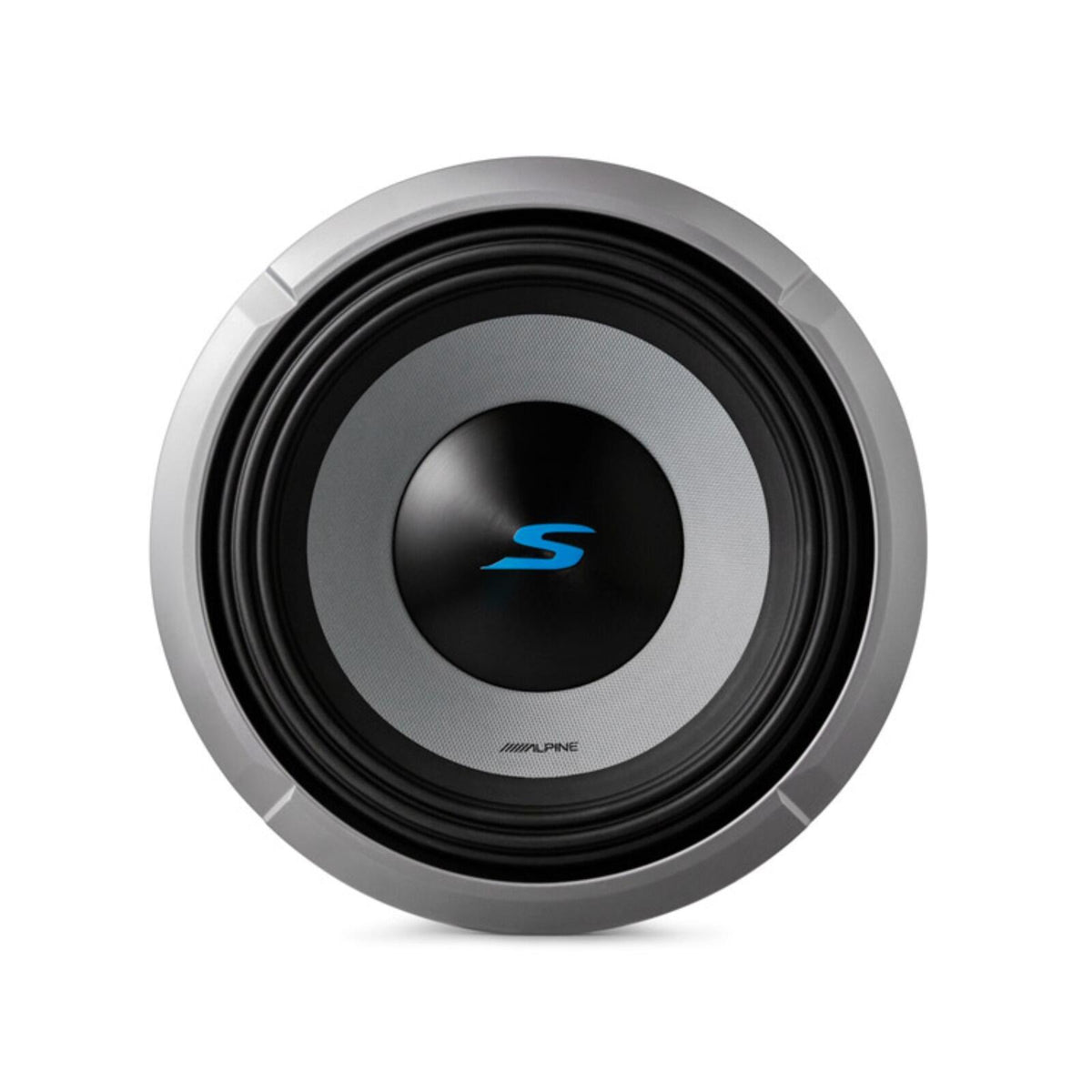

Alpine S2-W10D2 Sub 10" 25cm S Series Subwoofer Dual 2 Ohm Voice Coils 600w RMS

The Alpine S2-W10D2 is a 10-inch (25cm) S-Series subwoofer with dual 2 ohm voice coils, rated at 600W RMS (1800W peak). A carbon fibre and polypropylene cone with HAMR surround gives deep, punchy bass in sealed or ported boxes at an approachable price.

Key specifications

• Size: 10-inch (25cm)
• Power: 600W RMS, 1800W peak
• Impedance: dual 2 ohm voice coils
• Frequency response: 25Hz–215Hz
• Sensitivity: 84.9dB (1W/1m)
• X-Max (1-way): 15mm
• Sealed box volume: 12.7–25.5 litres
• Ported box volume: 22.6–38 litres
• Grille: not included

The New 2023 S-Series Subwoofers

Alpine's redesigned next-generation S-Series subwoofers bring technology from higher-end models to deliver depth and punch at a budget-friendly price. The S2-W10D2 handles up to 600W RMS, so you can drive it hard. The cone combines carbon fibre and polypropylene for light weight and rigidity, while the rubber High Amplitude Multi-Roll (HAMR) surround enables maximum excursion. Configuration jumpers make wiring changes straightforward, and the sub works equally well in sealed or ported enclosures — tight and precise or big and boomy, your choice.

Performance & Value

With 600W RMS and 1800W peak power handling, a frequency response of 25Hz–215Hz and sensitivity of 84.9dB (SPL@1W/1m), the S2-W10D2 delivers strong, accurate bass across a wide range of music genres.

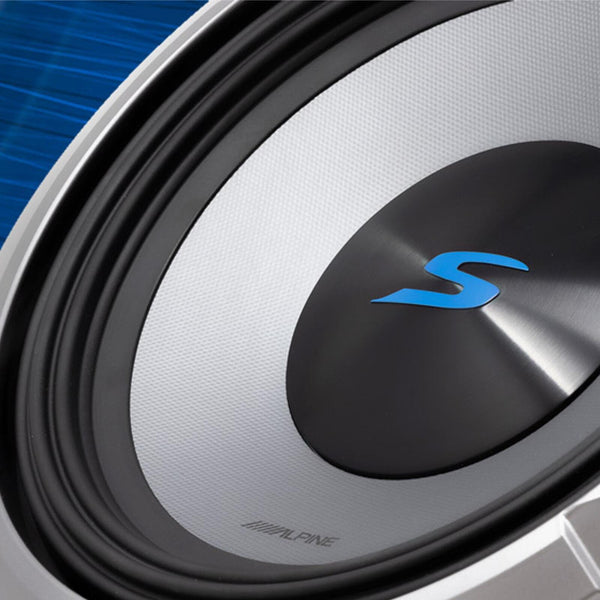

HAMR Surround

Alpine's High Amplitude Multi-Roll (H.A.M.R.) surround technology uses a rubber surround to let the cone move air efficiently while staying cool. It provides 15mm of one-way excursion for accurate, controlled bass output.

Enhanced Punch

The lightweight carbon fibre and polypropylene cone delivers deep, low-distortion bass, adding richness and detail to your music.

Flexible Application

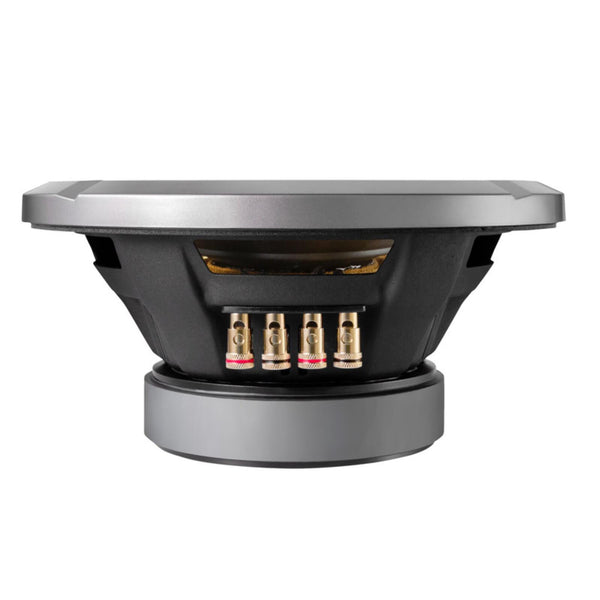

Dual voice coils (DVC) with easy configuration jumpers simplify installation. A twist-lock grille mounting system lets you fit or remove an optional grille without mounting screws.

Perfect Power Match

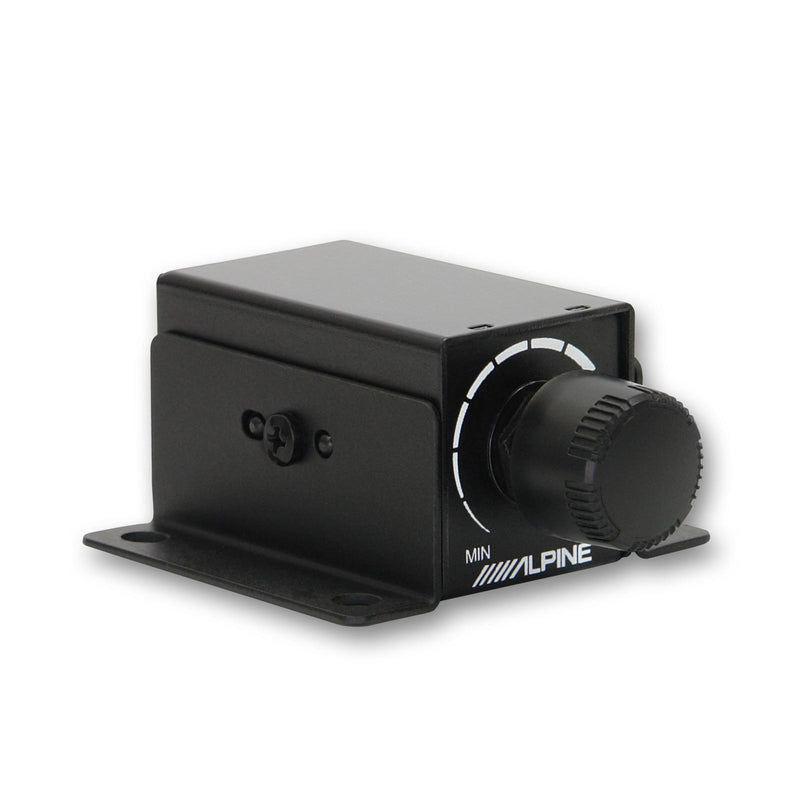

The S2-W10D2 pairs neatly with Alpine's power-matched S-Series amplifiers. Run a single sub with the 600W S2-A60M mono amp, or pair two or more with the 1200W S2-A120M for greater output. Add an Alpine RUX-KNOB2 remote bass level control for convenient in-cabin level adjustment.

Sizes & Variations

The S-Series subwoofer range is available in 8", 10" and 12" sizes and in dual 2Ω and dual 4Ω impedances.

Made for S-Series Amps & Subs

S-Series components are designed to work together as a complete system, suited to listeners who want great sound without overspending, including Hi-Res Audio capability.
