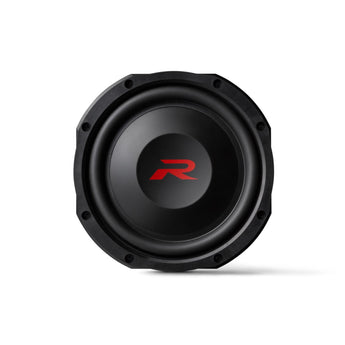

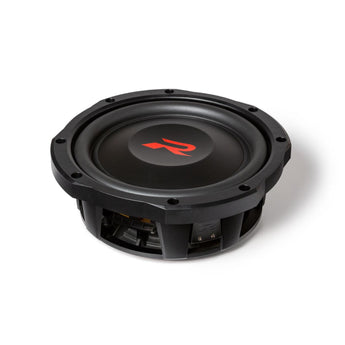

Alpine RS-W10D4 Sub 10" 25cm R Series Shallow Subwoofer Dual 4 Ohm 600w RMS
Couldn't Load Pickup availability
The Alpine RS-W10D4 is a 10-inch (25cm) shallow subwoofer from Alpine's R-Series range, rated at 600W RMS (1800W peak) with dual 4 ohm voice coils. Its 81mm mounting depth makes it suited to vehicles where space is limited.
Key specifications
- Size: 10-inch (25cm) shallow mount
- Power: 600W RMS, 1800W peak
- Impedance: dual 4 ohm (4 ohms + 4 ohms)
- Frequency response: 29Hz–200Hz
- Sensitivity: 83dB (1W/1m)
- X-Max: 20mm
- Voice coil: 4-inch (102mm)
- Mounting dimensions: 243mm diameter x 81mm depth
- Sealed box volume: 13.9–29.4 litres
The New R-Series Shallow Subwoofers
Alpine's R-Series Shallow Subwoofers are designed to deliver strong bass performance in a compact, ultra-shallow form that fits into virtually any vehicle application.

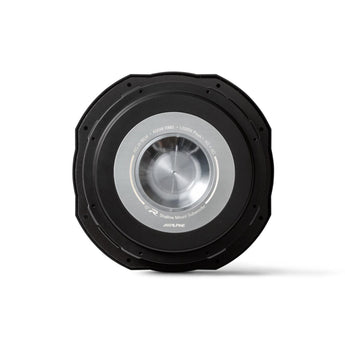

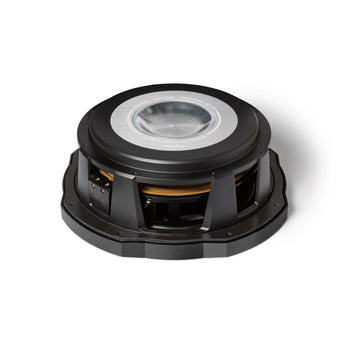

Alpine's engineering achieves an ultra-shallow profile without compromising on output or quality. An exclusive dual-gap motor structure combined with a powerful neodymium magnet delivers 600W RMS and 1800W peak power handling. A bespoke cast aluminium frame and woofer cone design enable a linear X-Max of 20mm for accurate, hard-hitting bass.
Ultra-Shallow Design

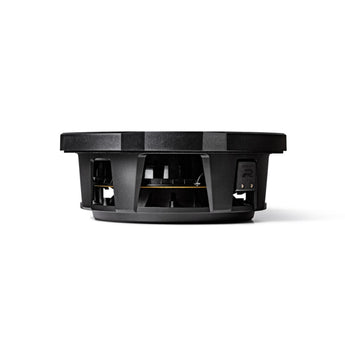

With a mounting depth of just 81mm, the RS-W10D4 is built for vehicles where a full-size subwoofer simply won't fit — without sacrificing the bass performance you'd expect from a full-size driver.
Extreme Output
The RS-W10D4 matches the 20mm of cone excursion found in Alpine's full-size R2-Series subwoofers, delivering extreme output in a shallow package. An oversized 4-inch (102mm) voice coil, driven by a neodymium magnet, handles 600W RMS with ease.
Powerful Bass Projection

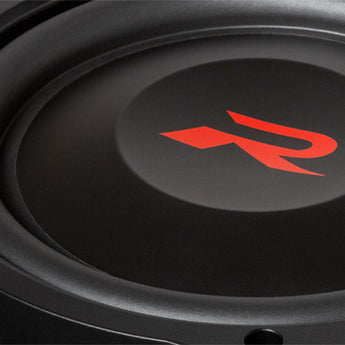

A lightweight yet rigid aluminium dust cap allows the RS-W10D4 to respond quickly, minimising distortion and projecting bass efficiently from the cone surface for smooth, hard-hitting performance.
Precise Bass Control
Alpine's Gen2 DD-Linear Magnetic Circuit technology uses a compact dual-gap voice coil structure to improve linearity and motor control, resulting in lower distortion and more precise bass output. Pair it with the Alpine RUX-KNOB2 remote bass level control for convenient adjustment from the driver's seat.
Premium Construction
The RS-W10D4 is built on a die-cast aluminium frame for a rigid, resonance-free construction that maximises energy transfer and long-term reliability.
Explore the full range in Alpine R Series.
Specification
| RMS Power Handling | 600W |
|---|---|
| Peak Power Handling | 1800W |
| X-Max | 20mm |
| Nominal Impedance | 4 Ohms + 4 Ohms |
| Frequency Response | 29Hz-200Hz |
| Sensitivity | (1W/1M): 83dB |
| Voice Coil | 4″ (102mm) |
| Mounting Dimensions | 243mm diameter x 81mm depth |
| Sealed Box Volume | 13.9 liters – 29.4 liters |
More specs
| |
What's Included
- One 10" Dual 4-ohm voice coil shallow mount subwoofer
- Plastic trim ring
- Two jumper wires
- Application guide
Alpine
About the Alpine RS-W10D4
From our tech experts at CEN
A 10 inch subwoofer with a shallow mounting depth, for cars and vans where a conventional sub will not physically fit, with dual 4 ohm voice coils so it can be wired to suit your amplifier, handling 600w RMS.
Who it suits
Drivers building a system where the bass does real work rather than filling in. Shallow subs solve the depth problem in door cards, under seats and in tight boot spaces.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier driving it: box volume and amplifier matching decide what you hear, and dual voice coils give you options for how it is wired. We build enclosures and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs and what the work involves. See car audio installation.
Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing

Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: How deep is the Alpine RS-W10D4?
A: The mounting dimensions are 243mm diameter x 81mm depth, so it suits installations where a full-depth subwoofer will not fit.
Q: What size sealed box does the RS-W10D4 need?
A: Alpine specifies a sealed box volume of 13.9 to 29.4 litres.
Q: Is there a grille for the RS-W10D4?
A: A grille is not listed in the box, but it is compatible with the Alpine KTE-RS10G subwoofer grille.
