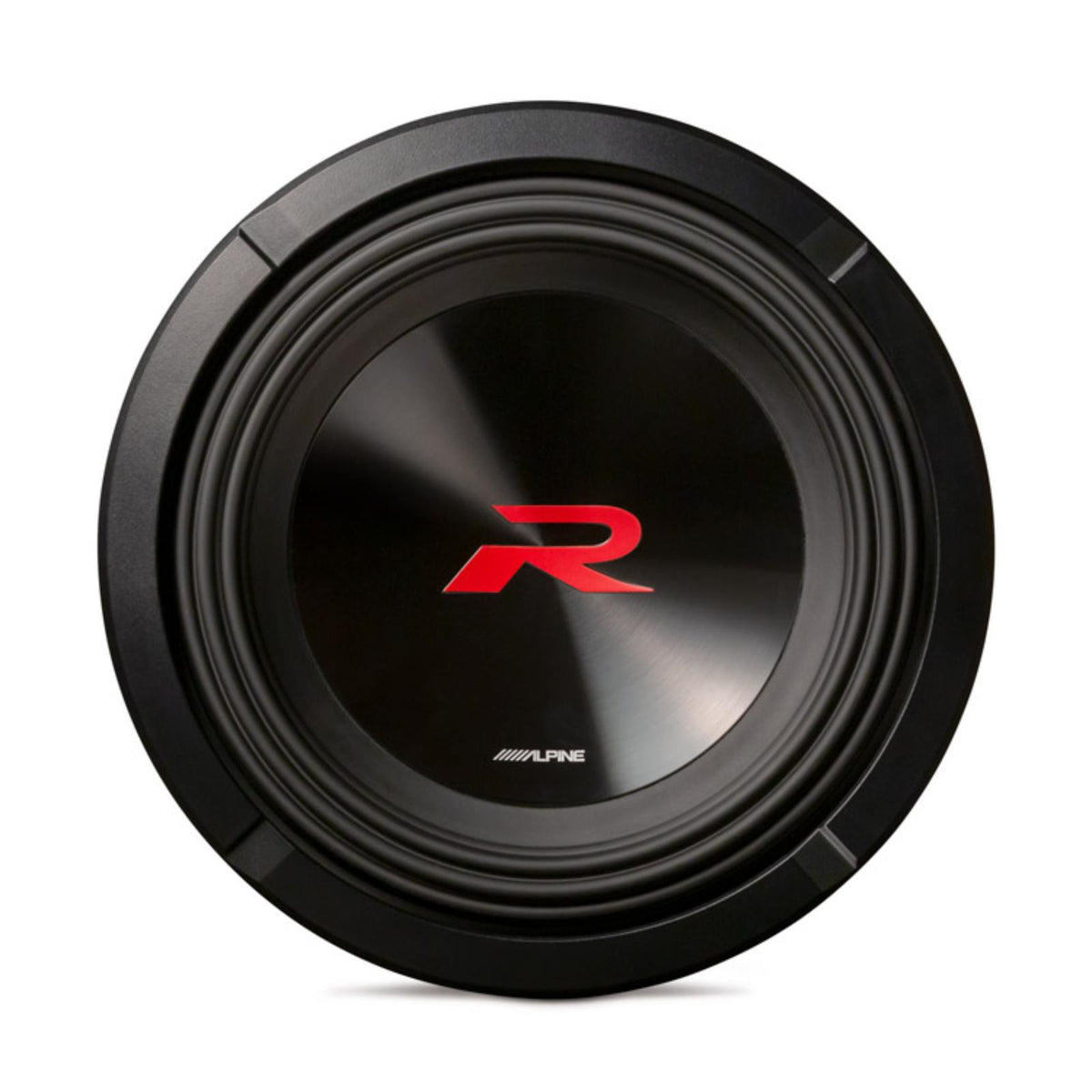

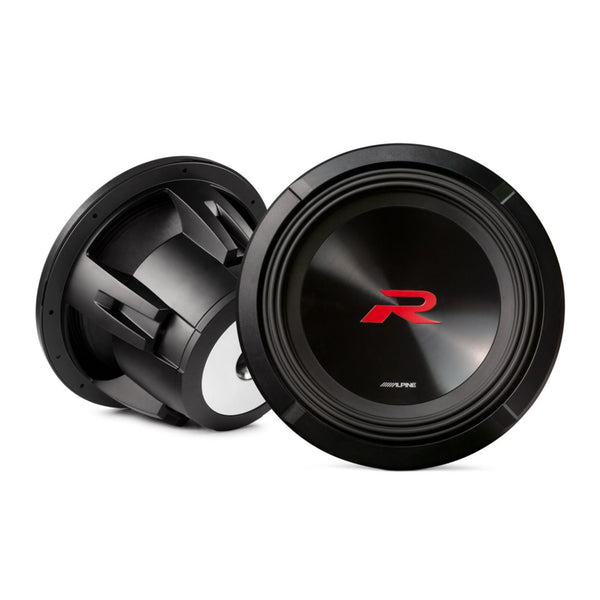

Alpine R2-W12D4 Sub 12" 30cm R Series Subwoofer Dual 4 Ohm Voice Coils 750w RMS
Couldn't Load Pickup availability
The Alpine R2-W12D4 is a 12-inch (30 cm) second-generation R-Series car subwoofer with dual 4 ohm voice coils, rated at 750 W RMS and 2250 W peak. It is designed for bass-focused systems requiring high output and precise cone control from a single driver.
This listing is the dual 4 ohm version. The Alpine R2-W12 is also available in dual 2 ohm (R2-W12D2).
The dual voice coils can be wired with the supplied jumpers for flexible amplifier matching.
Key specifications
- Size: 12 in (30 cm)
- Power handling: 750 W RMS / 2250 W peak
- Impedance: dual 4 Ω (4 Ω + 4 Ω)
- Frequency response: 24 Hz to 200 Hz
- Sensitivity (1 W / 1 m): 84.5 dB
- Voice coil: 65 mm
- Xmax: 20 mm
- Mounting depth: 152 mm
- Cut-out diameter: 275 mm (10-7/8 in)
R-Series: the next evolution of proven performance
The 2022 2nd-Gen R-Series subwoofers build on decades of Alpine engineering to deliver deep, clean, accurate bass. Alpine's HAMR surround maximises cone excursion and bass output, while a lightweight, rigid ceramic dust cap keeps distortion low. The enlarged motor structure improves overall woofer control for a strong, clean bass response.

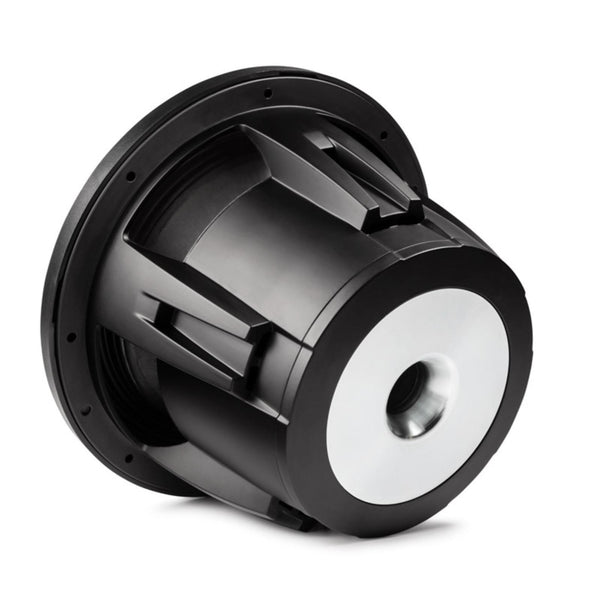

New motor structure
Larger, double-stacked magnets generate more motor force for deeper bass and tighter cone control than the previous generation. An integrated Faraday ring minimises distortion, and a Kevlar-treated cone ensures durability at high volumes.
Next-gen sound performance
Building on the reputation of the original Type R platform, the 2nd-Gen R-Series delivers even greater bass output and reliable performance. Pair it with a compatible amplifier and use the Alpine RUX-KNOB2 remote bass level control for convenient adjustment from the driver's seat.
Additional reliability
A polypropylene/ceramic composite dust cap provides rigidity and internal damping to smooth the bass response and reproduce tight bass. The material also offers higher heat resistance for sustained, non-stop bass performance.
Flexible application

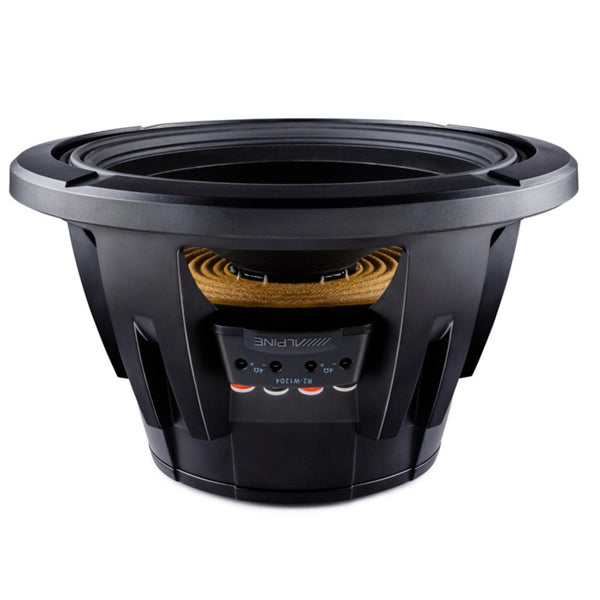

The dual voice coil (DVC) design includes easy-configuration "EZ-Change" jumpers for flexible wiring options. The twist-lock grille mounting system allows an optional grille to be fitted or removed without mounting screws, offering additional cone protection.
Increased accuracy
Alpine's High Amplitude Multi-Roll (HAMR) rubber surround lets the cone move air efficiently while staying cool, allowing 20 mm of total cone excursion for accurate, controlled bass reproduction.
Explore the full range in Alpine R2 Series.
Specification
| Frequency Response | 24Hz-200Hz |
|---|---|
| Sensitivity | (1W/1m) 84.5dB |
| Nominal Impedance | 4Ω + 4Ω |
| Voice Coil | 65mm |
| X-Max | 20mm |
| Magnet | Weight 144oz |
| Mounting Depth | 6-1/2” (152mm) |
| Cutout Size | 10-7/8” (275mm) |
More specs
| |
What's Included
- 12” R2-Series DVC Subwoofer with Cosmetic Trim Ring
- 2 Jumper Wires for DVC Configuration
- Owner’s Manual
Alpine
About the Alpine R2-W12D4
From our tech experts at CEN
A 12 inch subwoofer, with dual 4 ohm voice coils so it can be wired to suit your amplifier, handling 750w RMS.
Who it suits
Drivers building a system where the bass does real work rather than filling in. This suits a sealed or ported enclosure sized to the driver, in a boot or a custom build.
Our tech experts advise
A subwoofer is only as good as its enclosure and the amplifier driving it: box volume and amplifier matching decide what you hear, and dual voice coils give you options for how it is wired. We build enclosures and match amplification at our Beeston workshop. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs and what the work involves. See car audio installation.
Explore the full Alpine range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Alpine
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Alpine R2 Series
More options from the same range, in stock and ready to go
Staff PickAlpine R2-W12D2 Sub 12" 30cm R Series Subwoofer Dual 2 Ohm Voice Coils 750w RMS
RRP £239.99Save 12%£209.00
Alpine R2-A150M Amplifier 1 Channel Monoblock Subwoofer Class D Upto 1500w RMS
£529.99
Best SellerAlpine R2-W10D2 Sub 10" 25cm R Series Subwoofer Dual 2 Ohm Voice Coils 750w RMS
RRP £209.99Save 9%£189.00
Alpine R2-W8D2 Sub 8" 20cm R Series Subwoofer Dual 2 Ohm Voice Coils 350w RMS
RRP £169.99Save 18%£139.00
Alpine R2-S653 Speakers 6.5 Inch 16.5cm 2022 R Series Pro 3 Way Component 100w
£499.99
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: How should I wire the Alpine R2-W12D4?
A: It has dual 4 ohm voice coils. Two jumper wires are supplied for DVC configuration, so the coils can be wired in parallel for a 2 ohm load or in series for an 8 ohm load to suit your amplifier.
Q: How much power does the R2-W12D4 handle?
A: It is rated at 750 W RMS continuous and 2250 W peak. Match it with an amplifier delivering around 750 W RMS at your chosen impedance.
Q: Is a grille included with the R2-W12D4?
A: No. It comes with a cosmetic trim ring, two jumper wires and the owner's manual. An optional grille fits using the EZ-Change twist-lock system.
