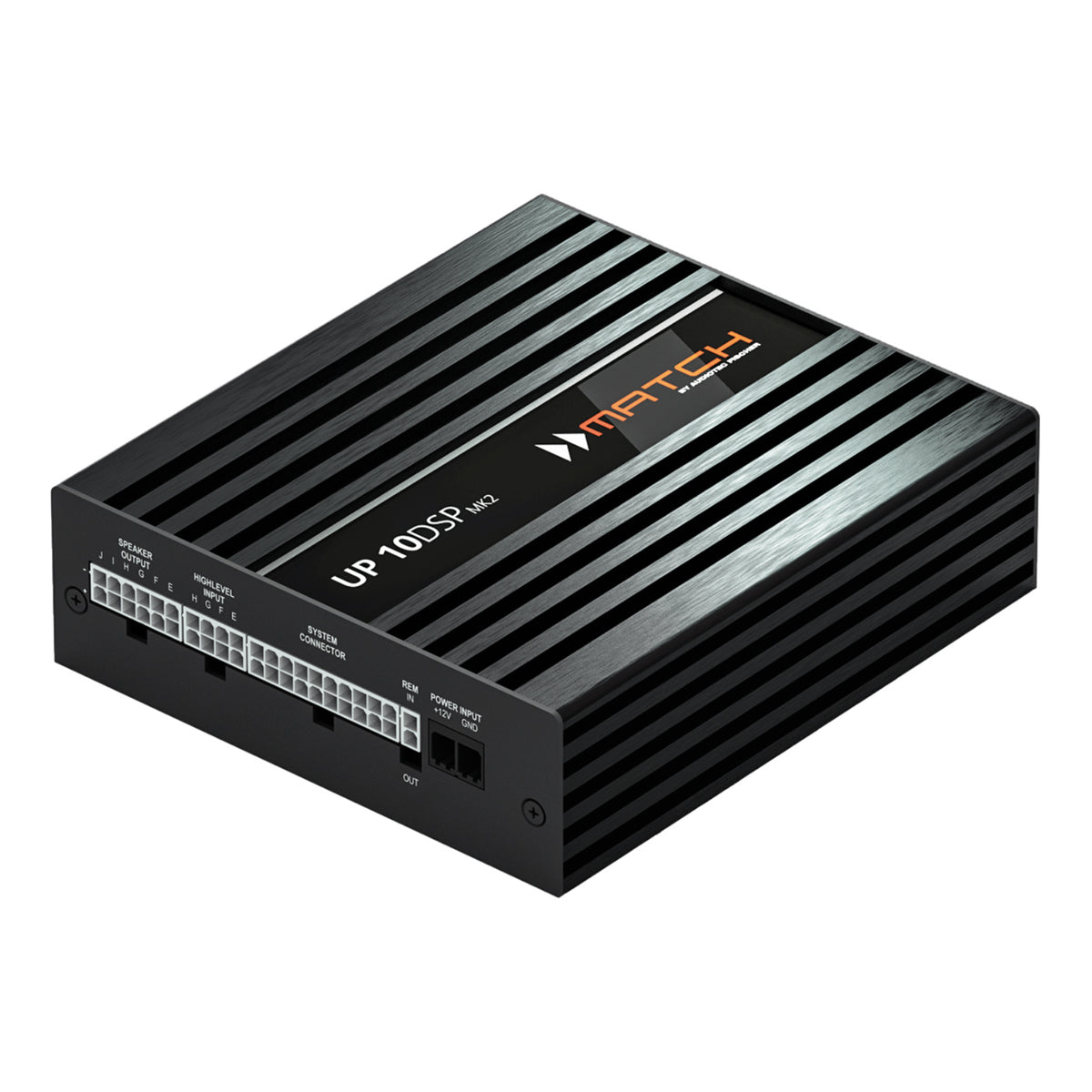

Match UP 10DSP MK2 Universal Upgrade 10 Channel Amplifier & 11 Channel DSP

The Match UP 10DSP MK2 is a compact 10-channel Class GD amplifier paired with an 11-channel 64-bit DSP, designed to upgrade complex multi-channel factory sound systems. It delivers 8 x 65 W at 4 ohms plus 2 x 90 W (4 ohms) or 2 x 160 W (2 ohms) on the subwoofer outputs. It is part of the Match UP range from Audiotec Fischer.

This listing is the UP 10DSP MK2. The Match UP range is also available as the Match UP 8DSP MK2 8-channel amplifier and DSP.

Key specifications

• Amplifier channels: 10 (Class GD)
• Power: 8 x 65 W at 4 Ω; sub outputs 2 x 90 W (4 Ω) / 2 x 160 W (2 Ω)
• DSP: 64-bit, 11 channels, 295 MHz
• Inputs: 8 x high-level (2 up to 32 V RMS), 1 x optical S/PDIF (12 to 96 kHz)
• Outputs: 10 x speaker, 1 x RCA line out
• Frequency response: 20 Hz to 22,000 Hz
• Operating voltage: 10.5 to 17 V (start-stop down to 6 V)
• Dimensions (H x W x D): 46 x 145 x 163 mm

The premium sound upgrade for multi-channel factory systems

The UP 10DSP MK2 is built for upgrading premium multi-channel factory sound systems where the head unit cannot be replaced. It accepts signals directly from the OEM system via high-level inputs and processes them through its 11-channel DSP to deliver significantly improved audio quality.

Maximum connectivity

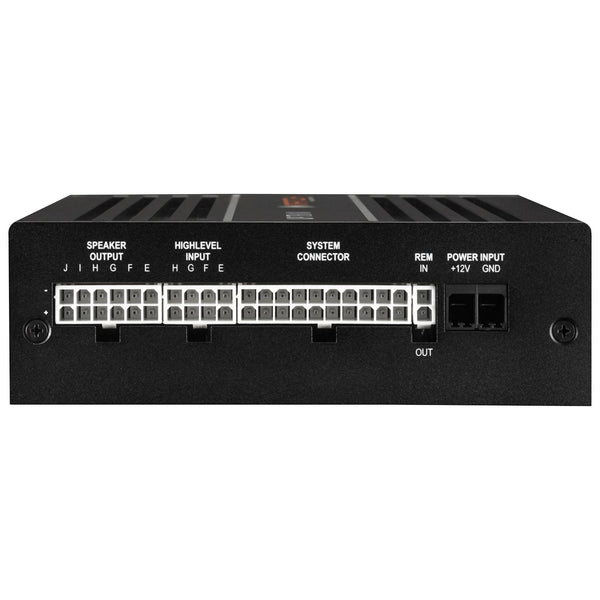

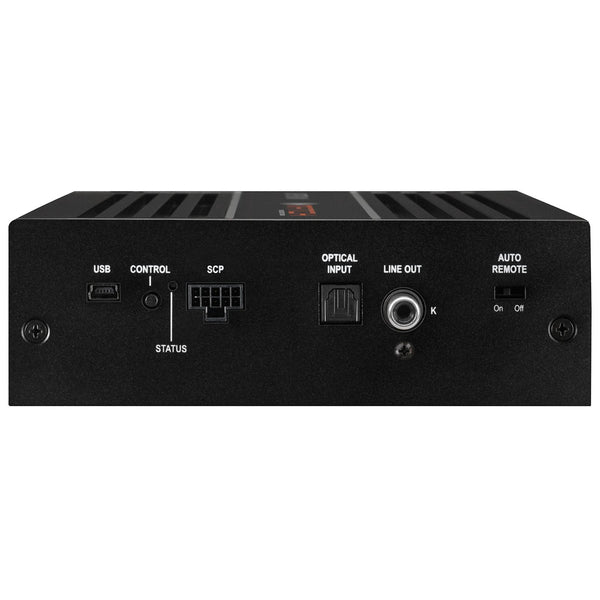

The UP 10DSP MK2 features 8 high-level inputs — including two high-power inputs accepting up to 32 V RMS — an optical S/PDIF digital input, a MATCH Extension Card (MEC) slot, 10 amplifier outputs, and 11 processed DSP channels. The proprietary ADEP.3 circuit and 32-bit ACO platform ensure safe and stable operation.

Virtual Channel Processing

When multiple input signals need to be mixed and redistributed across a multi-way speaker system, conventional routing quickly becomes limiting. Audiotec Fischer's multi-stage Virtual Channel Processing (VCP), used alongside the DSP PC-Tool software, handles even highly complex configurations with ease. It enables free assignment of sound features such as RealCenter and Augmented Bass Processing. Combined with the optional MEC ANALOG IN module, the UP 10DSP MK2 also supports 1-to-1 Input/Output Routing (IOR).

Speed with ACO

The 32-bit ACO (Advanced CoProcessor) platform manages all control tasks, providing fast data communication with the DSP PC-Tool software and rapid switching between up to ten sound setups. ACO also powers sound effects including Augmented Bass Processing and RealCenter, plus a channel-separated Input EQ with an Input Signal Analyzer (ISA) for easy analysis and compensation of OEM input signals.

Powerhouse in a compact format

Despite its output power and extensive feature set, the UP 10DSP MK2 measures just 46 x 145 x 163 mm (H x W x D), making installation practical even in confined spaces. If a dedicated subwoofer amplifier is needed, the mono RCA output can be paired with an amplifier such as the Match UP 1FX mono subwoofer amplifier.

Features

• Ultra-efficient 10-channel Class GD amplifier with 1-channel RCA line output and 11-channel DSP
• Ideal for upgrading complex multi-channel factory sound systems

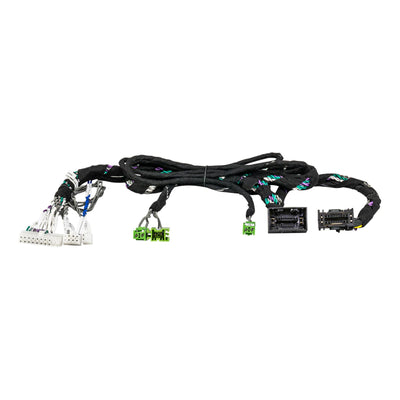

• Optional cable harnesses available for easy integration into existing factory systems
• Powerful 64-bit fixed-point audio DSP
• ACO (Advanced 32-bit CoProcessor) platform for system and DSP features
• ISA (Input Signal Analyzer) and Input EQ for analysis and compensation of OEM input signals
• SFX sound effects: Augmented Bass Processing, StageXpander, RealCenter and more
• 8-channel high-level input with ADEP.3 circuit; two channels accept up to 32 V RMS
• 1-to-1 Input/Output Routing (IOR) supported with the optional MEC ANALOG IN module
• Virtual Channel Processing (VCP) for flexible configuration of complex sound systems
• MATCH Extension Card (MEC) slot for additional input/output modules including Bluetooth audio and USB high-resolution audio streaming
• Optical S/PDIF input supporting sampling rates from 12 to 96 kHz
• Mono RCA output for connecting an external amplifier
• SCP (Smart Control Port) for optional accessories including WIFI CONTROL, DIRECTOR and CONDUCTOR
• Auto remote switch
• Start-stop compatible down to 6 V supply voltage
• Compact design with low heat dissipation thanks to high efficiency
