Match UP 8DSP MK2 Universal Amp Upgrade 8 Channel Amplifier & 8 Channel DSP

The Match UP 8DSP MK2 is a compact 8-channel Class GD amplifier with an integrated 9-channel 64-bit DSP, part of Match's Universal Plug (UP) amplifier range. It delivers 6 x 65 Watts RMS at 4 Ohms across channels A–F, plus 2 x 160 Watts at 2 Ohms on channels G–H for subwoofers, and features six high-level inputs with ADEP.3 circuitry for straightforward OEM sound system upgrades.

Key specifications

• Amplifier: 8 channels, Class GD
• Power, channels A–F: 6 x 65 Watts RMS @ 4 Ohms
• Power, channels G–H: 2 x 90 Watts @ 4 Ohms, 2 x 160 Watts @ 2 Ohms
• DSP: 9-channel, 64-bit fixed point, 295 MHz
• Inputs: 6 x high-level (ADEP.3), optical SPDIF (12–96 kHz), MEC slot
• Line output: 1 x RCA, 3 Volts RMS
• Frequency response: 10 Hz – 22,000 Hz
• Start-Stop: capable down to 6 Volts
• Dimensions (H x W x D): 46 x 130 x 153 mm

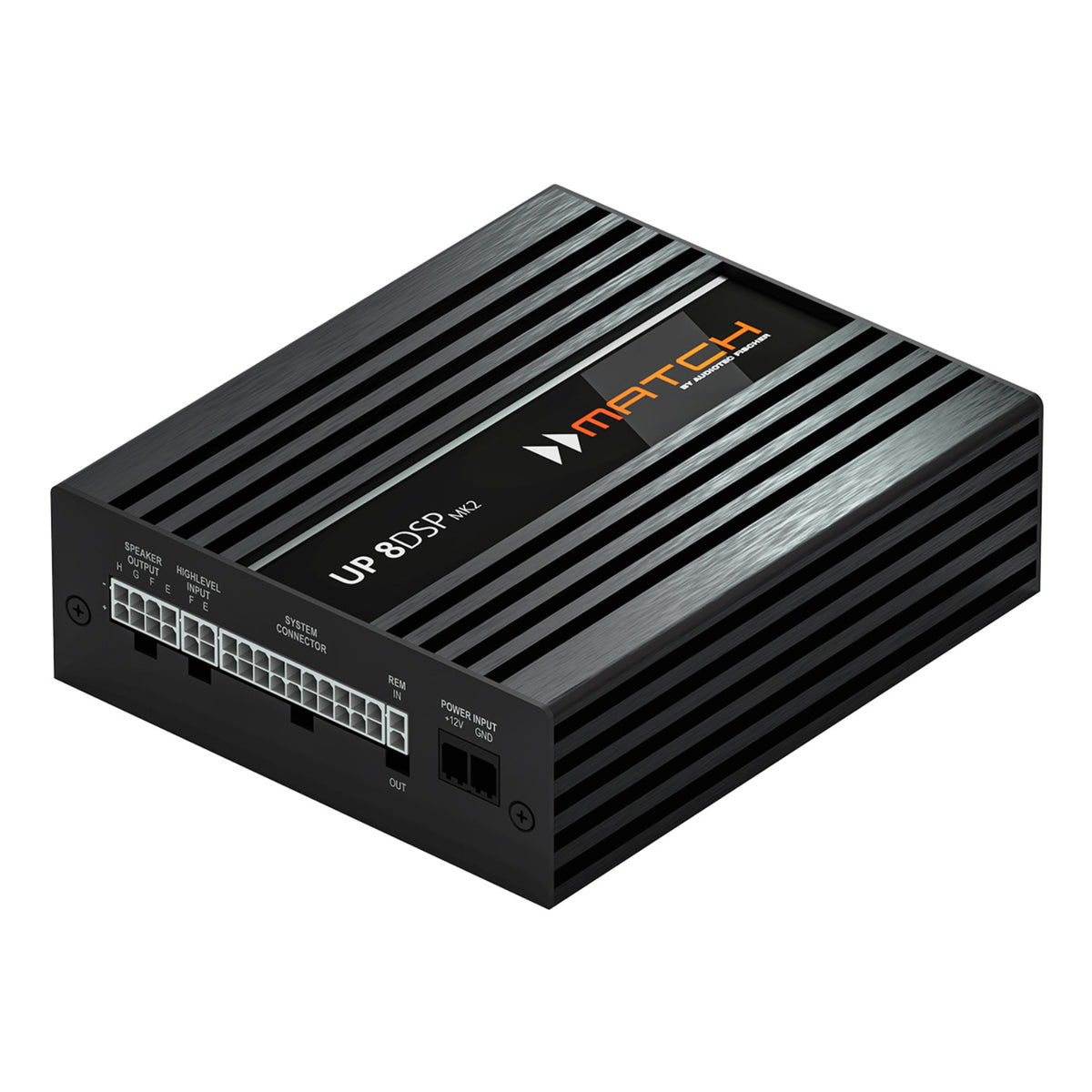

MATCH UP 8DSP MK2

The UP 8DSP MK2 is Match's most powerful DSP amplifier in the UP range, built around the latest ADEP.3 input circuitry for clean signal extraction from factory head units.

The Powerhouse for Simple OEM Integrations

The UP 8DSP MK2 combines high output power with everything needed to integrate cleanly into an existing multi-channel factory system. If you need a dedicated subwoofer channel alongside this unit, the Match UP 1FX mono subwoofer amplifier pairs well via the RCA line output.

• 8-channel amplifier with 1-channel RCA line output and 9-channel DSP
• Designed for upgrading multi-channel factory sound systems
• Optional cable harnesses available for easy OEM integration
• 64-bit fixed point audio DSP at 295 MHz
• ACO: Advanced 32-bit CoProcessor platform for extended feature set
• ISA (Input Signal Analyzer) and InputEQ for analysis and compensation of factory input signals
• Proprietary TuneEQ function for automated output equaliser adjustment
• SFX (DSP Sound Effects): Augmented Bass Processing, RealCenter and more
• 6-channel high-level input with ADEP.3 circuit
• 1-to-1 Input/Output Routing (IOR) when used with the optional MEC ANALOG IN module
• VCP (Virtual Channel Processing) for flexible configuration of complex sound systems

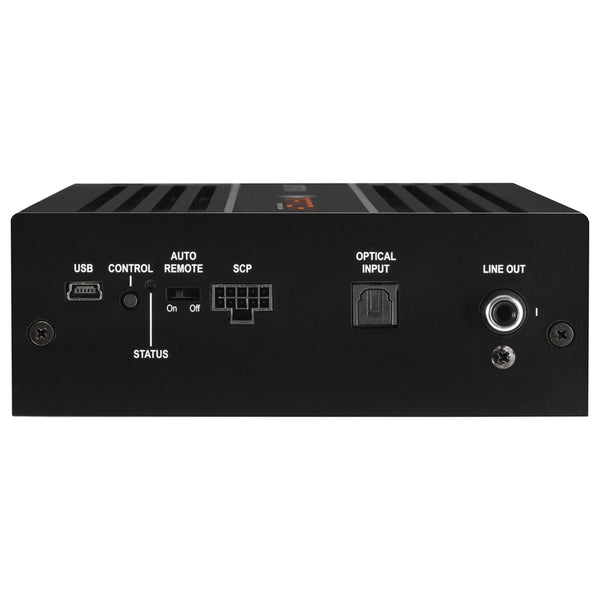

• MATCH Extension Card slot (MEC) for optional expansions including Bluetooth HD Audio Streaming and High Resolution Audio Streaming via USB
• Optical input in SPDIF format, sampling rate 12–96 kHz
• Mono RCA output for connection of an external amplifier
• SCP (Smart Control Port) for optional accessories including DIRECTOR and CONDUCTOR
• Auto Remote switch
• Start-Stop capability down to 6 Volts supply voltage
• Compact design with low heat dissipation

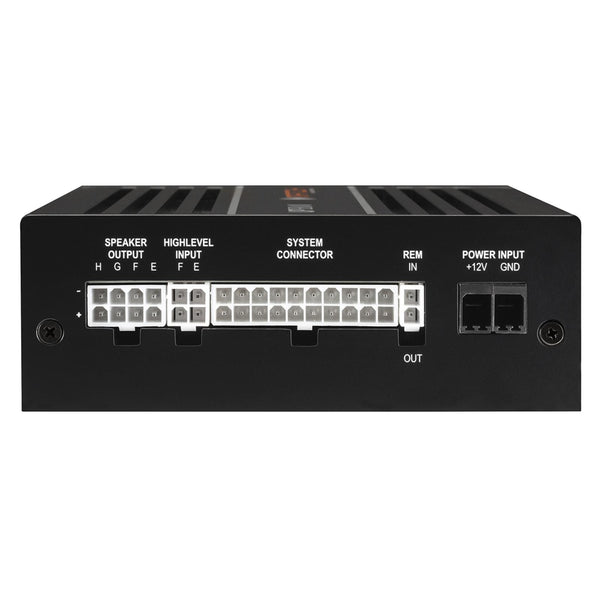

Seamless Connectivity

Six high-level inputs, an optical digital input, the MEC slot and ADEP.3 circuitry give the UP 8DSP MK2 everything needed to adapt to existing multi-channel factory systems. Eight amplifier channels plus the additional RCA line output, managed by the 9-channel DSP, allow a wide range of individual speaker configurations. Channels G–H deliver 160 Watts RMS at 2 Ohms — sufficient for large subwoofers.

Virtual Channel Processing: How Signal Routing Works Today

Adapting to complex multi-channel OEM systems demands intelligent DSP channel management. The UP 8DSP MK2 uses Audiotec Fischer's Virtual Channel Processing to handle this. When front, rear and centre systems are split into multi-way configurations, conventional routing quickly hits its limits. Virtual Channel Processing, used alongside the DSP PC-Tool 5 software, makes it straightforward to map complex system configurations and assign the built-in FX sound features. Combined with the optional MEC ANALOG IN module, it also supports 1-to-1 Input/Output Routing (IOR) where required.

ACO: Advanced 32-Bit CoProcessor Platform

The UP 8DSP MK2 includes the proprietary 32-bit ACO platform, which handles all control tasks and a range of audio functions: Augmented Bass Processing, RealCenter sound effects, and a channel-separated Input EQ with Input Signal Analyzer (ISA) for identifying and compensating for factory radio sound processing.

Compact Dimensions

Despite delivering 6 x 65 Watts at 4 Ohms plus 2 x 90 / 160 Watts at 4 / 2 Ohms across eight channels, the UP 8DSP MK2 measures just 46 x 130 x 153 mm (H x W x D), making it practical for installation in confined spaces.

DSP PC-Tool 5 feat. TuneEQ

The UP 8DSP MK2 is configured using Match's DSP PC-Tool 5 software. It offers precise control over complex system configurations, and the proprietary TuneEQ function automates frequency response correction to speed up the optimisation process.
