Match UP 10DSP MK2 with MEC Analog In 10 Channel Amplifier & 11 Channel DSP

The Match UP 10DSP MK2 with MEC Analog In is a 10-channel Class GD car amplifier with an 11-channel 64-bit DSP and 8 high-level inputs, from the Match UP amplifier range. It is designed for upgrading complex multi-channel factory sound systems where the head unit cannot be replaced.

This listing is the UP 10DSP MK2 with MEC Analog In. The Match UP amplifier range is also available as the UP 8DSP MK2 8-channel amplifier and DSP.

Key specifications

• Amplifier channels: 10 (8 x 65W RMS at 4 ohms, plus 2 x 90W at 4 ohms / 2 x 160W at 2 ohms subwoofer outputs)
• DSP: 11 channels, 64-bit, 295 MHz
• Inputs: 8 x high-level speaker input, 1 x optical SPDIF (12 to 96 kHz)
• Outputs: 10 x speaker, 1 x RCA line out
• Amplifier technology: Class GD
• Frequency response: 20 Hz to 22 kHz
• Operating voltage: 10.5 to 17V (Start-Stop capable down to 6V)
• Dimensions (H x W x D): 46 x 145 x 163mm

The premium sound upgrade for multi-channel factory systems

The UP 10DSP MK2 is built to solve the problem of upgrading premium sound systems in modern vehicles. Many cars now leave the factory with complex multi-channel audio setups, but the sound quality does not always meet expectations. Where head unit replacement is not possible, an amplifier with a high number of high-level inputs and sophisticated processing is the only viable upgrade path — and this is exactly what the UP 10DSP MK2 delivers.

Maximum connectivity

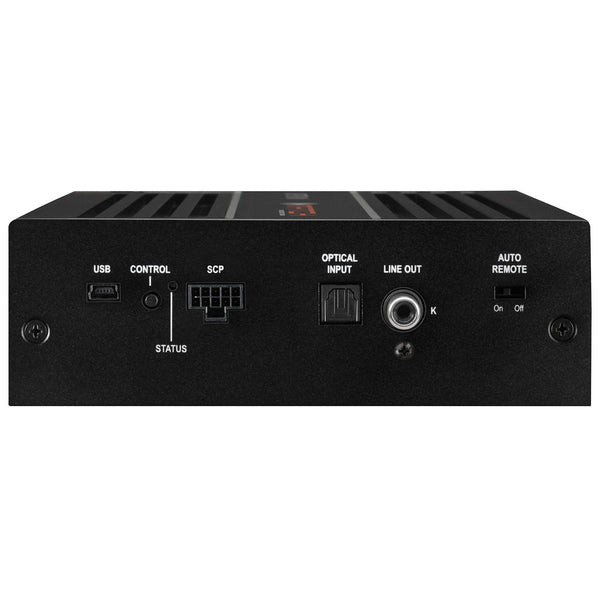

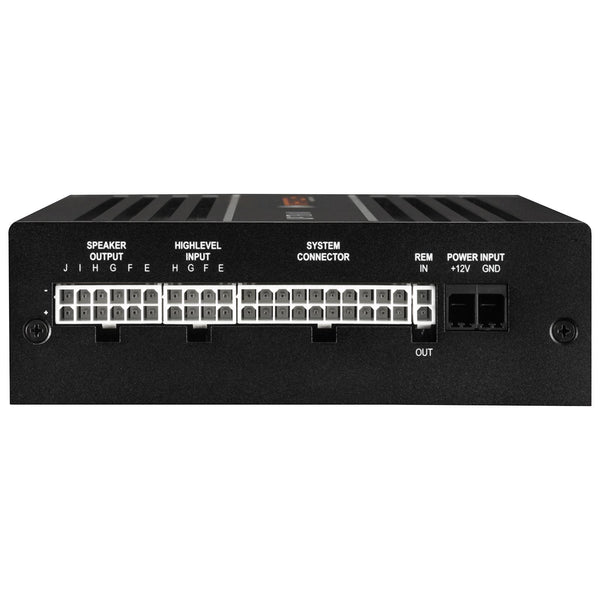

The UP 10DSP MK2 is equipped with 8 high-level inputs (two high-power inputs accepting up to 32 Volts), an optical digital input, a MATCH Extension Card (MEC) slot, 10 amplifier outputs, and 11 processed DSP channels. The proprietary ADEP.3 circuit and 32-bit ACO platform ensure safe and reliable operation throughout.

Virtual Channel Processing: how signal routing works today

Adapting to modern OE sound systems via multiple inputs significantly increases the complexity of signal routing inside the amplifier. When several input signals are mixed and then split into multi-way systems, conventional routing approaches quickly reach their limits. Audiotec Fischer's multi-stage Virtual Channel Processing (VCP), combined with the DSP PC-Tool software, makes even highly complex system configurations straightforward to set up. FX sound features such as RealCenter and Augmented Bass Processing can be freely assigned. Combined with the optional MEC Analog In module, the UP 10DSP MK2 also supports 1-to-1 input/output routing (IOR).

Speed is everything, thanks to ACO

Managing this many channels demands ultra-fast hardware. Audiotec Fischer's 32-bit ACO (Advanced CoProcessor) platform handles all control tasks, delivering speed improvements for data communication with the DSP PC-Tool software and fast switching between up to ten sound setups. ACO also enables Augmented Bass Processing, RealCenter, and a channel-separated Input EQ with Input Signal Analyzer (ISA) for straightforward analysis and compensation of input signals from OE head units.

Powerhouse in a compact format

Despite its output of 8 x 65W at 4 ohms and 2 x 90W/160W at 4/2 ohms on the subwoofer outputs, the UP 10DSP MK2 is extremely compact at 46 x 145 x 163mm, making installation practical even in tight spaces. If you need a dedicated subwoofer channel alongside this unit, the Match UP 1FX mono subwoofer amplifier pairs well via the RCA line output.

• Ultra-efficient 10-channel amplifier with 1-channel line output and 11-channel DSP
• Perfect for upgrading multi-channel factory sound systems

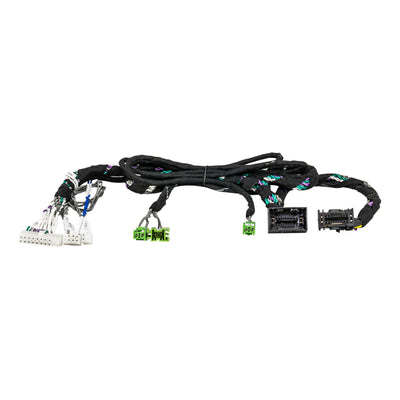

• Optional cable harnesses for easy integration into existing multi-channel factory sound systems
• Extremely powerful 64-bit fixed-point audio DSP
• ACO Advanced 32-bit CoProcessor platform supporting:
  • ISA (Input Signal Analyzer) and Input EQ for analysis and compensation of OE input signals
  • SFX sound effects: Augmented Bass Processing, StageXpander, RealCenter and more
• 8-channel high-level input with ADEP.3 circuit; two channels accept up to 32V RMS input sensitivity
• 1-to-1 Input/Output Routing (IOR) in combination with the optional MEC Analog In module
• Virtual Channel Processing (VCP) for highly flexible configuration of complex sound systems
• MATCH Extension Card (MEC) slot for additional input/output modules including Bluetooth audio streaming and high-resolution audio streaming via USB
• Optical input in SPDIF format, sampling rate 12 to 96 kHz
• Mono RCA output for connection of an external amplifier such as a subwoofer amp
• SCP (Smart Control Port) for optional accessories including WIFI CONTROL, DIRECTOR and CONDUCTOR
• Auto remote switch
• Start-Stop capable down to 6V supply voltage
• Compact design with low heat dissipation thanks to high efficiency
