Edge Xtreme Series EDX5000.1D-E2 Amp Class D 1 Channel Mono Amplifier 5500w RMS
Couldn't Load Pickup availability
The Edge EDX5000.1D-E2 is a monoblock Ultra Class D amplifier from the Edge Xtreme Series, delivering 5500W RMS at 1 ohm (14.4V) and up to 11,000W maximum power, designed for competition SPL subwoofer systems.
Key specifications
- Configuration: monoblock, Ultra Class D
- RMS at 4 ohms (14.4V, 1% THD): 1 x 1580W
- RMS at 2 ohms (14.4V, 1% THD): 1 x 3000W
- RMS at 1 ohm (14.4V / 16V / 18V, 1% THD): 1 x 5500W / 5700W / 5800W
- Maximum power: 11,000W
- Frequency response: 10Hz to 350Hz
- Crossover: low pass and subsonic, 10Hz to 250Hz
- Input sensitivity: 200mV to 8V
- Dimensions (H x W x D): 59 x 250 x 650mm
Edge Xtreme Series monoblock amplifier (EDX5000.1D-E2)
The Xtreme Series EDX5000.1D-E2 is a competition SPL amplifier built for high-demand subwoofer installations. Its Ultra Class D topology delivers up to 92% efficiency, maximising power delivery and minimising losses. The amplifier supports 18V DC input, allowing maximum output from a non-regulated power supply.

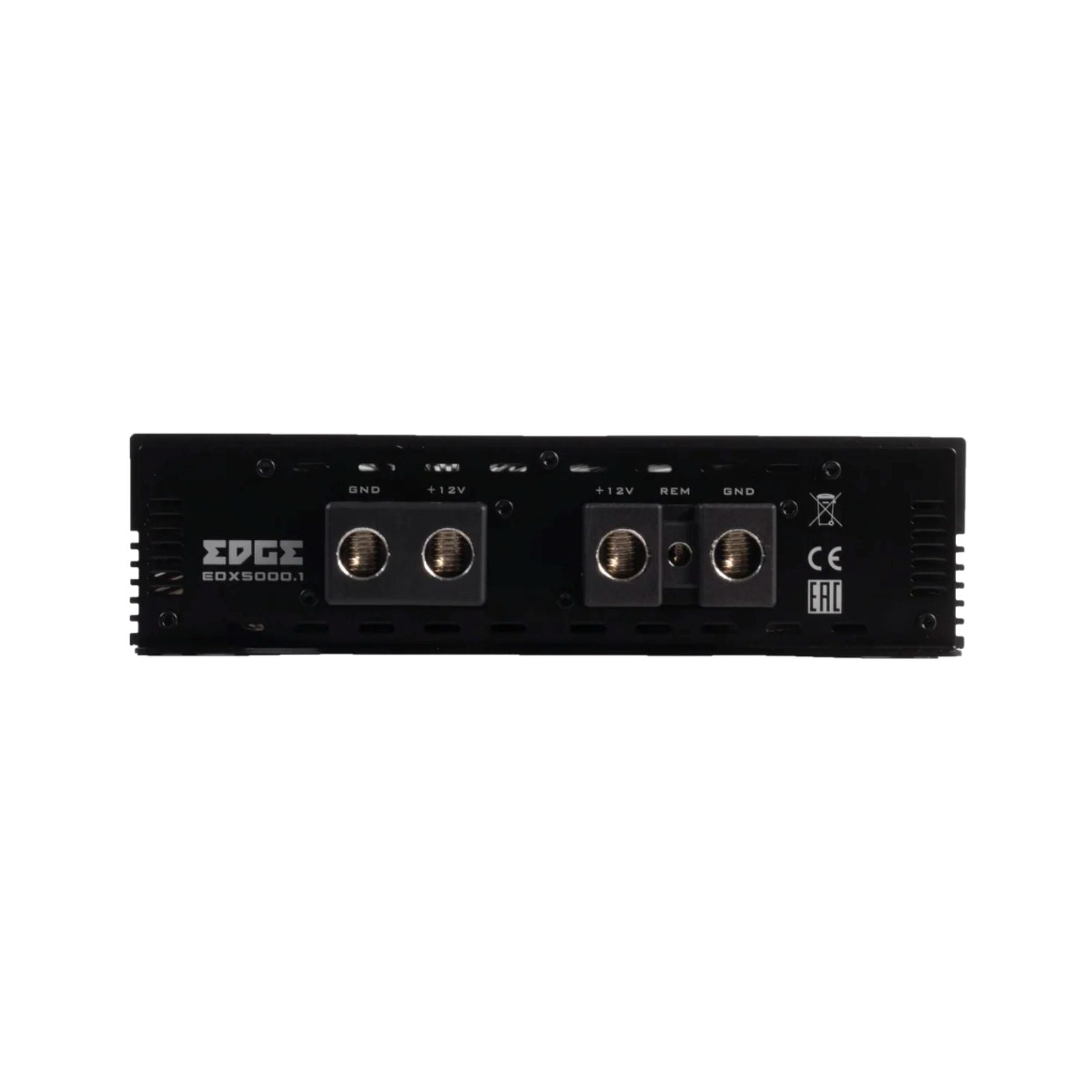

Dual 0 AWG power input terminals accommodate large-gauge cable runs from the vehicle's power supply directly to the amplifier PCB. The built-in strapping circuit allows two EDX5000.1D-E2 units to be bridged together, combining their output into a single channel for up to 11,800W RMS. If you need a lower-output starting point, the Edge DBX Series EDBX2200.1D-E4 is a Class D mono amplifier rated at 2200W RMS.
Parametric bass boost lets you target the exact frequency you need, with low pass and subsonic crossover filters also included. A 12dB on-board active crossover network, remote gain control, audio pass-through RCA output and full CE certification complete the specification.
Features
- Ultra Class D monoblock amplifier with efficiency up to 92%
- Dual 0 AWG power input terminals for large-gauge cable
- MOSFET output stage for high power and reliability
- 1 ohm low impedance drive
- Parametric bass boost: up to +12dB at any frequency between 30Hz and 90Hz
- Amplifier strapping: connect two identical amplifiers to deliver combined power through a single channel
- Remote level control for easy adjustment from the front of the vehicle
- Full EMI and CE approval
Explore the full range in Edge Xtreme Series.
Specification
| Configuration | Monoblock |
|---|---|
| RMS @ 4 Ohms 14.4v 1% THD | 1 x 1580 watts |
| RMS @ 2 Ohms | 14.4v 1% THD: 1 x 3000 watts |
| RMS @ 1 Ohm 14.4v 1% THD | 1 x 5500 watts |
| RMS @ 1 Ohm 16v 1% THD | 1 x 5700 watts |
| RMS @ 1 Ohm 18v 1% THD | 1 x 5800 watts |
| Maximum Power | 11000 watts |
| Frequency Response | 10Hz - 350Hz |
| Crossover Type | LP / Subsonic |
| Crossover Range | 10Hz - 250Hz |
| Input Sensitivity | 200mv - 8v |
| Topology | Ultra Class D |
| Dimensions | (H x W X D) 59mm x 250mm x 650mm (2.3" x 9.8" x 25.6") |
What's Included
- EDX5000.1D-E2
Edge
About the Edge EDX5000.1-E2
From our tech experts at CEN
A monoblock subwoofer amplifier from Edge, Class D, rated at 5500w RMS.
Who it suits
Anyone adding a subwoofer who wants solid power without a specialist budget. Edge is built for people who want loud and reliable rather than boutique.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How much power does the EDX5000.1D-E2 produce?
A: At 14.4V and 1% THD it delivers 1580W RMS at 4 ohms, 3000W RMS at 2 ohms and 5500W RMS at 1 ohm. At 1 ohm it rises to 5700W RMS at 16V and 5800W RMS at 18V, with 11000W maximum power.
Q: Can two EDX5000.1D-E2 amplifiers be strapped together?
A: Yes. The strapping circuit lets 2 identical amplifiers combine their output into a single channel, delivering up to 11,800 watts RMS.
Q: How big is the EDX5000.1D-E2?
A: It measures 59mm high, 250mm wide and 650mm deep, so plan the mounting location before installation.
