Edge Street Series EDPRO23ST-E7 Pro Audio Tweeters 2.3 Inch 100w RMS Pair

£79.99 Out of stock
Out of Stock
SKU: 92660MPN: EDPRO23ST-E7
Part of the range · 22 productsPart of the Edge Street Series · 22 products See the range →

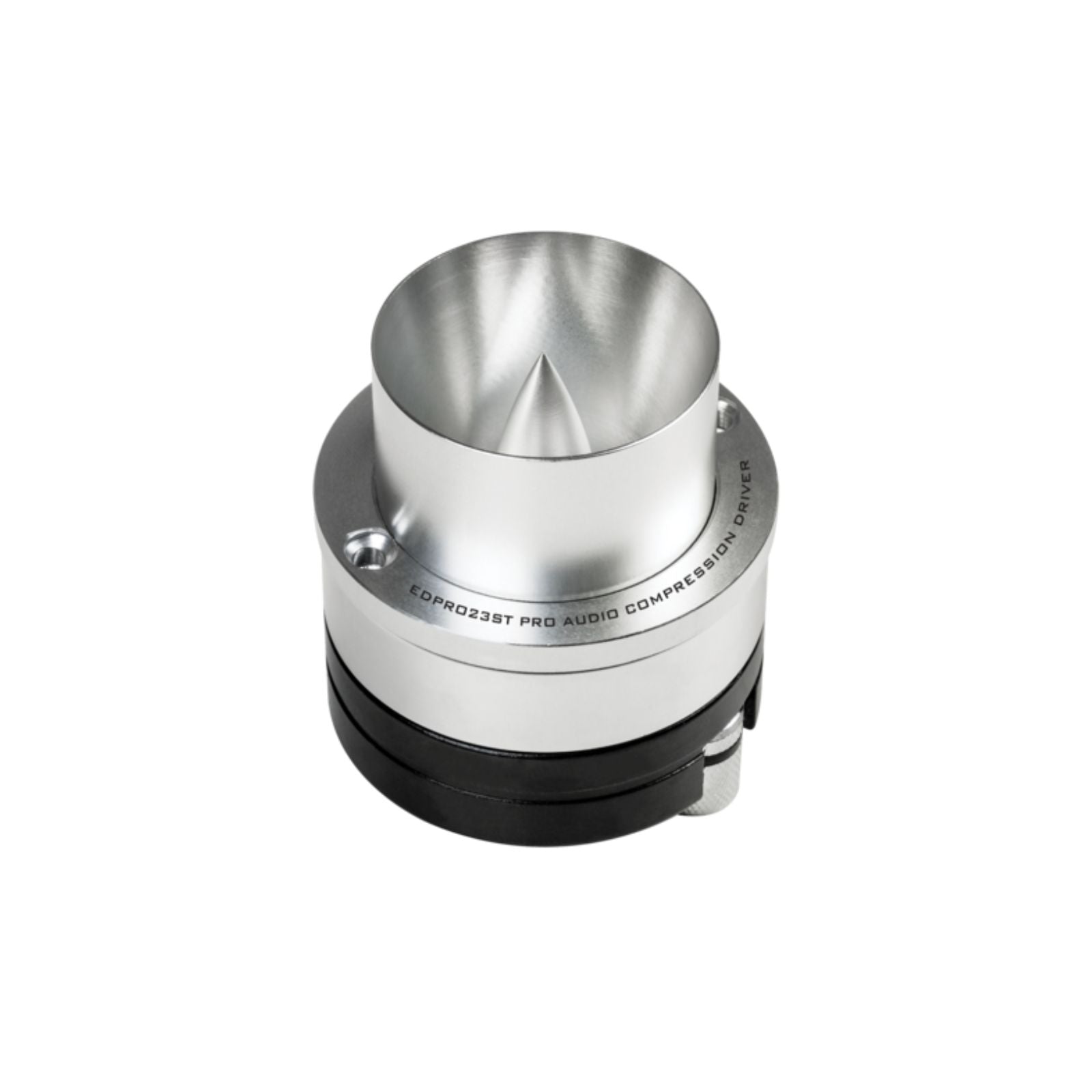

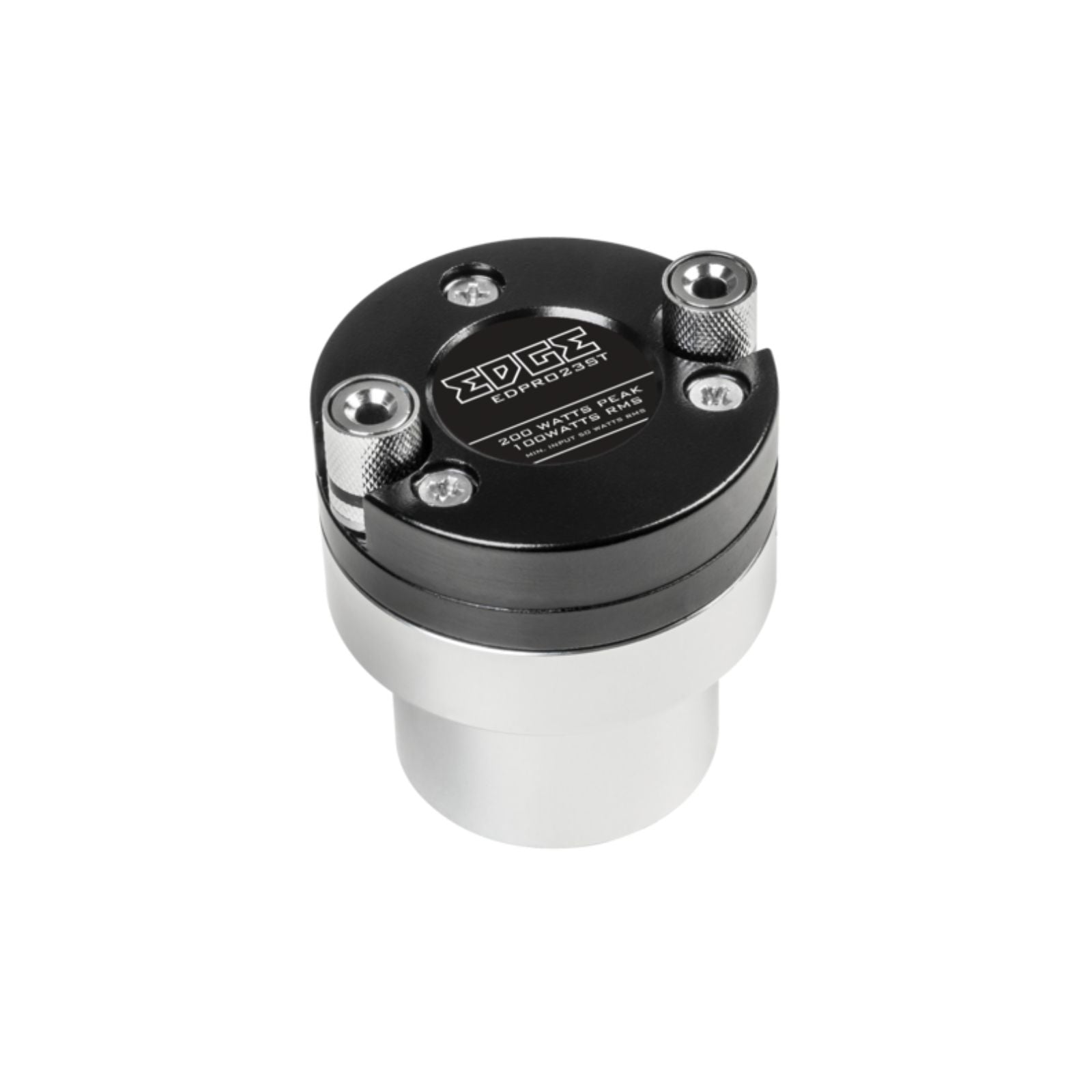

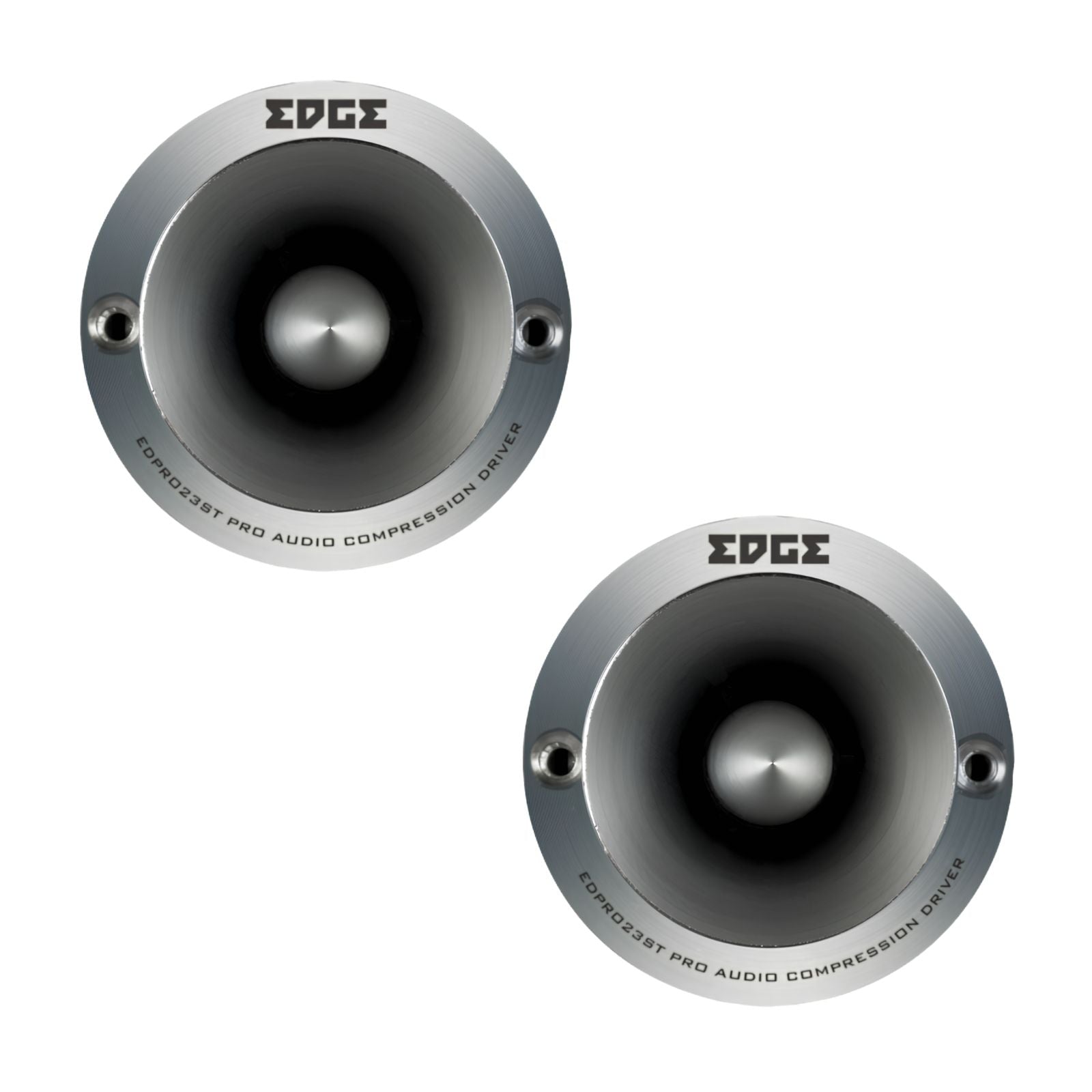

The Edge EDPRO23ST-E7 is a pair of 2.3 inch (58mm) pro audio compression horn tweeters from the Edge Street Series, rated at 100W RMS (200W peak) each with 106dB sensitivity. Part of Edge's pro audio range, they feature a titanium diaphragm and neodymium magnet for high-volume, high-frequency reproduction.

They pair well with Street Series pro midrange speakers such as the EDSPRO6-E4 and EDSPRO8-E3. A 4-channel Edge amplifier such as the EDBX100.4-E1 is a suitable match for their 100W RMS rating.

Key specifications

  • Model: EDPRO23ST-E7
  • Type: pro audio compression horn tweeter
  • Size: 2.3" (58mm)
  • Power: 100W RMS / 200W peak
  • Sensitivity: 106dB
  • Frequency response: 2kHz–20kHz
  • Impedance: 4 ohms
  • Diaphragm: titanium
  • Sold as: pair

2.3 inch 200 watts 106dB Pro Audio Tweeters - Pair

The Street Series is where Edge introduces its first compression horn tweeter. A high-quality neodymium magnet structure gives excellent control over the voice coil.

The extended horn design improves sound quality and clarity over a traditional flat bullet tweeter, and broadens the usable frequency range. The compact footprint makes installation straightforward where space is limited.

Like all Edge Pro line products, the EDPRO23ST-E7 is built for situations where hi-fi output is not enough. Paired with any Street Series pro midrange, it delivers a full-range combination. If you need a larger pro audio tweeter, Edge also offer the DB Series EDBPRO37T-E0 3.7 inch pro audio tweeters.

Features

  • Pro audio compression drivers
  • Titanium diaphragm
  • Cast aluminium flange
  • Ferro-fluid voice coil cooling
  • Screw terminal

Explore the full range in Edge Street Series.

Specification
Configuration1 way
Speaker Size2.3" (58mm)
RMS Power100 watts
Peak Power200 watts
Frequency Response2kHz - 20kHz
Sensitivity106dB
Impedance4 Ohms
Suggested Amplifier4-channel, e.g. Edge EDBX100.4-E1
What's Included
  • EDPRO23ST-E7
Download User Manual(PDF)
Product information

Edge

About the Edge EDPRO23ST-E7

From our tech experts at CEN

The Edge EDPRO23ST-E7 is a pair of 2.3 inch (58mm) compression horn tweeters from the Street Series. Each is rated at 100w RMS and 4 ohm, with 106 dB sensitivity and a 2 kHz to 20 kHz range. A titanium diaphragm and neodymium magnet are built for high-volume treble.

Who it suits

Loud pro audio builds where the tweeters need to keep up with high-output midrange speakers. They are designed to pair with the Street Series EDSPRO6-E4 and EDSPRO8-E3 midranges. The EDSPRO22T-E3 is the bullet-style alternative in the same series, rated at 115w RMS.

Our tech experts advise

Pro audio tweeters must be high-passed so they never see bass, either by the amplifier's crossover or a suitable passive filter. At 106 dB they are very efficient, so set gains carefully to avoid harshness. Aim them along the cabin rather than straight at the listener's ears. Installation is priced per vehicle, so get in touch.
