Edge Street Series EDSPRO22T-E3 Pro Audio Tweeters 2.2 Inch 115w RMS Pair
Couldn't Load Pickup availability

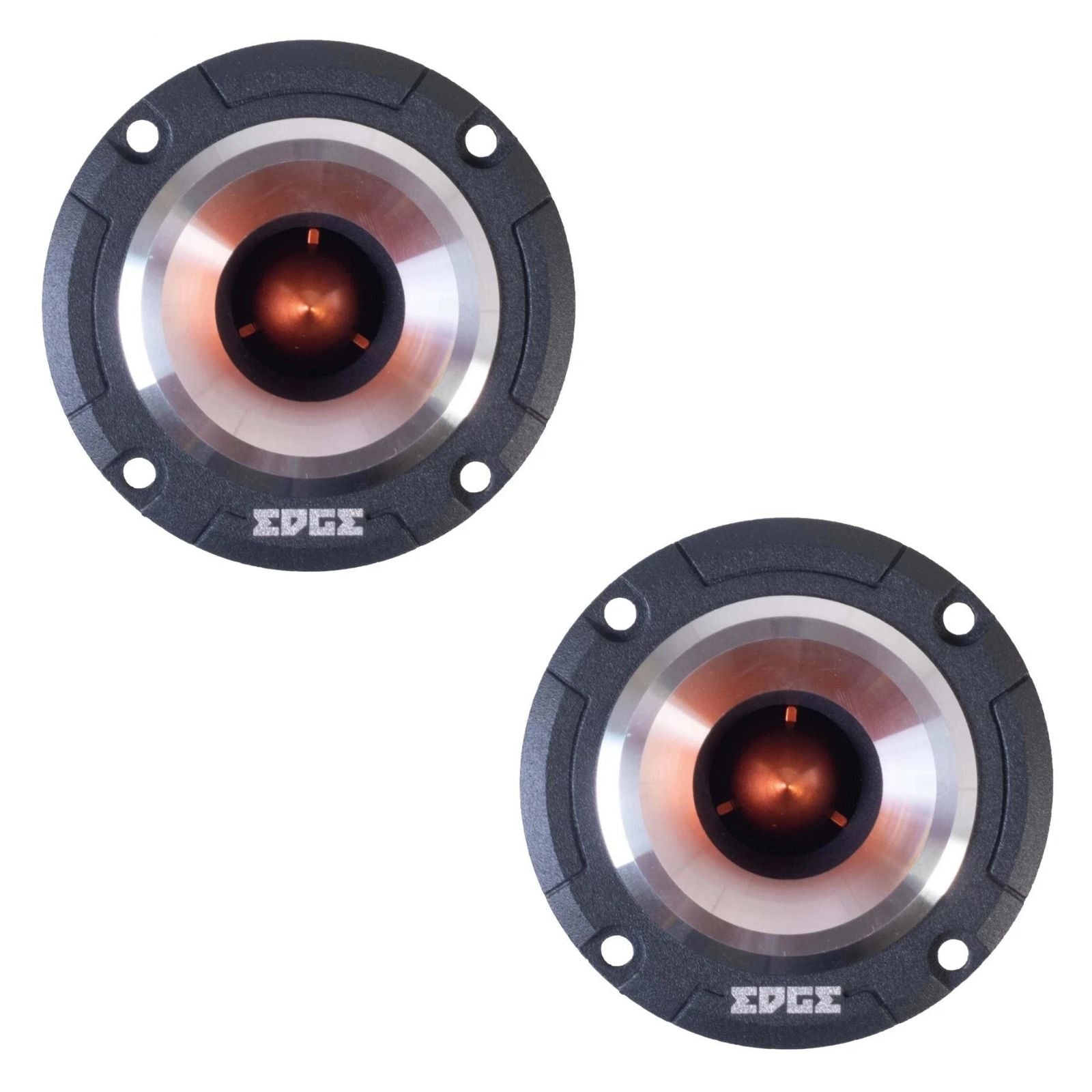

The Edge EDSPRO22T-E3 is a pair of 2.2 inch pro audio bullet tweeters from the Edge Street Series, rated at 115W RMS (230W peak) each with 106dB sensitivity.
They are designed to pair with Street Series pro midrange speakers such as the EDSPRO6-E4 and EDSPRO8-E3. Edge recommends the EDBX100.4-E1 amplifier to drive them.
Key specifications
- Model: EDSPRO22T-E3
- Type: pro audio bullet tweeter
- Size: 2.2 inch (58mm)
- Power: 115W RMS / 230W peak
- Sensitivity: 106dB
- Frequency response: 2kHz–20kHz
- Impedance: 4 ohms
- Diaphragm: titanium, CNC aluminium horn
- Sold as: pair
Edge Street Series 2.2 inch pro audio tweeters

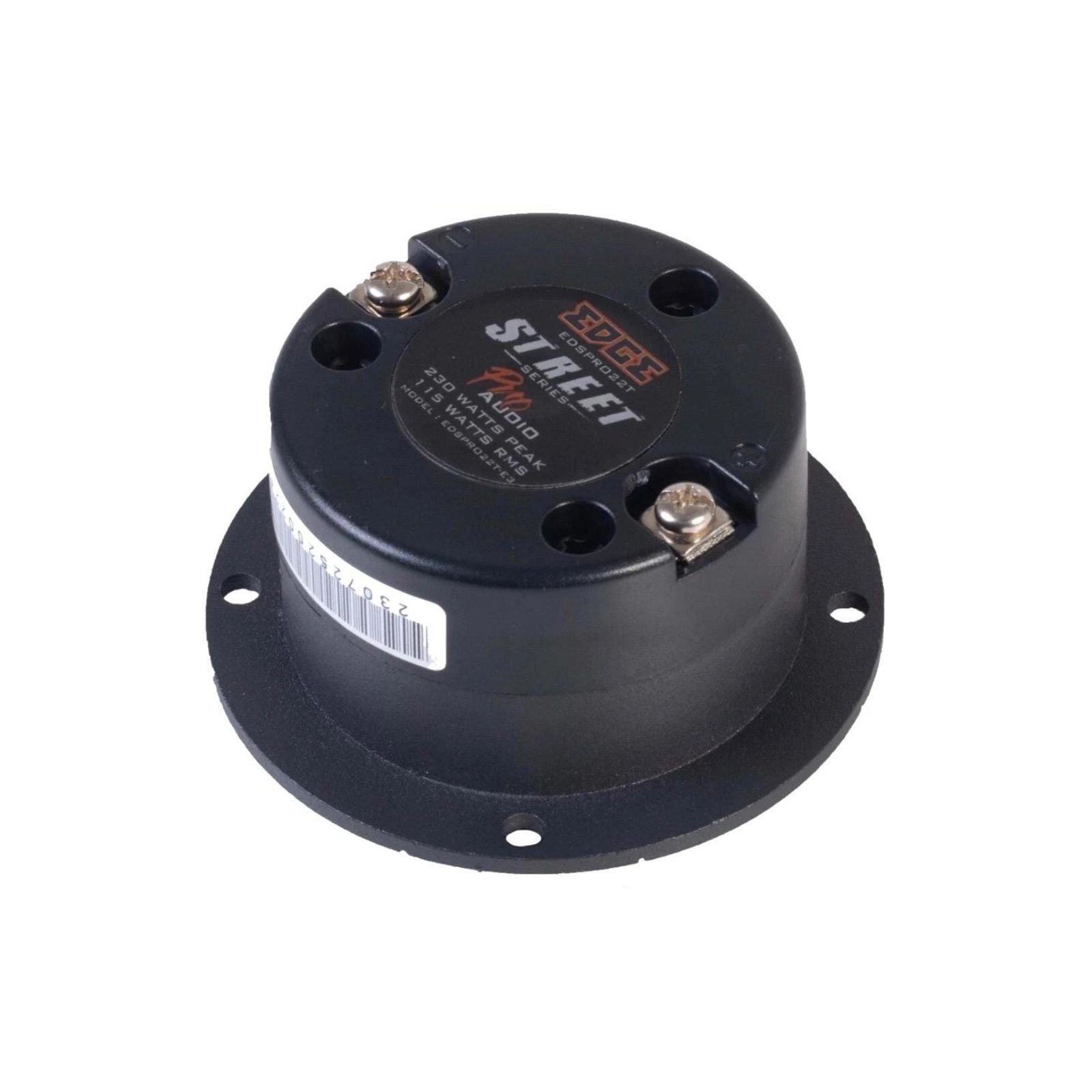

The EDSPRO22T-E3 is a high-frequency bullet tweeter designed to pair with EDS Pro midrange speakers for a full-range response at high volume levels. Its compact 3 inch body is straightforward to install.

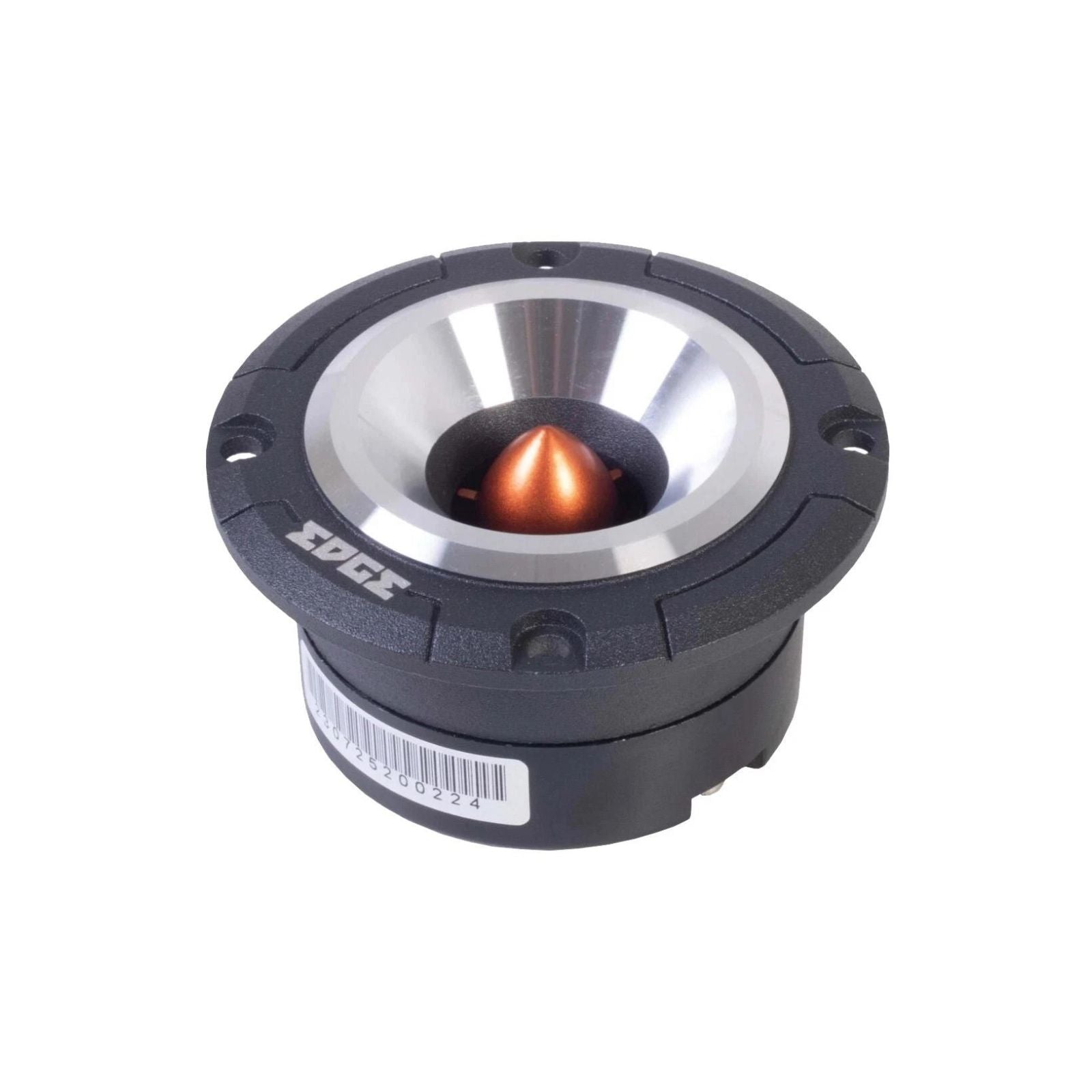

A titanium diaphragm delivers a sharp, tight response with high power handling. The CNC aluminium horn provides smooth frequency dispersion, and the central bullet phase plug enhances midrange response. The result is a smooth, linear tweeter capable of live-music event volume levels.
Features
- Smooth power bullet phase plug
- Premium titanium diaphragm
- CNC horn design
- 106dB sensitivity
- OFC high-power voice coil
Explore the full range in Edge Street Series.
Specification
| Configuration | 1 way |
|---|---|
| Speaker Size | 2.2" (58mm) |
| RMS Power | 115 watts |
| Peak Power | 230 watts |
| Frequency Response | 2kHz - 20kHz |
| Sensitivity | 106dB |
| Impedance | 4 Ohms |
| Recommended Amplifier | EDBX100.4-E1 |
What's Included
- EDSPRO22T-E3
Edge
About the Edge EDSPRO22T-E3
From our tech experts at CEN
The Edge EDSPRO22T-E3 is a pair of 2.2 inch (58mm) pro audio bullet tweeters from the Street Series. Each is rated at 115w RMS and 4 ohm, with 106 dB sensitivity, a titanium diaphragm and CNC aluminium horn.
Who it suits
High-output builds pairing with the Street Series EDSPRO6-E4 or EDSPRO8-E3 pro midranges. Edge recommends the EDBX100.4-E1 amplifier to drive them. The EDPRO23ST-E7 is the compression horn alternative in the same series at 100w RMS.
Our tech experts advise
Pro audio tweeters must be high-passed so they never see bass, either by the amplifier's crossover or a suitable passive filter. At 106 dB they are extremely efficient, so match levels carefully against the midrange. The small 58mm size makes them easier to fit into pods and A-pillars than larger bullets. Aim them along the car rather than directly at your ears. Installation is priced per vehicle, so get in touch.
Explore the full Edge range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Edge
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Edge
More options from the same range, in stock and ready to go
Staff PickEdge SPL Sub 12 Inch Subwoofer Dual 2 Ohm Voice Coil 1500w RMS EDP122SPL-E3
£179.00
View product
Best SellerEdge DBX Series EDBX6-E1 3 Way Coaxial Speakers 6.5 Inch 90w RMS Pair
£39.99
Edge DBX Series EDBX150.4-E1 Amp Class AB 4 Channel Amplifier 600w RMS
£174.99
Edge DBX Series EDBXPB62.1-E5 6.5 Inch Full Range Ported Enclosure 1000w RMS
£249.99
Edge DBX Series EDBXPRO6-E2 Pro Audio Midrange Speakers 6.5 Inch 175w RMS Pair
£49.99
Frequently Asked Questions
Q: What type of tweeter is the EDSPRO22T-E3?
A: It is a pro audio bullet tweeter with a titanium diaphragm, CNC aluminium horn front, central bullet phase plug and OFC high power voice coil.
Q: What amplifier does Edge recommend for the EDSPRO22T-E3?
A: Edge recommends the EDBX100.4-E1 amplifier. Each tweeter is rated at 115W RMS (230W peak) at 4 ohms and plays from 2kHz to 20kHz.
Q: What midrange speakers do the EDSPRO22T-E3 tweeters pair with?
A: They are designed to pair with the Edge EDS Pro midrange speakers for a full range, high volume pro audio setup.
Q: Can CEN fit these tweeters for me?
A: Yes. CEN offers professional installation from our Nottingham premises. Contact us to book an installation slot or ask for a fitting quote.
