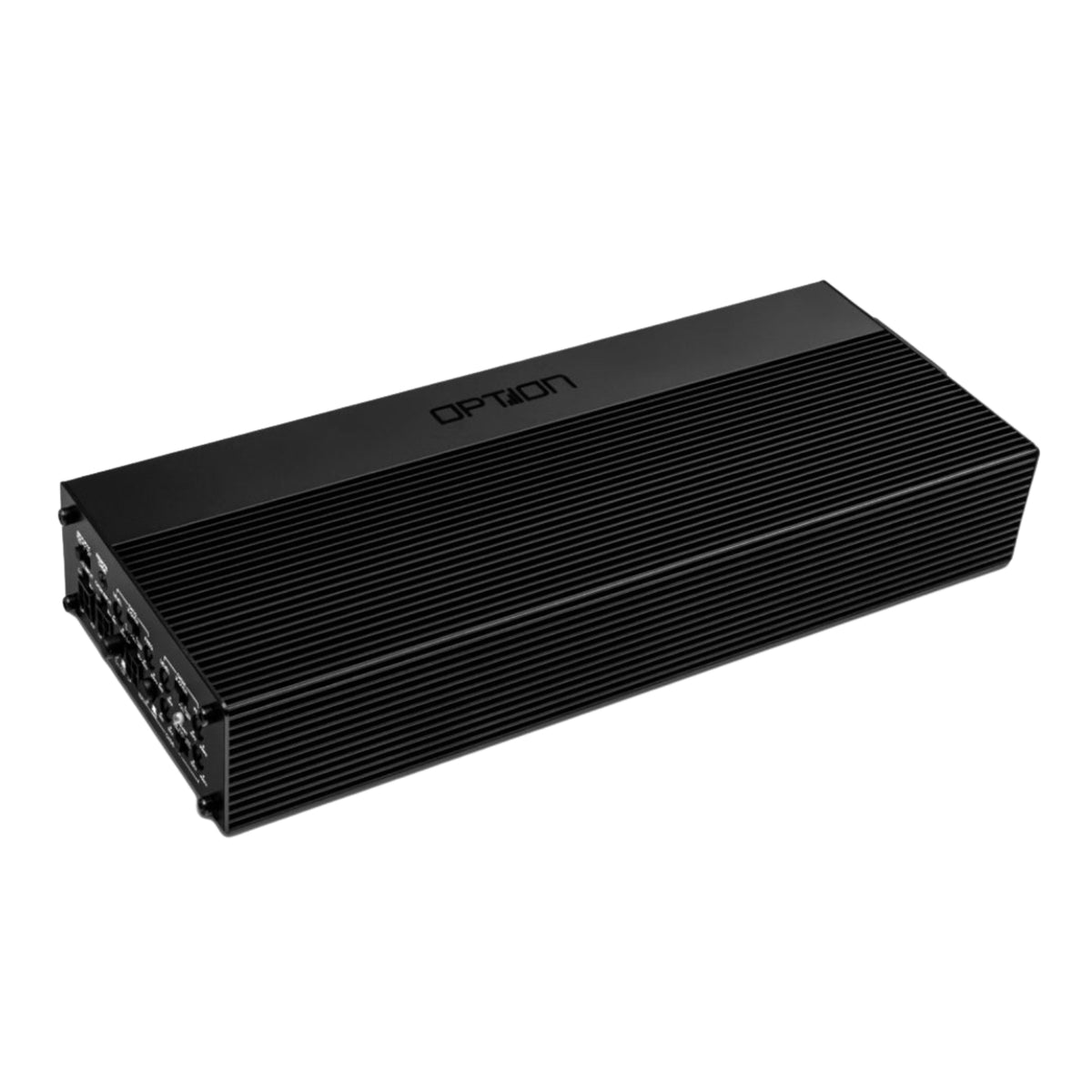

Option Audio AIR-D6 Amp 6 Channel Class D Compact Amplifier 300w RMS
Couldn't Load Pickup availability
The Option Audio AIR-D6 is a micro-format 6-channel Class D amplifier delivering 6 × 95W RMS at 4 ohms or 6 × 150W RMS at 2 ohms (300W RMS bridged), part of the Option Audio AIR compact amplifier range.
Key specifications
- Channels: 6, Class D
- RMS power: 6 × 95W (4 ohms) / 6 × 150W (2 ohms)
- Bridged RMS power (4 ohms): 300W
- High-pass and low-pass filters: 40Hz–400Hz
- Frequency response: 20Hz–20kHz
- Minimum impedance: 2 ohms
- Inputs: high-level with auto turn-on
- Dimensions (W × H × D): 105.7 × 41.7 × 258mm
- Recommended cable: 10mm²
Also in the AIR range: the AIR-D1 mono subwoofer amplifier and the AIR-D4 4-channel amplifier.
Option Audio AIR-D6 6-channel amplifier
Maximum power for the entire system: Six channels rated at 6 × 95W/150W RMS (4/2 ohms) let you run a front system, rear speakers and a subwoofer from a single unit.
Ultra-compact micro design: Despite its output, the AIR-D6 is extremely small. The space-saving housing fits behind the dashboard, in the glove compartment or under a seat.
OEM integration: High-level inputs with auto turn-on mean the AIR-D6 works directly with factory head units that have no RCA outputs. It detects the audio signal automatically and powers on without a separate remote cable.
Flexible configuration: Run all six channels for a full speaker setup, or bridge channels to deliver 300W RMS at 4 ohms for demanding components or a subwoofer. Integrated high-pass and low-pass filters (40Hz–400Hz) allow precise frequency separation.
Efficient Class D technology: The digital circuit delivers high efficiency with minimal heat generation. 2-ohm stability allows a wide range of speaker combinations.
Explore the full range in Option Audio AIR Series.
Specification
| Class-D power amplifier | Yes |
|---|---|
| Operating voltage | 10-16V |
| RMS power (4 ohms) | 95 watts |
| RMS power (2 ohms) | 150 watts |
| RMS power bridged (4 ohms) | 300 watts |
| RMS power bridged (2 ohms) | not possible |
| Frequency response | 20Hz-20kHz |
| High-pass filter | 40Hz-400Hz |
| Low-pass filter | 40Hz-400Hz |
| Total harmonic distortion (THD) | <0.1% |
| Minimum loudspeaker impedance | 2 ohms |
| Signal-to-noise ratio (A-weighted) | >90 dB |
| Security | 60A |
| Dimensions | (W x H x D) 105.7mm x 41.7mm x 258mm |
| Cable cross-section (recommended) | 10 mm² |

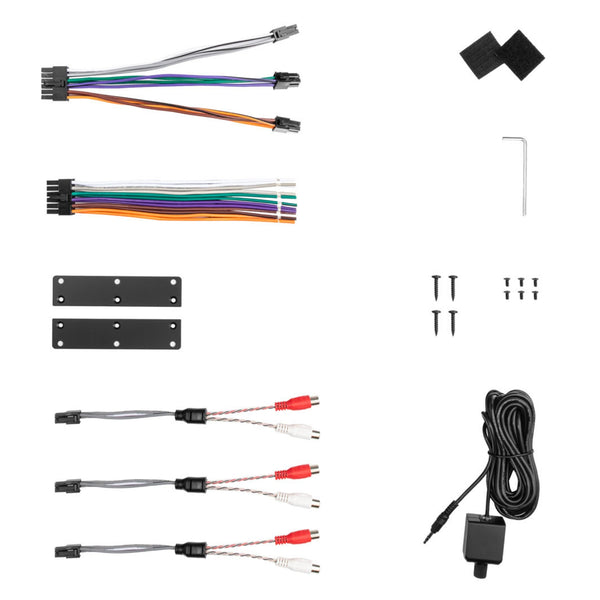

What's Included
- OPTION AIR-D6 6-channel amplifier
- Subwoofer level remote control including Velcro strap for flexible mounting
- 3x Plug & Play adapters for input signal to RCA
- 1x Plug & Play adapter for output signal to Molex
- 1x Plug & Play adapter for output signal to loose ends
- Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
- Allen key
Option Audio
About the Option Audio AIR-D6
From our tech experts at CEN
A 6-channel amplifier from Option Audio, Class D, in a compact chassis, rated at 300w RMS.
Who it suits
Drivers upgrading speakers in a van, camper or car where the head unit cannot drive them properly. The compact chassis matters in vans and campers, where there is rarely a good home for a large amplifier.
Our tech experts advise
Matching the amplifier to the speakers matters more than headline watts, and gains want setting with a meter. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Option Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Option Audio
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Option Audio
More options from the same range, in stock and ready to go

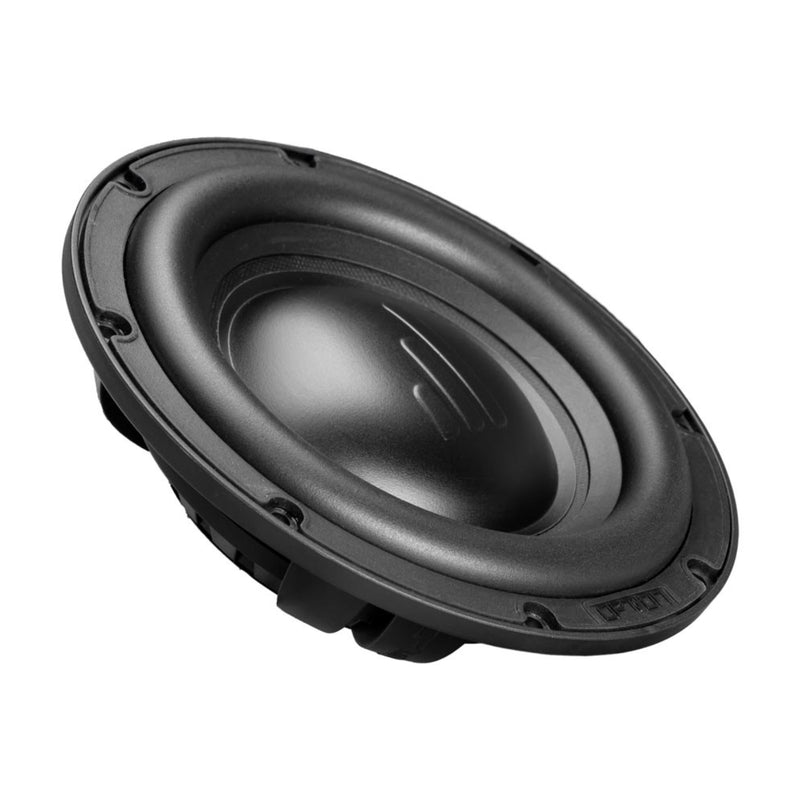

Option Audio AIR-F6 D2 Sub 6.5 Inch Dual Voice Coil Flat Subwoofer 150w RMS
£119.00
View product

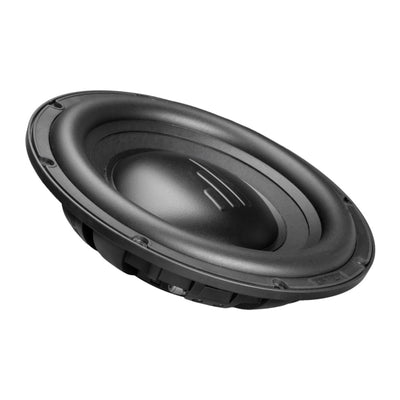

Option Audio AIR-F8 D2 Sub 8 Inch Dual Voice Coil Flat Subwoofer 200w RMS
£179.00

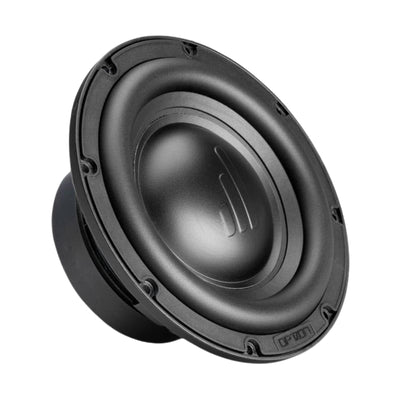

Option Audio AIR-6 D2 Sub 6.5 Inch Dual Voice Coil Subwoofer 150w RMS
£89.99

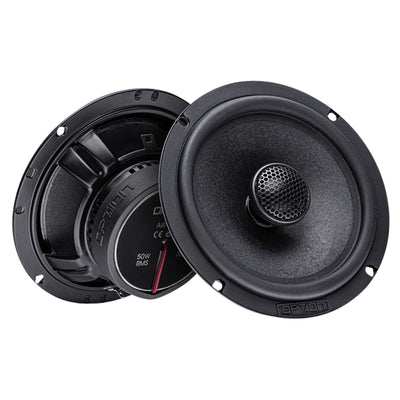

New ReleaseOption Audio AIR-165X 6.5 Inch Coaxial Speakers 50w RMS
RRP £199.00Save 35%£129.00

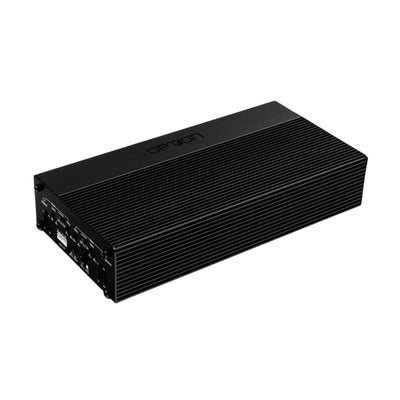

Option Audio AIR-D4 Amp 4 Channel Class D Compact Amplifier 330w RMS
£179.00
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: Can the Option Audio AIR-D6 run a whole car audio system?
A: Yes. Its six channels can power a front system, rear speakers and a subwoofer, delivering 6 x 95W RMS at 4 ohms or 6 x 150W RMS at 2 ohms.
Q: Can the AIR-D6 channels be bridged?
A: Yes. Channels can be bridged to 300W RMS at 4 ohms to drive powerful components or a subwoofer. Bridging at 2 ohms is not possible.
Q: Does the AIR-D6 need a separate remote cable?
A: No. Thanks to its high-level inputs and auto turn-on, it detects the music signal and switches on automatically, which makes it ideal for factory radios without RCA outputs.
