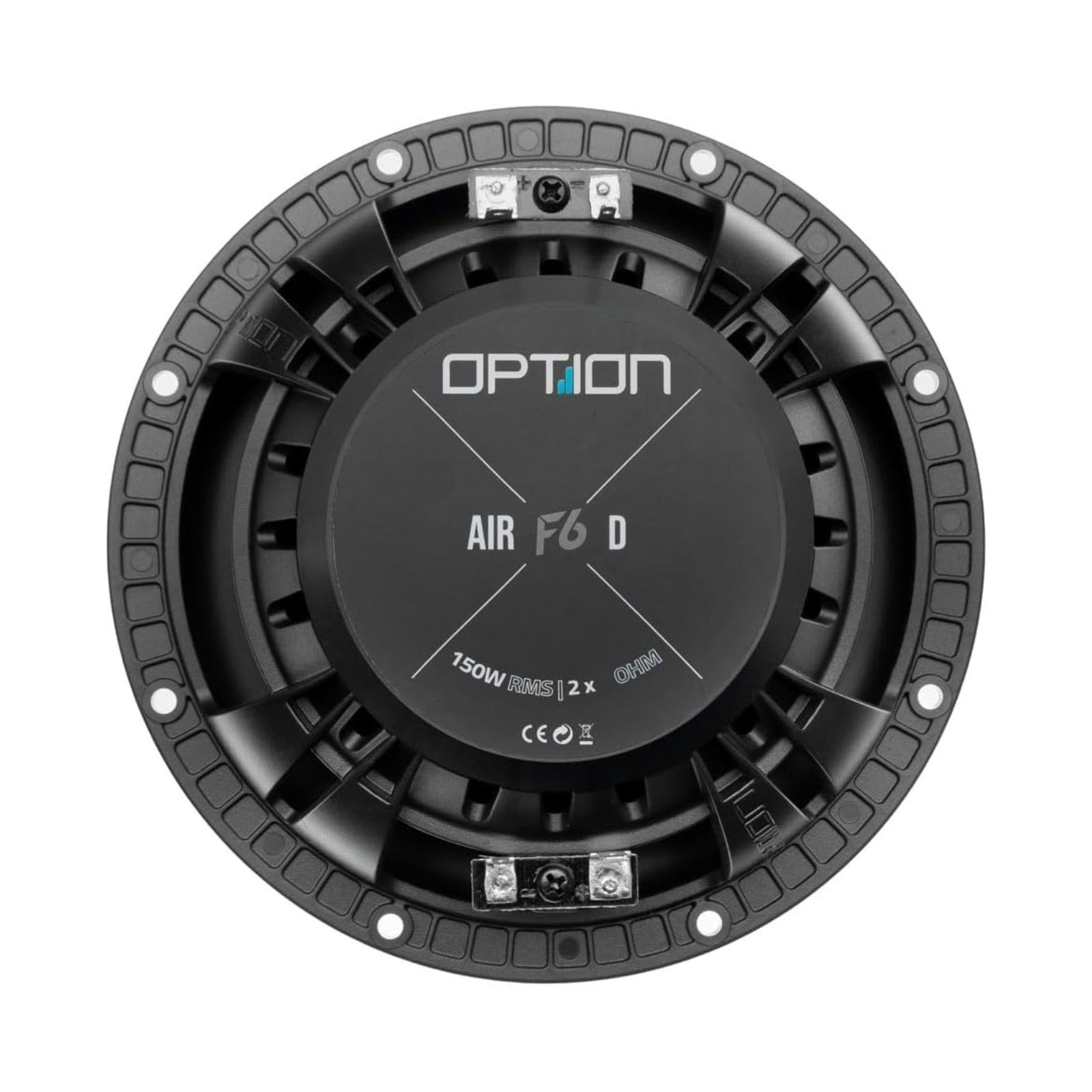

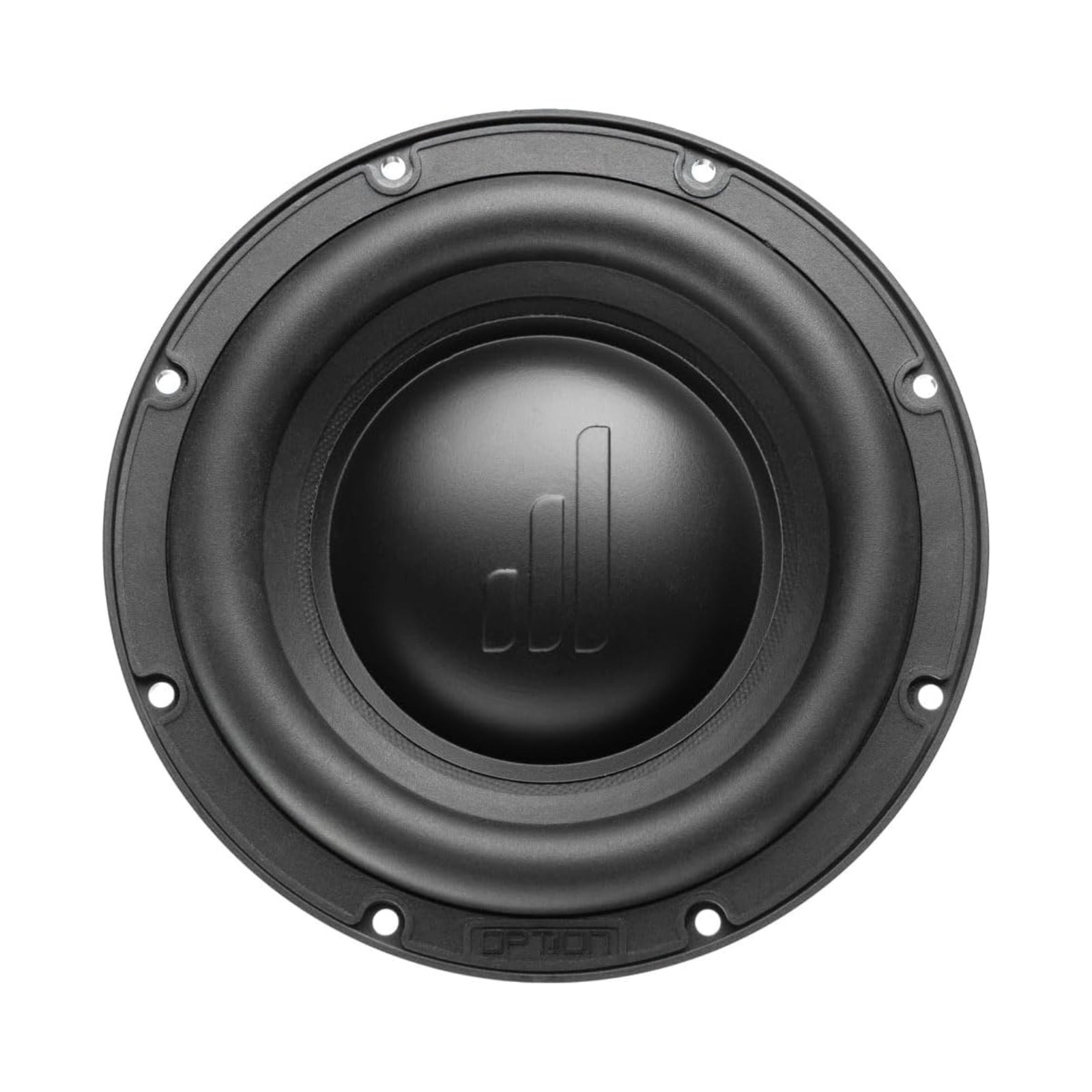

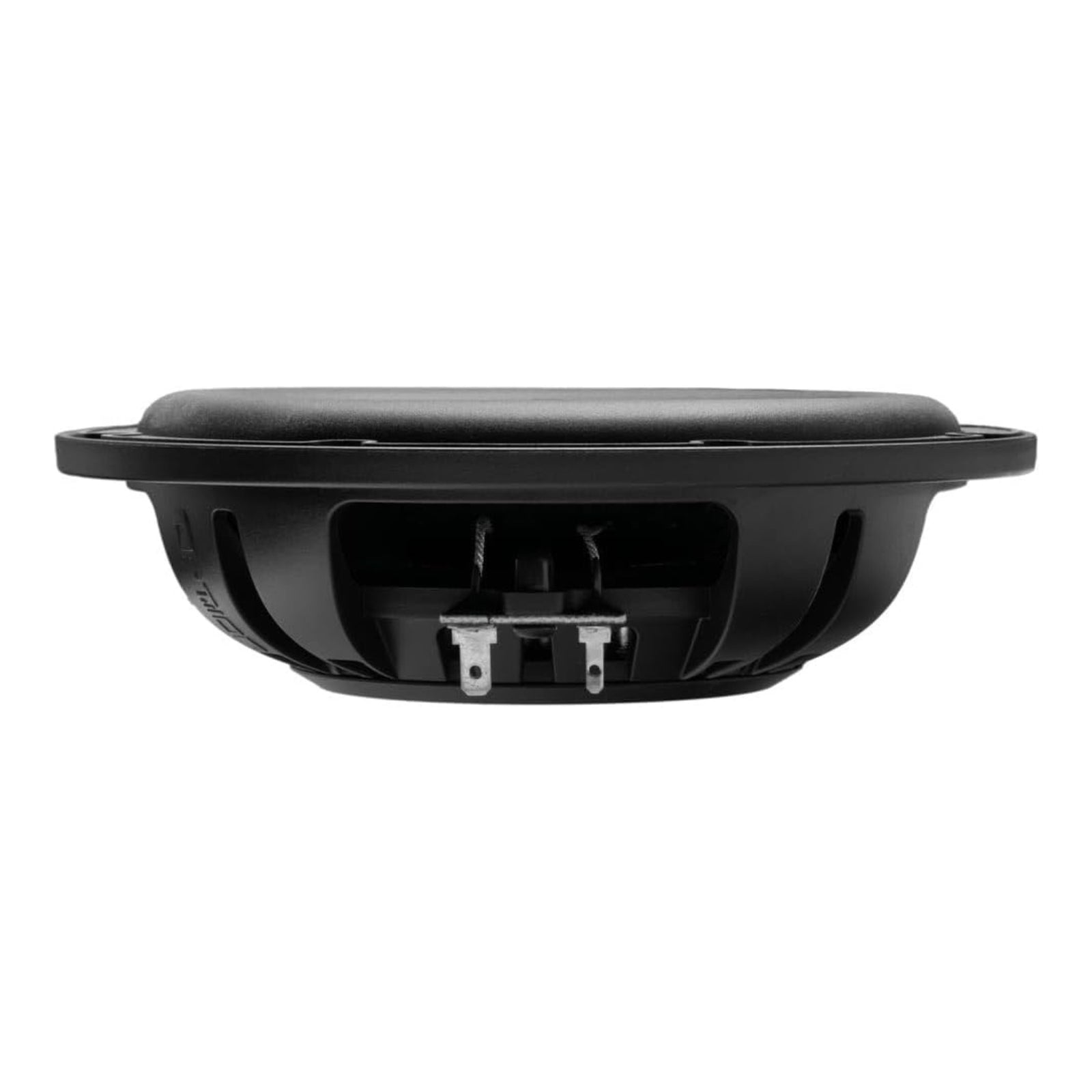

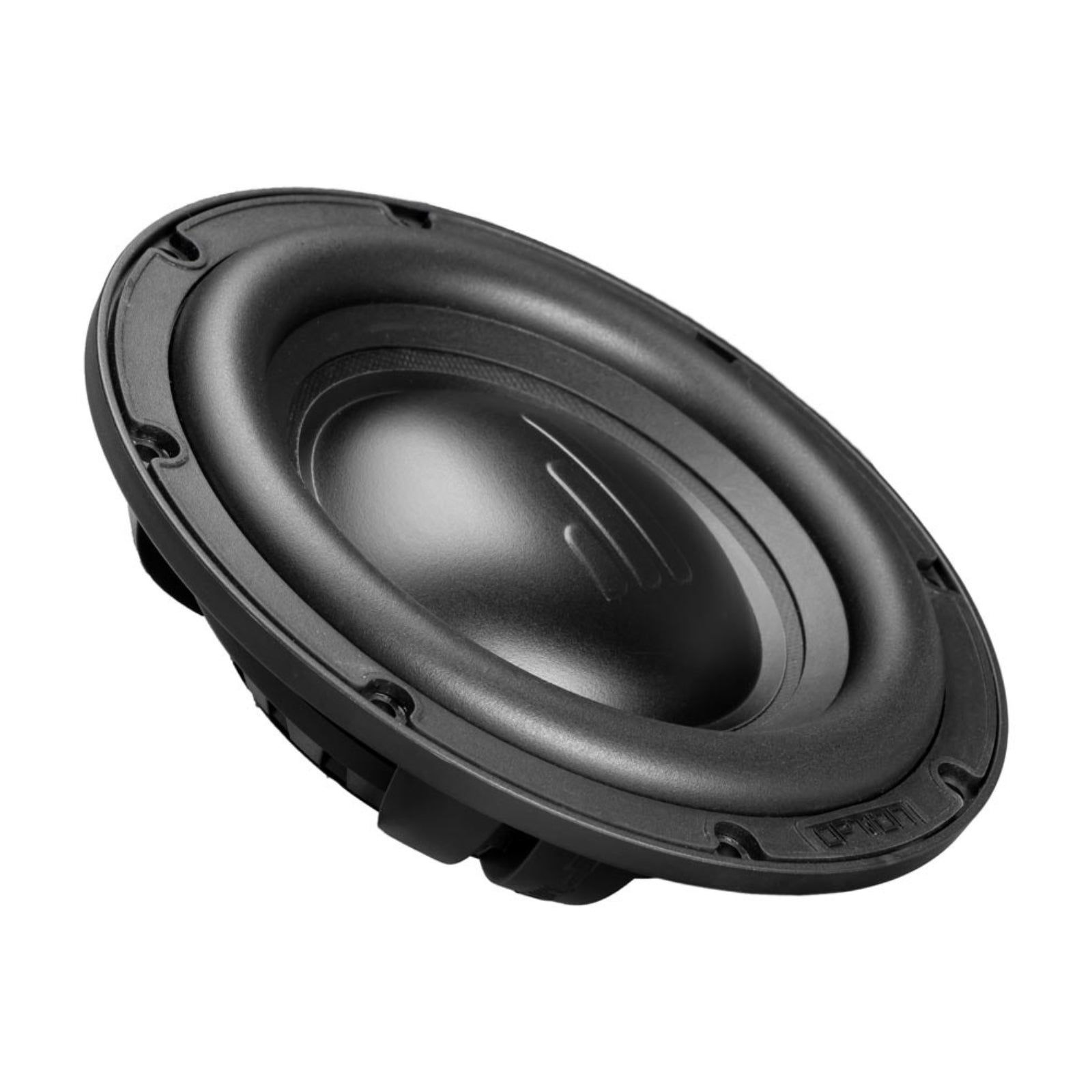

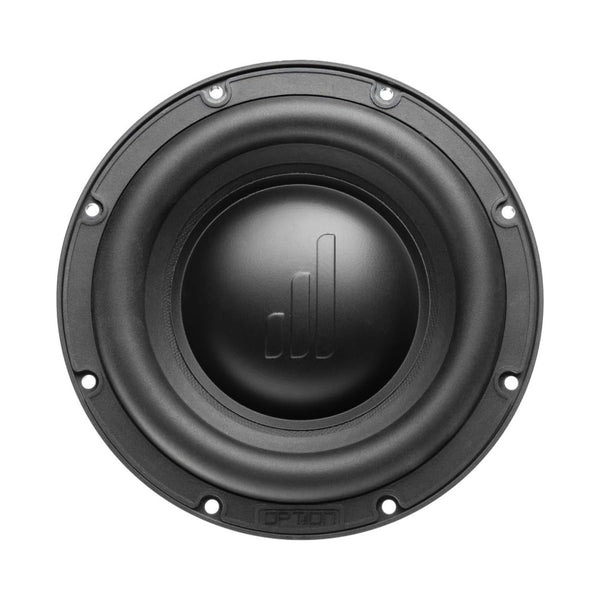

Option Audio AIR-F6 D2 Sub 6.5 Inch Dual Voice Coil Flat Subwoofer 150w RMS
Couldn't Load Pickup availability
The Option Audio AIR-F6 D2 is a 6.5 inch (16.5cm) shallow-mount dual voice coil subwoofer with 150W RMS power handling and a neodymium magnet, from Option Audio's AIR flat subwoofer range. Its 3.5cm installation depth makes it suited to vehicles where space for a conventional subwoofer is not available.
This listing is the AIR-F6 D2 6.5 inch. The AIR flat subwoofer range is also available as the AIR-6 D2 6.5 inch standard-depth version.
Key specifications
- Size: 16.5cm (6.5in)
- Voice coil: dual, 2 ohm + 2 ohm (wire to 1 ohm or 4 ohm)
- Power handling: 150W RMS
- Installation depth: 3.5cm
- Magnet: neodymium
- Membrane: coated
- Basket: plastic with fibreglass reinforcement
- Type: single chassis (driver only)
Option Audio AIR-F6 D2 Subwoofer
The AIR-F6 D2 has an installation depth of just 3.5cm, making it a practical choice for vehicles where space behind a panel or under a seat is severely limited. Despite its slim profile, it delivers 150W RMS of bass output.
The neodymium magnet keeps weight low without sacrificing efficiency. The dual voice coil configuration gives flexibility when wiring — connect to 1 ohm or 4 ohm depending on your amplifier's requirements.
Also in the range: AIR-F8 D2 8in and AIR-F10 D2 10in flat subwoofers.
Explore the full range in Option Audio AIR Series.
Specification
| Diameter | 16.5cm |
|---|---|
| Type | Single Chassis |
| Voice Coil | Double voice coil |
| Load Capacity | 150w RMS |
| Impedance | 2 Ohm+2 Ohm (1 Ohm or 4 Ohm) |
| Installation Depth | 3.5cm |
| Magnet | Neodymium |
| Membrane | Coated |
| Basket | Plastic with fibreglass reinforcement |
What's Included
- Option Audio AIR-F6 D2 Subwoofer
Option Audio
About the Option Audio AIR-F6 D2
From our tech experts at CEN
The Option Audio AIR-F6 D2 is a 6.5 inch (16.5cm) shallow-mount dual voice coil subwoofer with 150W RMS power handling. Its installation depth of 3.5cm suits vehicles where space behind a panel or under a seat is severely limited. The neodymium magnet keeps weight low without reducing efficiency.
Who it suits
It is ideal for drivers who want more bass but have no space for a conventional deep driver — under a seat or behind a trim panel, for example. If space allows a deeper installation at the same power, the AIR-6 D2 is the standard-depth equivalent. For more output in a flat housing, consider the AIR-F8 D2 at 200W RMS.
Our tech experts advise
The dual voice coil wires to 1 ohm or 4 ohm — confirm your amplifier's stable impedance before connecting. This is a driver only; you will need a sealed enclosure or a custom-built shallow mounting. Installation cost varies by vehicle; speak to our team at our Nottingham workshop for a fitting quote.
Explore the full Option Audio range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Option Audio
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Option Audio
More options from the same range, in stock and ready to go

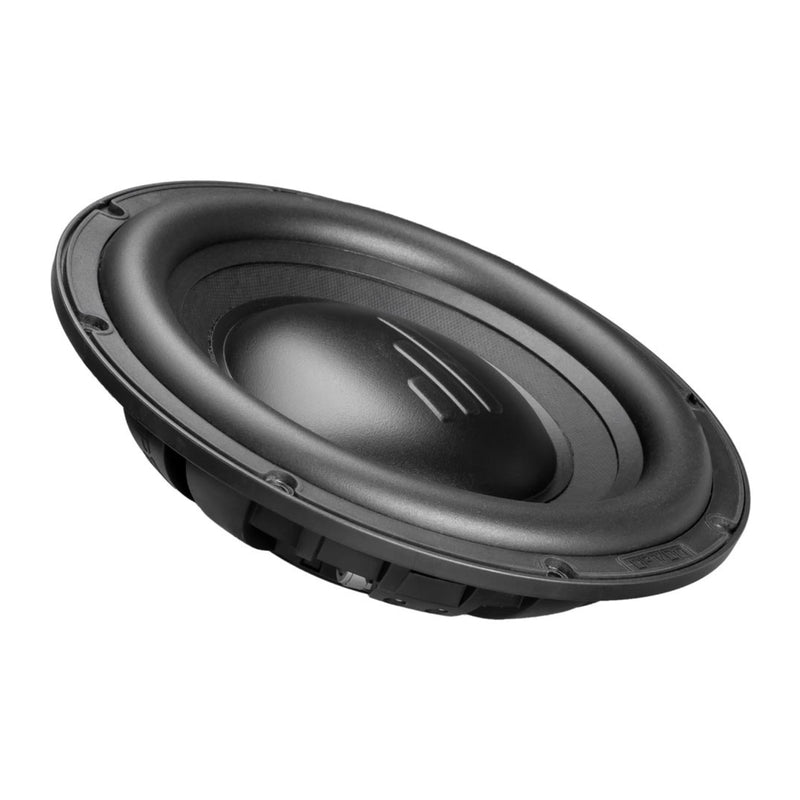

Option Audio AIR-F8 D2 Sub 8 Inch Dual Voice Coil Flat Subwoofer 200w RMS
£179.00
View product
Option Audio AIR-6 D2 Sub 6.5 Inch Dual Voice Coil Subwoofer 150w RMS
£89.99
New ReleaseOption Audio AIR-165X 6.5 Inch Coaxial Speakers 50w RMS
RRP £199.00Save 35%£129.00
Option Audio AIR-D4 Amp 4 Channel Class D Compact Amplifier 330w RMS
£179.00
Option Audio AIR-D1 Sub Amp Mono 1 Channel Class D Subwoofer Amplifier 350w RMS
£169.00
Frequently Asked Questions
Q: Do I need an amplifier for this subwoofer?
A: Yes, unless it is an active (powered) subwoofer with a built-in amplifier. Passive subwoofers need an external amplifier matched to the RMS power and impedance shown in the Specification tab.
Q: What size enclosure does this subwoofer need?
A: The recommended enclosure volume is listed in the Specification tab where the manufacturer provides it. As a rule, sealed enclosures give tighter, more accurate bass while ported enclosures deliver more output. Contact CEN if you would like a recommendation for your build.
Q: What does RMS power mean?
A: RMS is the continuous power a subwoofer can handle, and it is the number that matters when matching an amplifier. Peak or max figures describe short bursts only. Match your amplifier output to the RMS rating in the Specification tab.
Q: Sealed or ported enclosure - which should I choose?
A: Sealed boxes are compact and produce tight, controlled bass suited to sound quality builds. Ported boxes are larger and produce more output at low frequencies, suited to those who want maximum impact. Either works well when built to the recommended volume.
Q: Can CEN build or supply an enclosure and fit everything?
A: Yes. CEN supplies enclosures and offers professional installation from our Nottingham premises, including amplifier wiring. Contact us to discuss your build.
Q: Can the AIR-F6 D2 be wired to 1 ohm or 4 ohms?
A: Yes. It has dual 2 ohm voice coils, which can be wired to give a 1 ohm or 4 ohm load to suit your amplifier.
Q: Does the AIR-F6 D2 come with an enclosure?
A: No. It is supplied as a single subwoofer chassis (driver only), ready to install in a suitable enclosure or space.
Q: How deep is the AIR-F6 D2?
A: It needs only 3.5cm of installation depth, ideal for special installation situations and vehicles with limited space.
