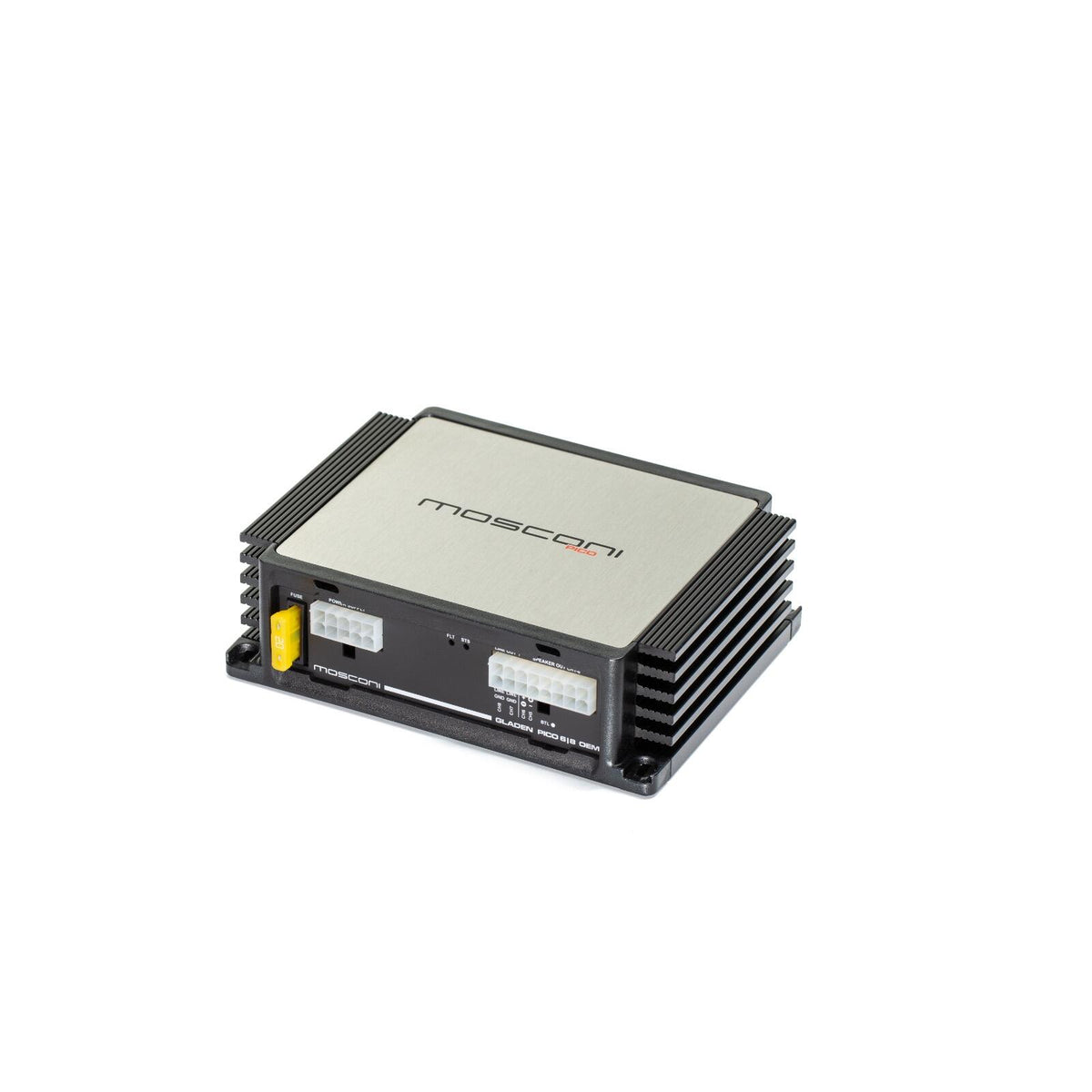

Mosconi Pico 6 | 8 DSP Amp 6 Channel Amplifier with 8 Channel DSP Up to 440w

Name: Mosconi Pico 6 | 8 DSP Amp 6 Channel Amplifier with 8 Channel DSP Up to 440w
Brand: Mosconi
SKU: 91234
Price: 569.99 GBP
Availability: InStock

£569.99

In stock

SKU: 91234MPN: MOSCONI PICO 6|8 DSP

Product variants

The Mosconi Pico 6|8 DSP is a compact 6-channel Class D amplifier with a built-in 8-channel DSP, delivering 4 x 50W plus 2 x 90W at 4 ohm, up to 440W in total. It is designed for clean factory radio integration and active or semi-active systems.

This listing is the Pico 6|8 DSP. The Mosconi Pico range is also available as the Pico 1 mono subwoofer amplifier.

Key specifications

Amplifier: 6 channels, Class D
DSP: 8 channels
Power at 4 ohm: 4 x 50W (ch 1–4) + 2 x 90W (ch 5–6)
Bridged: 4 x 50W + 1 x 240W (ch 5+6)
Inputs: 4 balanced high level up to 30V, 2 switchable high/low level
Digital inputs: S/PDIF optical and BT+
Line outputs: 2 x 2 Vrms
Dimensions: 150 x 133 x 46mm
Weight: 800g

Perfect OEM Integration

Optimised for factory radio use. Six analogue inputs accept up to 30V, with flexible routing, 3-band input EQ and delay. The 4 x 50W + 2 x 90W output suits active and semi-active systems as well as classic front + rear + sub setups. Two digital inputs (S/PDIF optical and BT+) and two processed line outputs keep the system ready for future expansion.

Transducerless High-Speed PWM Power Amplifiers

High-efficiency PWM output stages run a carrier frequency above 2 MHz. Modulation is performed without a DAC, directly from the 48 kHz TDM signal of the DSP, bringing the noise floor to zero and THD+N to approximately 0.02% at 1W.

Explore the full range in Mosconi.

Specification

Bluetooth	extended digital audio port (BT+)
ASRCs from 1	8 up to 7.75:1 ratio and 139 dB DNR
Output power @ 4Ω	4 x 50 Watts (channel 1 - 4) 3-Ohm stable (not bridgeable!)
Output power @ 4Ω	2 x 90 Watts (channel 5 - 6) 2-Ohm stable / bridgeable
Output power @ 4Ω	4 x 50 Watts + 1 x 240 Watts (bridged channel 5 + 6)
Line Out	2 x 2 Vrms Line Out
Input voltage	0,3 - 15 V
Overall efficiency	> 80 %
Auto-On (only High Level)	Off - BTL
Dimensions	150 x 133 x 46 mm
Weight	800 Gramm
More specs Class D technology Integrated 8 channel DSP Up to 440 Watts total power 4 x analog inputs balanced (high-level) up to 30 V 2 x analog inputs switchable high level / low level) 1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate) 1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS bluetooth streaming module) (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs) 912 MHz, 32-bit audio port, 64-bit core Double precision 56 Bit filter calculation 6144 SIMD instructions per sample at 48 kHz 1 x remote connector (analog, for RTC.2 Poti remote control) 1 x bluetooth control port (Connection MOS-BT3.0 (app control), RC-Can (CAN-Bus control), MOS_USB2.0 (programming dongle) 1 x remote out, 1 x remote in, auto remote for high level connection Connections with MOLEX® plug contacts Very small size with low heat generation, best suited for installation behind panels 3 x 9 band parametric input EQ (de-equalizing) 6 x input delay 0 - 3 ms / 0.01 ms (de-delay) 10 x input level control digital (signal conditioning) Flexible mixer for signal routing (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups) 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ (parametric, relative phase remains stable) 8 x 10 band output filters Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ) 8 x speaker-delay 0 - 12 ms, 0,02 ms 8 x speaker phase switch

What's Included

MOSCONI PICO 6 | 8 DSP

Product information

Mosconi

About the Mosconi MOSCONI PICO 6|8 DSP

From our tech experts at CEN

A 6-channel amplifier from Mosconi, with DSP built in, rated at 440w RMS.

Who it suits

Drivers whose speakers have outgrown the head unit. Mosconi is Italian-built and aimed squarely at people who tune systems properly.

Our tech experts advise

The processing is worth only what the tuning puts into it, which means measurements in the car rather than a preset. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.

Explore the full Mosconi range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Mosconi

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Mosconi Pico 8 | 10 DSP Amp 8 Channel Amplifier with 10 Channel DSP Up to 600w - CEN

Mosconi Pico 8 | 10 DSP Amp 8 Channel Amplifier with 10 Channel DSP Up to 600w £689.99

In stock

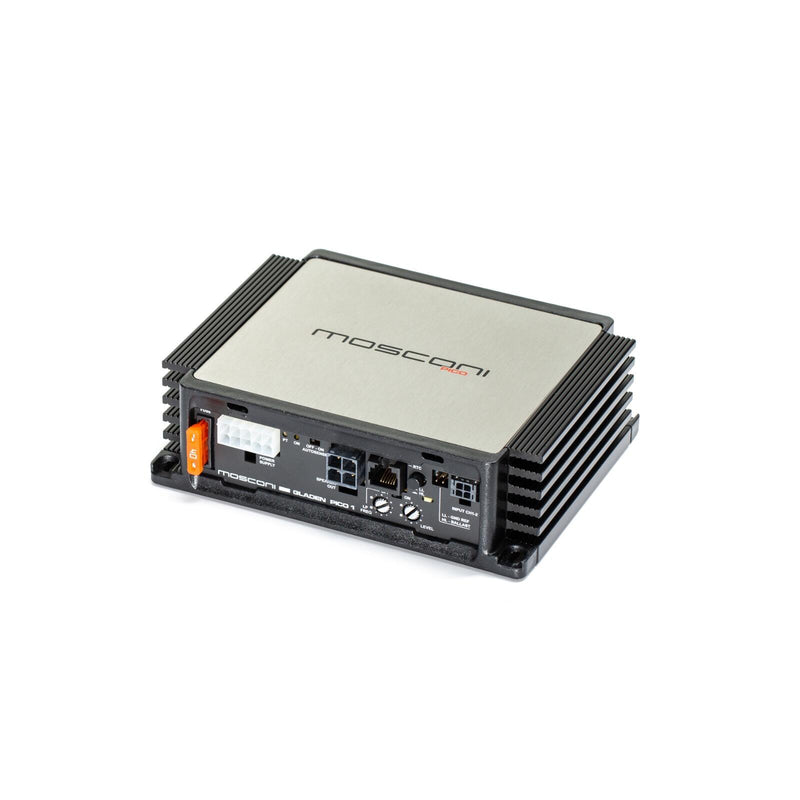

Mosconi Pico 1 Amp Mono Subwoofer 1 Channel Amplifier Class D Up to 750w RMS - CEN

Mosconi Pico 1 Amp Mono Subwoofer 1 Channel Amplifier Class D Up to 750w RMS £469.99

In stock

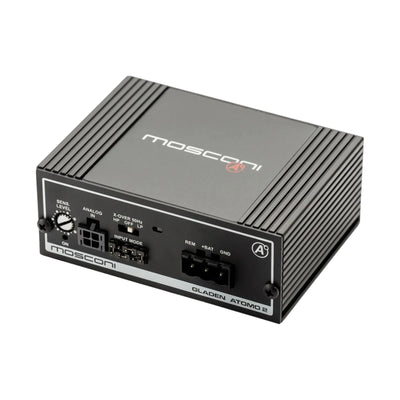

Mosconi Atomo 2 Amp 2 Channel Class D Amplifier 220w RMS £309.99

In stock

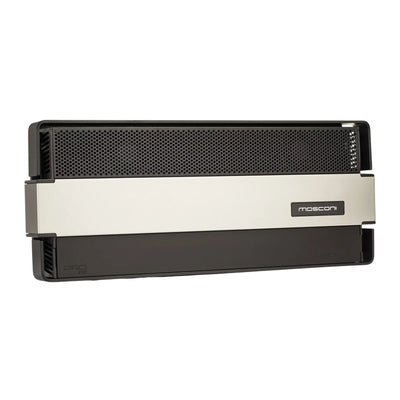

Mosconi Pro 4 | 30 EVO Amp 4 Channel Class AAB Bridgeable Amplifier 150w RMS £1,499.00

Low stock

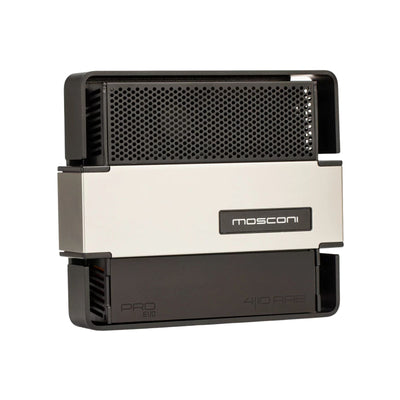

Mosconi Pro 4 | 10-AAB EVO Amp 4 Channel Class AAB Bridgeable Amplifier 80w RMS £899.00

Low stock

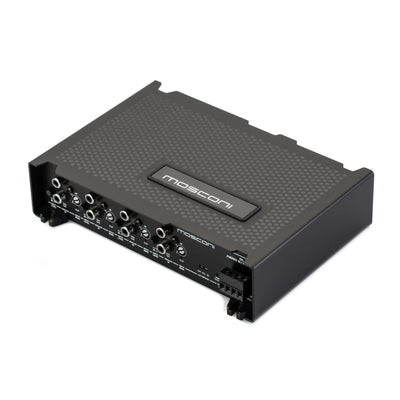

Mosconi Aero 8 | 12 DSP 8 Channel Amplifier 12 Channel Digital Sound Processor - CEN

Save 2% Mosconi Aero 8 | 12 DSP 8 Channel In 12 Channel Out Digital Sound Processor RRP ~~£969.99~~ £949.99 Save 2%

Low stock

Mosconi One 8 | 10 Amp DSP 8 Channel Class A B Amplifier Up to 960w RMS @ 2 Ohm - CEN

Mosconi One 8 | 10 Amp DSP 8 Channel Class AB Amplifier Up to 960w RMS @ 2 Ohm £999.99

Low stock

Mosconi Pro 2 | 10 Amp 2 Channel Stereo Amplifier Class AB Up to 720w RMS - CEN

Mosconi Pro 2 | 10 Amp 2 Channel Stereo Amplifier Class AB Up to 720w RMS £699.99

Low stock

Car audio installation by CEN in Nottingham

Have it Fitted By Our Team

Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.

1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.

Get a Quote Our Services

Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA

Frequently Asked Questions

Q: How do I choose the right amplifier for my speakers or subwoofer?

A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.

Q: What wiring do I need to install this amplifier?

A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.

Q: What class of amplifier is this and does it matter?

A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.

Q: Will an amplifier work with my factory head unit?

A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.

Q: Can CEN install this amplifier?

A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.

Q: How powerful is the Mosconi Pico 6|8 DSP?

A: Channels 1 to 4 deliver 4 x 50W at 4 ohm (3 ohm stable, not bridgeable) and channels 5 and 6 deliver 2 x 90W at 4 ohm (2 ohm stable), or 1 x 240W bridged.

Q: Will the Pico 6|8 DSP work with my factory radio?

A: Yes. It has six analogue inputs (four balanced high level up to 30V and two switchable high/low level), with input EQ and delay for OEM integration.

Q: Can the Pico 6|8 DSP power a subwoofer?

A: Yes. Channels 5 and 6 can be bridged to 1 x 240W, which suits a classic front, rear and sub setup.
