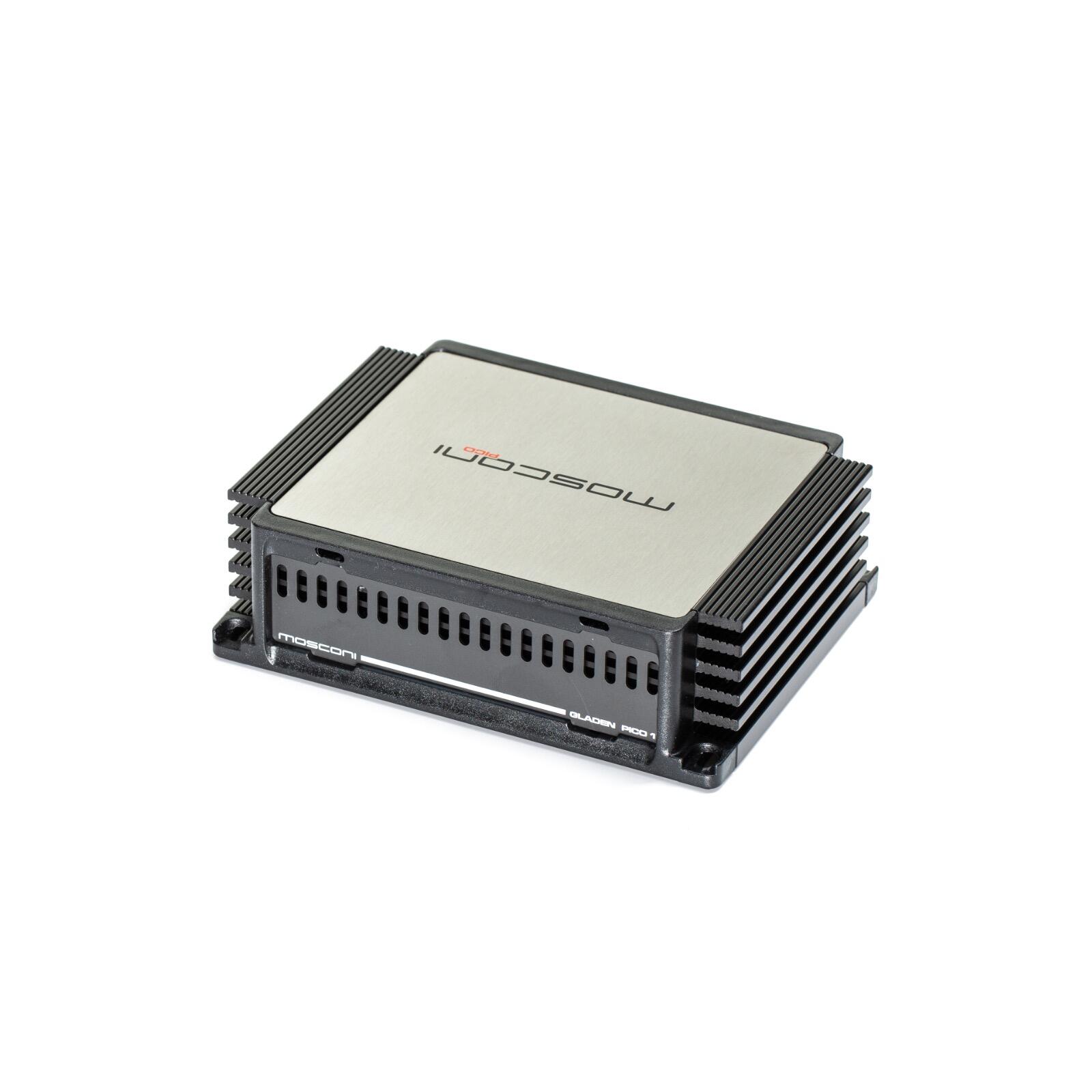

Mosconi Pico 1 Amp Mono Subwoofer 1 Channel Amplifier Class D Up to 750w RMS
Couldn't Load Pickup availability
The Mosconi Pico 1 is a compact mono Class D amplifier delivering up to 750W RMS at 2 ohm and 500W at 4 ohm. It drives demanding subwoofers from a 150 x 115 x 46mm chassis, alongside a Pico DSP amplifier or on its own.
Key specifications
- Channels: 1 (mono), Class D
- Power at 2 ohm: 1 x 750W RMS
- Power at 4 ohm: 1 x 500W RMS
- Input voltage: 0.3V to 20V
- Low-pass filter: off / 45 to 310Hz (12dB/oct)
- Subsonic filter: 13Hz (12dB/oct), always on
- Efficiency: over 75%
- Dimensions: 150 x 115 x 46mm
- Weight: 1050g
Mosconi Pico 1
A compact Class D mono amplifier that delivers up to 750W RMS, enough to drive demanding subwoofers without taking up much space.
1 Channel Amplifier Class D Technology Up to 750 Watts @ 2 Ohm
Full-range PWM amplifier with separate, synchronised modulation and fast high-current MOSFETs. The Pico 1 delivers 750W RMS into 2 ohms, handling powerful subwoofers and high-demand front systems with ease.
It works as a subwoofer supplement to a Mosconi Pico DSP amplifier. High-level and low-level inputs plus its own filters also make it suitable for standalone use.
- Automatic switch-on (high level, SE or BTL mode only)
- Remote volume control (optional)
- Molex connectors
The Pico 1 is also available as an 18V version, adapted for the electrical systems of the latest Tesla models.
Explore the full range in Mosconi.
Specification
| Input voltage | 0,3 V - 20 V |
|---|---|
| Overall efficiency | > 75 % |
| Auto-On (only High Level) | Off - BTL |
| Low-pass filter | Off / 45 - 310 Hz (12 dB/Oct) |
| Subsonic filter (always on) | 13 Hz (12 dB/Oct) |
| Dimensions | 150 x 115 x 46 mm |
| Weight | 1050 Gramm |
| Output power RMS @ 4Ω | 1 x 500 Watts |
| Output power RMS @ 2Ω | 1 x 750 Watts |
More specs
| |
What's Included
- Gladen Mosconi Pico 1
Mosconi
About the Mosconi MOSCONI PICO 1
From our tech experts at CEN
A monoblock subwoofer amplifier from Mosconi, Class D, rated at 750w RMS.
Who it suits
Anyone adding a subwoofer that needs real power behind it. Mosconi is Italian-built and aimed squarely at people who tune systems properly.
Our tech experts advise
Matching matters more than headline watts, and gains want setting with a meter rather than by ear. It needs a fused feed from the battery on the correct cable gauge. Installation is priced per vehicle, so get in touch with your make, model and year and we will confirm what it needs. See car audio installation.
Explore the full Mosconi range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Mosconi
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Looking for Installation?
At CEN we take pride in being able to share the quality of our work as well as being able to show what incredible products we have installed week on week.
More from Mosconi
More options from the same range, in stock and ready to go
Save 2% Mosconi Aero 8 | 12 DSP 8 Channel In 12 Channel Out Digital Sound Processor RRP£969.99£949.99 / Save 2%Low stock
Frequently Asked Questions
Q: How do I choose the right amplifier for my speakers or subwoofer?
A: Match the amplifier's RMS output per channel to the RMS handling of your speakers or subwoofer at the same impedance. The Specification tab lists the power figures. If in doubt, contact CEN with your setup and we will recommend a match.
Q: What wiring do I need to install this amplifier?
A: You will need an amplifier wiring kit sized to the amplifier's power draw, typically including power and earth cable, a fuse, RCA leads and a remote wire. CEN stocks complete wiring kits, and the amplifier's fuse rating is the guide to the cable gauge required.
Q: What class of amplifier is this and does it matter?
A: Class D amplifiers are compact and efficient, ideal for subwoofers and modern installs. Class AB designs are traditionally favoured for outright sound quality on mid and high frequencies. The class is listed in the Specification tab where provided.
Q: Will an amplifier work with my factory head unit?
A: Yes, in most cases. If your head unit has no RCA outputs you will need a line output converter to feed the amplifier a clean signal. CEN stocks line output converters and can advise the right one for your vehicle.
Q: Can CEN install this amplifier?
A: Yes. CEN offers professional amplifier installation from our Nottingham premises, including secure mounting, wiring and setup. Contact us to book.
Q: How powerful is the Mosconi Pico 1?
A: It delivers 1 x 750W RMS at 2 ohm and 1 x 500W RMS at 4 ohm.
Q: Can the Pico 1 be used without a Pico DSP amplifier?
A: Yes. It works as a subwoofer supplement to a Pico DSP amplifier, but its high and low level inputs and its own filters also make it suitable for standalone use.
Q: Is there a Tesla version of the Pico 1?
A: The Pico 1 is also available as an 18V version adapted for the electrical systems of the latest Tesla models. Contact CEN to confirm which version you need.
