Morel Elate Carbon Pro 93 3 Way Component Speaker System
Couldn't Load Pickup availability
The Morel Elate Carbon Pro 93 is a 3-way component speaker system from Morel's high-end Elate Carbon Pro range. It pairs an MW9 222mm carbon fibre and Rohacell woofer, MM3 100mm midrange, and 28mm Elate Alto silk dome tweeter, complete with MXT380C passive crossovers that support bi-wiring and bi-amping.
For the active version for DSP systems, see the Elate Carbon Pro 93A. For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 93.
Key specifications
- Configuration: 3-way component, passive with MXT380C crossovers

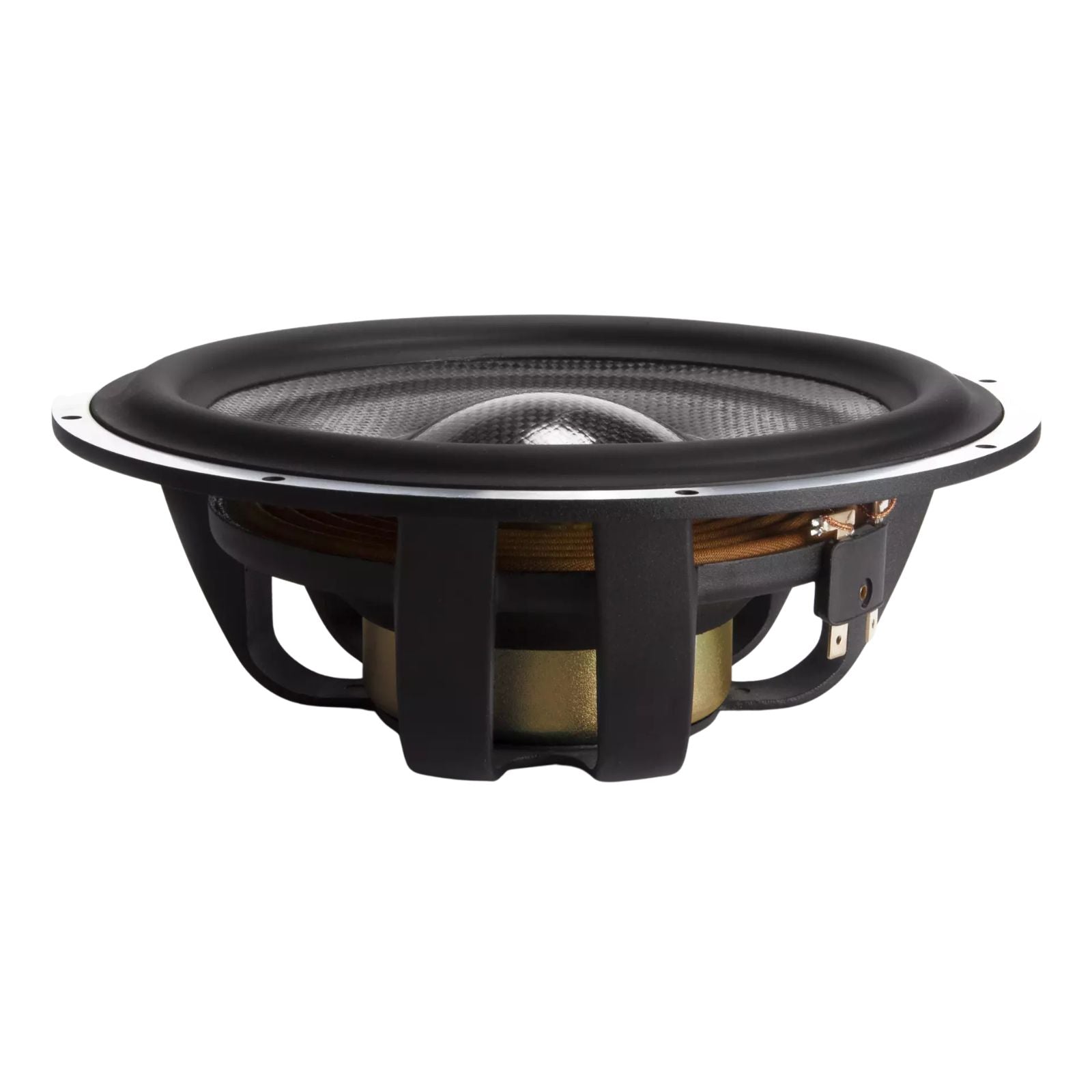

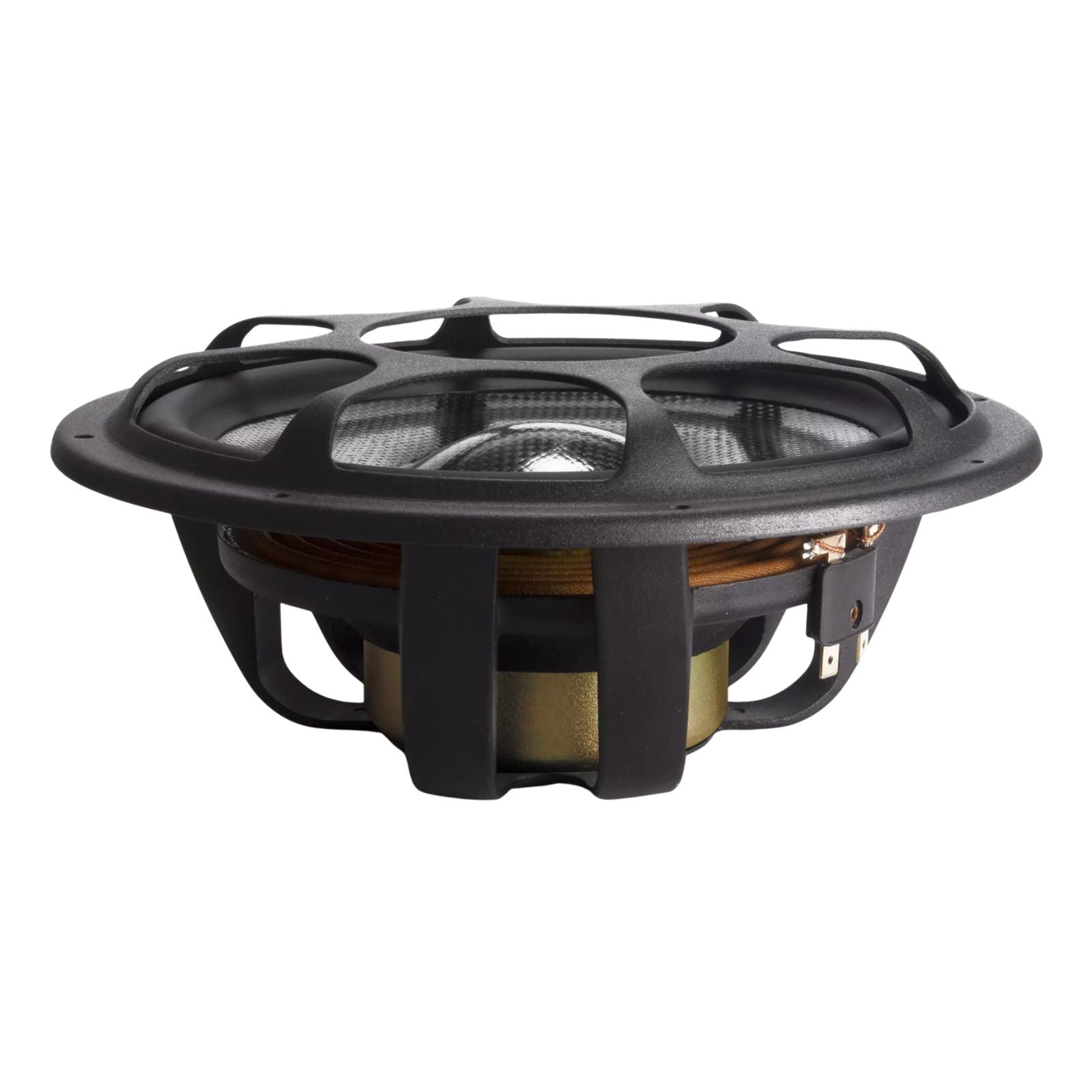

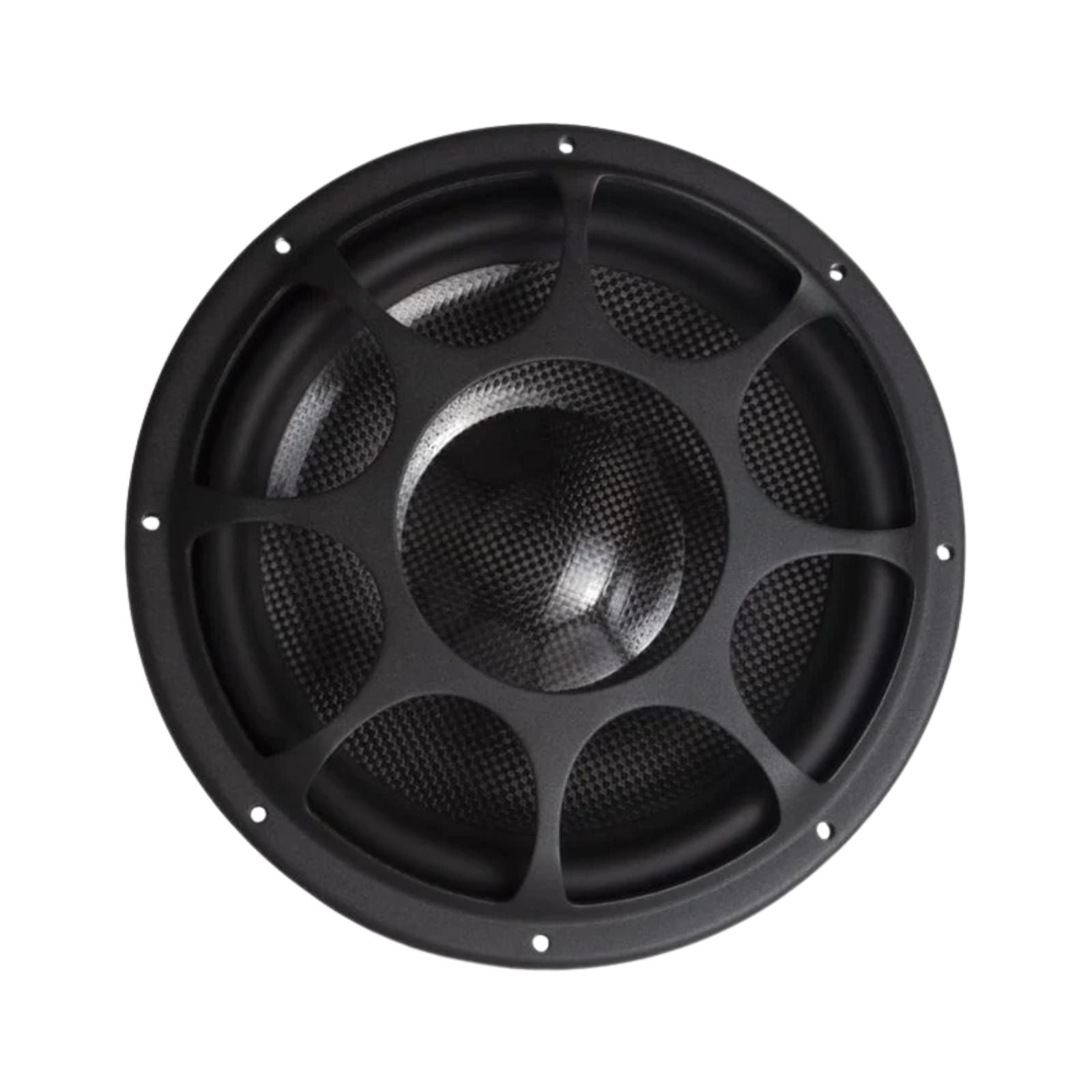

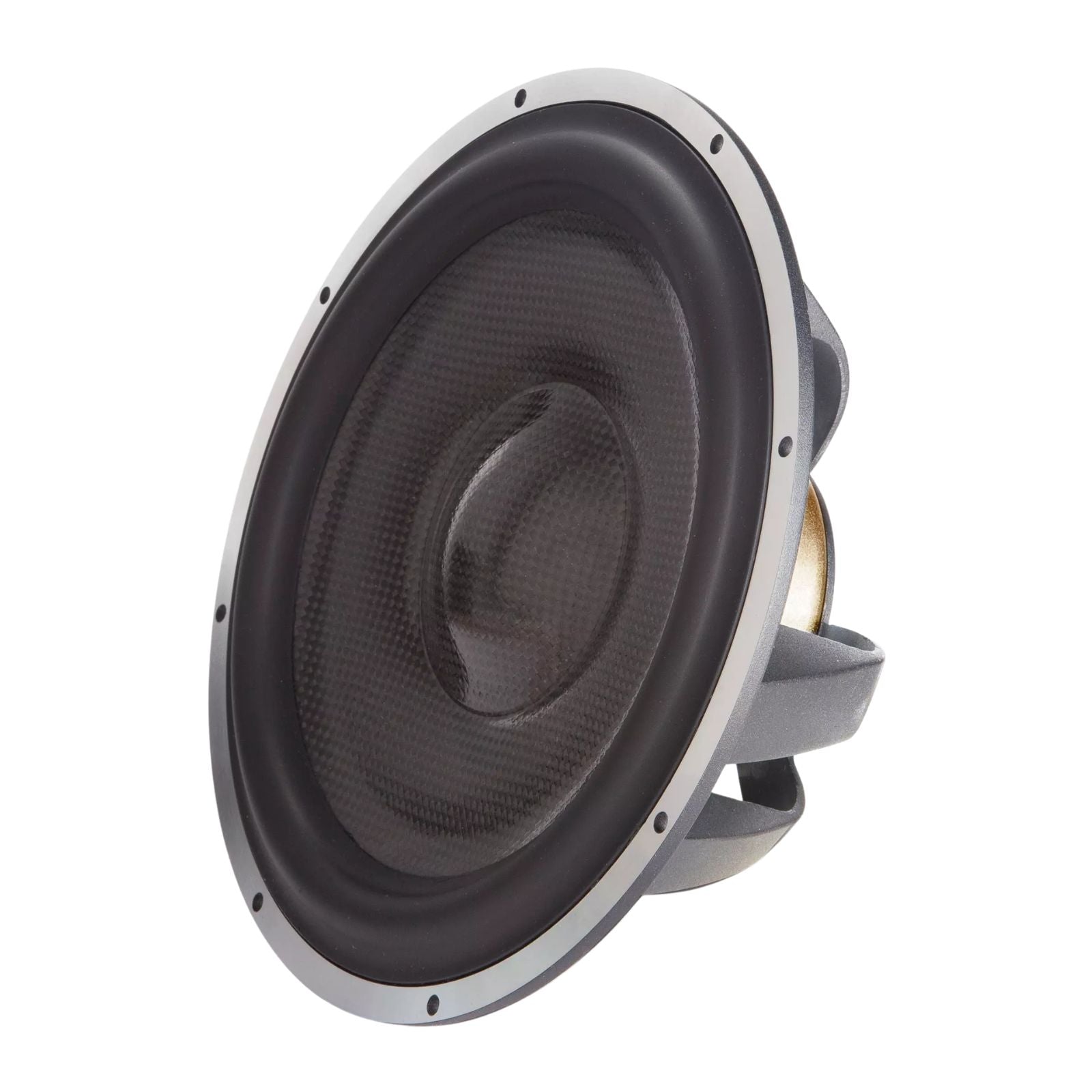

- Woofer: MW9 222mm (8.75"), 200W RMS, 1000W max transient, 89 dB, 25–3000 Hz
- Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
- Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
- Midrange: MM3 100mm (3.9"), 120W RMS, 400W max transient, 87 dB, 90–6000 Hz
- Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400–25,000 Hz
- Crossover points: W 2500Hz, M 450Hz/2700Hz, T 2500Hz, 12dB/oct; tweeter +/- 2dB, mid 0/-2dB
- Bi-wire and bi-amp compatible
- Grilles: included
Carbon and Rohacell Cones
The woofer and midrange use a carbon fibre and Rohacell triple-layer cone. Detail stays clean at extreme volumes and power handling is high across the full frequency range.
The Elate Alto Tweeter
The cavity-back Alto tweeter leads the Pro series. Its design is derived from the Supremo Piccolo, Morel's flagship tweeter, combining high resolution with high power handling.
DMM and EVC Motor Technology
Morel's DMM double-magnet motor generates more energy than a single-magnet design, raising efficiency and dynamic range while shielding stray magnetic flux. EVC voice coils use a large diameter to ensure all available magnetic energy drives the coil directly, keeping the design compact, efficient and powerful.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impedance (Ohm) | 4 |
|---|---|
| Power Handling | Wrms 200 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 89 |
| Frequency Response | 25 - 3000 |
| Resonant Frequency Fs Hz | 44 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium Double Magnet Rear Vented |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 222 (8.75) |
| Net Weight Kg (lb) | 1.42 (3.13) |
| Nominal Impedance (Ohm) | 4 |
| Power Handling | Wrms 120 |
| Max Transient Power Handling Wrms | 400 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency Response | 90 - 6000 |
| Resonant Frequency Fs Hz | 88 |
| Voice Coil | Diameter mm (inch) 54 (2.125) |
| Voice Coil | Height mm (inch) 10 (0.4) |
| Voice Coil | Type/Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 100 (3.90) |
| Net Weight Kg (lb) | 0.38 (0.84) |
| Nominal Impedance (Ohm) | 6 |
| Power Handling | Wrms 220 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 900 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Chamber Underhung |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Net Weight Kg (lb) | 0.35 (0.77) |
| Crossover Point | W: 2500Hz / 12dB - M: 450Hz / 12dB - M: 2700Hz / 12dB - T: 2500Hz / 12dB |
| Crossover Controls | Tweeter +/- 2dB / Mid 0/- 2db |
| Wiring Options | Bi Wire / Bi Amp |

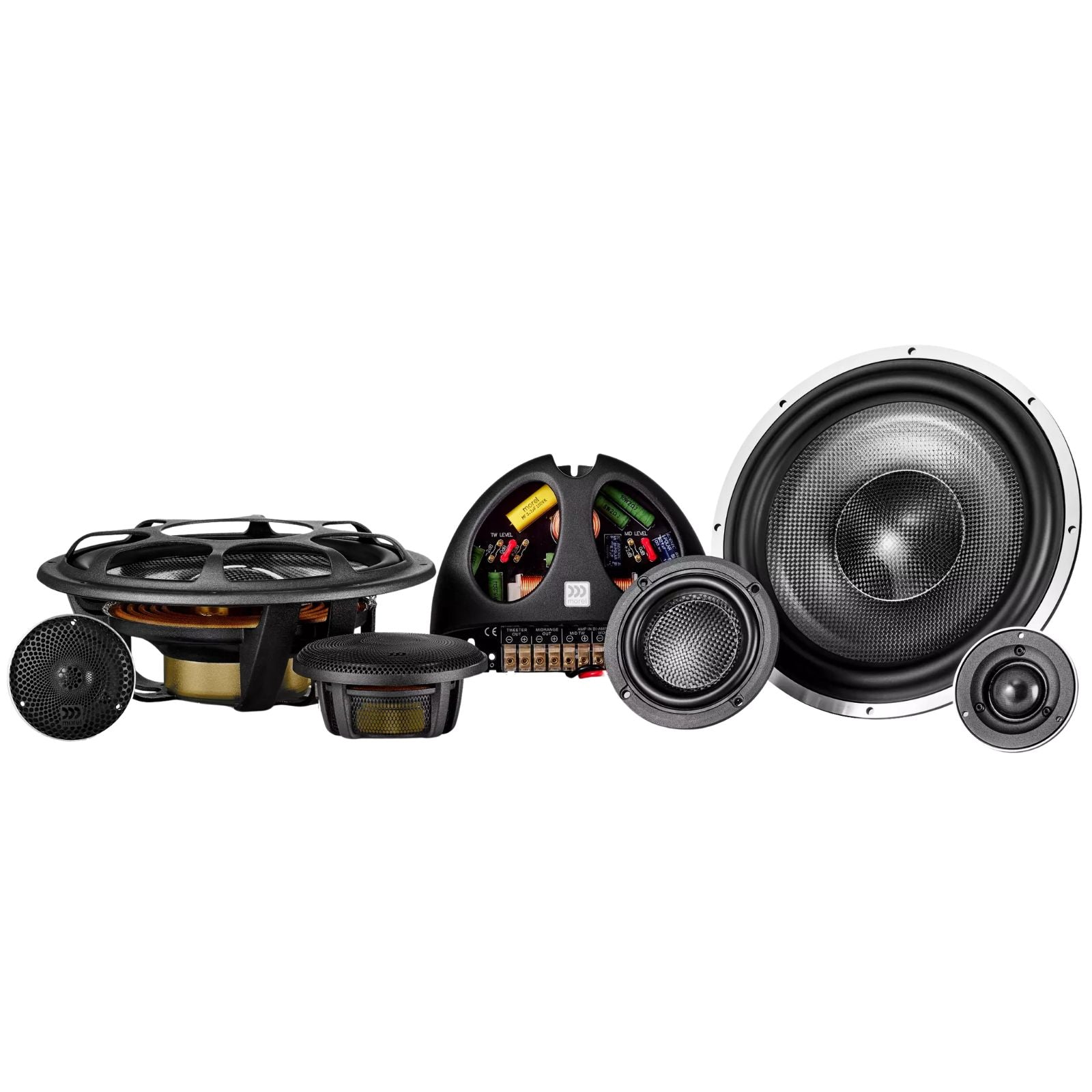

What's Included
- x2 - Elate Carbon Pro 9" Woofers
- x2 - Elate Carbon Pro 3.5" MM3 Mid-Ranges
- x2 - Elate Carbon Alto 28mm Tweeters
- x2 - MXT380C 3-Way Elate Crossovers
- Grilles Included
Morel
About the Morel ELATE CARBON PRO 93
From our tech experts at CEN
The Morel Elate Carbon Pro 93 is a 3-way passive component speaker system from Morel's flagship Elate Carbon Pro range. It pairs an MW9 222mm (8.75") carbon fibre and Rohacell woofer rated at 200W RMS with a 100mm MM3 midrange, a 28mm Elate Alto silk dome tweeter, and MXT380C crossovers. The crossovers support bi-wiring and bi-amping.
Who it suits
This system suits dedicated enthusiasts building a high-resolution front stage with the time and budget for a full 3-way installation. The three-way configuration delivers extended low-end reach and cleaner midrange separation than a 2-way system can achieve. Those wanting a simpler 3-way option may consider the Morel Hybrid 63.
Our tech experts advise
The 8.75" woofer demands significant door depth and a custom mounting baffle in most vehicles. The MXT380C crossovers accept bi-amp connections, making this a natural fit for DSP-based amplifier setups. Check grille fitment early in planning, as the 100mm midrange requires its own dedicated mount. Installation is priced per vehicle — see our car audio installation page for details.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: What is the difference between the Elate Carbon Pro 93 and the standard Elate Carbon 93?
A: The Pro version uses the cavity-back Elate Alto tweeter, whose design comes from Morel's flagship Supremo Piccolo and which handles 220W RMS. The standard Elate Carbon systems use the compact MT450 tweeter.
Q: Does the Elate Carbon Pro 93 come with crossovers?
A: Yes. It includes two MXT380C 3-way passive crossovers (W 2500Hz, M 450Hz/2700Hz, T 2500Hz, 12dB per octave; tweeter +/- 2dB, mid 0/-2dB) that support bi-wiring and bi-amping.
Q: What's in the box with the Elate Carbon Pro 93?
A: 2 x Elate Carbon Pro 9 inch Woofers, 2 x Elate Carbon Pro 3.5 inch MM3 Mid-Ranges, 2 x Elate Carbon Alto 28mm Tweeters, 2 x MXT380C 3-Way Elate Crossovers and grilles.
