Morel Elate Carbon 93 3 Way Component Speaker System
Couldn't Load Pickup availability

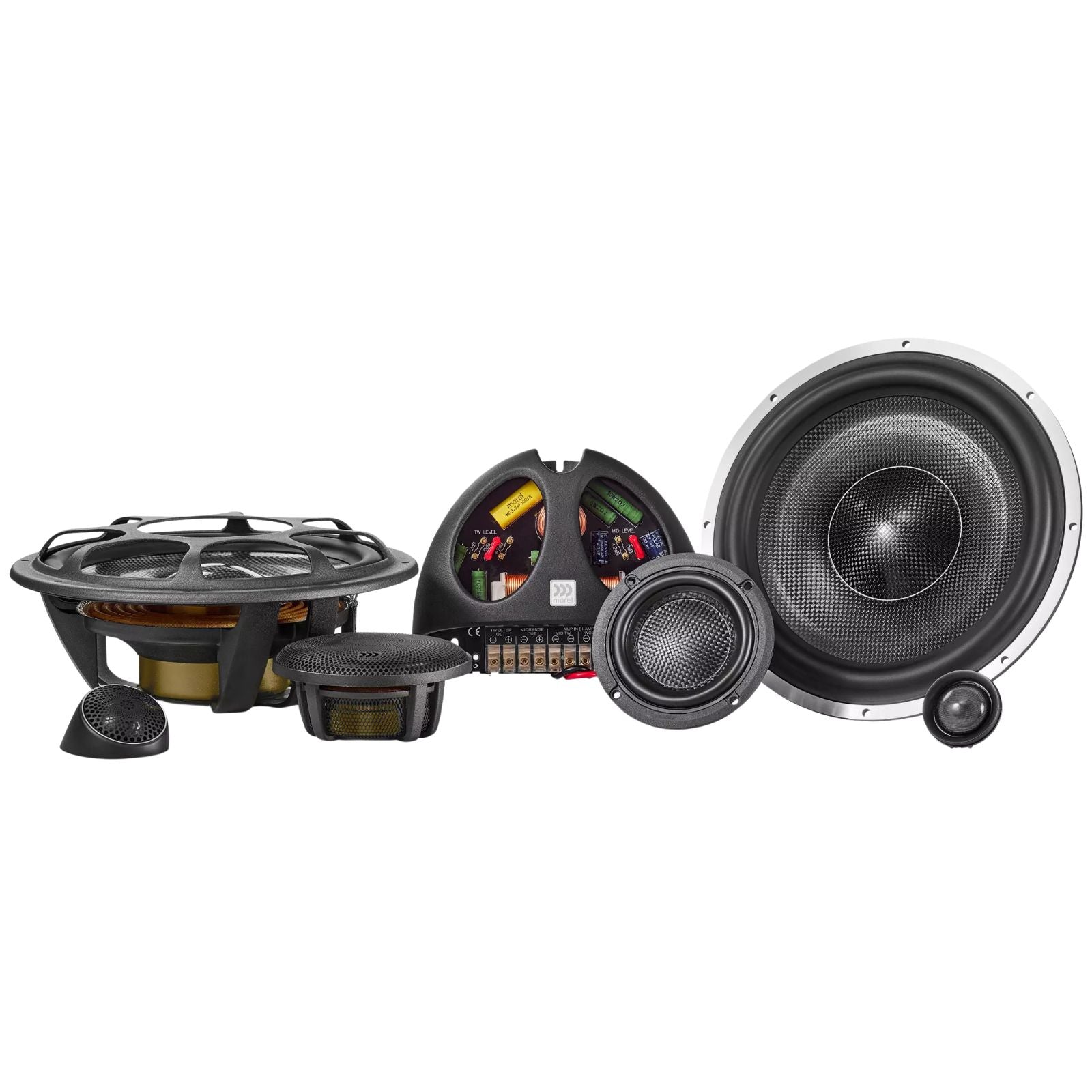

The Morel Elate Carbon 93 is a 9-inch (222mm) 3-way passive component speaker system from Morel's Elate Carbon range, pairing MW9 woofers, MM3 midranges and MT450 28mm silk dome tweeters with MXT380C passive crossovers.
This is the passive version. For an active system run from a DSP, see the Elate Carbon 93A. For the version with the Elate Alto tweeter, see the Elate Carbon Pro 93.
Key specifications
- Configuration: 3-way component, passive with MXT380C crossovers
- Woofer: MW9 222mm (8.75") unit, 200W RMS, 1000W max transient, 89 dB, 25–3000 Hz
- Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
- Woofer cone: carbon fibre composite triple-layer cone (TLC)
- Midrange: MM3 100mm (3.9") unit, 120W RMS, 400W max transient, 87 dB, 90–6000 Hz
- Tweeter: MT450 28mm Acuflex coated silk dome, 6 ohms, 130W RMS, 350W max transient, 91 dB, 1400–25,000 Hz
- Crossover points: W 2500 Hz, M 450 Hz/2700 Hz, T 2500 Hz, 12 dB/oct; tweeter +/- 2 dB, mid 0/-2 dB
- Wiring: bi-wire / bi-amp
Elate Carbon 93: 9-Inch 3-Way
The Elate Carbon shares most of its high-end componentry with its Pro siblings but takes a more practical approach. These 3-way systems are designed for those who want flagship performance with a discreet tweeter that fits most factory locations.
The compact MT450 tweeter can be mounted in most factory positions or into space-limited areas using the supplied mounts. Despite its small size, the MT450's Acuflex coated silk dome, open cavity design and dual neodymium magnet motor deliver fine detail and a smooth, flat frequency response.
All Elate Carbon 3-way systems include the MM3 midrange. This compact unit uses Morel's EVC motor, a high-power 2.1" diameter voice coil and a highly damped carbon fibre/Rohacell cone, allowing it to play low in frequency with strong control and serious power handling. These qualities improve overall system performance while keeping the driver small enough for most factory midrange locations.
The MW9 woofer features a Klippel-optimised EVC motor with a large 3-inch diameter voice coil and a carbon fibre/Rohacell sandwich cone for ultra-low distortion and high power handling.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impedance (Ohm) | 4 |
|---|---|
| Power Handling | Wrms 200 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 89 |
| Frequency Response | 25 - 3000 |
| Resonant Frequency Fs Hz | 44 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium Double Magnet Rear Vented |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 222 (8.75) |
| Net Weight Kg (lb) | 1.42 (3.13) |
| Nominal Impedance (Ohm) | 4 |
| Power Handling | Wrms 120 |
| Max Transient Power Handling Wrms | 400 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency Response | 90 - 6000 |
| Resonant Frequency Fs Hz | 88 |
| Voice Coil | Diameter mm (inch) 54 (2.125) |
| Voice Coil | Height mm (inch) 10 (0.4) |
| Voice Coil | Type/Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 100 (3.90) |
| Net Weight Kg (lb) | 0.38 (0.84) |
| Nominal Impedance (Ohm) | 6 |
| Power Handling | Wrms 130 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 1000 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Vented |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Net Weight Kg (lb) | 0.07 (0.15) |
| Crossover Point | W: 2500Hz / 12dB - M: 450Hz / 12dB - M: 2700Hz / 12dB - T: 2500Hz / 12dB |
| Crossover Controls | Tweeter +/- 2dB / Mid 0/- 2db |
| Wiring Options | Bi Wire / Bi Amp |
More specs
| |
What's Included
- 2 x MT450 Tweeters
- 2 x MM3 Midrange Speakers
- 2 x MW9 Woofers
- 2 x MXT380C Crossovers
Morel
About the Morel ELATE CARBON 93
From our tech experts at CEN
The Morel Elate Carbon 93 is a 9-inch (222mm) 3-way passive component speaker system, comprising MW9 woofers, MM3 midranges and MT450 28mm Acuflex silk dome tweeters, with MXT380C passive crossovers included. The MW9 woofer handles 200W RMS via a 75mm Hexatech aluminium voice coil and a carbon fibre composite TLC cone. This is the passive version; an active DSP-ready variant exists in the Elate Carbon range.
Who it suits
Suited to enthusiasts who want a large-format, high-power 3-way speaker system and prefer passive crossovers over an active DSP setup. The MT450's compact body fits most factory tweeter locations. For a 6.5-inch alternative, browse the Morel collection.
Our tech experts advise
Confirm your doors or enclosures can accommodate the 222mm woofer and 100mm midrange before ordering. The system supports bi-wiring and bi-amping if you want to add separate amplifier channels later. Installation cost varies by vehicle — speak to our Nottingham team about fitting.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Which tweeter does the Elate Carbon 93 use?
A: The MT450, a compact tweeter with an Acuflex coated silk dome, open cavity design and dual neodymium magnet motor. It is rated at 130W RMS (350W max transient), 6 ohms, 91 dB, with a 1400 - 25,000 Hz frequency response. It fits most factory locations, or space-limited areas using the supplied mounts.
Q: How much power can the Elate Carbon 93 woofers handle?
A: Each MW9 woofer is rated at 200W RMS with 1000W maximum transient power handling, at a nominal 4 ohms, with a 75mm (3 inch) voice coil.
Q: What's in the box with the Elate Carbon 93?
A: 2 x MT450 tweeters, 2 x MM3 midrange speakers, 2 x MW9 woofers and 2 x MXT380C crossovers. The crossovers support bi-wiring and bi-amping.
