Morel Elate Carbon 93A 3 Way Component Speaker System
Couldn't Load Pickup availability

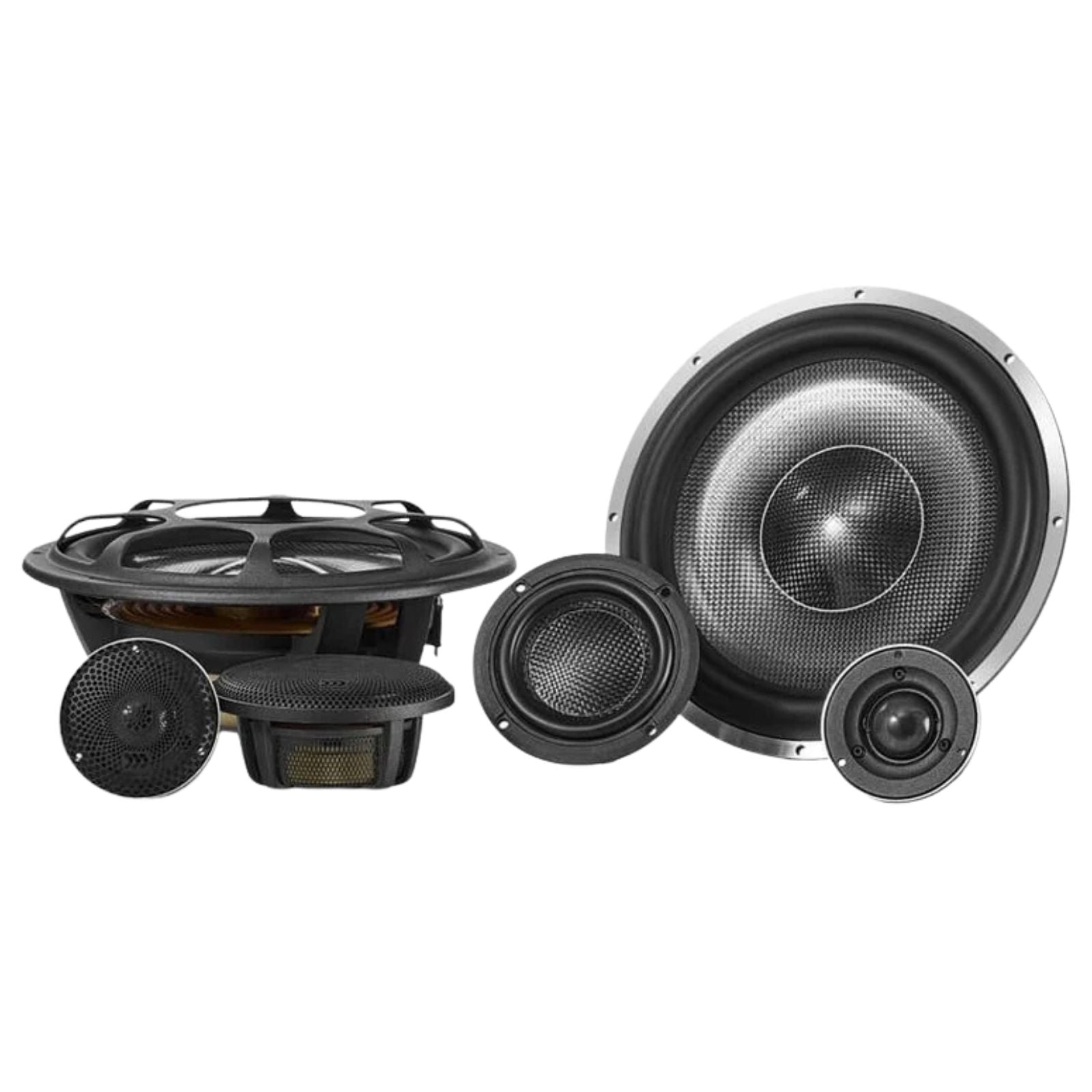

The Morel Elate Carbon 93A is the active (no passive crossovers) version of Morel's 9-inch 3-way component speaker system, pairing the MW9 woofer, MM3 midrange and MT450 silk dome tweeter. It is designed for DSP or active crossover builds and forms part of the Morel Elate Carbon range.
For the passive version with MXT380C crossovers, see the Elate Carbon 93. For the Alto tweeter version, see the Elate Carbon Pro 93A.
Key specifications
- Configuration: 3-way component, active (no passive crossovers supplied)
- Woofer: MW9 222mm (8.75"), 200W RMS, 1000W max transient, 89 dB, 25–3000 Hz
- Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
- Woofer cone: carbon fibre composite triple-layer cone (TLC)
- Midrange: MM3 100mm (3.9"), 120W RMS, 400W max transient, 87 dB, 90–6000 Hz
- Tweeter: MT450 28mm Acuflex coated silk dome, 6 ohms, 130W RMS, 350W max transient, 91 dB, 1400–25,000 Hz
Elate Carbon 93A: 9 Inch Active 3-Way
The Elate Carbon range shares most of its high-end componentry with the Pro siblings but takes a more discreet approach to tweeter placement. These systems are aimed at those who want top-tier performance without compromising on factory fitment options.
The compact MT450 tweeter fits most factory locations or space-limited areas using the supplied mounts. Its Acuflex coated silk dome, open cavity design and dual neodymium magnet motor deliver fine detail and a smooth, flat frequency response.
All Elate Carbon 3-way systems use the MM3 3.5" cone midrange. It features an EVC motor, a high-power 2.1" diameter voice coil and a highly damped carbon fibre/Rohacell cone, allowing it to play low with good control and handle serious power levels. These qualities improve overall system performance while enabling fitment in most factory midrange locations.

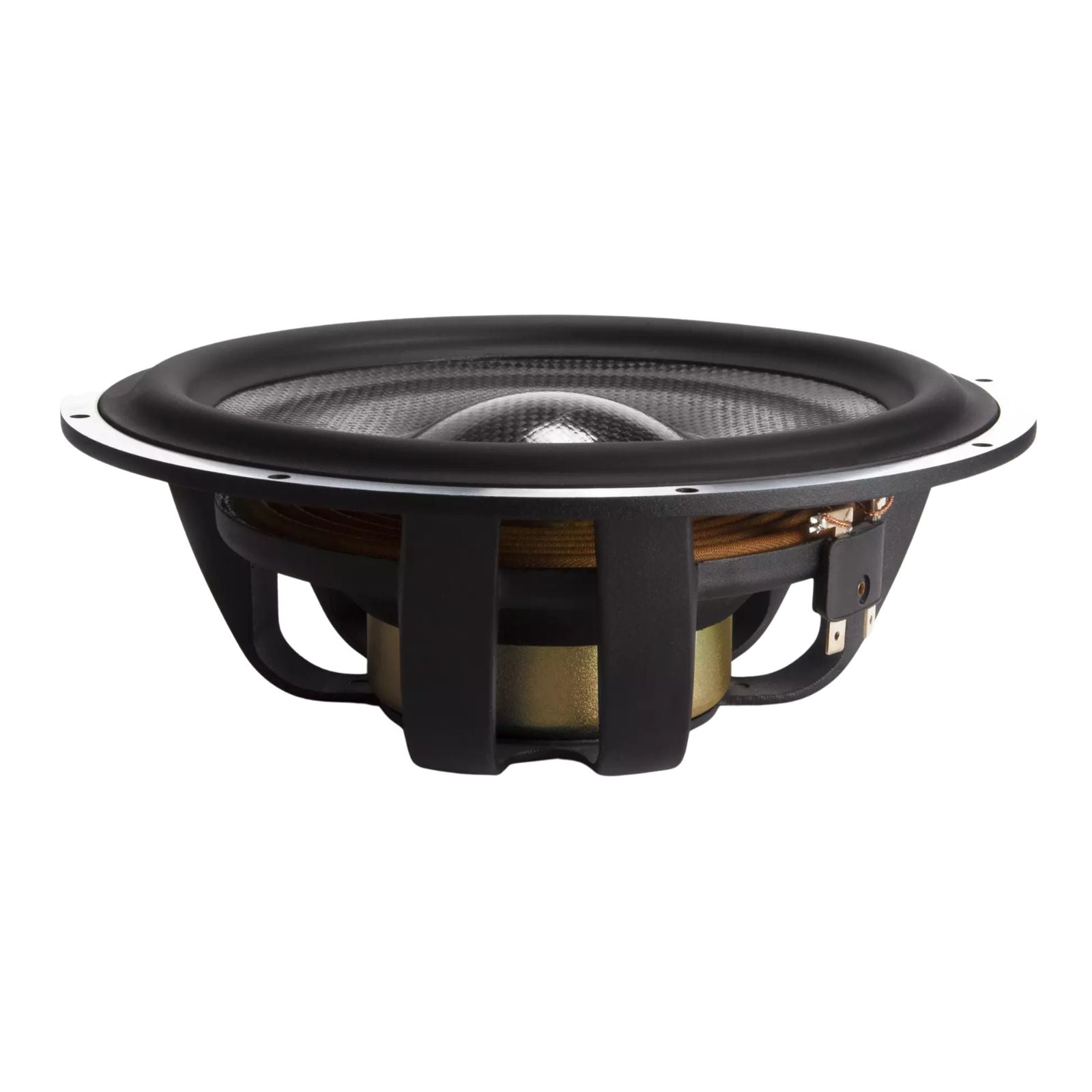

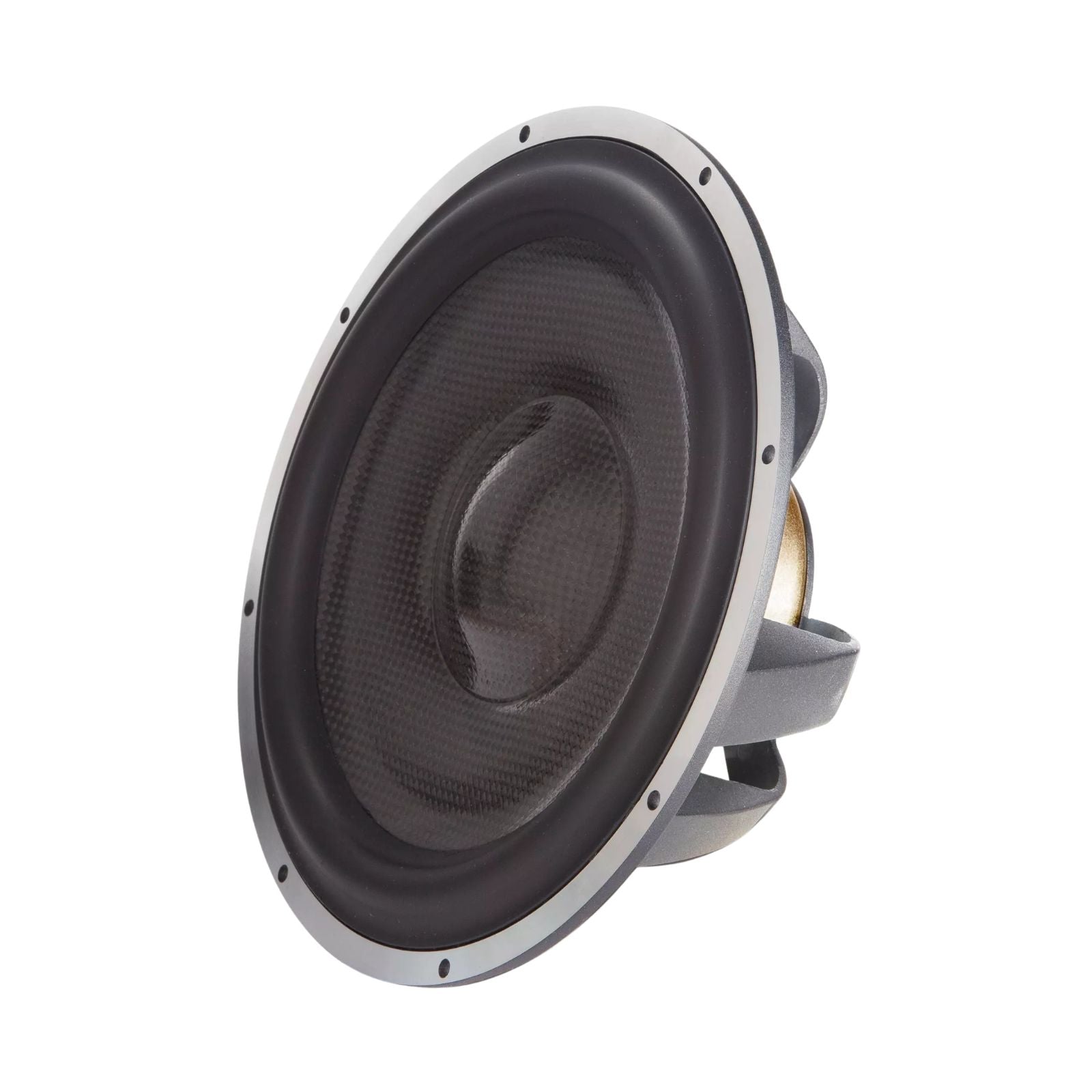

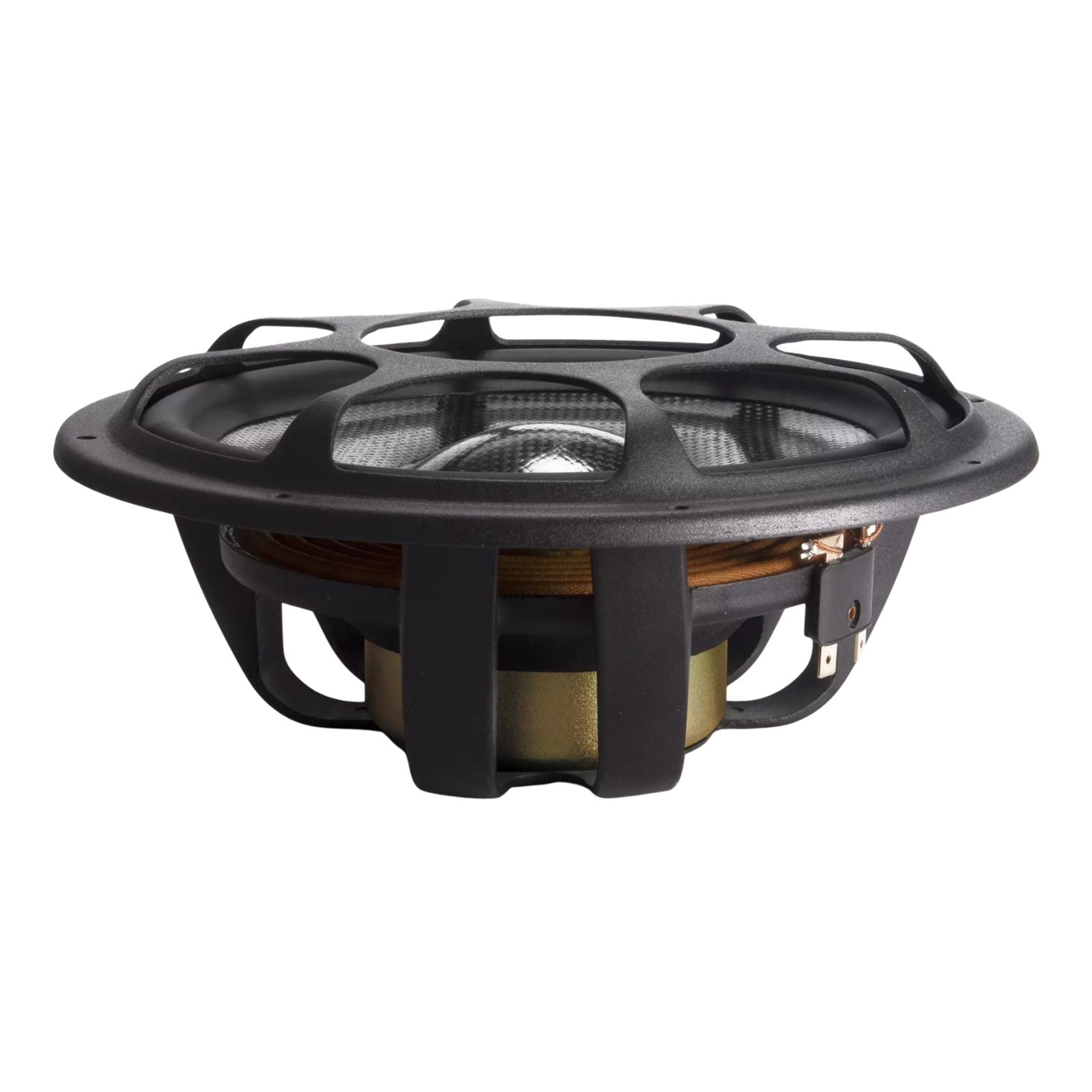

The MW9 woofer uses a Klippel optimised EVC motor, a 3-inch diameter voice coil and a carbon fibre/Rohacell sandwich cone for ultra-low distortion and high power handling across the 5.25", 6.5" and 9-inch woofer sizes in the Elate Carbon range.
Explore the full range in Morel Elate Carbon.
Specification
| Nominal Impedance (Ohm) | 4 |
|---|---|
| Power Handling | Wrms 200 |
| Max Transient Power Handling Wrms | 1000 |
| Sensitivity | (2.83 V/1M) dB 89 |
| Frequency Response | 25 - 3000 |
| Resonant Frequency Fs Hz | 44 |
| Voice Coil | Diameter mm (inch) 75 (3) |
| Voice Coil | Height mm (inch) 14.50 (0.57) |
| Voice Coil | Type/Former Titanium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3.6 |
| Magnet | System Neodymium Double Magnet Rear Vented |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 222 (8.75) |
| Net Weight Kg (lb) | 1.42 (3.13) |
| Nominal Impedance (Ohm) | 4 |
| Power Handling | Wrms 120 |
| Max Transient Power Handling Wrms | 400 |
| Sensitivity | (2.83 V/1M) dB 87 |
| Frequency Response | 90 - 6000 |
| Resonant Frequency Fs Hz | 88 |
| Voice Coil | Diameter mm (inch) 54 (2.125) |
| Voice Coil | Height mm (inch) 10 (0.4) |
| Voice Coil | Type/Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 3 |
| Magnet | System Neodymium |
| Cone | Type Triple Layer Cone (TLC) |
| Cone | Material Carbon Fibre Composite |
| Unit Diameter mm (inch) | 100 (3.90) |
| Net Weight Kg (lb) | 0.38 (0.84) |
| Nominal Impedance (Ohm) | 6 |
| Power Handling | Wrms 130 |
| Sensitivity | (2.83 V/1M) dB 91 |
| Frequency Response | 1400 - 25000 |
| Resonant Frequency Fs Hz | 1000 |
| Voice Coil | Diameter mm (inch) 28 (1.125) |
| Voice Coil | Former Aluminium |
| Voil Coil Wire | Hexatech Aluminium |
| DC Resistance (ohm) | 5.2 |
| Magnet | System Neodymium Rear Vented |
| Dome Type | Acuflex Handcoated Soft Dome |
| Dome Material | Silk |
| Net Weight Kg (lb) | 0.07 (0.15) |
More specs
| |
What's Included
- 2 x MT450 Tweeters
- 2 x MM3 Midrange Speakers
- 2 x MW9 Woofers
Morel
About the Morel ELATE CARBON 93A
From our tech experts at CEN
The Morel Elate Carbon 93A is an active 3-way component speaker system built for DSP or active crossover installations; no passive crossovers are supplied. The set includes the MW9 222mm carbon fibre woofer at 200W RMS, the MM3 100mm midrange at 120W RMS and the MT450 28mm Acuflex silk dome tweeter at 130W RMS.
Who it suits
This system suits experienced installers building a fully active, multi-channel DSP setup where precise crossover control is needed for each driver. It is not a drop-in passive install. Browse the Morel collection to compare passive alternatives.
Our tech experts advise
The MW9 woofer requires a 222mm cutout; check door depth and clearance for the 75mm voice coil before fitting. A DSP processor or active amplifier with at least three channels per side is essential. The MT450 tweeter suits most factory locations using the supplied mounts. Installation is priced per vehicle — see our Nottingham car audio installation page.
Explore the full Morel range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Morel
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Morel Elate Carbon
More options from the same range, in stock and ready to go
Frequently Asked Questions
Q: Which tweeter does the Elate Carbon 93A use?
A: The MT450, a compact tweeter with an Acuflex coated silk dome, open cavity design and dual neodymium magnet motor. It is rated at 130W RMS (350W max transient), 6 ohms, 91 dB, with a 1400 - 25,000 Hz frequency response. It fits most factory locations, or space-limited areas using the supplied mounts.
Q: How much power can the Elate Carbon 93A woofers handle?
A: Each MW9 woofer is rated at 200W RMS with 1000W maximum transient power handling, at a nominal 4 ohms, with a 75mm (3 inch) voice coil.
Q: Does the Elate Carbon 93A include crossovers?
A: No. The 93A is the active version and is supplied as 2 x MT450 tweeters, 2 x MM3 midranges and 2 x MW9 woofers, without passive crossovers. Run it from a DSP or active crossover.
