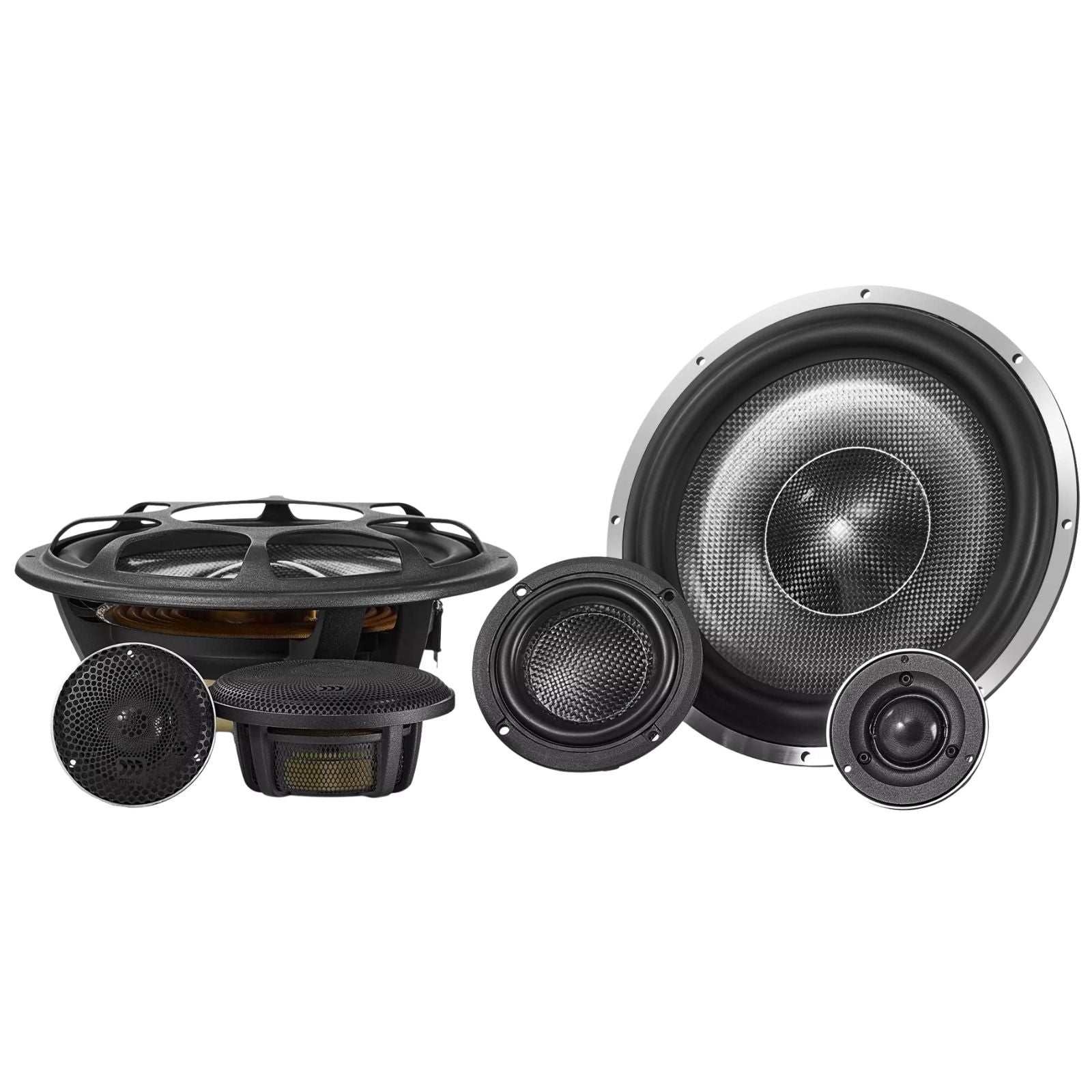

Morel Elate Carbon Pro 93A 3 Way Component Speaker System

The Morel Elate Carbon Pro 93A is a 9-inch 3-way active component speaker system from Morel's high-end Elate Carbon Pro range. It pairs carbon fibre and Rohacell cone woofers, MM3 midranges and the Elate Alto 28mm silk dome tweeter. Supplied without passive crossovers, it is designed for active systems where each driver runs from its own amplifier or DSP channel.

For the passive version with MXT380C crossovers, see the Elate Carbon Pro 93. For the standard Elate Carbon version with the compact MT450 tweeter, see the Elate Carbon 93A.

Key specifications

• Configuration: 3-way component, active (no passive crossovers)
• Woofer: MW9 222mm (8.75") unit, 200W RMS, 1000W max transient, 89 dB, 25 – 3000 Hz
• Woofer cone: carbon fibre and Rohacell triple-layer cone (TLC)
• Woofer voice coil: 75mm (3") Hexatech aluminium, titanium former, 4 ohms
• Midrange: MM3 100mm (3.9") unit, 120W RMS, 400W max transient, 87 dB, 90 – 6000 Hz
• Tweeter: Elate Alto 28mm Acuflex silk dome, 6 ohms, 220W RMS, 91 dB, 1400 – 25,000 Hz
• Grilles: included

Carbon and Rohacell Cones

The woofers and midranges use carbon fibre and Rohacell triple-layer cones. Detail stays clean at extreme volume and power handling is high across the full range.

The Elate Alto Tweeter

The cavity-back Alto tweeter heads up the Pro series, with its design derived from Morel's flagship Supremo Piccolo. It delivers high resolution and high power handling together.

DMM and EVC Motor Technology

Morel's DMM double-magnet motor generates more energy than a single-magnet design, raising both efficiency and dynamic range while shielding stray magnetic flux. EVC voice coils are large in diameter, directing all available magnetic energy into the coil for a compact, efficient and powerful result.

Built for Active Systems

Each driver connects directly to a dedicated amplifier or DSP channel. You set and control the crossover points yourself, giving complete freedom when tuning your system.
