Morel Elate Carbon 63 3 Way Component Speaker System

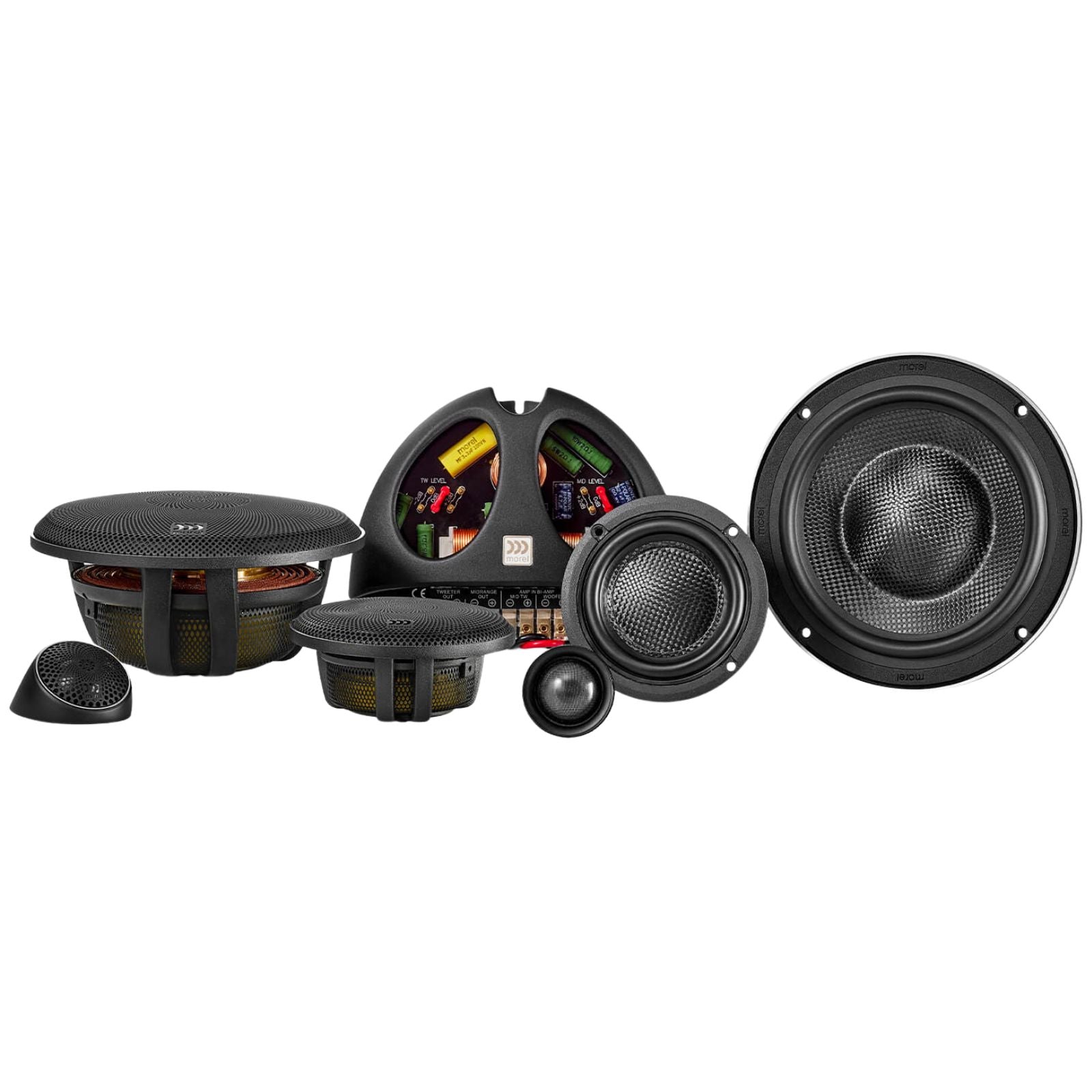

The Morel Elate Carbon 63 is a 6.5-inch 3-way passive component speaker system from Morel's Elate Carbon range, comprising MW6 carbon fibre woofers, MM3 3.5-inch midranges and MT450 28mm silk dome tweeters, supplied with MXT380C crossovers.

This is the passive version. For an active system with a DSP, see the Elate Carbon 63A.

Key specifications

• Configuration: 3-way component, passive with MXT380C crossovers
• Woofer: MW6 165mm (6.5"), 180W RMS, 1000W max transient, 87 dB, 30–4000 Hz
• Tweeter: MT450 28mm Acuflex silk dome, 6 ohm, 130W RMS, 91 dB
• Midrange: MM3 100mm (3.9"), 120W RMS, 87 dB, 90–6000 Hz
• Woofer voice coil: 75mm (3"), titanium former
• Woofer cone: triple-layer carbon fibre composite
• Woofer impedance: 4 ohms
• Crossover points: W 2500Hz, M 450Hz/2700Hz, T 2500Hz, 12dB/oct; tweeter +/- 2dB, mid 0/-2dB; bi-wire/bi-amp capable

Elate Carbon 63: 6.5-inch 3-way component system

The Elate Carbon range shares most of its high-end componentry with Morel's Pro siblings but takes a more practical approach, designed for listeners who want top-tier performance with a discreet tweeter.

The compact MT450 tweeter fits most factory locations or space-limited areas using the supplied mounts. Despite its small size, its Acuflex-coated silk dome, open-cavity design and dual neodymium magnet motor deliver strong detail and a smooth, flat frequency response.

All Elate Carbon 3-way systems include the MM3 3.5-inch cone midrange. It uses Morel's EVC motor, a 2.1-inch diameter voice coil and a highly damped carbon fibre/Rohacell cone, allowing it to reach low in frequency with good control and handle serious power levels. Its compact dimensions mean it fits most factory midrange locations.

The woofer uses a Klippel-optimised EVC motor with a large 3-inch diameter voice coil and a carbon fibre/Rohacell sandwich cone, delivering ultra-low distortion and high power handling.
