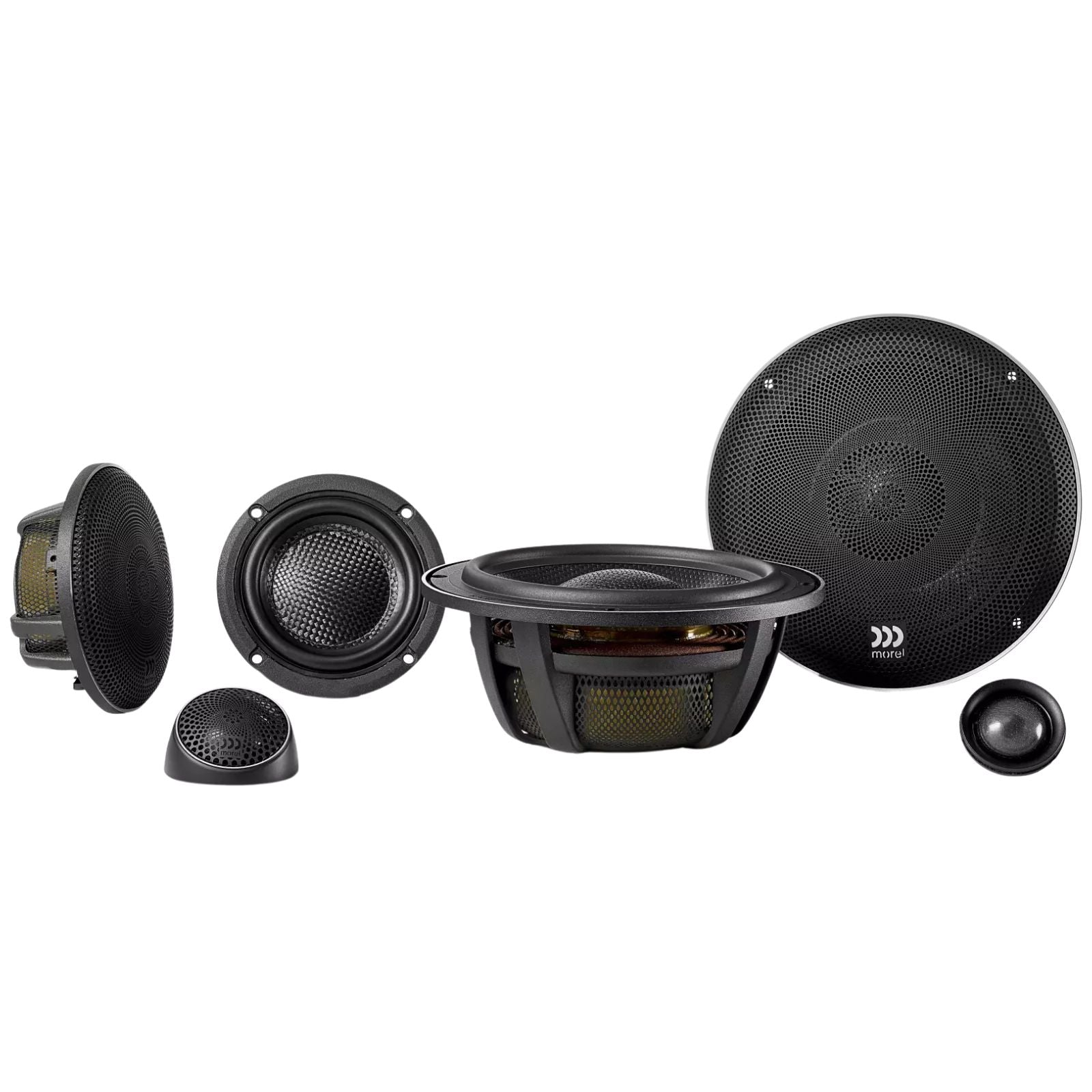

Morel Elate Carbon 63A 3 Way Component Speaker System

The Morel Elate Carbon 63A is a 6.5 inch 3-way active component speaker system from Morel's Elate Carbon range, comprising an MW6 carbon fibre woofer, MM3 3.9 inch midrange and MT450 28mm silk dome tweeter — supplied without passive crossovers for use with a DSP or active crossover setup.

The 63A is the active version of the Elate Carbon 63: it is supplied without passive crossovers, so the drivers are run from a DSP or active crossover with their own amplifier channels.

Key specifications

• Configuration: 3-way component, active (no passive crossovers)
• Woofer: MW6 165mm (6.5"), 180W RMS, 1000W max transient, 87 dB, 30–4000 Hz
• Woofer voice coil: 75mm (3"), titanium former
• Woofer cone: triple-layer carbon fibre composite
• Woofer impedance: 4 ohms
• Midrange: MM3 100mm (3.9"), 120W RMS, 87 dB, 90–6000 Hz
• Tweeter: MT450 28mm Acuflex silk dome, 6 ohm, 130W RMS, 91 dB

Elate Carbon 63A: 6.5 inch active 3-way component system

The Elate Carbon range shares much of its componentry with Morel's Pro siblings but takes a more practical approach — designed for listeners who want flagship performance alongside a discreet tweeter that fits most factory locations.

The compact MT450 tweeter can be mounted in most factory positions or space-limited areas using the supplied mounts. Its Acuflex coated silk dome, open cavity design and dual neodymium magnet motor deliver fine detail and a smooth, flat frequency response.

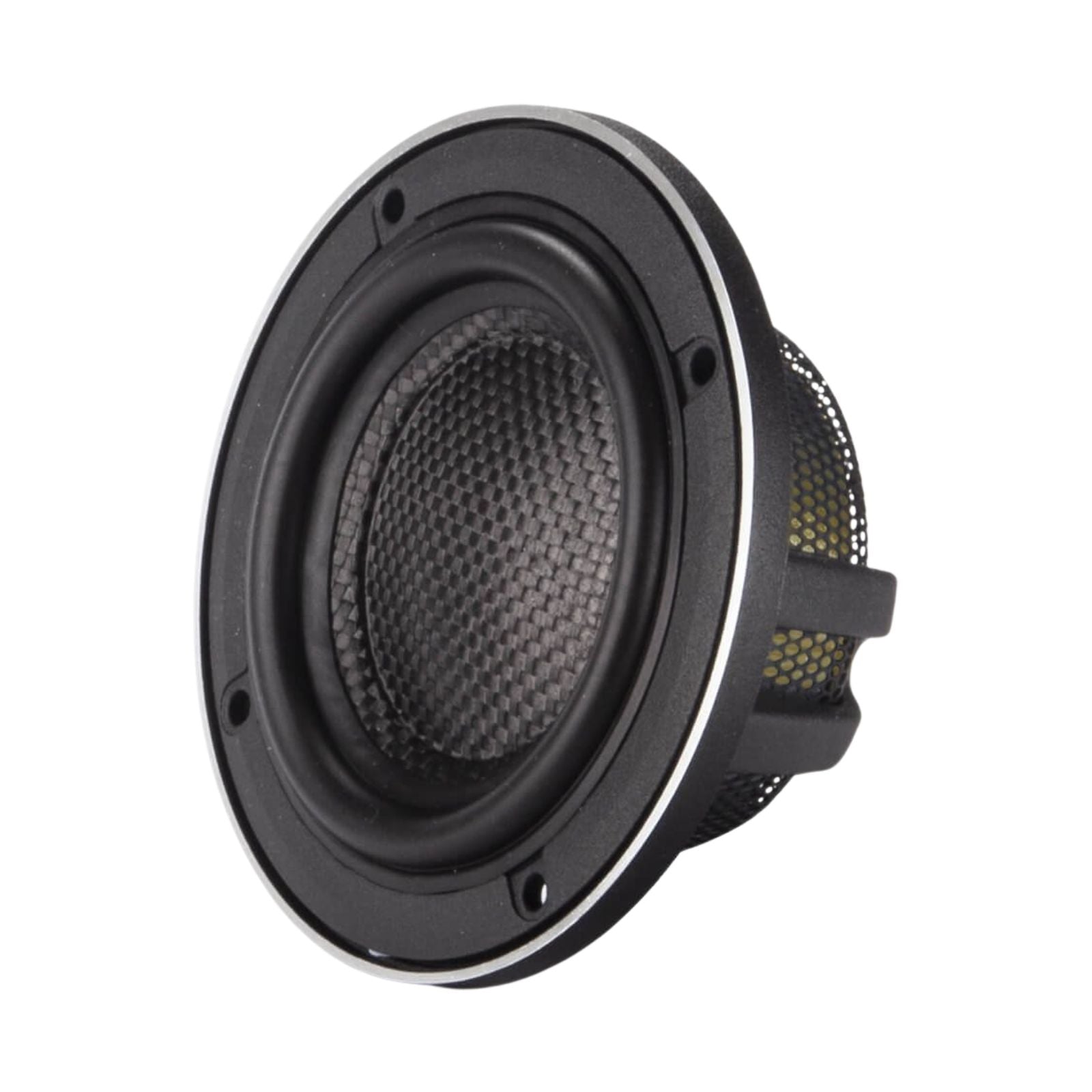

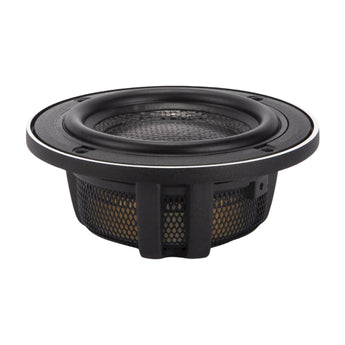

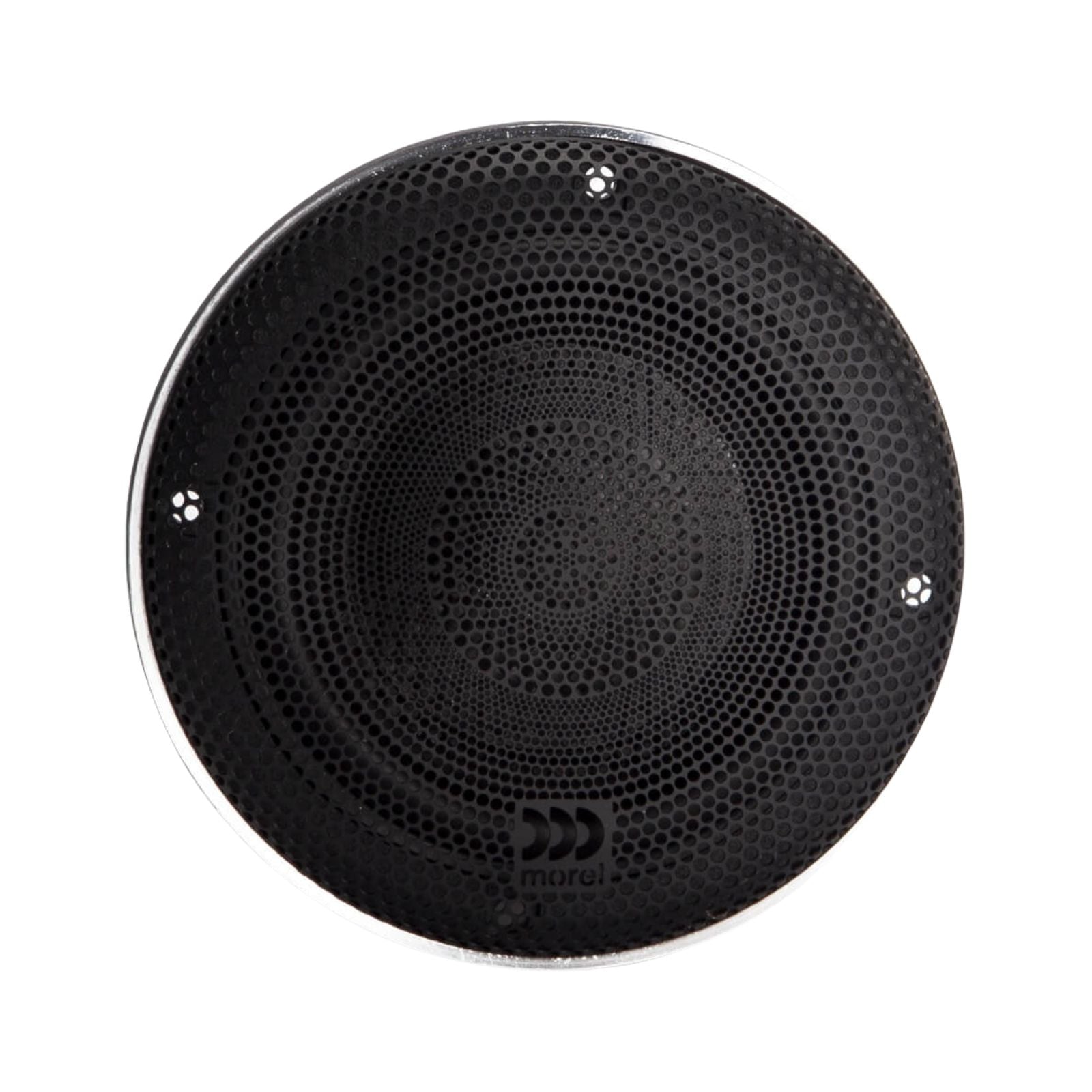

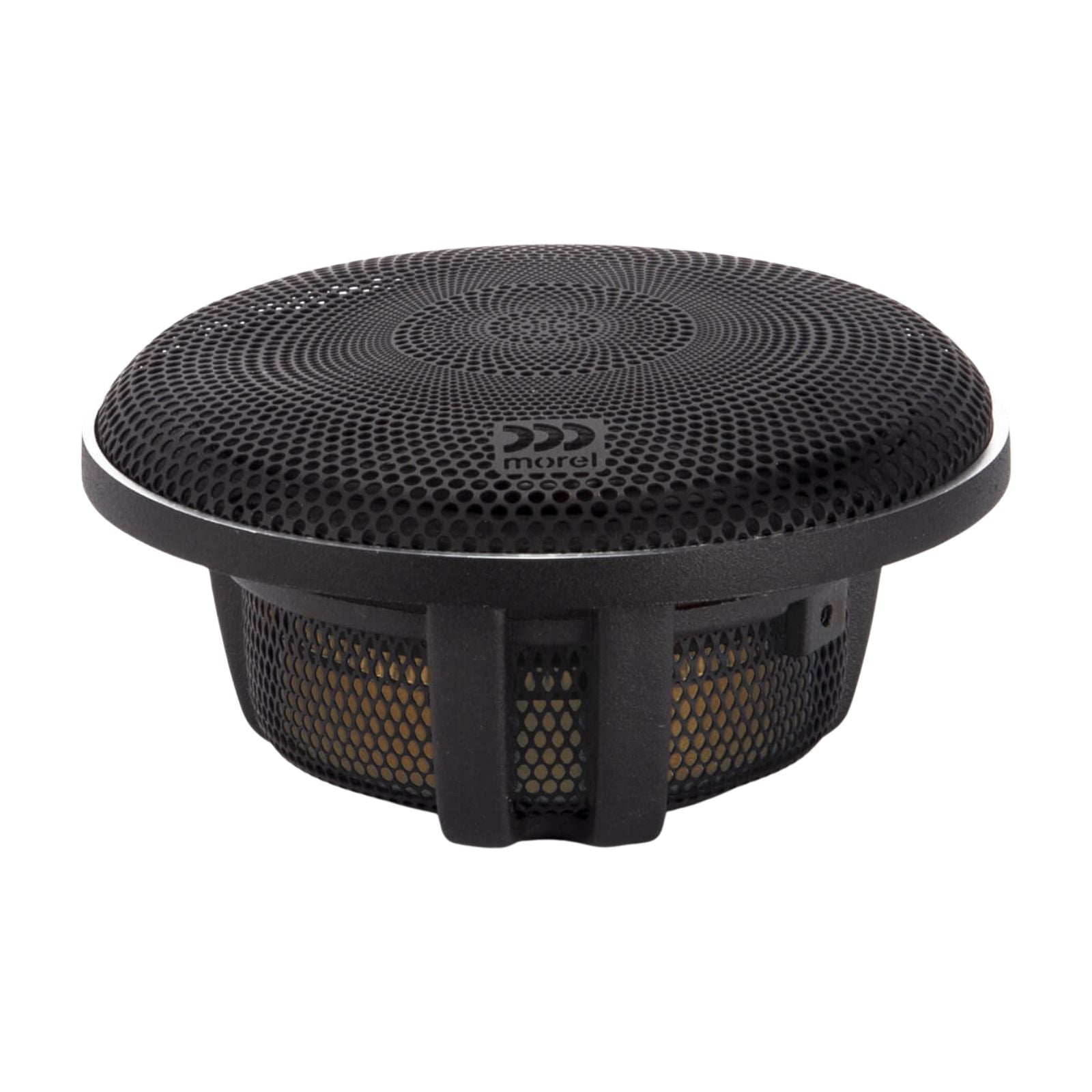

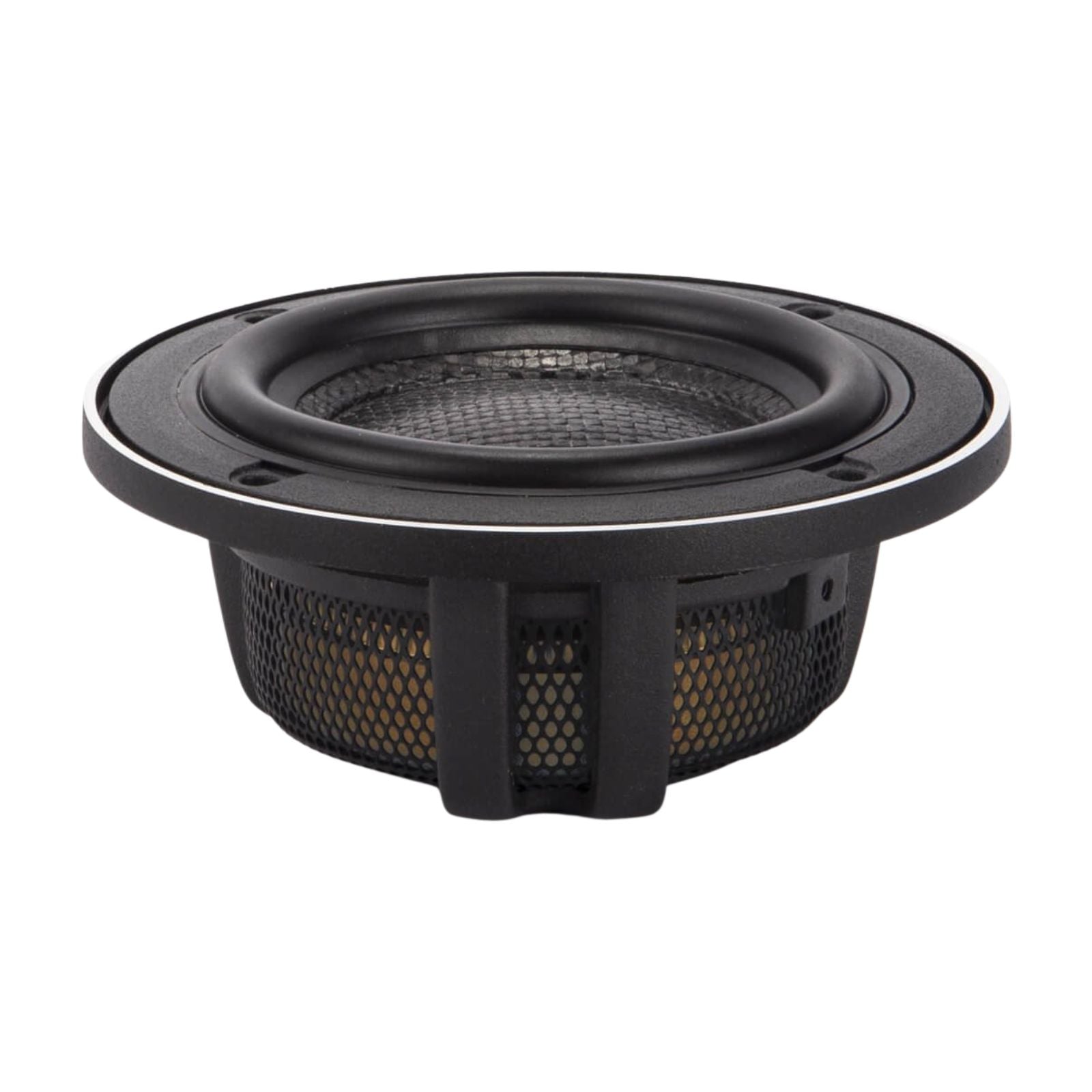

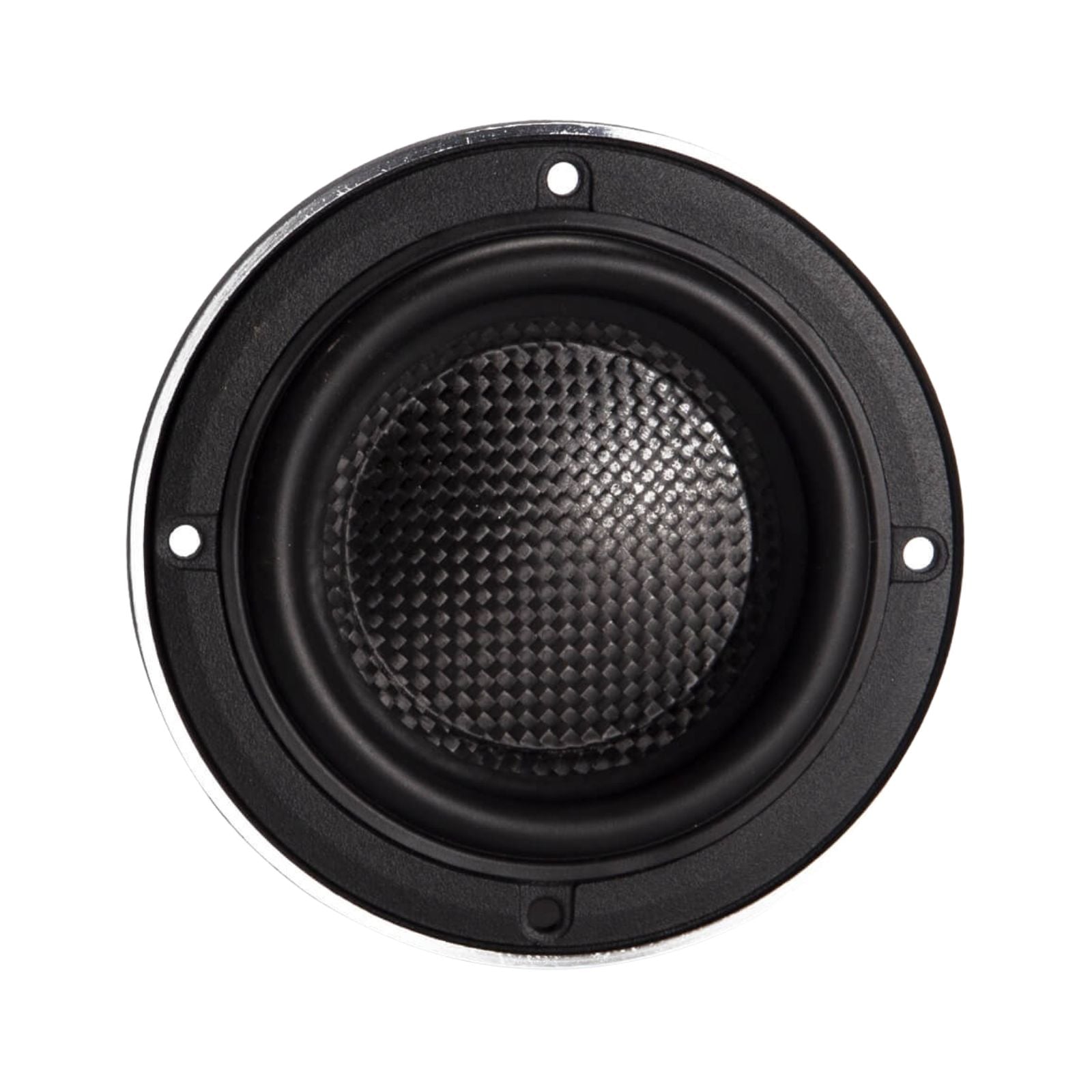

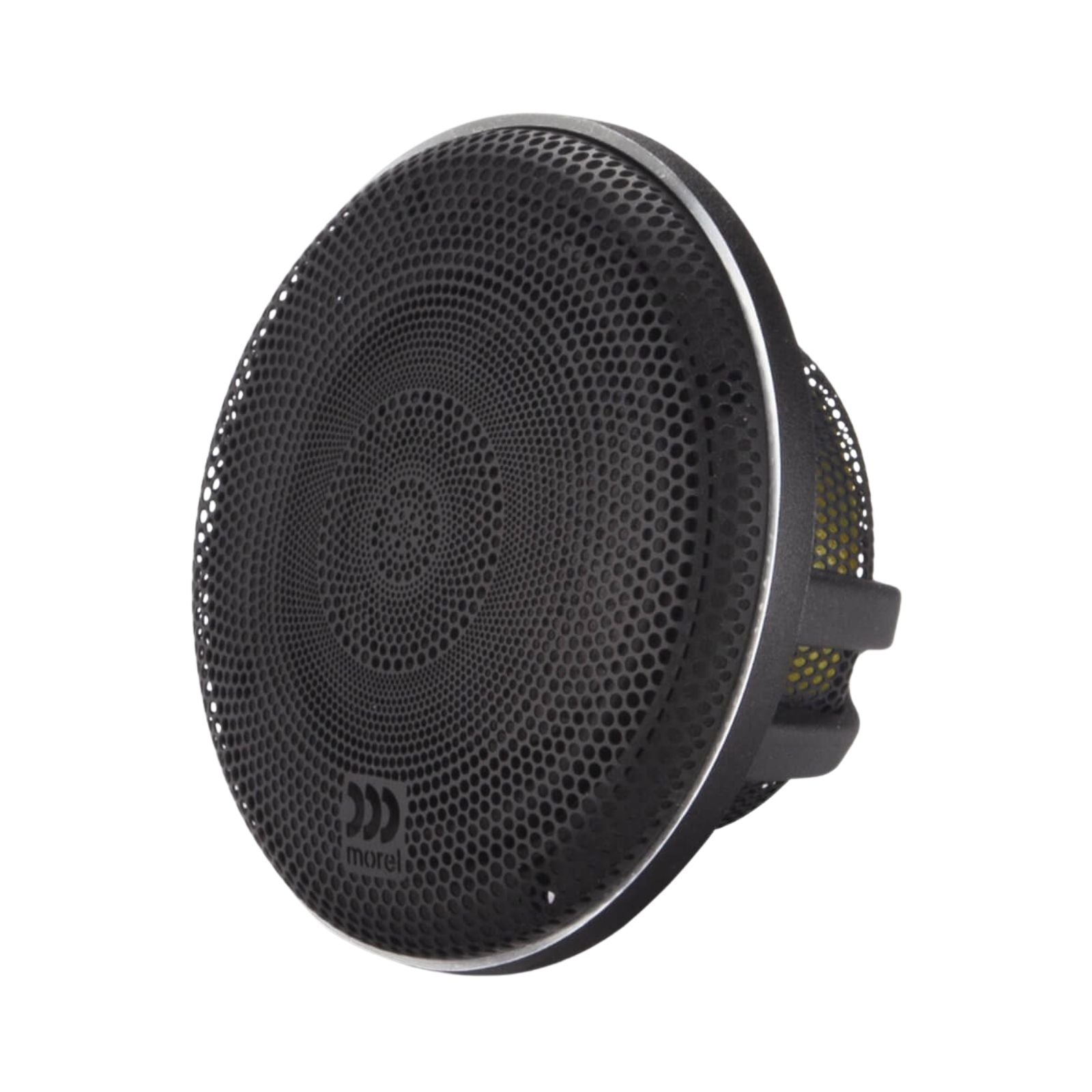

All Elate Carbon 3-way systems include the MM3 3.5 inch cone midrange. It uses Morel's EVC motor, a 2.1 inch diameter voice coil and a carbon fibre/Rohacell cone for low-frequency extension, good control and high power handling — all in a package that fits most factory midrange locations.

The woofer uses a Klippel optimised EVC motor with a large 3 inch diameter voice coil and a carbon fibre/Rohacell sandwich cone for ultra-low distortion and high power handling.
