Helix IQ W8-DVC2 Performance Subwoofer 8 Inch Dual Voice Coil Sub 750w RMS

The Helix IQ W8-DVC2 is an 8 inch (200 mm) high-performance car subwoofer, part of the Helix IQ range, rated at 750W RMS (1,500W max) with a 2 x 2 ohm dual voice coil and Helix's proprietary Tuneable Mass System (TMS). It is compatible with both sealed and bass reflex enclosures.

Larger versions are the IQ W10-DVC2 and IQ W12-DVC2.

Key specifications

• Size: 8 inch / 200 mm
• Power handling: 750W RMS, 1,500W max
• Recommended amplifier power: from 300W RMS
• Impedance: 2 x 2 ohm dual voice coil
• Sensitivity: 86 dB @ 2.83V / 1m, 83 dB @ 1W / 1m
• Max. linear excursion: +/- 12 mm
• Installation depth: 114.5 mm
• Cone: 3-layer fibreglass-Mylar honeycomb

Helix IQ W8-DVC2 (Q430802)

8 inch / 200 mm high-performance subwoofer with innovative Tuneable Mass System and 2 x 2 ohm dual voice coil

Audiophile-grade subwoofer with maximum versatility

The Helix IQ W8-DVC2 is built for music enthusiasts who want both powerful output and high sound quality. The proprietary Tuneable Mass System (TMS) allows precise customisation of the bass response so the driver can perform at its best in any application — whether in a compact sealed enclosure or a high-output bass reflex system.

• Audiophile-grade subwoofer — delivers superior low-frequency extension and accurate dynamics
• Engineered for high power — handles up to 750W RMS for demanding system designs
• Proprietary Tuneable Mass System (TMS) — adjustable cone weight allows fine-tuning of Thiele-Small parameters before and after installation
• Powerful deep bass, unique dynamics — 3-layer fibreglass-Mylar honeycomb cone for maximum precision and optimum internal damping
• Flexible connection — 2 x 2 ohm dual voice coil for flexible system configuration
• Compact enclosure compatibility — designed for space-saving installations
• Versatile in use — suitable for sealed and bass reflex enclosures for maximum flexibility in system design
• Sophisticated design — meticulously developed die-cast aluminium basket with an integrated grille for durability

Engineered for high power and deep bass performance

With a recommended power range of 300 to 750W RMS, the IQ W8-DVC2 suits a wide range of applications and is optimised for high-power amplifier configurations, ensuring consistently precise bass reproduction even at extreme levels. Its 3-layer fibreglass-Mylar honeycomb cone provides maximum rigidity and optimal internal damping, minimising distortion and keeping low-frequency performance tight, controlled and dynamic. Exceptional transient response means complex bass passages are reproduced clearly and with precision.

A highly efficient cooling system — featuring a large-diameter vented pole piece and an airflow-optimised basket design — enables continuous air circulation, preventing overheating and thermal compression. This keeps performance consistent even during prolonged high-output use.

Proprietary Tuneable Mass System (TMS) — fine-tuning for your sound

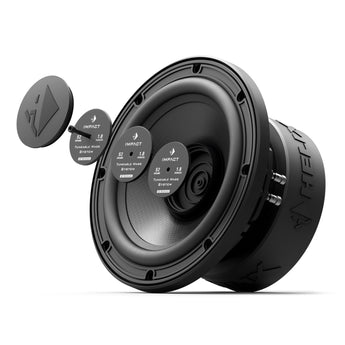

The Tuneable Mass System (TMS) allows you to customise the acoustic characteristics of the subwoofer. By adding or removing specific weights inside the dustcap, the moving mass of the driver can be altered, directly influencing the subwoofer's response and efficiency.

Without additional weight, the subwoofer maintains a higher resonant frequency, giving maximum efficiency and fast transient response — ideal for high-output setups and tight, punchy bass. Adding mass lowers the resonant frequency, delivering deeper, more authoritative bass suited to sealed enclosures or low-tuned bass reflex systems.

This fine-tuning capability allows precise adaptation to enclosure volume and in-car acoustics. A higher moving mass extends low-frequency performance; a lower moving mass improves efficiency and makes the subwoofer suitable for use with moderate amplifier power. This flexibility makes the IQ W8-DVC2 the ideal choice for those seeking ultimate sound precision and adaptability. For those looking to get the most from this flexibility, pairing with a Helix DSP Mini MK2 or similar signal processor can help dial in the system further.

Flexible connection for seamless system integration

The 2 x 2 ohm dual voice coil gives maximum compatibility with a variety of amplifier setups. Depending on the wiring configuration, the driver can be operated at 1 ohm or 4 ohms as well as the standard 2 x 2 ohm configuration, making it suitable for high-power monoblock amplifiers and multi-subwoofer setups alike. This allows seamless integration into both existing and newly designed sound systems.

In sealed enclosures the IQ W8-DVC2 delivers tight, controlled bass with outstanding transient response. In bass reflex systems it provides exceptional low-frequency extension and high output capability — making it adaptable across a wide range of system applications.

Sophisticated and robust construction for long-lasting performance

The IQ W8-DVC2 features a meticulously engineered die-cast aluminium basket that maximises stability and eliminates unwanted resonance, ensuring consistent and precise bass reproduction even during extreme cone excursion.

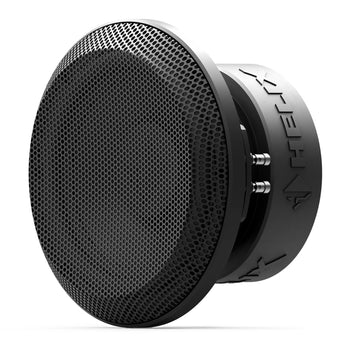

A protective grille is integrated directly into the basket. This provides optimal protection for the cone and allows for clean integration into the vehicle's interior — particularly useful in tight installation spaces or vehicles with limited mounting options. Thanks to its sturdy construction, the IQ W8-DVC2 remains highly durable under heavy loads, delivering consistent sound quality over the long term.
