Helix IK EB6.1-DVC2 Sub Ported 6 Inch Ultra Compact Subwoofer Enclosure 150w RMS

£169.99 Sold out
New

HELIX IK EB6.1-DVC2

The IK EB6.1 proves that outstanding bass performance can come in a remarkably compact package. Thanks to its diminutive design, this subwoofer is the ideal problem solver for particularly space-saving installations, with its form factor making it perfect for integration into unused battery compartments in vehicle interiors.

Compact design, impressive performance

Despite its small dimensions, the IK EB6.1 delivers incredible sound pressure and audio performance comparable to much larger subwoofers. Equipped with a powerful 6” (160 mm) high-excursion woofer featuring an ultra-stiff, hand-scooped paper cone, this subwoofer provides rich, deep bass with impressive dynamics.

Optimized bass reflex enclosure

The sophisticated bass reflex enclosure maximizes sound pressure and low-frequency performance, ensuring a full-bodied bass experience inside the vehicle.

  • Impressive sound pressure and audio performance comparable to larger subwoofers
  • Ultra-compact subwoofer in car battery format allows installation in unused battery compartments in vehicle interiors
  • Bass reflex enclosure technology for maximum sound pressure
  • Powerful 6” / 160 mm high excursion woofer with extremely stiff, hand-scooped paper cone and dual voice coil ensures rich, deep bass
  • Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm

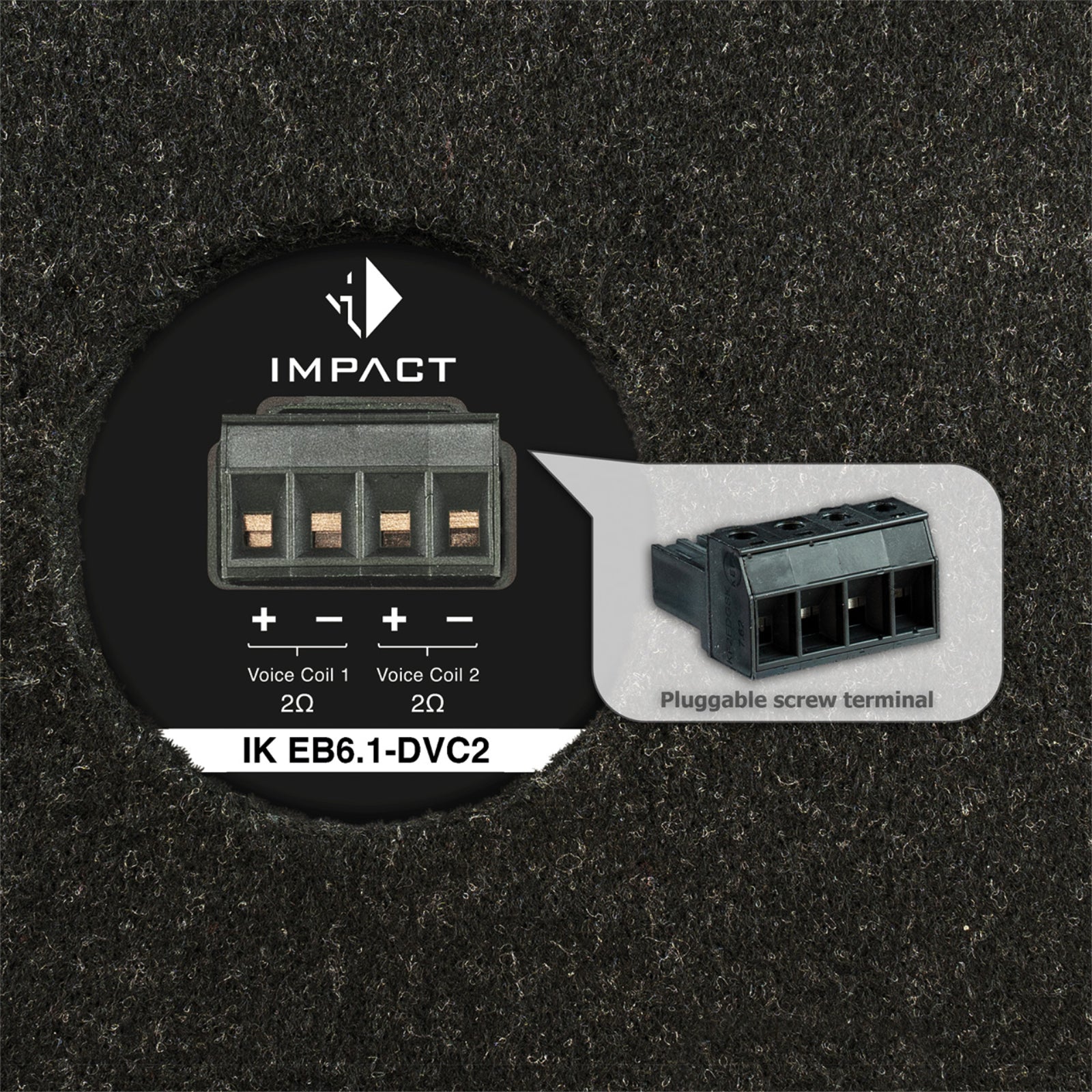

  • Pluggable screw terminal for quick and safe installation and removal

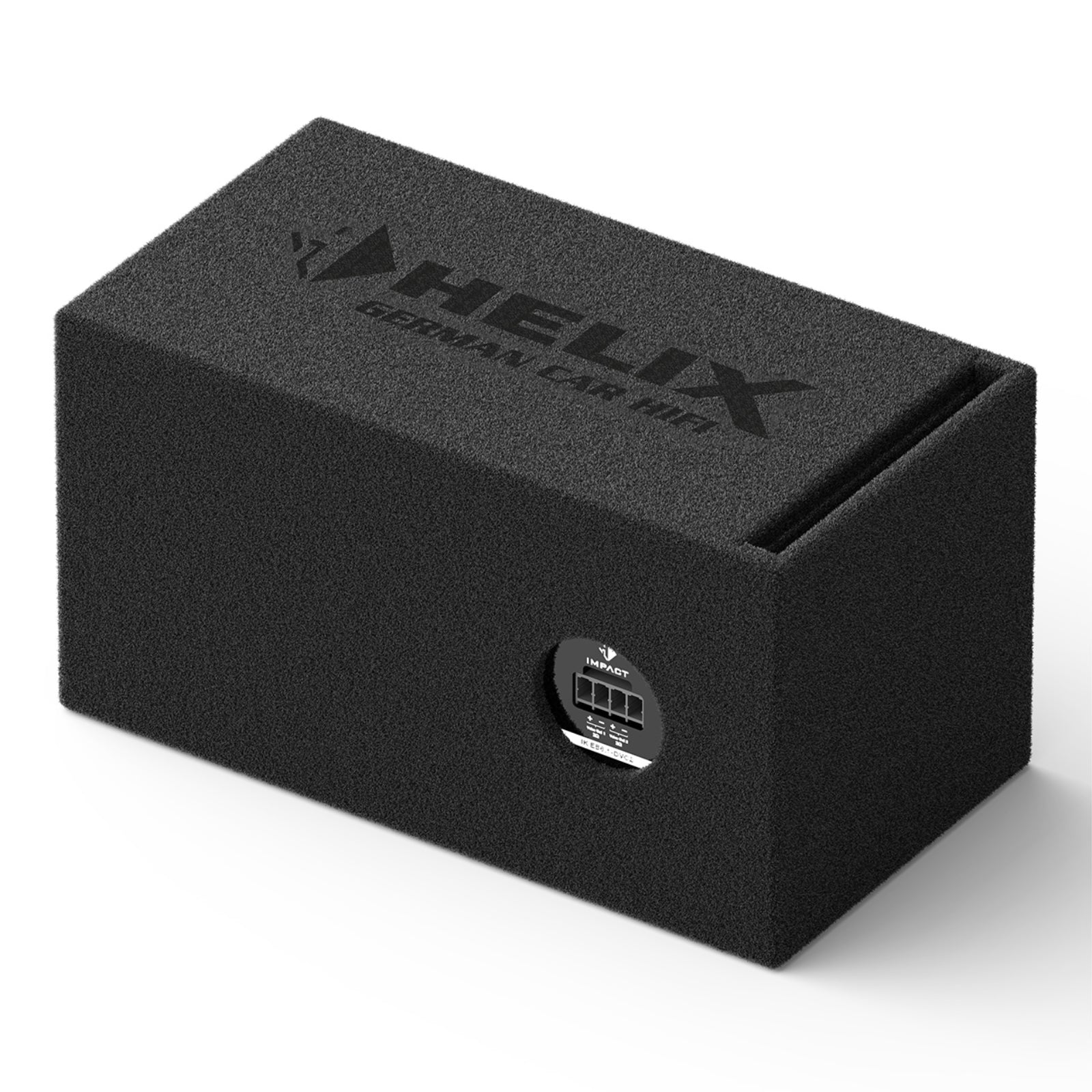

  • Sturdy carpet surface with embroidered HELIX logo

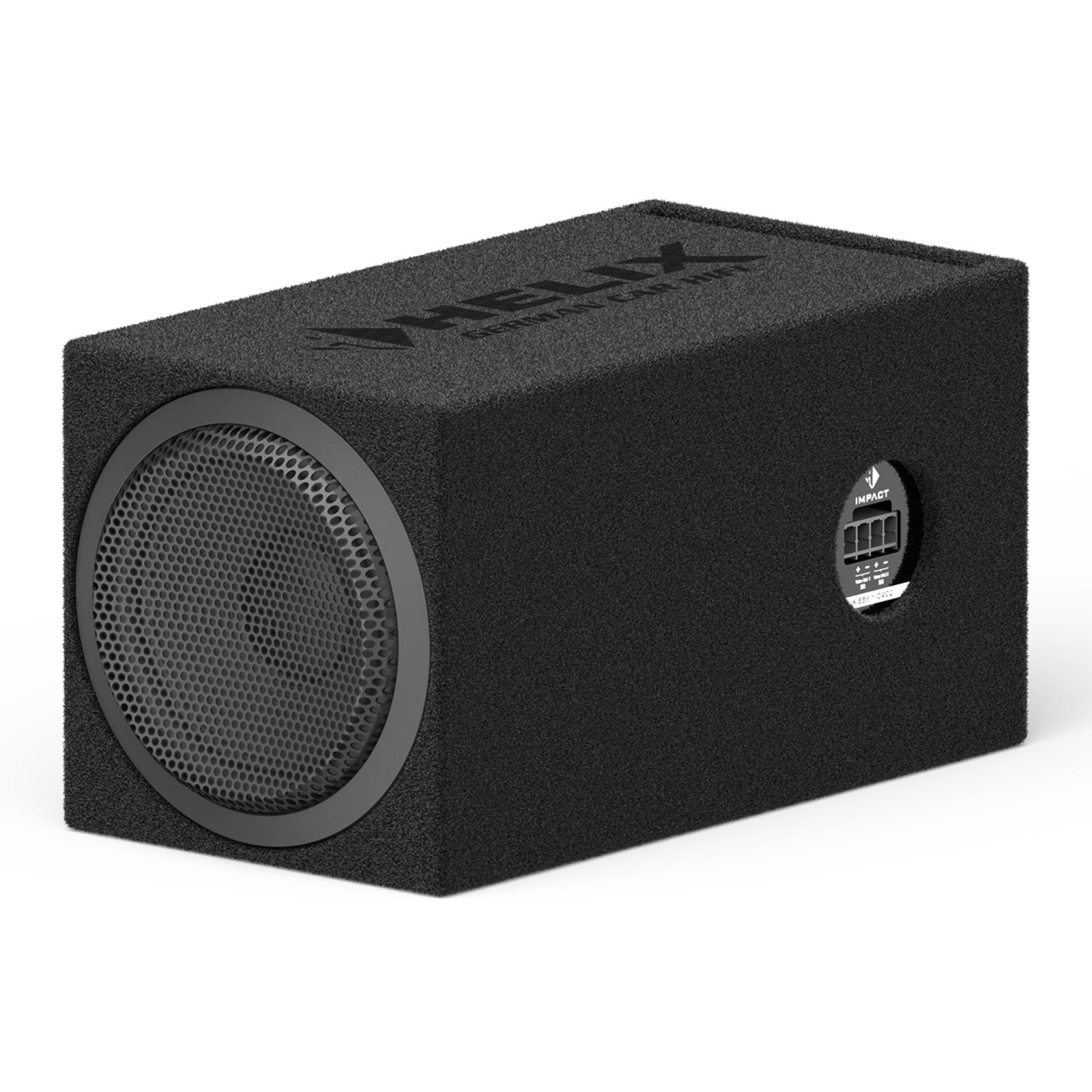

  • Solid metal grille for perfect protection of the woofer cone

Flexible connection

With the option of a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.

Easy installation and robust build

Thanks to the pluggable screw terminal, installation and removal are quick and secure. The sturdy carpet surface with the embroidered HELIX logo adds a touch of style, while the solid metal grille protects the woofer cone from damage, ensuring long-lasting reliability.

Specification

Part Number: IK EB6.1-DVC2

  • Power handling RMS P 150 Watts
  • Recommended amplifier power RMS 75 - 150 Watts
  • Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
  • Max. linear excursion Xmax +/- 6.0 mm
  • Port tuning frequency Fb 48 Hz
  • Sensitivity SPL 89 dB @ 2.83V / 1m
  • 86 dB @ 1W / 1m
  • Dimensions (H x W x D) 175 x 175 x 340 mm /
  • 6.9 x 6.9 x 13.4“
  • Integrated subwoofer chassis HELIX IK W6-DVC2
  • Recommended DSP settings "Self-define" highpass 40 Hz / Q = 1.0;
  • EQ filter: 55 Hz / Q = 2.0 / -2 dB
What's Included

2 Year Warranty

  • Vented enclosure subwoofer HELIX IK EB6.1-DVC2
