Helix Compose i5 Ci5 M80FM-D3 CTR Center Speaker 3 Inch 90w

HELIX Ci5 M80FM-D3 CTR

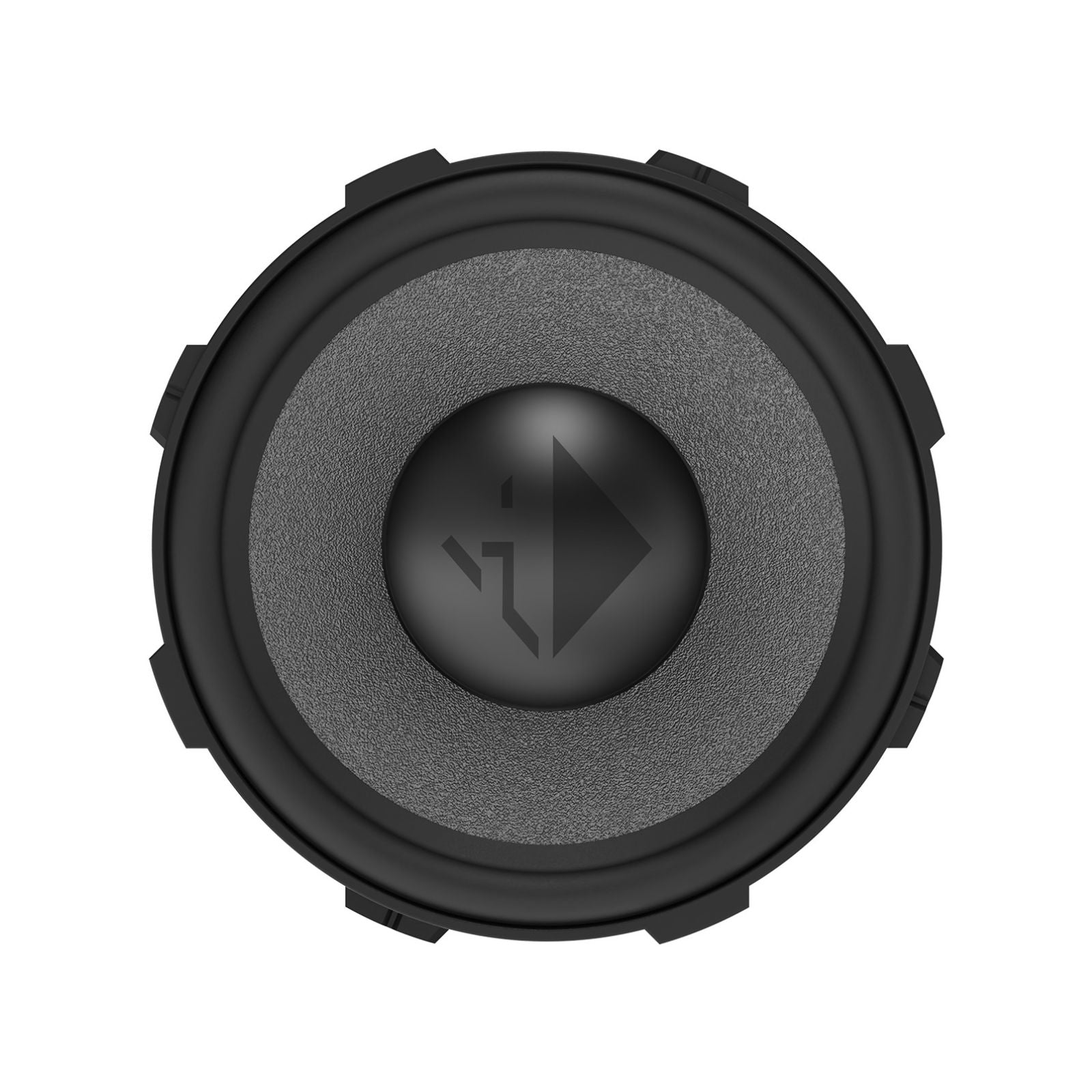

The Ci5 M80FM-D3 CTR has been engineered as an audiophile broadband driver for center-channel applications in high-quality multi-way systems. Its wide linear frequency range, high power handling and generous linear excursion enable exceptionally clear, natural and dynamic sound and speech reproduction – even at high listening levels.

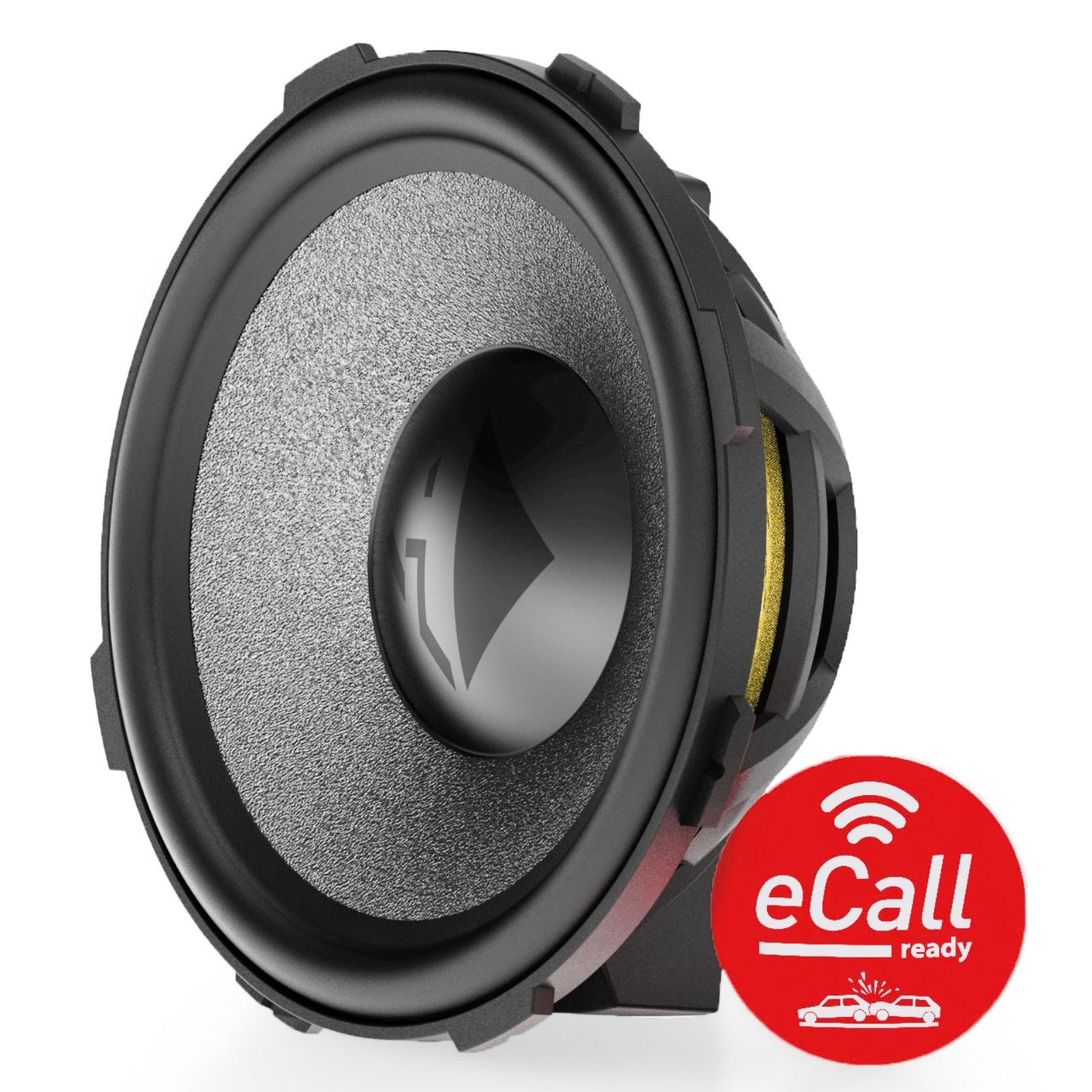

A key feature of the Ci5 M80FM-D3 CTR is its separate voice coil for supporting the vehicle’s automatic emergency call function. While one voice coil carries the music signal, the second provides a separate connection for the factory eCall system. This allows the original center speaker to be replaced with a high-quality audio solution without compromising this essential vehicle function.

Features

• 3.15” / 80 mm advanced center speaker with exceptional sound performance and versatile physical integration options

• Separate voice coil for automatic emergency call function (eCall) compatibility

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 80 mm speakers

• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

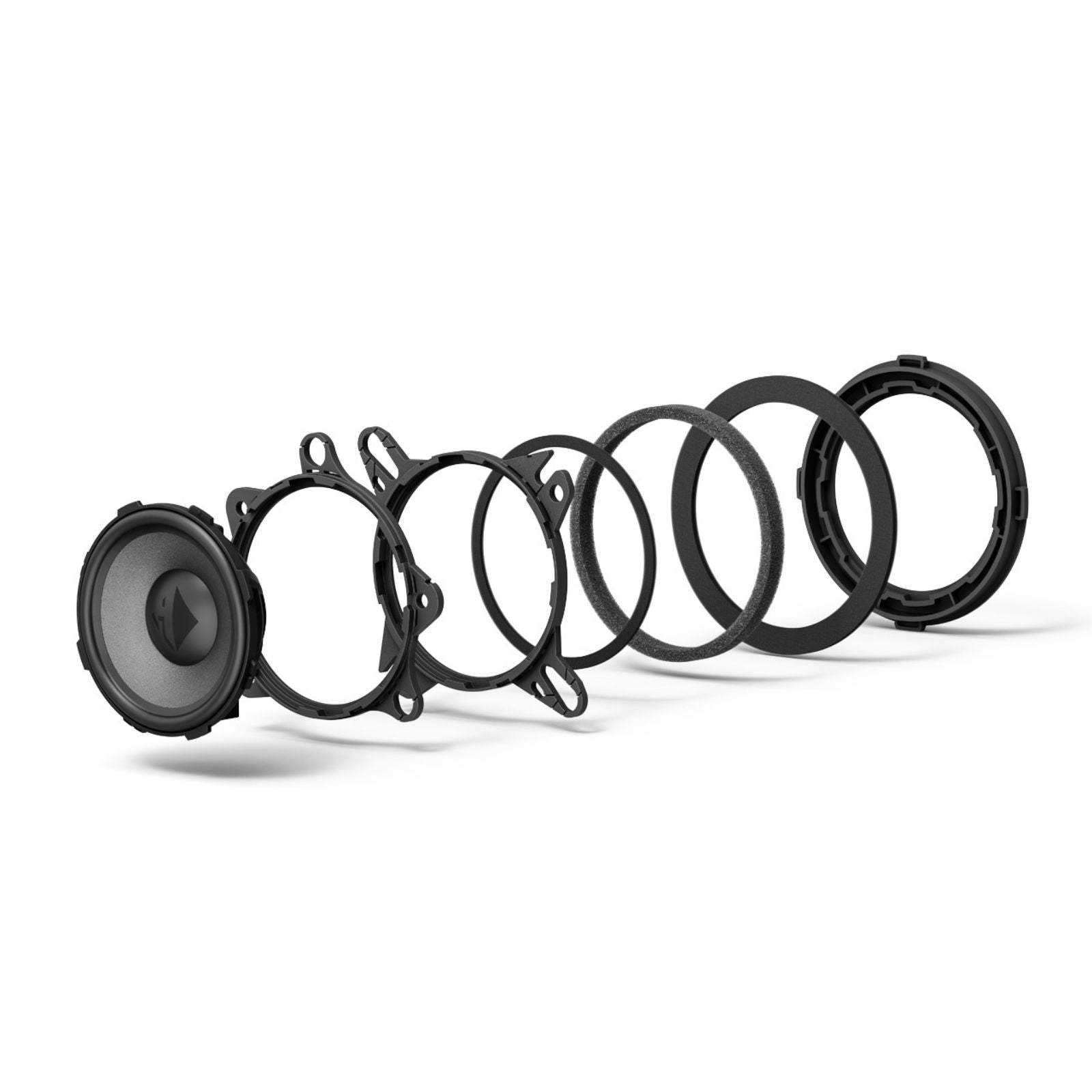

• Two universal FlexMount80 mounting rings for car-specific adaption (e.g. Mercedes, Porsche, Tesla etc.) or universal use included in delivery

• Supplied with CFM80-100 adaptor ring that enables the use of optionally available car-specific FlexMount100 adaptors for an acoustically optimized and professional integration into the vehicle’s original mounting location

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Thanks to its significantly reduced outer diameter compared with conventional 3 inch / 80 mm drivers, the Ci5 M80FM-D3 CTR also offers outstanding integration flexibility – for example in tight factory mounting locations using FlexMount technology, without compromising the cone area. This makes it perfectly suited for demanding multi-way systems, DSP-optimized setups or vehicles where precise sound reproduction and a compact form factor are equally important. In line with its intended use as a center speaker, the Ci5 M80FM-D3 CTR is supplied as a single loudspeaker.
