Helix IK S8-DVC2 8 Inch Dual 2 Ohms Subwoofer 300w RMS
Couldn't Load Pickup availability

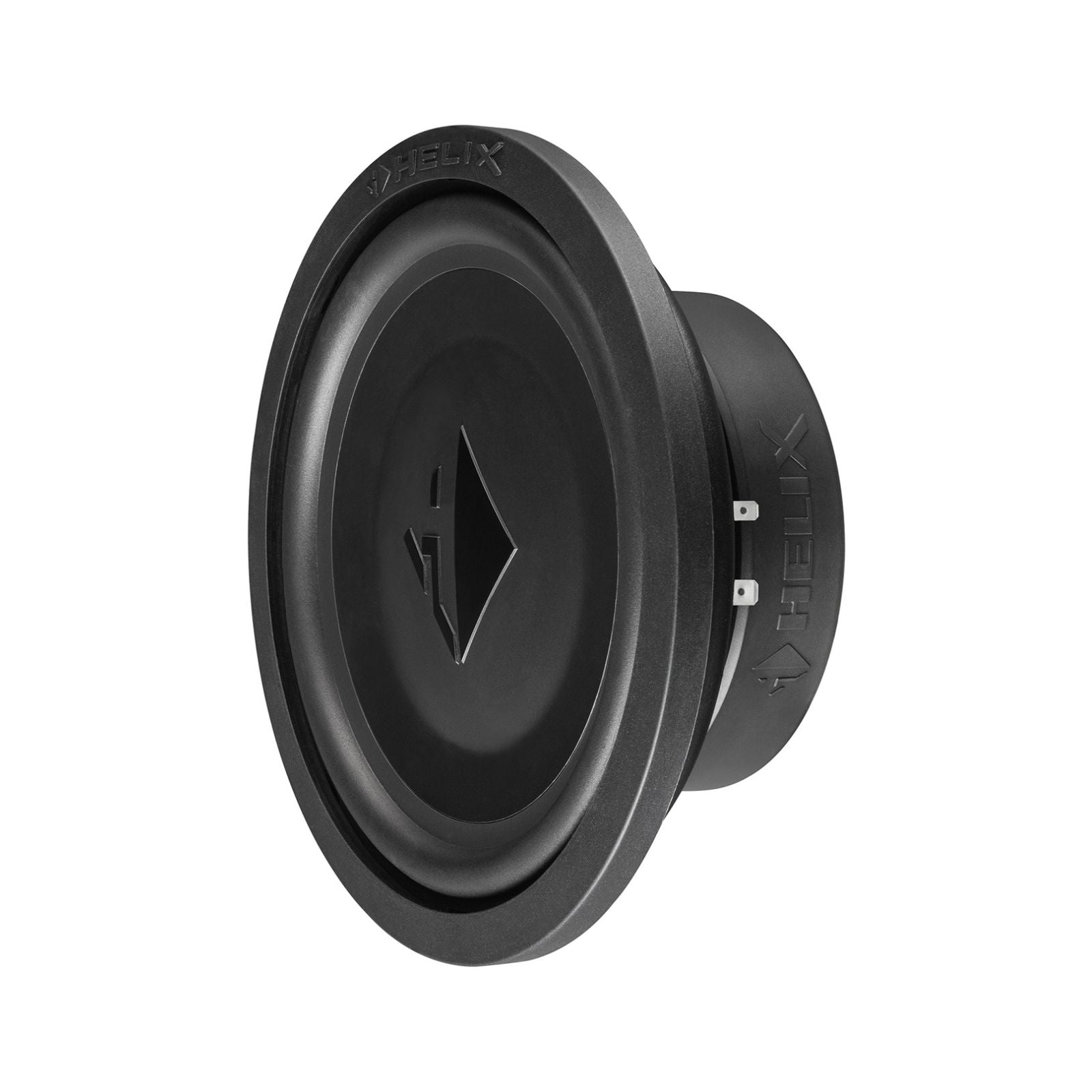

The Helix IK S8-DVC2 is a shallow-mount 8 inch (200 mm) subwoofer from the Helix IK S series, rated at 300W RMS (600W max) with a 2 x 2 ohm dual voice coil and an installation depth of just 79.5 mm.
This listing is the bare driver. It is also available as a ready-made enclosure in the Helix IK E8.1-DVC2 downfire compact subwoofer enclosure.
Key specifications
- Size: 8 inch / 200 mm shallow subwoofer
- Power handling: 300W RMS, 600W max
- Impedance: 2 x 2 ohm dual voice coil
- Sensitivity: 88 dB @ 2.83V / 1m, 85 dB @ 1W / 1m
- Installation depth: 79.5 mm
- Installation diameter: 180.4 mm
- Sealed box: 10 L net
- Vented box: 10 L net, tuned to 39 Hz
Flat dimensions – deep bass

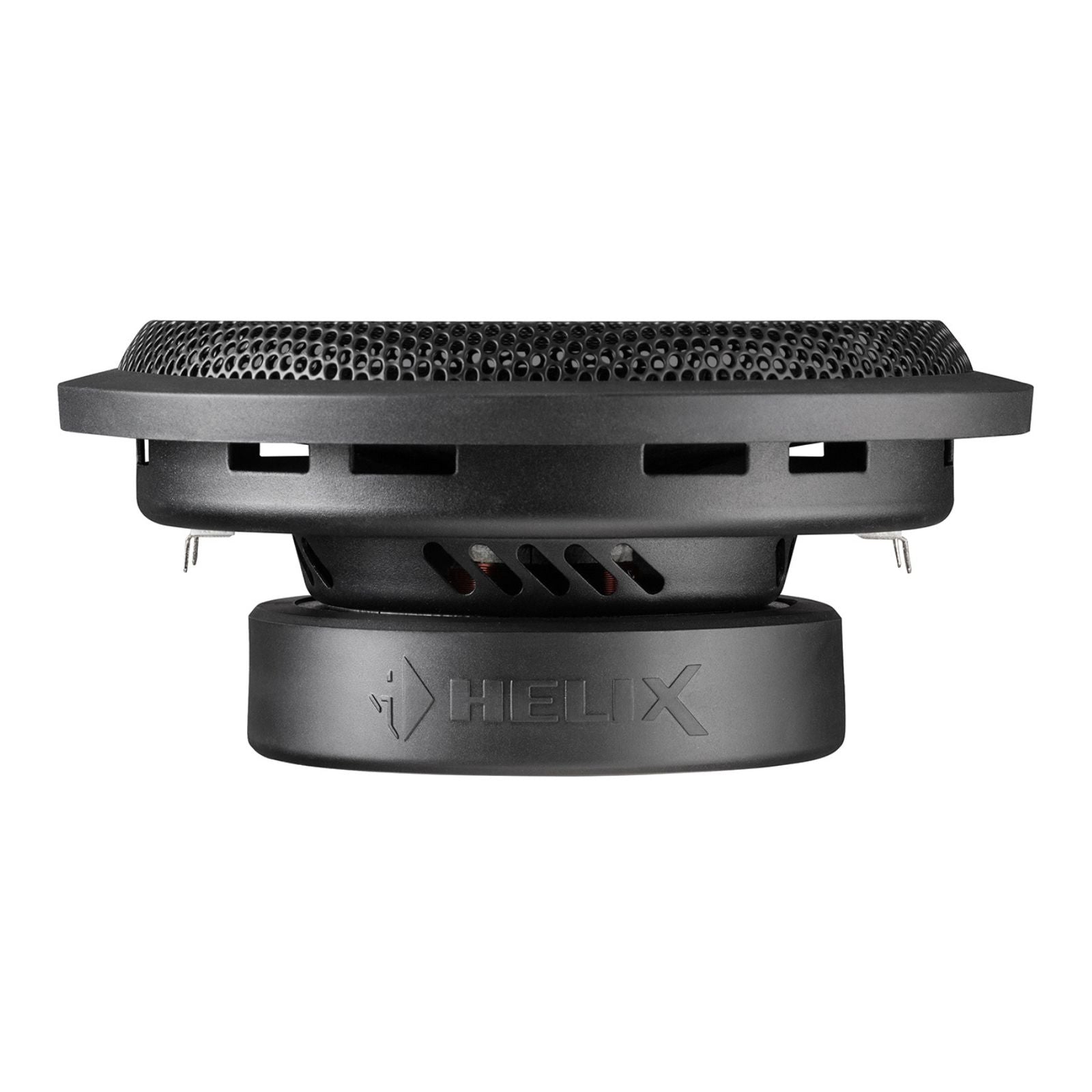

The IK S8-DVC2's 79.5 mm installation depth makes it ideal for compact, flat enclosure builds without acoustic compromise. Large voice coils and a low resonant frequency deliver strong, deep bass performance despite the shallow profile.
Smart down to the very last detail
The stiff sandwich paper cone and heavy-duty drive system convert amplifier power into high sound pressure without compression, while remaining precise on subtle beats. The magnet system features a threaded hole on the rear, allowing the woofer to be bolted directly to the back panel of the enclosure — reducing vibrations even through thin walls.
Flexible connection
Available in 1 x 2 ohm (SVC2) and 2 x 2 ohm (DVC2) variants, the IK S series suits a wide range of amplifier configurations. For the best results, a Helix DSP can be used to dial in the optimal tuning for your enclosure.
"All inclusive" for self-made enthusiasts

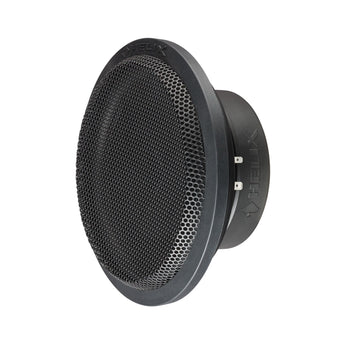

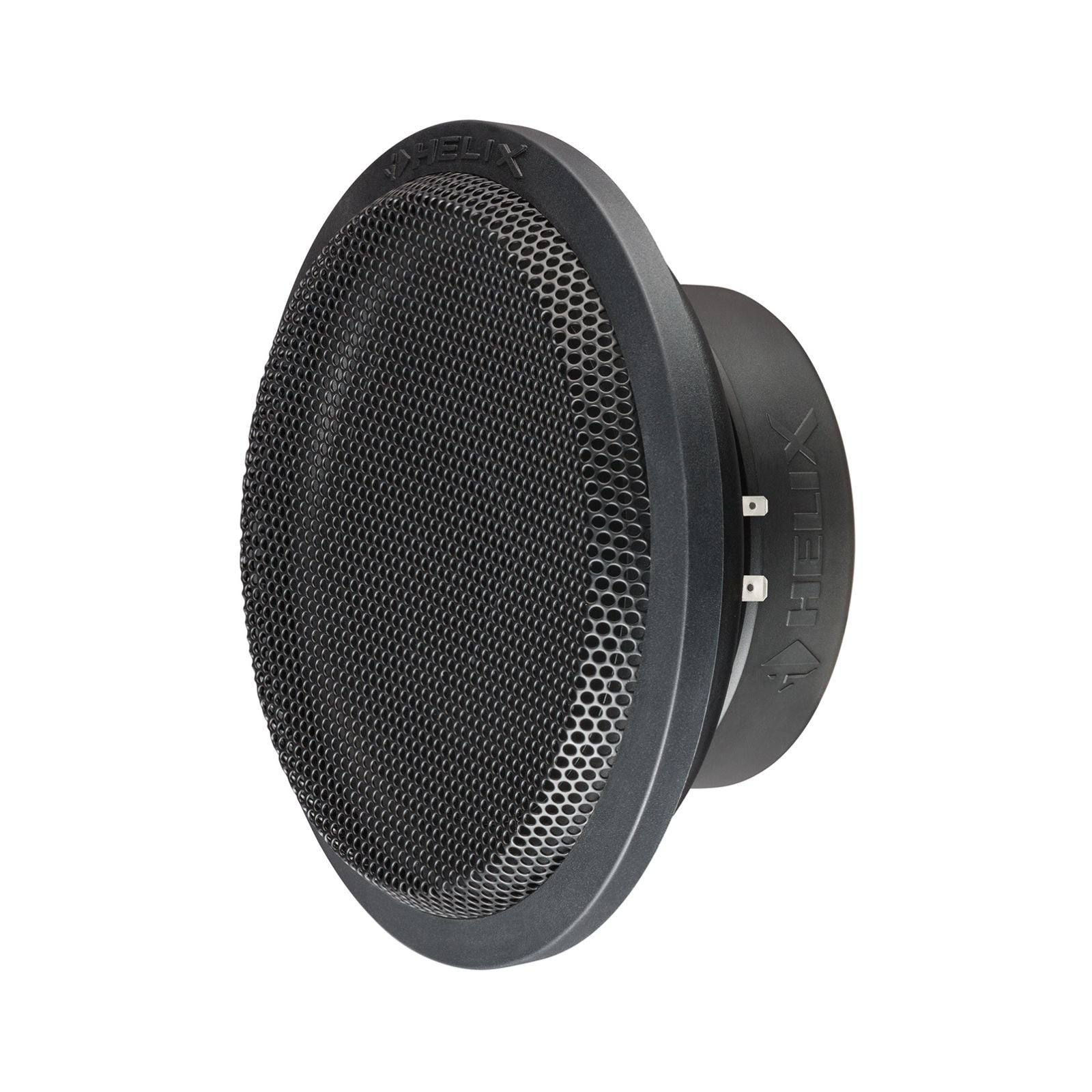

Included in the box: a gold-plated screw terminal connection block, protective grille and gasket. Helix's technical data sheet provides sealed and vented enclosure recommendations covering net volume, port tuning frequency and DSP settings.
Features
- Extremely low installation depth — optimised for compact and shallow enclosure builds
- 2 x 2 ohm dual voice coil for flexible system configuration
- Magnet system with rear threaded hole — mounts to the enclosure back panel to reduce vibrations
- Extremely stiff sandwich paper cone
- Long-excursion rubber surround for high mechanical rating
- Rugged magnet cover with Helix lettering
- Connection terminal, grille and gasket included
Explore the full range in Helix Subwoofers.
Specification
| Power handling | RMS / max 300 / 600 Watts |
|---|---|
| Impedance | 2 x 2 Ω |
| DC resistance | 2 x 1.8 Ω |
| Resonance frequency | 43 Hz |
| Mechanical Q factor | 4.79 |
| Electrical Q factor | 0.57 |
| Total Q factor | 0.51 |
| Compliance | 160 μm/N |
| Equivalent air volume | 11 L |
| Force factor | 11.9 Tm |
| Sensitivity | 88.0 dB @ 2.83V / 1m 85.0 dB @ 1W / 1m |
| Cone | area 222 cm² |
| Moving mass | 82 g |
| Cone | material Sandwich paper cone |
| Mechanical resistance | 4.7 kg/s |
| Voice coil | diameter 50.8 mm |
| Voice coil | winding height 19 mm |
| Max. linear excursion | +/- 6,0 mm |
| Outer diameter | 213 mm / 8.40" |
| Installation diameter | 180.4 mm / 7.10" |
| Installation depth | 79.5 mm / 3.13" |
| Net volume | 10 L |
| Lower limiting frequency (-3dB) | 46 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 46 Hz cut-off frequency and Q = 1.5 additional EQ filter 100 Hz / Q = 1.0 / -2.5 dB |
| Net volume | 10 L |
| Port diameter | 60 mm / 2.36" |
| Port area | 28 cm² |
| Port length | 42 cm / 16.5" (angled port) |
| Port tuning frequency | 39 Hz |
| Lower limiting frequency (-3dB) | 45 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 40 Hz cut-off frequency and Q = 1.2 additional EQ filter 100 Hz / Q = 0.9 / -2 dB |
What's Included
- 1 x Subwoofer HELIX IK S8-DVC2
- 1 x Grille
- 1 x Gasket
- 1 x Connecting terminal
- 1 x Data sheet
Helix
About the Helix K330802
From our tech experts at CEN
The Helix IK S8-DVC2 is a bare 8 inch shallow-mount subwoofer driver, supplied without an enclosure. It is rated at 300 W RMS and 600 W maximum, has dual 2 ohm voice coils and needs just 79.5 mm of installation depth. A grille, gasket and connection terminal come in the box.
Who it suits
Custom builds where depth is tight, such as a flat box under a boot floor or a panel in a van. If you would rather not build a box, the same driver comes ready-mounted in the IK E8.1-DVC2 downfire enclosure.
Our tech experts advise
Helix quotes 10 litres net for both sealed and vented boxes, with the vented version tuned to 39 Hz, and a 180.4 mm cut-out. Wire the dual coils in series or parallel to suit your amplifier's stable load. We build enclosures for the space you have; get in touch with your vehicle details.
Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix
Recommended For You
Discover more top-rated gear, handpicked to go with what you're viewing
Have it Fitted By Our Team
Our team fits car audio, stereos, dash cams and vehicle security at our workshop in Beeston, Nottingham. Tell us your vehicle and we'll confirm the parts and a fitted price.
- 1
Tell us your vehicle
Make, model and year, and what you'd like fitted.
- 2
We confirm the parts
Fascia, wiring and interfaces checked for your car, with a fitted price.
- 3
Fitted at our workshop
Bring it to our Beeston workshop and we do the rest.
Unit 25 Technology Drive, Beeston, Nottingham NG9 1LA
More from Helix Subwoofers
More options from the same range, in stock and ready to go
Staff PickHelix IK EC10.1-DVC2 Sub Compact Under Seat Subwoofer VW Transporter T5 T6 T6.1
£219.99
View product
Helix IK E10.1-DVC2 Subwoofer 10 Inch Downfire Compact Sub Enclosure 300w RMS
£269.99
Helix IQ W8-DVC2 Performance Subwoofer 8 Inch Dual Voice Coil Sub 750w RMS
£339.99
Helix IK E8.1-DVC2 Sub 8 Inch Downfire Compact Subwoofer Enclosure 300w RMS
£209.99
Helix IK E10.1-SVC2 Subwoofer 10 Inch Downfire Compact Sub Enclosure 300w RMS
£269.99
Frequently Asked Questions
Q: What box size does the IK S8-DVC2 need?
A: HELIX recommends a 10 litre net sealed box, or a 10 litre net vented box with a 60 mm diameter, 42 cm long angled port tuned to 39 Hz.
Q: How deep is the IK S8-DVC2?
A: The installation depth is 79.5 mm, with an installation diameter of 180.4 mm and an outer diameter of 213 mm.
Q: What's in the box with the IK S8-DVC2?
A: The subwoofer, a grille, a gasket, a connecting terminal and a data sheet.
Q: Can CEN fit this subwoofer for me?
A: Yes. CEN offers professional installation from our Nottingham premises, including building or supplying a suitable enclosure and wiring the amplifier. Contact us to book or ask for a quote.
