Helix IK S10-DVC2 10 Inch Dual 2 Ohms Subwoofer 300w RMS

The Helix IK S10-DVC2 is a shallow-mount 10 inch (250 mm) subwoofer from the Helix IK S series, rated at 300W RMS (600W max) with a 2 x 2 ohm dual voice coil and an installation depth of just 84.5 mm. Designed for flat, compact enclosures, it includes a connection terminal, protective grille and gasket.

This listing is the bare driver. The Helix IK S series is also available as the IK E8.1-DVC2 8 inch compact downfire enclosure.

Key specifications

• Size: 10 inch / 250 mm shallow subwoofer
• Power handling: 300W RMS, 600W max
• Impedance: 2 x 2 ohm dual voice coil
• Sensitivity: 90 dB @ 2.83V / 1m, 87 dB @ 1W / 1m

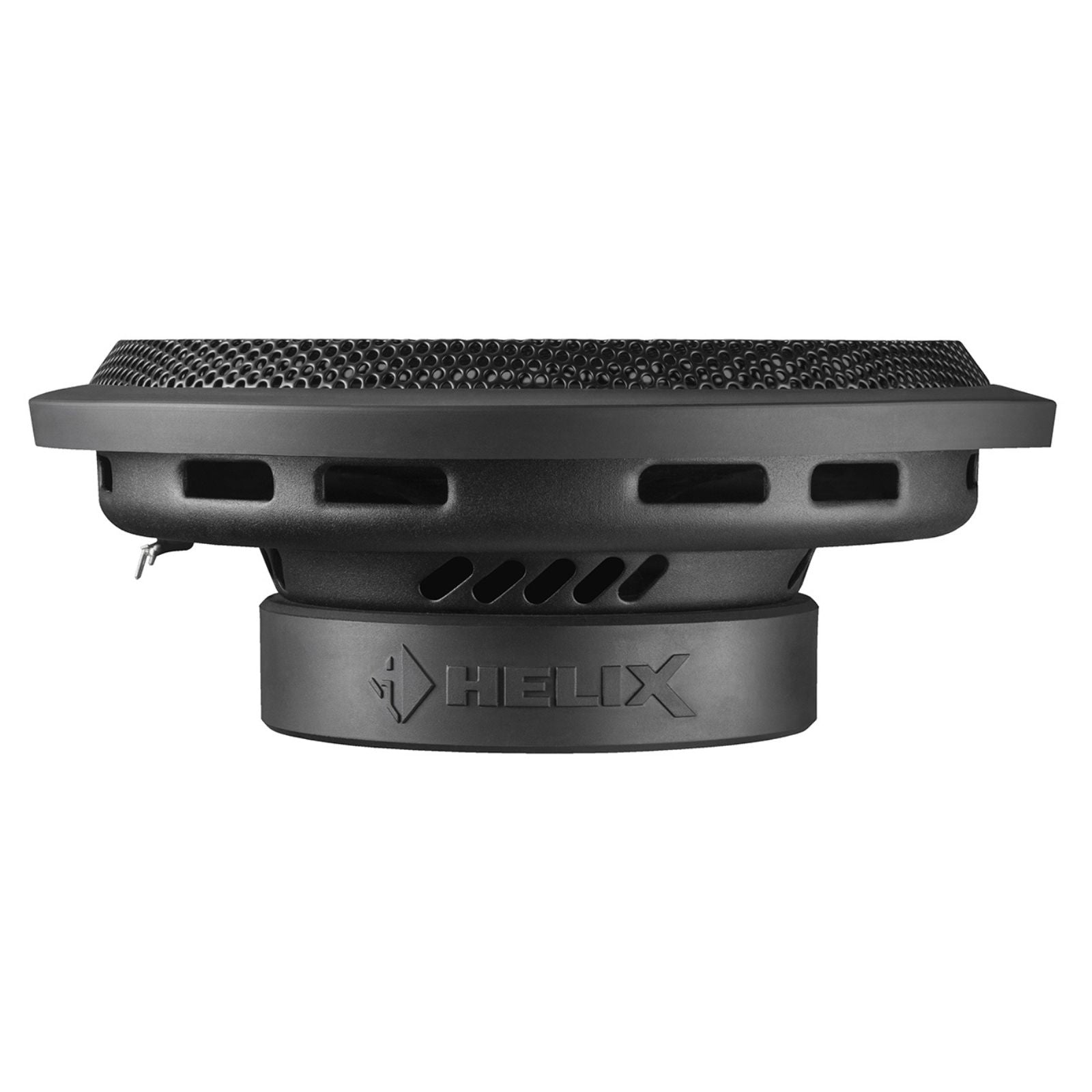

• Installation depth: 84.5 mm
• Installation diameter: 229 mm
• Sealed box: 14 L net
• Vented box: 16 L net, tuned to 37 Hz

Flat dimensions – deep bass

The extremely low 84.5 mm installation depth opens up enclosure options that would not be possible with a conventional subwoofer, without making acoustic compromises. Large voice coils and a low resonant frequency ensure strong, deep bass performance from the compact IK S platform.

Smart down to the very last detail

A stiff sandwich paper cone and heavy-duty drive system convert amplifier power into high sound pressure with no compression effects, while retaining control on subtler material. The magnet system features a threaded hole on the rear, allowing the woofer to be bolted directly to the enclosure back panel — reducing enclosure vibrations even when walls are thin.

Flexible connection

Available as a 1 x 2 ohm (SVC2) or 2 x 2 ohm (DVC2) variant, the IK S series can be matched to a wide range of amplifier configurations for maximum output. Pairing with a Helix DSP Mini MK2 allows precise tuning to your chosen enclosure alignment.

"All inclusive" for self-build installations

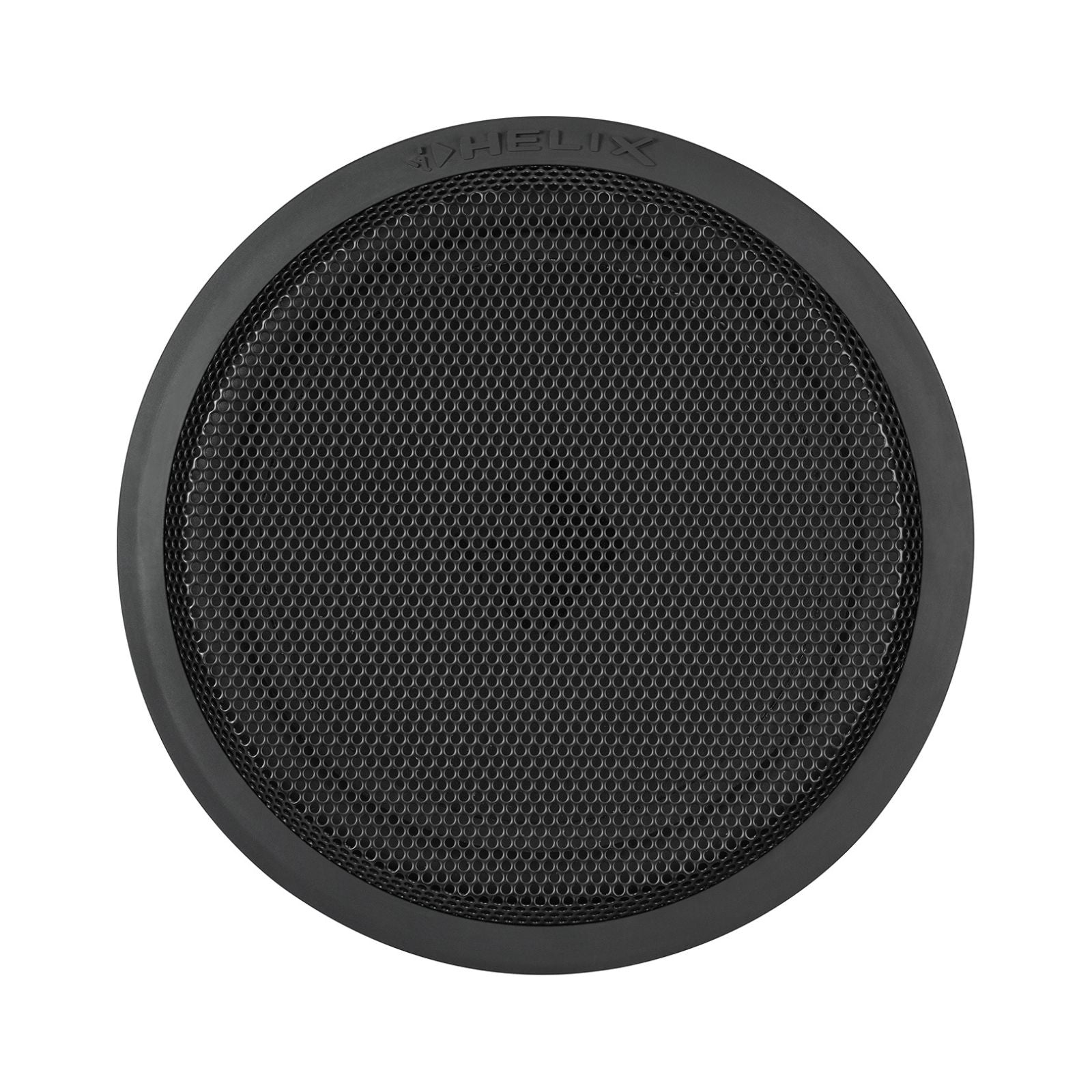

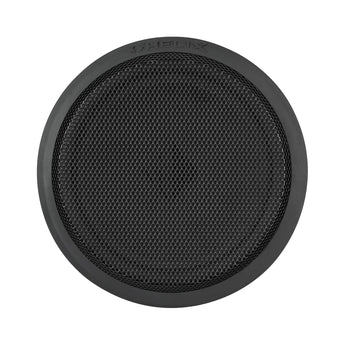

The IK S10-DVC2 includes a gold-plated screw terminal, solid protective grille and gasket. Helix's technical data sheet provides sealed and vented enclosure recommendations including net volume, port tuning frequency and DSP settings.

Features

• Particularly low installation depth — optimised for compact and shallow enclosure builds
• 2 x 2 ohm dual voice coil for flexible system configuration
• Magnet system with rear threaded hole — mounts to enclosure back panel to reduce vibration
• Extremely stiff sandwich paper cone
• Long-excursion rubber surround for highest mechanical rating
• Rugged magnet cover with Helix lettering
• Enclosure connection terminal, grille and gasket included
