Helix CWK POR.FX-550CC Compose Adaptor Cable for Porsche

Name: Helix CWK POR.FX-550CC Compose Adaptor Cable for Porsche
Brand: Helix
SKU: 93827
Price: 21.99 GBP
Availability: OutOfStock

£21.99 Out of stock

Out of Stock

SKU: 93827MPN: CWK POR.FX-550CC

Product variants

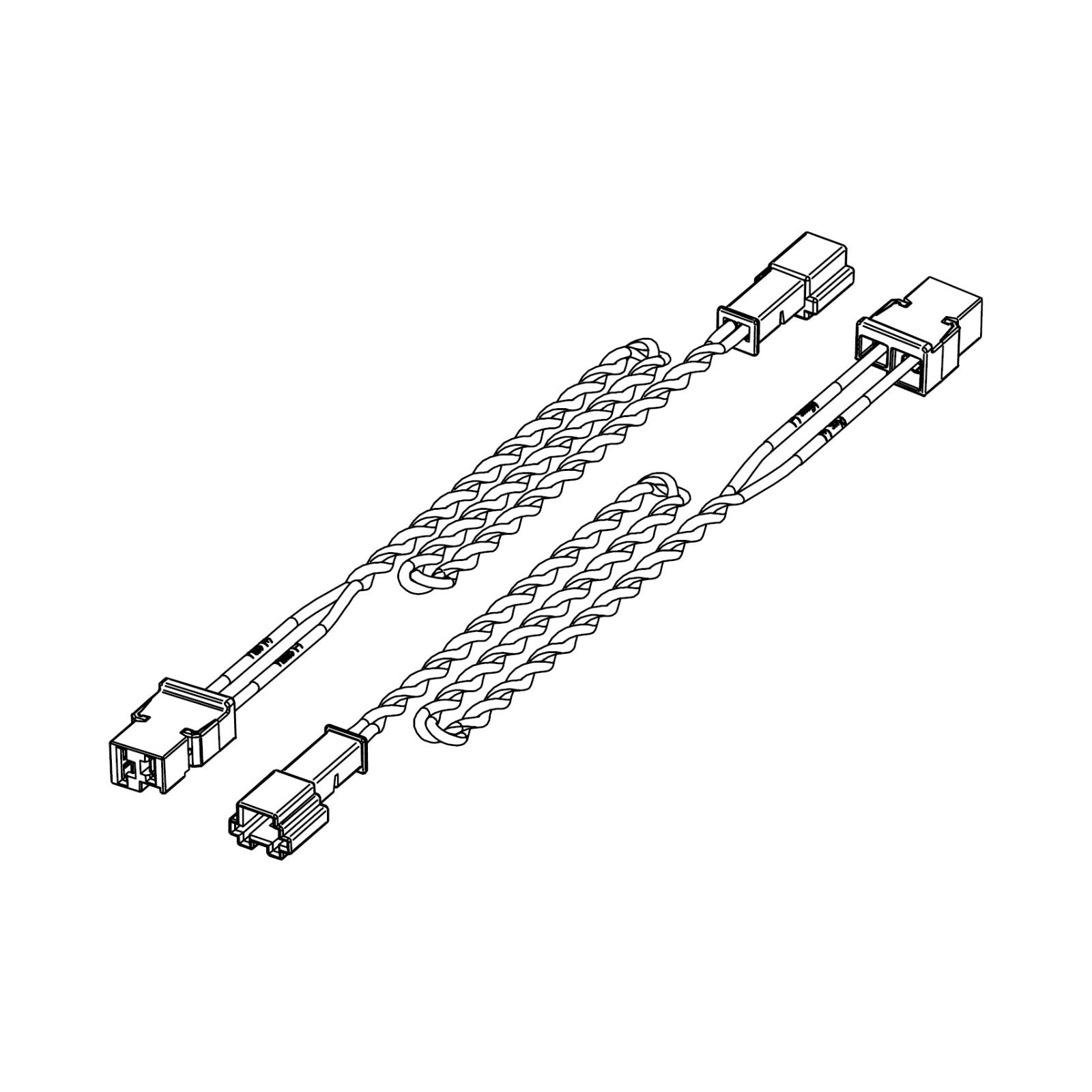

The Helix CWK POR.FX-550CC is a Porsche-specific adaptor cable from the Helix Compose WireKit range, designed to connect Helix Compose crossovers (with Compose Connect technology) to the vehicle's original wiring harness without cutting or soldering. Each pack contains two 0.55 m cables.

Key specifications

Vehicle: Porsche (vehicle-specific plug)
Length: 0.55 m
Connections: 1 x Porsche-specific plug, 1 x Compose Connect plug
Compatible crossovers: Ci7 FX-UNI.2, Ci3 FX-UNI.2
Compatible speaker kits: Ci3 K100FM.2-S3, Ci3 K130.2-S3, Ci3 K165FM.2-S3, Ci3 K165FM.2-S2, Ci3 K200FM.2-S3, Ci3 K200FM.2-S2
In the box: 2 x CWK POR.FX-550CC

Helix CWK POR.FX-550CC

Helix WireKits connect Helix Compose crossovers with Compose Connect technology to the vehicle's original wiring harness. Manufactured to automotive industry standards, these adaptor cables are built to handle the demanding environmental conditions found in vehicle installations.

Compose Connect

Compose Connect eliminates the need for soldering or tinkering. It is a plug-in connection system that simplifies car audio installation when used with Helix Compose components. Proprietary plastic housings accept standard flat plugs and couplings, creating a secure, automotive-grade connection that prevents polarity reversal.

Features

Connects Compose crossovers with Compose Connect technology to the vehicle's original wiring harness
Automotive-standard connectors for a safe, reverse-polarity-protected connection

Explore the full range in Cables & Wiring.

Specification

Cable harness length	0.55 Meters / 1.8 feet
Connections	1 x Porsche-specific plug / 1 x COMPOSE Connect plug
Crossovers	Ci7 FX-UNI.2 / Ci3 FX-UNI.2
Speaker Kits	Ci3 K100FM.2-S3 / Ci3 K130.2-S3 / Ci3 K165FM.2-S3 / Ci3 K165FM.2-S2 / Ci3 K200FM.2-S3 / Ci3 K200FM.2-S2

What's Included

2 x CWK POR.FX-550CC

Product information

Helix

About the Helix CI44002

From our tech experts at CEN

The Helix CWK POR.FX-550CC is a pair of 0.55 m WireKit adaptor cables for Porsche. Each has a Porsche-specific plug at one end and a Compose Connect plug at the other, so a Helix Compose crossover connects to the car's original speaker wiring without cutting or soldering.

Who it suits

Porsche owners fitting a Helix Compose component set with the Ci3 FX-UNI.2 or Ci7 FX-UNI.2 crossover, who want the install reversible. Helix lists it for the Ci3 K100FM.2-S3, K130.2-S3, K165FM.2-S3, K165FM.2-S2, K200FM.2-S3 and K200FM.2-S2 kits.

Our tech experts advise

It is a cable, not a crossover, so it only works with crossovers that have Compose Connect sockets. The two cables cover the left and right sides. Factory audio varies by model and year, so get in touch with your Porsche details before ordering.

Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix

Recommended For You

Discover more top-rated gear, handpicked to go with what you're viewing

Helix Compose i3 Ci3 FX-UNI.2 Universal 2 Way Performance Crossover for i3 Series - CEN

Helix Compose i3 Ci3 FX-UNI.2 Universal 2 Way Performance Crossover for i3 Series £69.99

Low stock

Helix Compose i3 Ci3 C130.2-S3 Coaxial 5.25 Inch FlexMount Speakers 90w RMS - CEN

Helix Compose i7 Ci7 FX-UNI.2 Flex Crossover for i7 Series Tweeters, Midrange & Woofer - CEN

Helix Compose i7 Ci7 FX-UNI.2 Flex Crossover for i7 Series Tweeters, Midrange & Woofer £249.99

In stock

Ground Zero GZPK 10XLC-II 10mm² Power Wire Cable Kit 7 AWG £34.99

In stock

VW Volkswagen Transporter T6 USB Port Retention Cable for Aftermarket Head Units - CEN

Staff Pick VW Volkswagen Transporter T6 USB Port Retention Cable for Aftermarket Head Units £40.00

Low stock

Audison Prima SSP Replacement Sub Smart Plug for APBX 10 AS & APBX 8 AS - CEN

Audison Prima SSP Sub Smart Plug and Remote Bass Control APBX 10 AS & APBX 8 AS - CEN

Best Seller Audison Prima SSP Replacement Sub Smart Plug for APBX 10 AS & APBX 8 AS £39.99

In stock

Staff Pick Ground Zero GZPK 10X-II 10mm² High Quality Cable Kit 7 AWG £34.99

In stock

Connection First FSK 350 8 AWG Amplifier Wiring Kit & RCA Cable 60A Fuse - CEN

Connection First FSK 350 8 AWG Amplifier Wiring Kit & RCA Cable 60A Fuse £86.00

Low stock

Staff Pick Viofo USB C SSD Hard Drive Data Cable 2.5m for A329 & A329S Series Dash Cameras £21.95

In stock

Connection First FPK 700 4 AWG Amplifier Power Wiring Kit 80A Fuse - CEN

Connection First FPK 700 4 AWG Amplifier Power Wiring Kit 80A Fuse £96.00

Low stock

Best Seller BlackVue 6m Coaxial Video Rear Camera Cable for Dual 2 Channel Dash Cam £39.95

In stock

Frequently Asked Questions

Q: What does the HELIX CWK POR.FX-550CC do?

A: It connects a HELIX COMPOSE crossover with COMPOSE Connect technology (Ci7 FX-UNI.2 or Ci3 FX-UNI.2) to the original speaker wiring harness in a Porsche, using plug-in connectors so no cutting or soldering is needed.

Q: Which HELIX speaker kits is the CWK POR.FX-550CC compatible with?

A: Ci3 K100FM.2-S3, Ci3 K130.2-S3, Ci3 K165FM.2-S3, Ci3 K165FM.2-S2, Ci3 K200FM.2-S3 and Ci3 K200FM.2-S2.

Q: How many cables are in the pack?

A: The box contains 2 x CWK POR.FX-550CC adaptor cables, each 0.55 m long.

Q: Will this fit my Porsche?

A: It has a Porsche-specific plug for the original wiring harness. Contact CEN with your registration and we will confirm it suits your model before you order.
