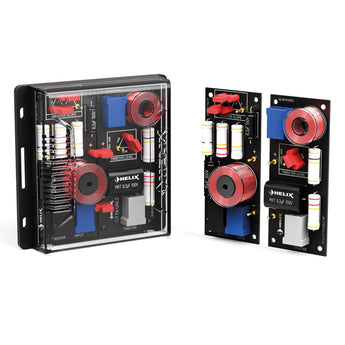

Helix Compose i7 Ci7 FX-UNI.2 Flex Crossover for i7 Series Tweeters, Midrange & Woofer

£249.99
In stock
SKU: 90720MPN: Ci7 FX-UNI.2
Part of the range · 7 productsPart of the Helix Compose i7 range · 7 products See the range →

The Helix Ci7 FX-UNI.2 is a universal 2-way passive Flex-Crossover pair for the Helix Compose i7 speaker series. It features 12 dB highpass and lowpass slopes, 4-stage tweeter level adjustment and 4-stage woofer lowpass adjustment, allowing i7 tweeters and midrange, midbass or woofer drivers to be run from a conventional amplifier without a DSP.

It is designed for the Ci7 T20FM-SC tweeter together with the Ci7 M100FM-S3, Ci7 W130-S3, Ci7 W165FM-S3 or Ci7 W200FM-S3, and can also be used with the Ci7 C165.2FM-S3 coaxial.

Key specifications

  • Type: universal 2-way passive Flex-Crossover (pair)
  • Tweeter slope: 12 dB highpass
  • Woofer slope: 12 dB lowpass
  • Tweeter level adjustment: 4-stage, -4 dB to +2 dB
  • Woofer lowpass adjustment: 4-stage
  • Connection: COMPOSE Connect, compatible with WireKits
  • Compatible tweeter: Ci7 T20FM-SC

HELIX COMPOSE — universal speakers evolved

The HELIX COMPOSE platform was developed in response to the demands of modern vehicle installations. It combines classic universal speakers with the advantages of vehicle-specific systems — delivering high efficiency, strong dynamics and quality sound that fits any vehicle.

Ideal frequency separation and flexible integration

The Ci7 FX-UNI.2 crossover is built specifically for Helix Compose i7 components. The 4-stage tweeter level adjustment lets you compensate for different installation positions, while the multiple lowpass filter settings with 12 dB slope allow precise matching to your connected Compose midrange, midbass or woofer driver.

The Flex-Crossover design suits installations where the tweeter and woofer are mounted in separate positions within the vehicle. If you prefer full digital control, Helix also offer DSP options such as the Helix DSP Mini MK2 as an alternative to passive crossovers. The Ci7 FX-UNI.2 is fully compatible with COMPOSE Connect and WireKit technologies for a secure, polarity-safe connection to automotive standards.

COMPOSE Connect

COMPOSE Connect is a plug-in connection system designed to simplify car audio installation with Helix Compose components. Proprietary plastic housings accept standard flat plugs and couplings, creating a secure automotive-standard connection that prevents polarity reversal — no soldering required.

WireKits — plug and play connection

Helix WireKits connect the Compose crossover directly to the vehicle's original wiring harness via arrestable adaptor cables. Built to automotive industry standards, they are designed to withstand the harsh conditions encountered during in-vehicle installation.

Specification
Slope Tweeter12 dB highpass
Woofer12 dB lowpass
More specs
  • 4-stage tweeter level and woofer lowpass filter adjustment for optimized for precise matching to mounting position
  • Extensively fine-tuned with 12 dB slope for tweeter and woofer
  • COMPOSE Connect – Smart, automotive grade connectors for fail-safe and secure installation
  • “Flex-Crossover“ – separable and therefore well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer
  • Designed for optionally available, car-specific WireKits which allow a non-destructive integration
  • Crossovers solely equipped with high grade components for perfect separation of the frequencies and best sound quality
  • Compatible with all COMPOSE i7 loudspeakers
  • Tweeter level adjustment range -4 dB up to +2 dB
  • Features Designed for Ci7 T20FM-SC,
  • 4-stage tweeter level adjustment,
  • 4-stage woofer lowpass filter adjustment to all COMPOSE midrange, midbass and woofer speaker
  • Ci7 T20FM-SC
  • Ci7 M100FM-S3
  • Ci7 W130-S3
  • Ci7 W165FM-S3
  • Ci7 W200FM-S3
What's Included
  • 2 x Ci7 FX-UNI.2
  • 2 x COMPOSE Connect Kit
  • 4 x PCB sleeves
  • 1 x Mounting material
Product information

Helix

About the Helix CI40000

From our tech experts at CEN

The Helix Ci7 FX-UNI.2 is a universal 2-way passive Flex-Crossover pair for the Helix Compose i7 speaker series. It provides 12 dB highpass and lowpass slopes, a 4-stage tweeter level adjustment (-4 dB to +2 dB), and a 4-stage woofer lowpass adjustment. It is designed for the Ci7 T20FM-SC tweeter alongside the Ci7 M100FM-S3, W130-S3, W165FM-S3 or W200FM-S3 woofer drivers.

Who it suits

This crossover suits Compose i7 builders running a standard amplifier without a DSP. The Flex-Crossover design works well when tweeter and woofer mount in separate positions in the vehicle. For full digital control, the Helix DSP Mini MK2 is an alternative.

Our tech experts advise

Use COMPOSE Connect and optional WireKits for a polarity-safe, solder-free connection to your vehicle's original wiring. Adjust the tweeter level setting to suit your mounting position, and choose the appropriate woofer lowpass setting to match your connected driver. Installation is priced per vehicle — visit our Nottingham fitting service for details.

Explore the full Helix range at CEN, with fast UK dispatch and expert advice from our Nottingham team. Shop all Helix

Frequently Asked Questions

Q: Which speakers is the Ci7 FX-UNI.2 designed for?

A: It is designed for the HELIX COMPOSE i7 series: the Ci7 T20FM-SC tweeter with the Ci7 M100FM-S3, Ci7 W130-S3, Ci7 W165FM-S3 or Ci7 W200FM-S3 midrange, midbass or woofer.

Q: Can I adjust the tweeter level on the Ci7 FX-UNI.2?

A: Yes. It has a 4-stage tweeter level adjustment from -4 dB up to +2 dB, plus a 4-stage woofer lowpass adjustment to suit the connected driver and mounting position.

Q: What's in the box with the Ci7 FX-UNI.2?

A: 2 x Ci7 FX-UNI.2 crossovers, 2 x COMPOSE Connect Kit, 4 x PCB sleeves and 1 x mounting material.
